WMB100N04TS
Wayon
Product Name:

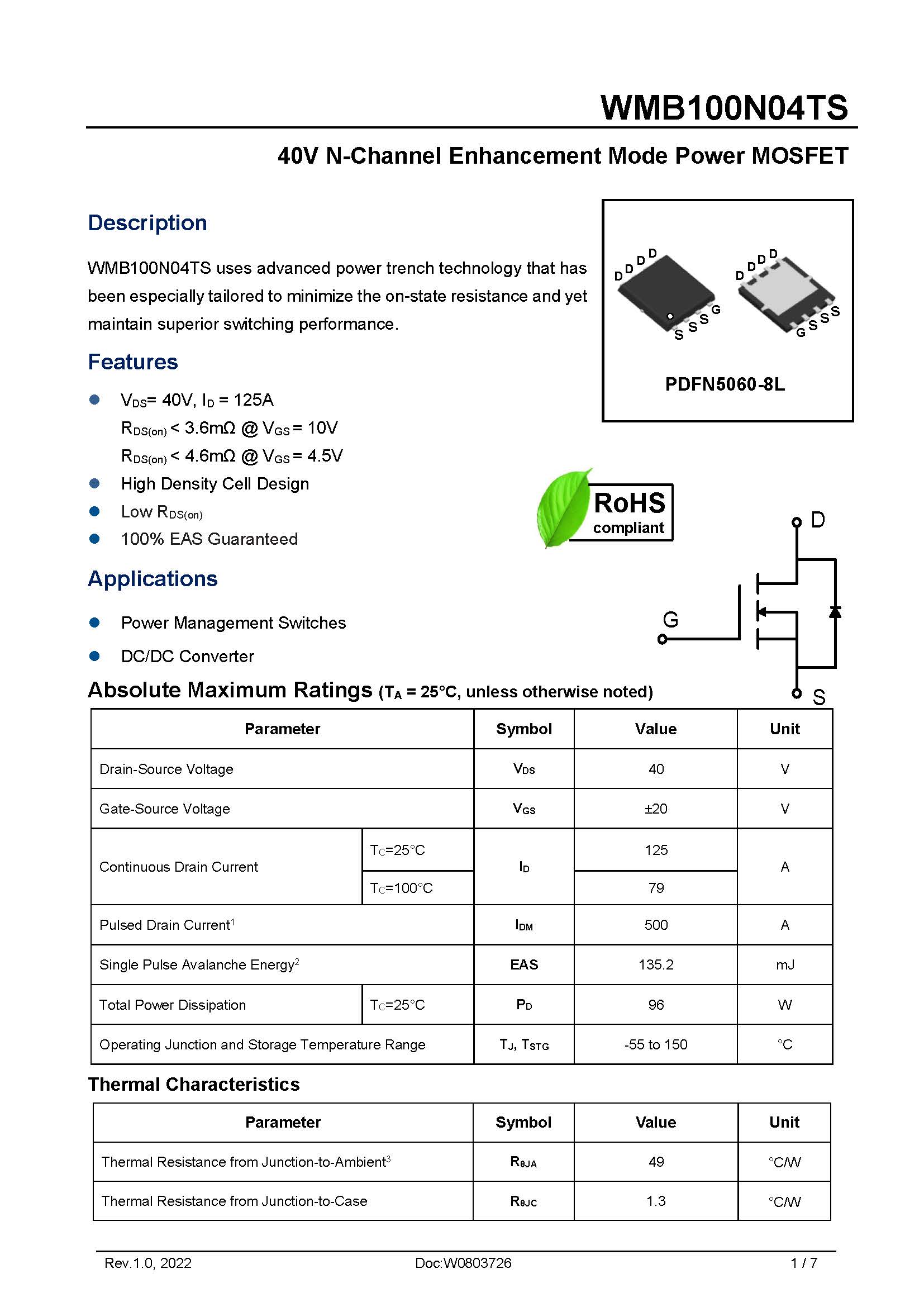

40V N-Channel Enhancement Mode Power MOSFET WMB100N04TS PDFN5060-8L
Product Description:
Description:
WMB100N04TS uses advanced power trench technology that has
been especially tailored to minimize the on-state resistance and yet
maintain superior switching performance
Features:
• VDS= 40V, lD= 125A
• RDS(on)< 3.6mΩ@VGS= 10V
• RDS(on) < 4.6mΩ@ VGS = 4.5V
• High Density Cell Design
• Low RDS(on)
• 100% EAS Guaranteed
Applications:
• Power Management Switches
• DC/DC Converter
Introducing the 40V N-Channel Enhancement Mode Power MOSFET WMB100N04TS PDFN5060-8L, a highly efficient and reliable solution for your power management needs. Designed with utmost precision, this power MOSFET is engineered to minimize the on-state resistance while delivering superior switching performance.
With its advanced technology, this MOSFET ensures optimal power transmission, allowing for seamless operation in various applications. Whether you're working on power supplies, motor control, or LED lighting, this product guarantees exceptional performance.
The WMB100N04TS PDFN5060-8L is meticulously crafted to provide a low on-state resistance, resulting in reduced power losses and improved overall efficiency. This means you can expect maximum power delivery without compromising on performance.
Furthermore, this power MOSFET maintains superior switching capabilities, enabling rapid and precise switching transitions. This ensures smooth operation and reliable performance even in high-frequency applications.
Rest assured, this product adheres to the highest industry standards, guaranteeing exceptional quality and reliability. It is built to withstand the demands of rigorous environments, making it an ideal choice for both commercial and industrial applications.
In summary, the 40V N-Channel Enhancement Mode Power MOSFET WMB100N04TS PDFN5060-8L is a professional-grade solution that combines low on-state resistance with superior switching performance. Experience enhanced power management like never before with this top-of-the-line MOSFET.
Product Specifications:
