English
SS54L
矽润(X-semi)
Product Name:

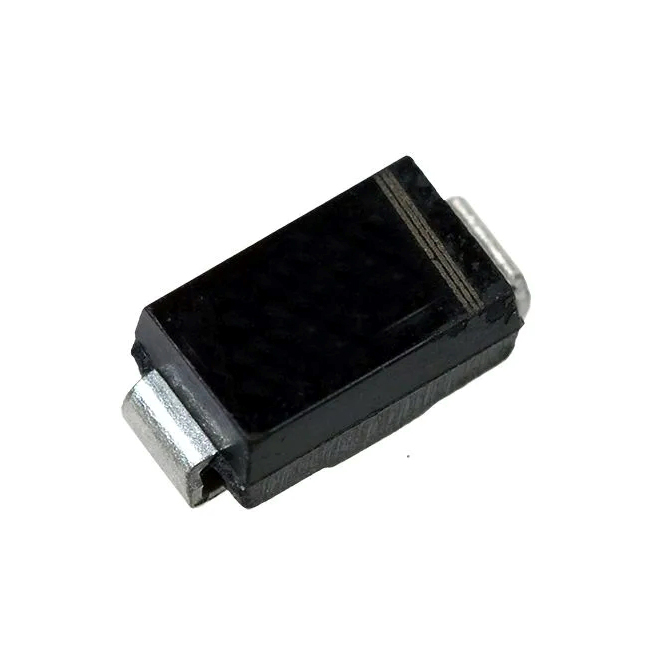

5.0Amp Surface Mounted Schottky Barrier Rectifiers SS54L SMB DO-214AA
Product Description:
Mechanical Data：
● Case : Molded plastic body
● Terminals : Solderable per MIL-STD-750, Method 2026
● Polarity : Polarity symbol marking on body
● Mounting Position: Any
● Weight : 0.0035 ounce, 0.098 grams
Features:
● The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
● For surface mounted applications
● Built-in strain relief,ideal for automated placement
● Low reverse leakage
● High forward surge current capability
● High temperature soldering guaranteed 250 C/10 seconds at terminals
Introducing the SS54L SMB Rectifier: the ultimate solution for all your power conversion needs. With its professional-grade design and cutting-edge features, this product is set to revolutionize the industry.
The SS54L SMB Rectifier boasts unparalleled rectification capabilities, ensuring a seamless and efficient conversion of alternating current (AC) to direct current (DC). This feature guarantees a stable and reliable power supply, making it ideal for a wide range of applications.
Crafted with precision and built to last, this rectifier is engineered to deliver exceptional performance in even the most demanding environments. Its robust construction ensures durability, allowing for long-term usage without compromising on efficiency or effectiveness.
Equipped with advanced technology, the SS54L SMB Rectifier offers enhanced control and precision. This enables precise regulation of voltage and current, providing optimal power output for various devices and systems. Whether you require a steady power supply for industrial machinery or sensitive electronic equipment, this rectifier is up to the task.
Furthermore, the SS54L SMB Rectifier is designed with user convenience in mind. Its user-friendly interface allows for easy installation and operation, minimizing downtime and maximizing productivity. With intuitive controls and clear indicators, you can effortlessly monitor and adjust the rectifier to suit your specific requirements.
In addition to its outstanding performance and user-friendly design, this rectifier also adheres to the highest safety standards. It is equipped with multiple safety features, including overvoltage and overcurrent protection, ensuring the protection of both the equipment and the user.
Invest in the SS54L SMB Rectifier today and experience the pinnacle of power conversion technology. With its professional tone, unrivaled features, and exceptional reliability, this product is the perfect choice for businesses and individuals seeking a top-notch rectifier solution.
Product Specifications:

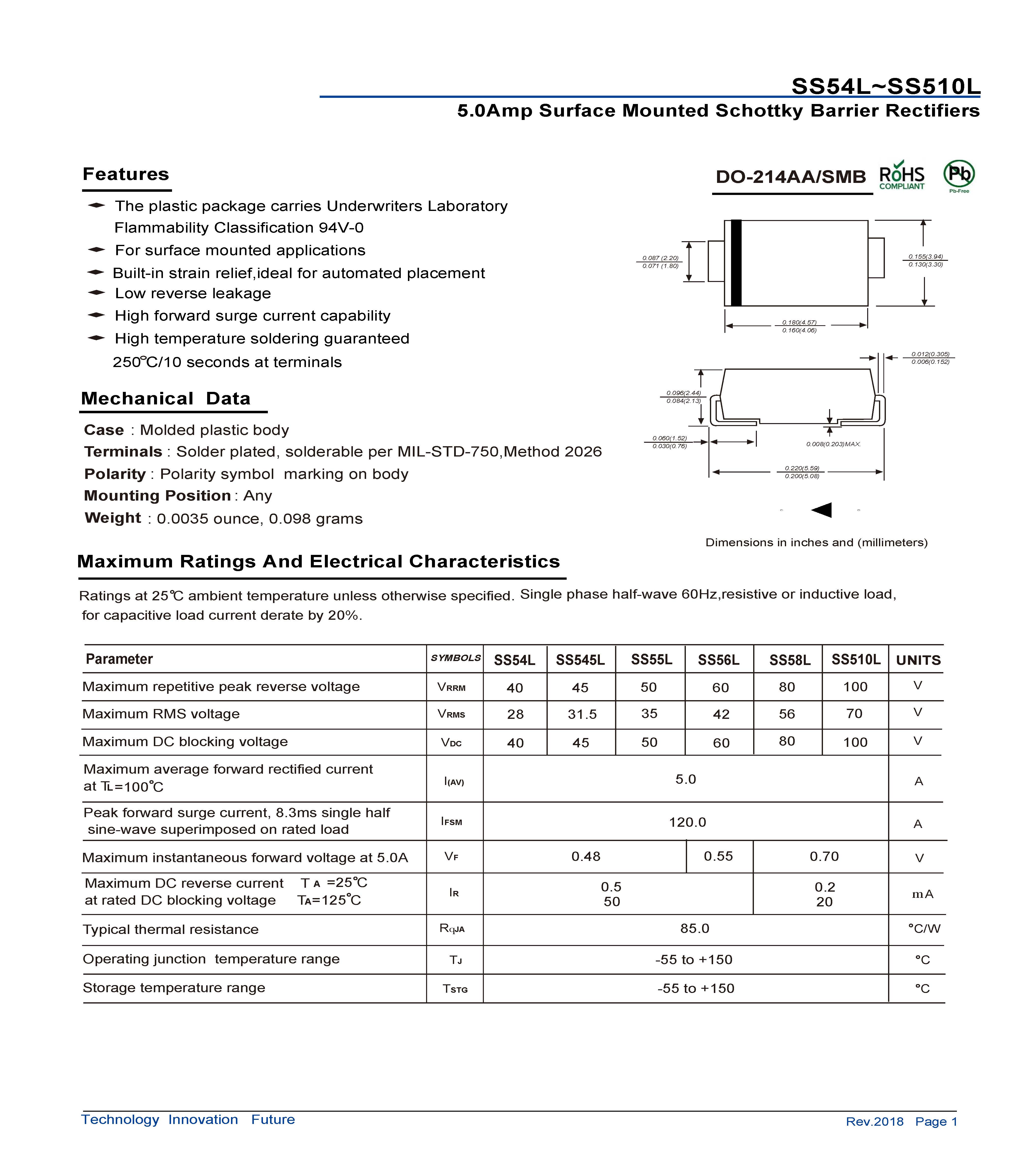

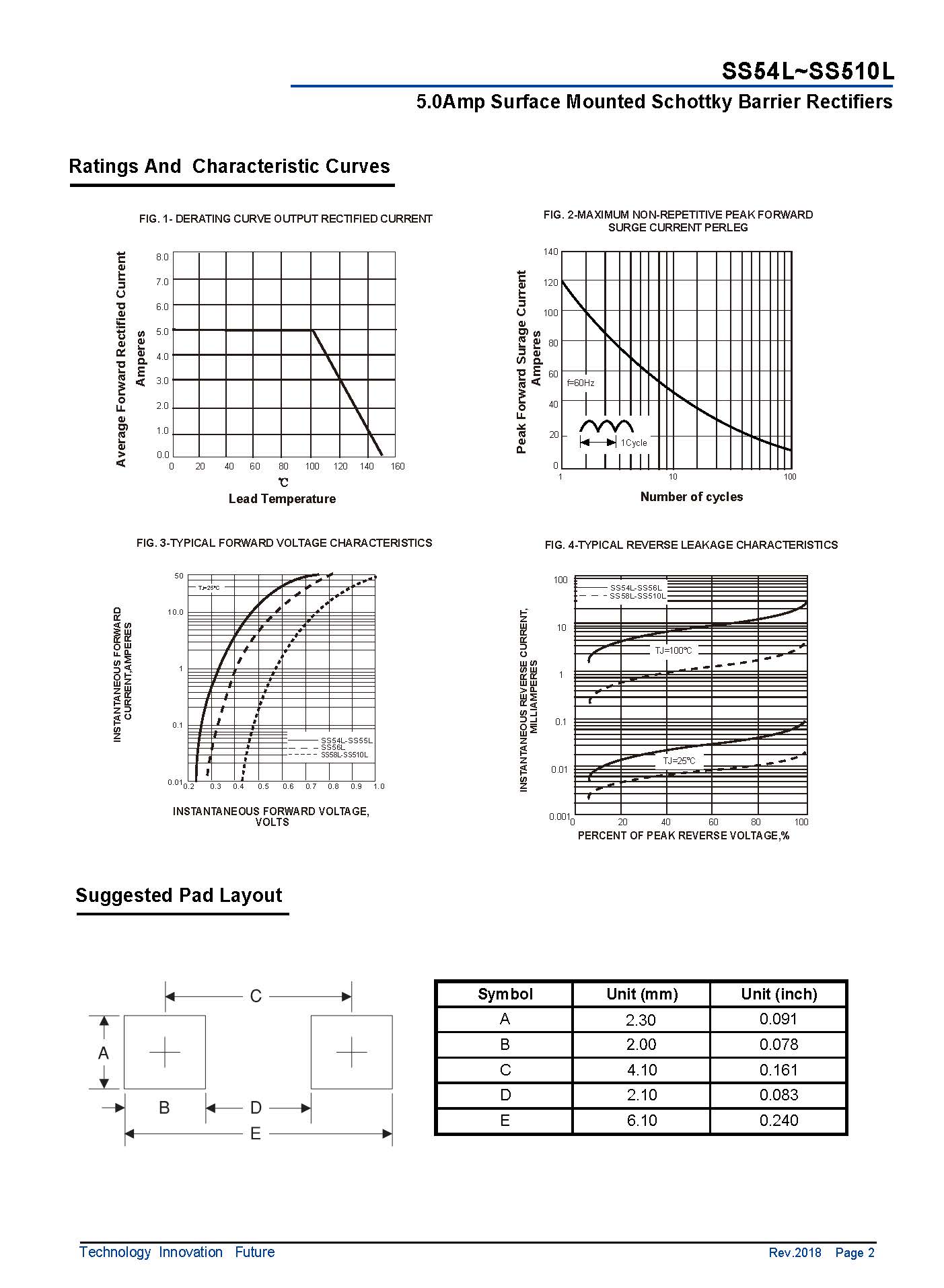

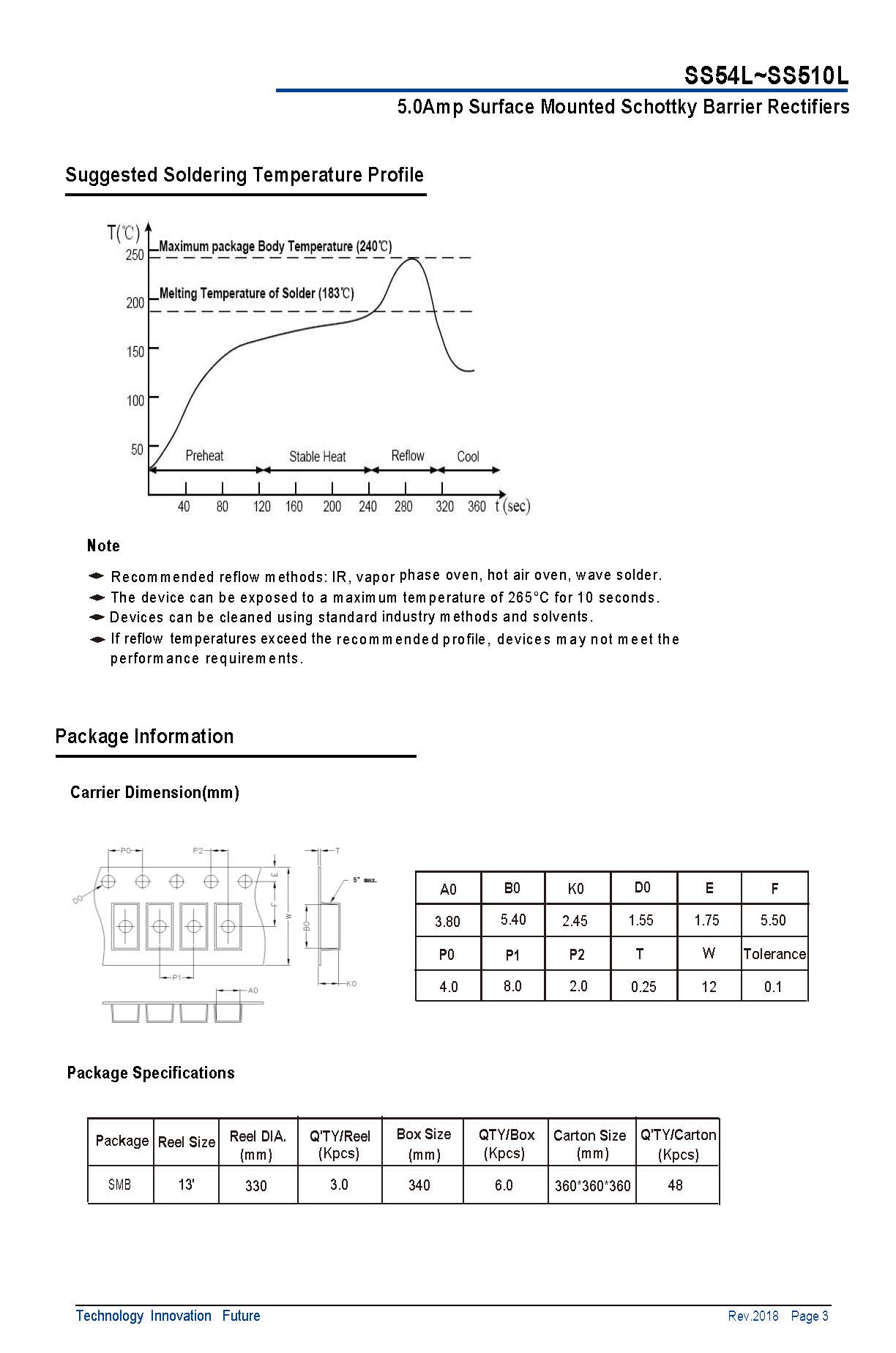

SMB 5.0A SS54LSS510L Data Sheet.pdf
