WMO5N50D1B
Wayon
Product Name:

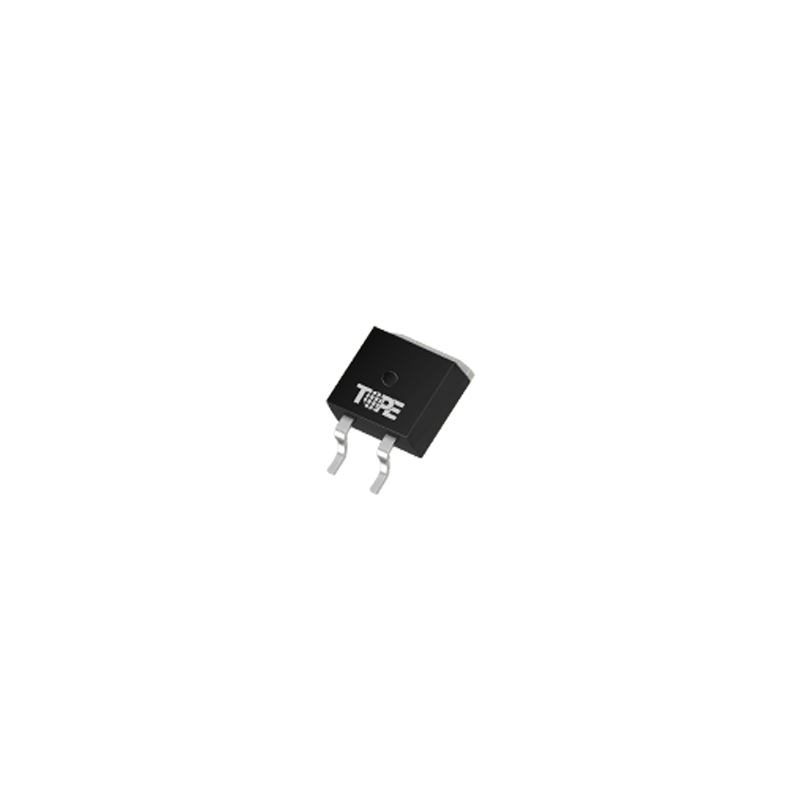

500V 5A 1.35Ω N-ch Power MOSFET WMO5N50D1B TO-252
Product Description:

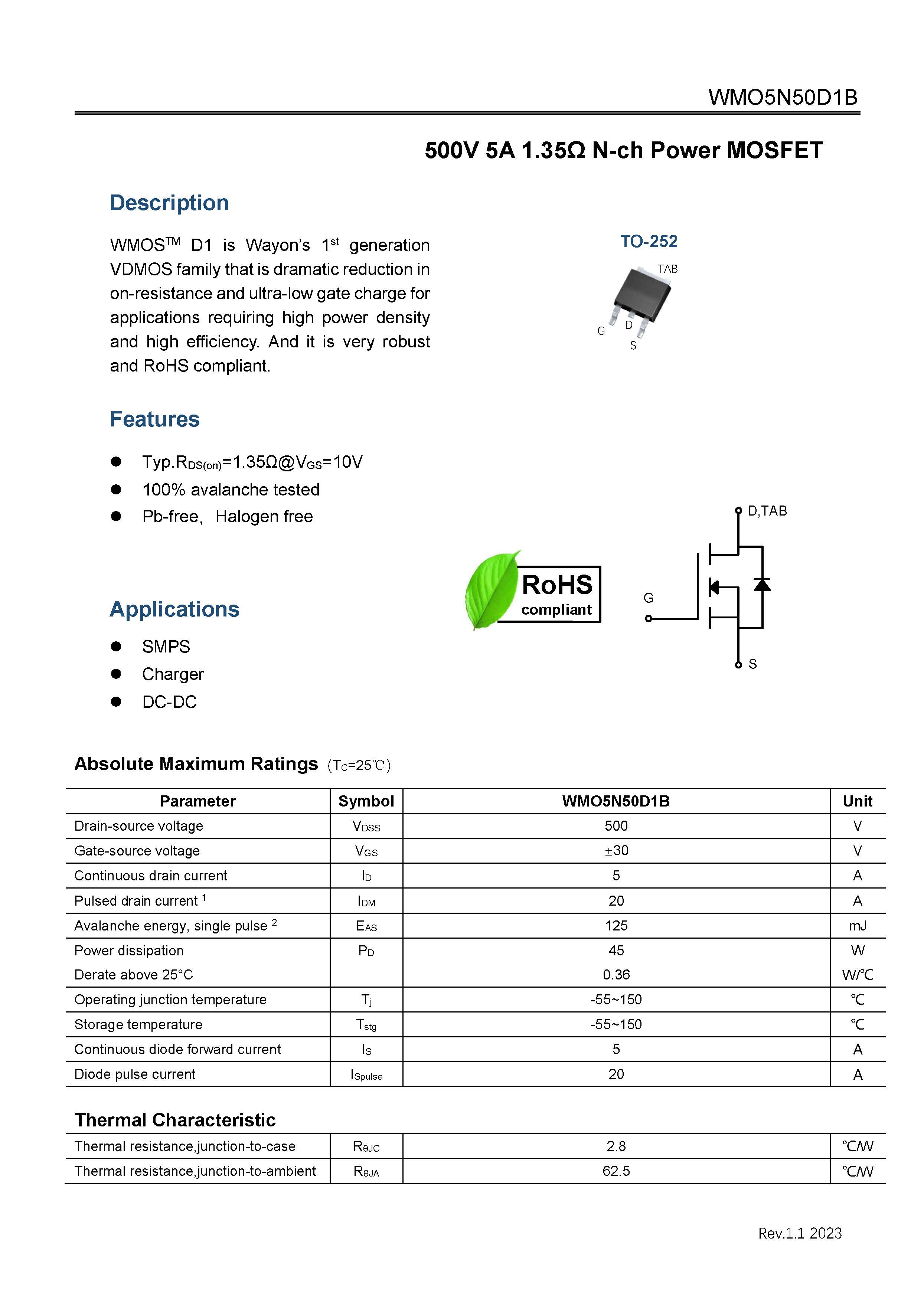

Description：
WMOSTM D1 is Wayon’s 1st generation VDMOS family that is dramatic reduction in
on-resistance and ultra-low gate charge for applications requiring high power density
and high efficiency. And it is very robust and RoHS compliant.
Features：
Typ.RDS(on)=1.35Ω@VGS=10V
100% avalanche tested
Pb-free，Halogen free
Applications：
SMPS
Charger
DC-DC
Introducing the 500V 5A 1.35Ω N-ch Power MOSFET WMO5N50D1B TO-252, a highly efficient and versatile electronic component designed to switch or amplify electronic signals.
This professional-grade power MOSFET offers exceptional performance and reliability, making it an ideal choice for a wide range of applications. With a voltage rating of 500V and a current rating of 5A, it can handle high-power requirements with ease.
The 1.35Ω on-resistance ensures minimal power loss and maximizes efficiency, resulting in improved overall system performance. Whether you need to control voltage levels, regulate current flow, or amplify signals, this MOSFET is up to the task.
Designed with precision and manufactured to the highest standards, the WMO5N50D1B TO-252 guarantees consistent and reliable operation even in demanding environments. Its TO-252 package provides excellent thermal dissipation, ensuring optimal temperature management and prolonging the lifespan of the component.
Trust in the professionalism and quality of the 500V 5A 1.35Ω N-ch Power MOSFET WMO5N50D1B TO-252 for all your electronic signal switching and amplification needs. Experience enhanced performance, efficiency, and reliability with this exceptional power MOSFET.
Product Specifications:
