English
WMJ28N60C4
Wayon
Product Name:
600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247
Product Description:
Description：
WMOSTM C4 is Wayon's 4th generation super junction MOSFET family that is utilizing charge balance technology for extremely low on-resistance and low gate charge performance. WMOSTM C4 is suitable for applications which require superior power density and outstanding efficiency.
Features:
*VDS = 650V Tj,max
*Typ. RDS(on) =0.13ohms *100% UIS tested *Pb-free plating, Halogen free
Applications:
LED Lighting, Charger, Adapter, PC, LCD TV, Server
Introducing the 600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247, a cutting-edge electronic component designed to efficiently switch or amplify electronic signals. With its professional-grade performance and advanced technology, this power MOSFET is the perfect choice for a wide range of applications.
Featuring a voltage rating of 600V, this power MOSFET ensures reliable operation even in high-power circuits. Its low on-resistance of 0.13Ω minimizes power dissipation and enhances overall system efficiency. This translates to reduced energy consumption and improved performance, making it an ideal solution for power electronics applications.
The Super Junction technology employed in this MOSFET enables faster switching speeds, allowing for seamless signal amplification and precise control. This ensures accurate signal transmission and greatly enhances the performance of electronic devices or systems.

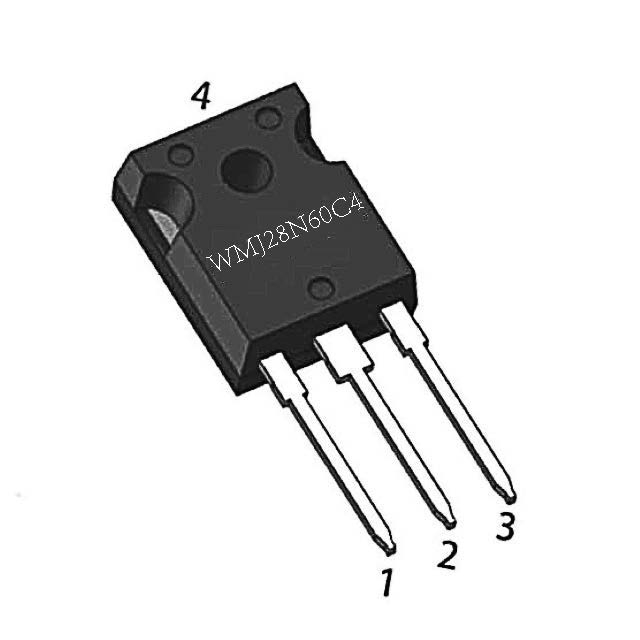

Designed in a TO-247 package, this power MOSFET offers excellent thermal performance and robustness. The TO-247 package allows for efficient heat dissipation, preventing overheating and ensuring long-term reliability. This makes it suitable for demanding environments and applications where high power handling is required.
In summary, the 600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247 is a professional-grade electronic component that excels in switching and amplifying electronic signals. Its high voltage rating, low on-resistance, and advanced Super Junction technology make it an exceptional choice for power electronics applications. Trust in its reliable performance and enjoy enhanced efficiency in your electronic systems.
Product Specifications:
Product Name:
600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247
Product Description:
Description：
WMOSTM C4 is Wayon's 4th generation super junction MOSFET family that is utilizing charge balance technology for extremely low on-resistance and low gate charge performance. WMOSTM C4 is suitable for applications which require superior power density and outstanding efficiency.
Features:
*VDS = 650V Tj,max
*Typ. RDS(on) =0.13ohms *100% UIS tested *Pb-free plating, Halogen free
Applications:
LED Lighting, Charger, Adapter, PC, LCD TV, Server
Introducing the 600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247, a cutting-edge electronic component designed to efficiently switch or amplify electronic signals. With its professional-grade performance and advanced technology, this power MOSFET is the perfect choice for a wide range of applications.
Featuring a voltage rating of 600V, this power MOSFET ensures reliable operation even in high-power circuits. Its low on-resistance of 0.13Ω minimizes power dissipation and enhances overall system efficiency. This translates to reduced energy consumption and improved performance, making it an ideal solution for power electronics applications.
The Super Junction technology employed in this MOSFET enables faster switching speeds, allowing for seamless signal amplification and precise control. This ensures accurate signal transmission and greatly enhances the performance of electronic devices or systems.
Designed in a TO-247 package, this power MOSFET offers excellent thermal performance and robustness. The TO-247 package allows for efficient heat dissipation, preventing overheating and ensuring long-term reliability. This makes it suitable for demanding environments and applications where high power handling is required.
In summary, the 600V 0.13Ω Super Junction Power MOSFET WMJ28N60C4 TO-247 is a professional-grade electronic component that excels in switching and amplifying electronic signals. Its high voltage rating, low on-resistance, and advanced Super Junction technology make it an exceptional choice for power electronics applications. Trust in its reliable performance and enjoy enhanced efficiency in your electronic systems.
Product Specifications:
