GBJ3006
JingHeng
Product Name:

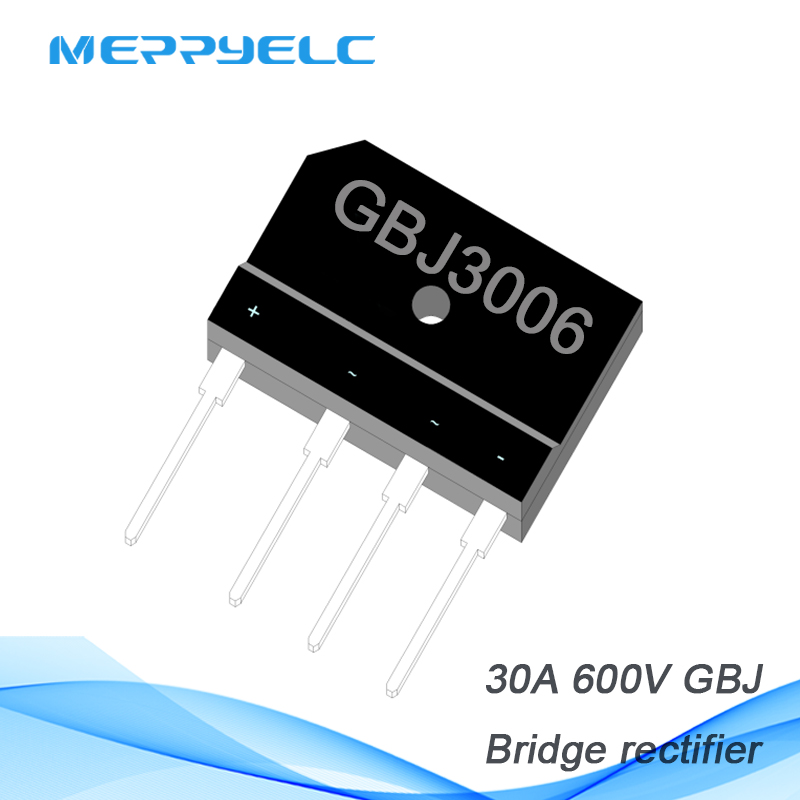

BRIDGE RECTIFIER Reverse Voltage: 100 to 1000 Volts Forward Current: 30.0 Amps GBJ3006 GBJ
Product Description:
Features:
●The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
●Idea for printed circuit board
●Glass passivated junction chip
●Low reverse leakage
●High forward surge current capability
●High temperature soldering guaranteed
260 C/10 seconds at terminals
Mechanical Data:
Case : Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
The BRIDGE RECTIFIER GBJ3006 GBJ is a professional-grade electronic component designed to rectify electrical currents. With a reverse voltage range of 100 to 1000 Volts and a forward current capacity of 30.0 Amps, this bridge rectifier is built to handle high-power applications with precision and efficiency.
Featuring advanced rectification technology, this product ensures reliable and accurate conversion of alternating current (AC) to direct current (DC). Its professional-grade design guarantees exceptional performance and durability, making it suitable for a wide range of industrial and commercial applications.
Whether you need to rectify currents in power supplies, motor drives, or other electrical systems, the BRIDGE RECTIFIER GBJ3006 GBJ is the ideal choice. Trust in its superior quality and precision to deliver optimal results, ensuring smooth and uninterrupted operation of your electronic devices.
Product Specifications:
Product Name:
BRIDGE RECTIFIER Reverse Voltage: 100 to 1000 Volts Forward Current: 30.0 Amps GBJ3006 GBJ
Product Description:
Features:
●The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
●Idea for printed circuit board
●Glass passivated junction chip
●Low reverse leakage
●High forward surge current capability
●High temperature soldering guaranteed
260 C/10 seconds at terminals
Mechanical Data:
Case : Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
The BRIDGE RECTIFIER GBJ3006 GBJ is a professional-grade electronic component designed to rectify electrical currents. With a reverse voltage range of 100 to 1000 Volts and a forward current capacity of 30.0 Amps, this bridge rectifier is built to handle high-power applications with precision and efficiency.
Featuring advanced rectification technology, this product ensures reliable and accurate conversion of alternating current (AC) to direct current (DC). Its professional-grade design guarantees exceptional performance and durability, making it suitable for a wide range of industrial and commercial applications.
Whether you need to rectify currents in power supplies, motor drives, or other electrical systems, the BRIDGE RECTIFIER GBJ3006 GBJ is the ideal choice. Trust in its superior quality and precision to deliver optimal results, ensuring smooth and uninterrupted operation of your electronic devices.
