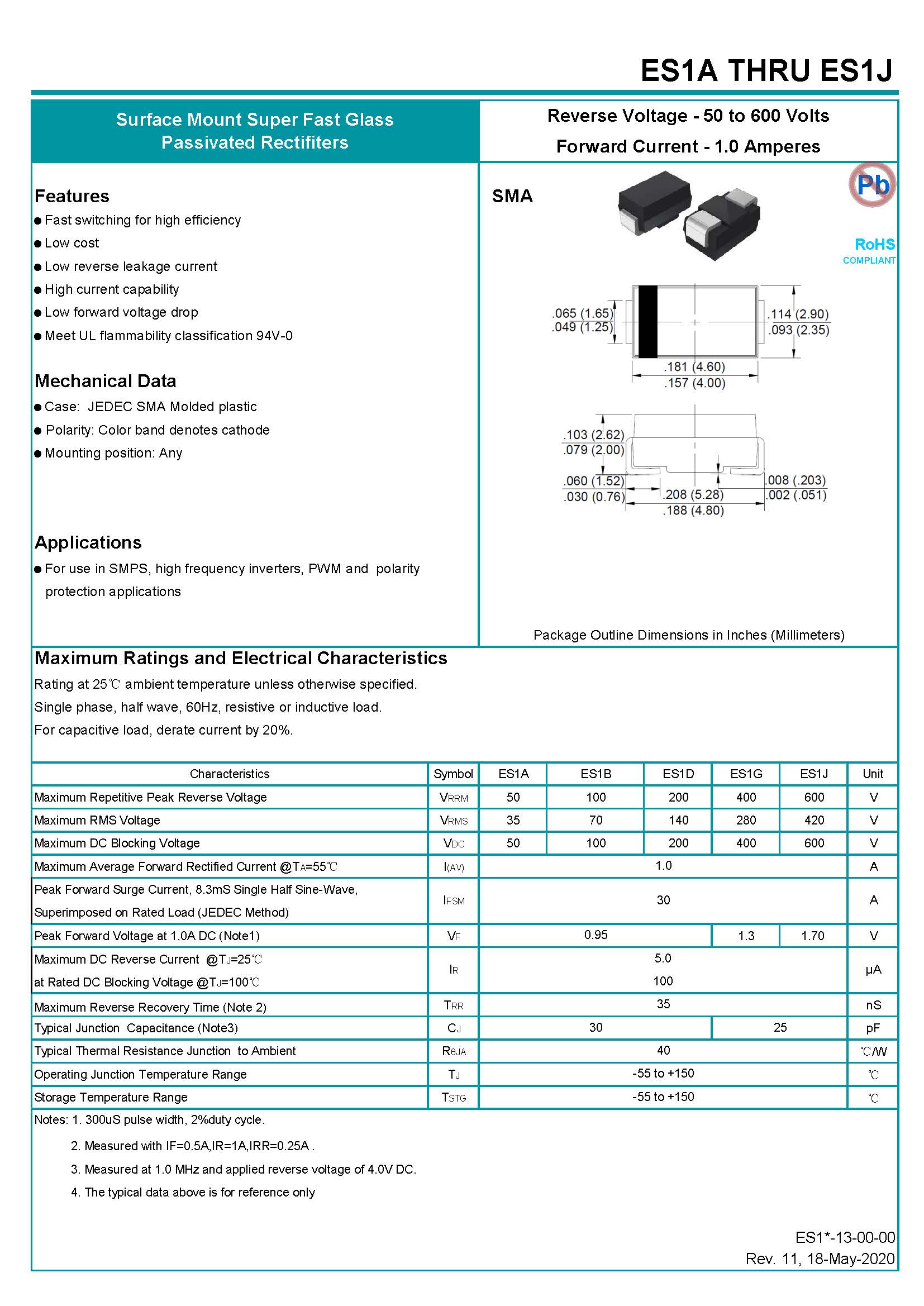

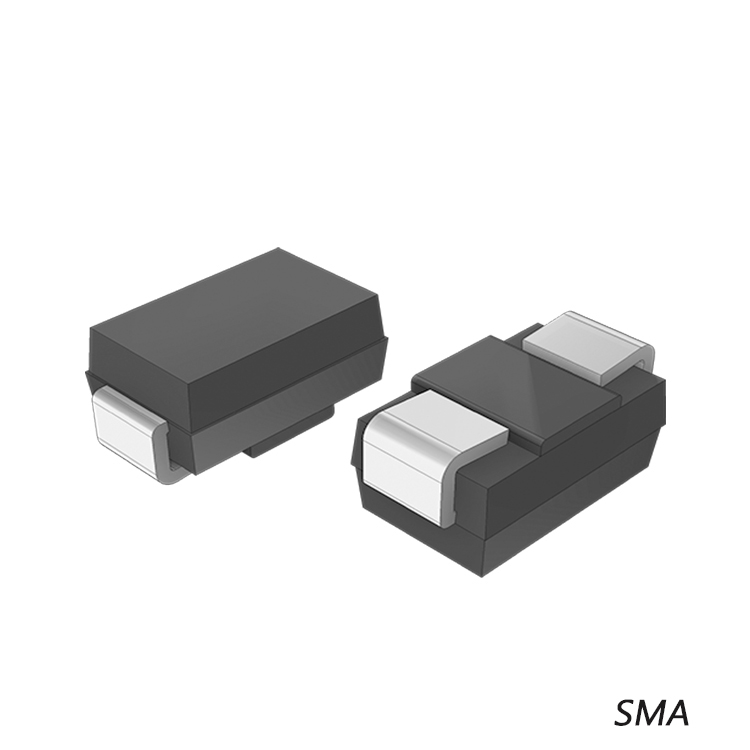

ES1JA Surface Mount Super Fast Glass Passivated Fast Recovery Diode Rectifier

Reverse Voltage - 50 to 600 Volts/Forward Current - 1.0 Amperes
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ES1JA

  • HY

Applications of Fast Recovery Diodes in Power Supplies

Fast recovery diodes, also known as fast rectifiers, play a crucial role in various electronic circuits, including LED driver power supplies. These diodes possess unique characteristics that make them ideal for specific applications, such as LED lighting. This article explores the applications of fast recovery diodes in LED driver power supplies, highlighting their benefits and contributions to efficient and reliable LED lighting systems.

Understanding Fast Recovery Diodes:

Fast recovery diodes are semiconductor devices designed to rectify alternating current (AC) into direct current (DC) with minimal switching time. They are specifically engineered to recover rapidly from the reverse bias state, allowing for efficient rectification and reducing power losses. This feature makes fast recovery diodes suitable for applications that require high-frequency switching, such as LED driver power supplies.

Applications in Power Supplies:

1. Rectification:

The primary role of fast recovery diodes in LED driver power supplies is rectification. By converting AC voltage into DC voltage, these diodes ensure a steady and consistent power supply to the LED lighting system. The fast recovery time of these diodes enables them to handle high-frequency switching, resulting in improved power conversion efficiency.

2. Protection:

Fast recovery diodes also provide protection against voltage spikes and transients that may occur in LED driver power supplies. These diodes can absorb and dissipate excess energy, safeguarding the LED lighting system from potential damage caused by voltage fluctuations or surges. This protection helps extend the lifespan of the LEDs and ensures reliable operation.

3. Dimming Control:

Many LED driver power supplies incorporate dimming functionality to adjust the brightness of LED lights. Fast recovery diodes play a vital role in enabling smooth dimming control by rectifying the AC voltage and maintaining a stable DC output. Their fast recovery time ensures accurate and responsive dimming performance, allowing for precise control over the brightness levels of the LEDs.

4. Switching Speed:

LED driver power supplies often require high-speed switching to achieve efficient power conversion. Fast recovery diodes excel in this aspect, as their low forward voltage drop and quick reverse recovery time enable rapid switching transitions. This characteristic minimizes power losses and enhances the overall efficiency of the LED driver power supply.

Conclusion:

Fast recovery diodes are essential components in LED driver power supplies, offering numerous benefits that contribute to the efficient and reliable operation of LED lighting systems. Their ability to rectify AC voltage, provide protection against voltage spikes, enable smooth dimming control, and facilitate high-speed switching makes them indispensable in LED driver power supply designs. As LED technology continues to advance, the demand for fast recovery diodes will likely increase, driving further innovation in this field.



ES1JAFast Recovery Diode
