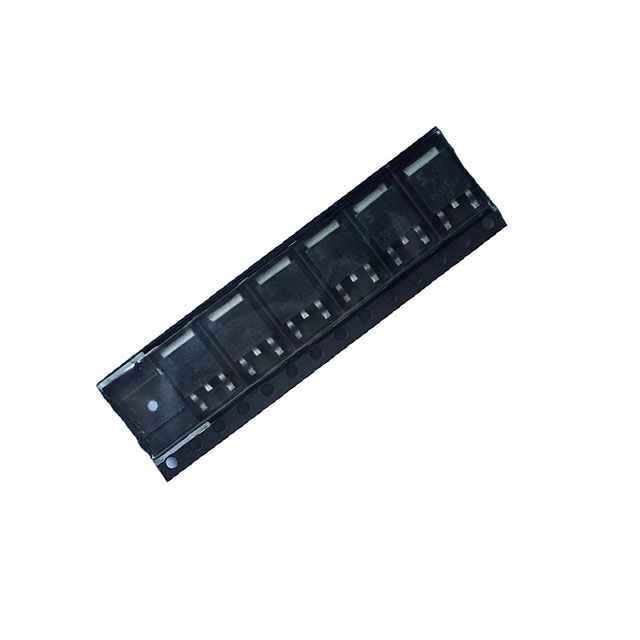

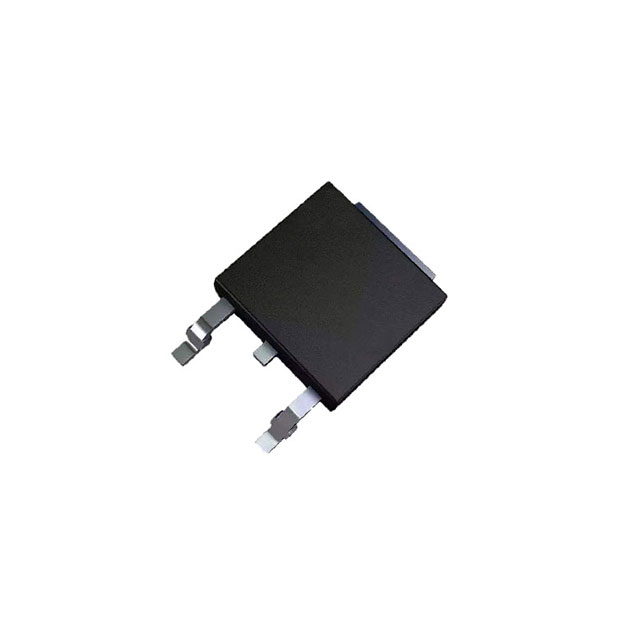

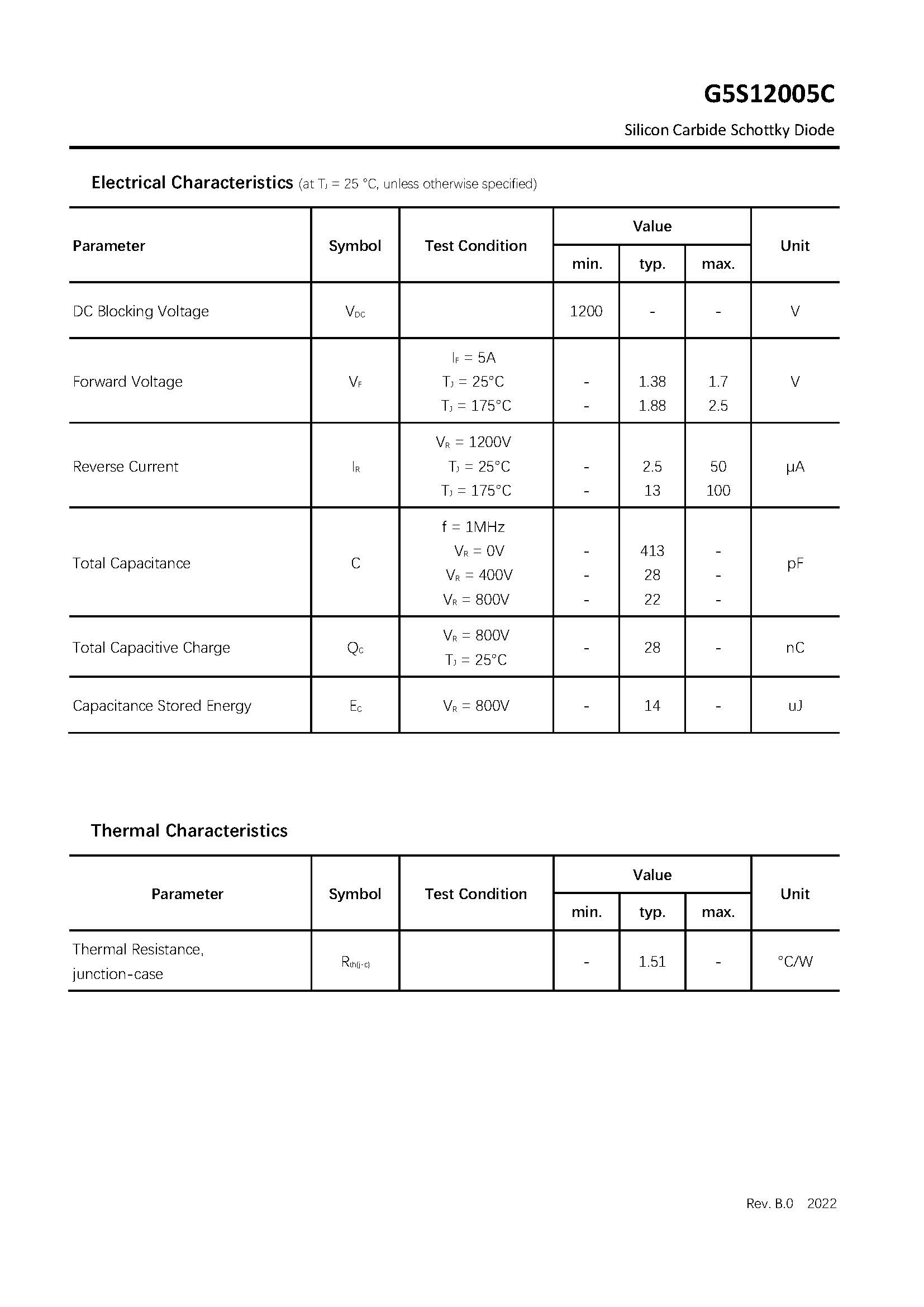

G5S12005C
GPT

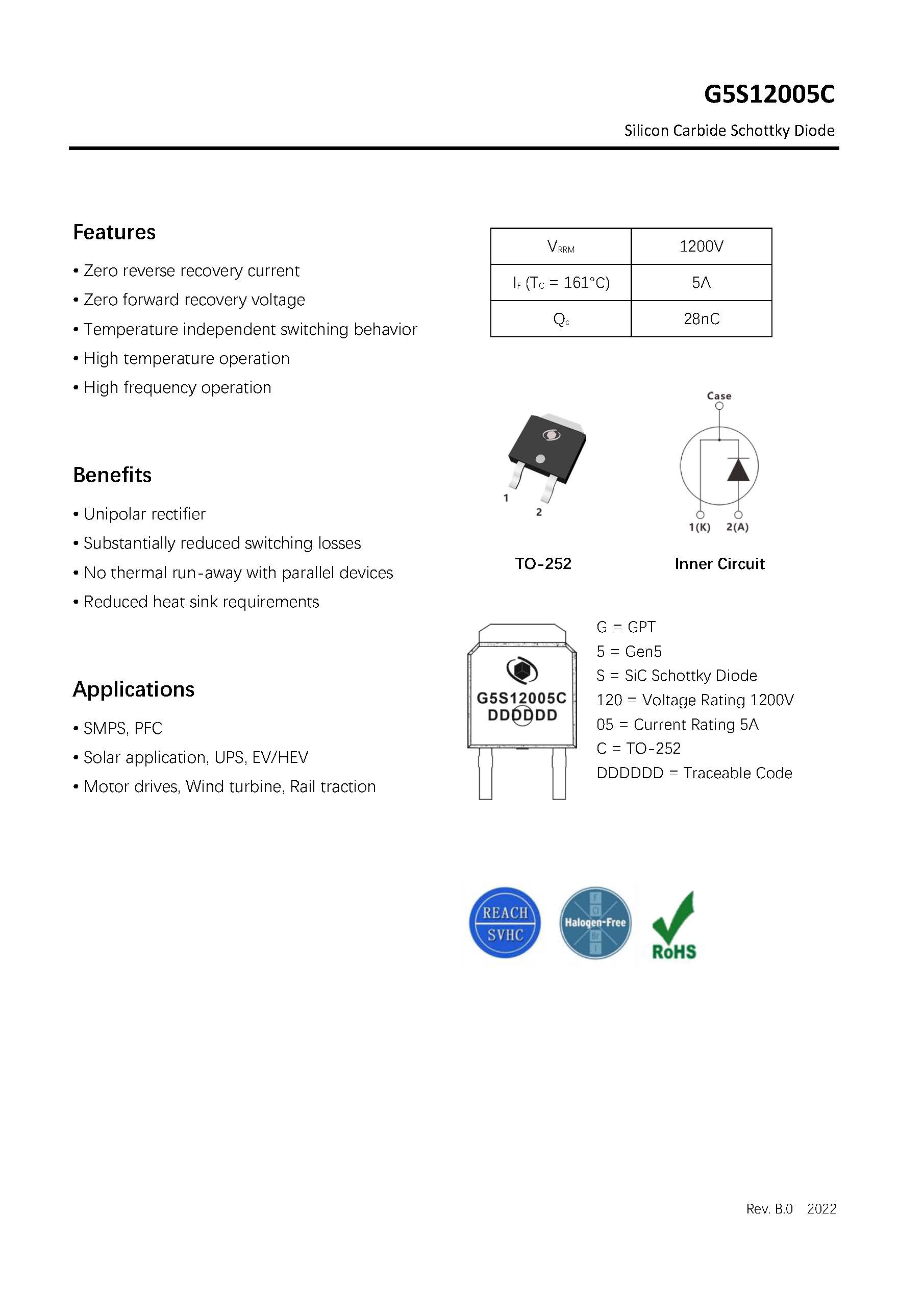

• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
• SMPS, PFC
• Solar application, UPS, EV/HEV
• Motor drives, Wind turbine, Rail traction
Introduction: Silicon Carbide (SiC) Schottky Power Diodes have gained significant attention in recent years due to their unique properties and superior performance compared to traditional silicon diodes. These diodes are widely used in various applications where high efficiency, fast switching, and high temperature operation are crucial. In this article, we will explore some of the key application scenarios where SiC Schottky Power Diodes excel.
Power Electronics: SiC Schottky Power Diodes find extensive use in power electronics applications, especially in high voltage and high power systems. These diodes exhibit low forward voltage drop and fast switching characteristics, enabling efficient power conversion with reduced losses. They are commonly employed in power factor correction circuits, motor drives, inverters, and converters.
Renewable Energy: The growing demand for clean and sustainable energy sources has led to the rapid development of renewable energy systems. SiC Schottky Power Diodes play a crucial role in these systems by enabling efficient power conversion from renewable energy sources such as solar and wind. Their high temperature operation capability ensures reliable performance in harsh environmental conditions.
Electric Vehicles: The automotive industry is undergoing a significant shift towards electric vehicles (EVs) to reduce carbon emissions and dependency on fossil fuels. SiC Schottky Power Diodes are key components in the powertrain of EVs, facilitating efficient energy conversion and management. These diodes enable faster charging, longer driving ranges, and improved overall performance of EVs.
Aerospace and Defense: In aerospace and defense applications, reliability and efficiency are of utmost importance. SiC Schottky Power Diodes are preferred in these sectors due to their ability to operate at high temperatures and withstand harsh environments. They are utilized in power supplies, radar systems, and high power microwave applications, ensuring reliable and efficient operation.
Industrial Applications: SiC Schottky Power Diodes are extensively used in various industrial applications where high power and high voltage operation are required. These include welding equipment, power supplies, uninterruptible power supplies (UPS), and high-frequency induction heating systems. Their fast switching capabilities and low losses contribute to improved efficiency and reduced system size.
Conclusion: SiC Schottky Power Diodes have revolutionized the power electronics industry with their exceptional performance characteristics. Their applications span across power electronics, renewable energy, electric vehicles, aerospace and defense, and industrial sectors. The unique combination of high temperature operation, fast switching, and low losses make them an ideal choice for applications that demand efficiency and reliability. As technology continues to advance, SiC Schottky Power Diodes are expected to play an even more significant role in shaping the future of various industries.
