LSB65R070GF
Product Name:

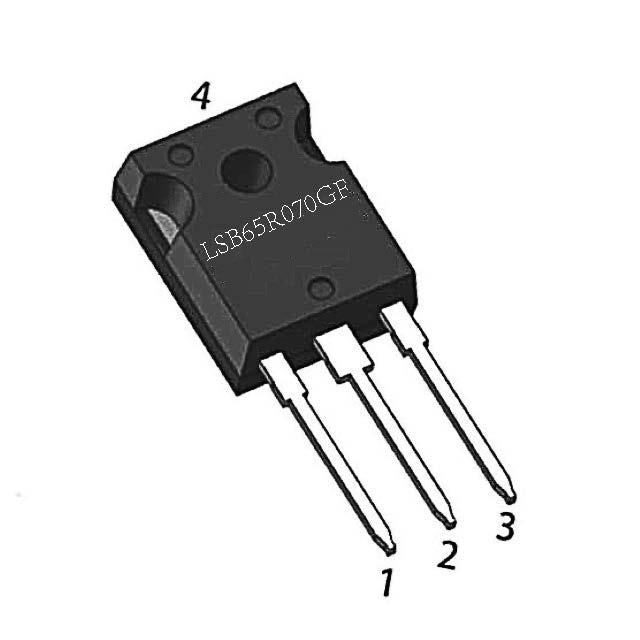

High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247
Product Description:

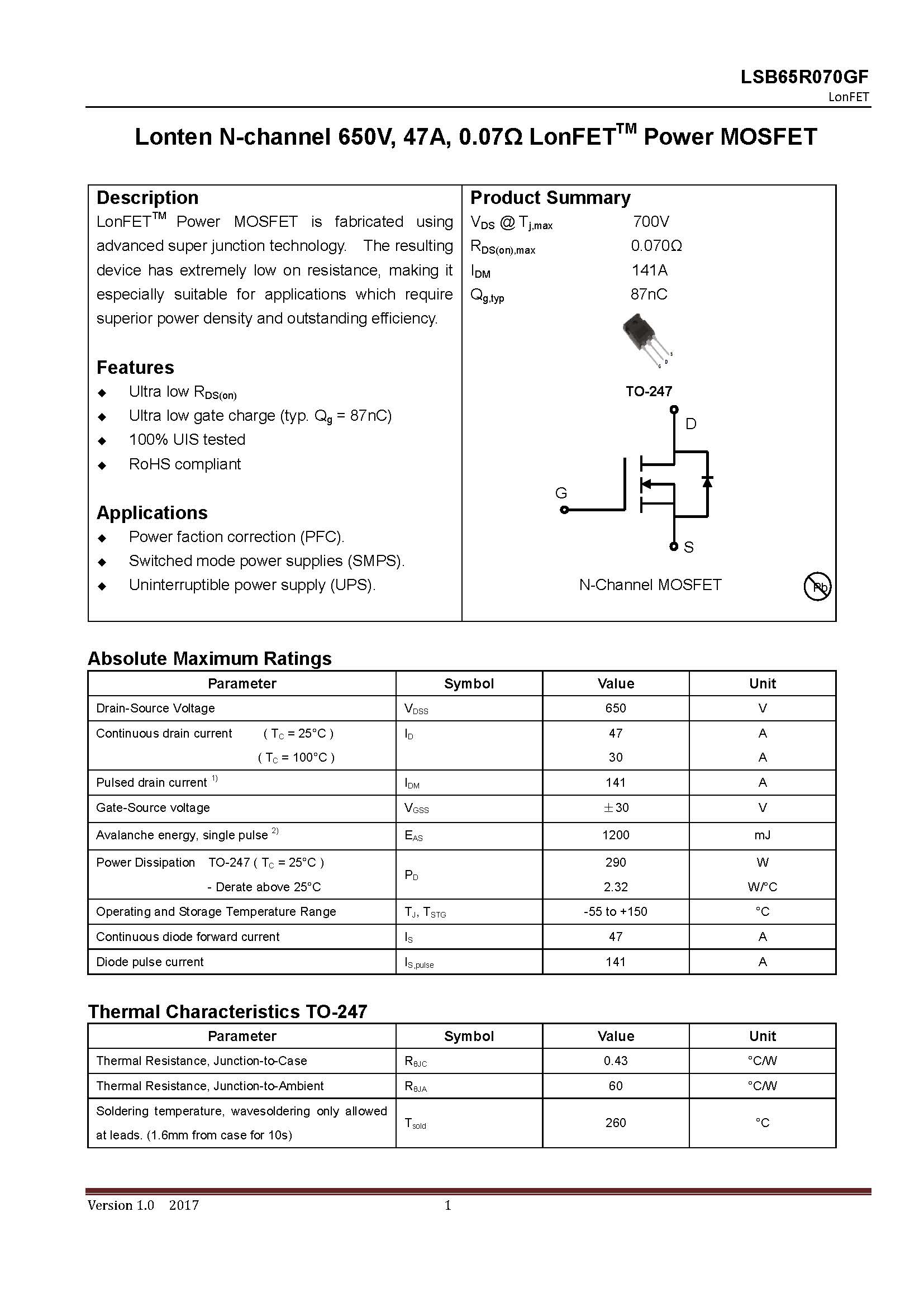

Description:
LonFETTM Power MOSFET is fabricated using
advanced super junction technology. The resulting
device has extremely low on resistance, making it
especially suitable for applications which require
superior power density and outstanding efficiency.
Features:
Ultra low RDS(on)
Ultra low gate charge (typ. Qg = 87nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction (PFC).
Switched mode power supplies (SMPS).
Uninterruptible power supply (UPS).

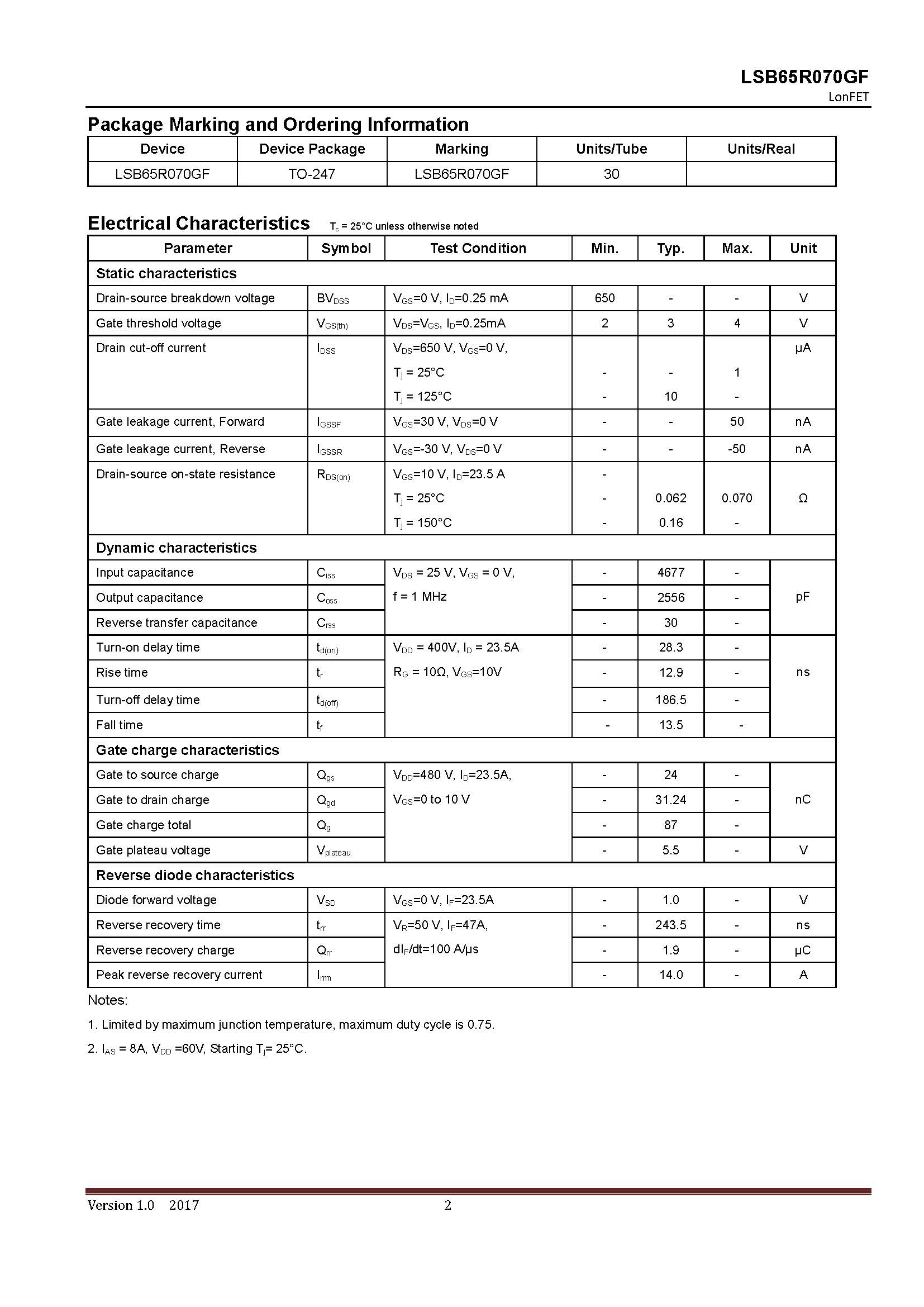

Product Summary:
VDS Tj,max: 700V
RDS(on),max: 0.070Ω
IDM: 141A
Qg,typ: 87nC
Introducing the High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247. This exceptional product is designed to cater to the needs of professionals seeking reliable and efficient electronic signal switching and amplification in electronic devices.
With a voltage rating of 650V and a current handling capacity of 47A, this Power MOSFET guarantees optimum performance even in demanding applications. Its low on-resistance of 0.07Ω ensures minimal power loss, making it an ideal choice for high-power electronic systems.
Crafted with precision and expertise, the LSB65R070GF TO-247 Power MOSFET offers exceptional reliability and durability. Its advanced technology enables seamless switching and amplification of electronic signals, ensuring smooth operation and enhanced efficiency in various electronic devices.

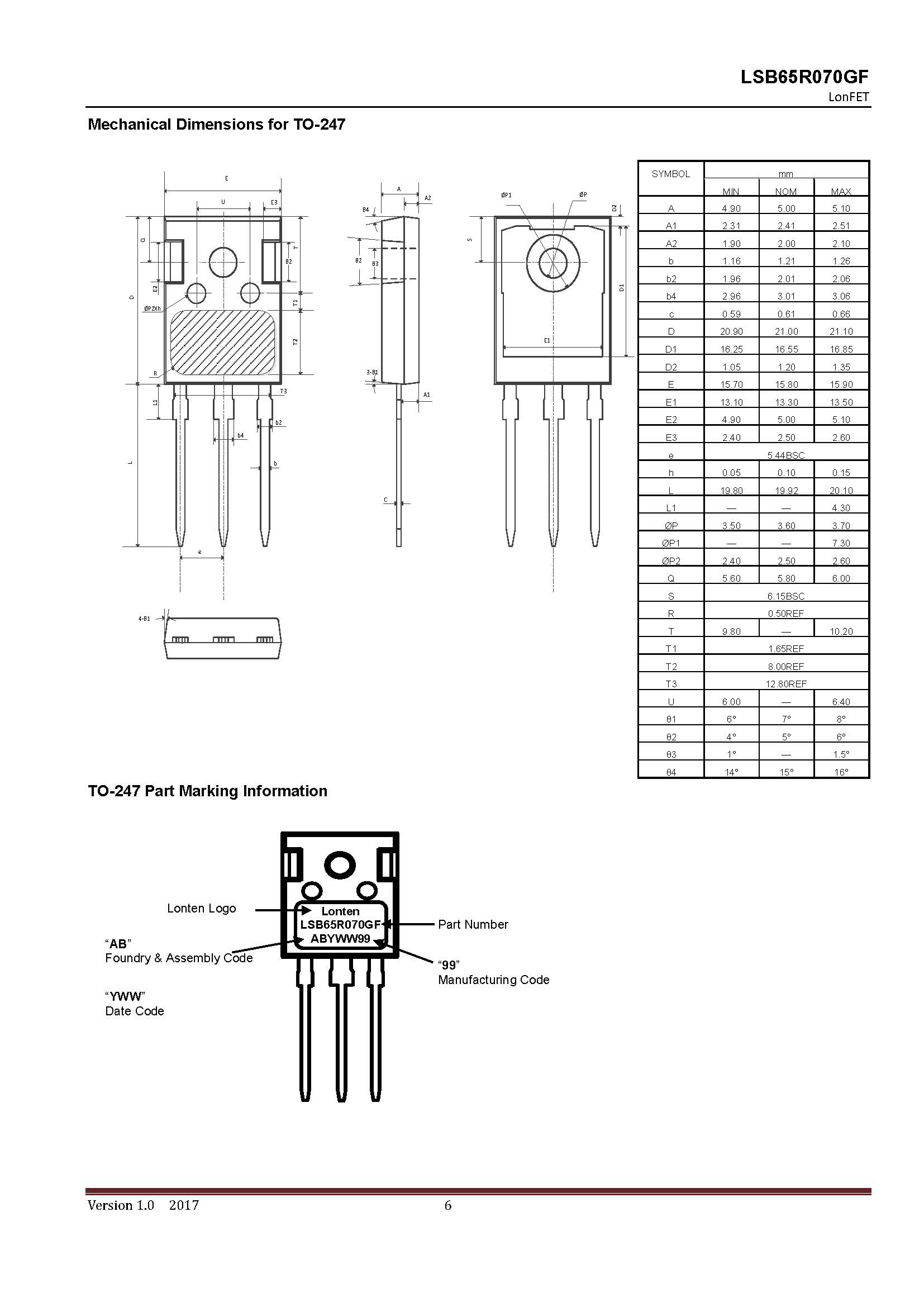

This product's TO-247 package provides excellent thermal dissipation, enabling efficient heat management and ensuring prolonged lifespan. Its compact design allows for easy integration into existing electronic systems, making it a versatile choice for professionals in the field.
In summary, the High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247 is the epitome of professionalism and reliability. With its exceptional features and high-performance capabilities, it is the perfect solution for professionals seeking top-notch electronic signal switching and amplification in electronic devices.
Product Specifications:
Product Name:
High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247
Product Description:
Description:
LonFETTM Power MOSFET is fabricated using
advanced super junction technology. The resulting
device has extremely low on resistance, making it
especially suitable for applications which require
superior power density and outstanding efficiency.
Features:
Ultra low RDS(on)
Ultra low gate charge (typ. Qg = 87nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction (PFC).
Switched mode power supplies (SMPS).
Uninterruptible power supply (UPS).
Product Summary:
VDS Tj,max: 700V
RDS(on),max: 0.070Ω
IDM: 141A
Qg,typ: 87nC
Introducing the High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247. This exceptional product is designed to cater to the needs of professionals seeking reliable and efficient electronic signal switching and amplification in electronic devices.
With a voltage rating of 650V and a current handling capacity of 47A, this Power MOSFET guarantees optimum performance even in demanding applications. Its low on-resistance of 0.07Ω ensures minimal power loss, making it an ideal choice for high-power electronic systems.
Crafted with precision and expertise, the LSB65R070GF TO-247 Power MOSFET offers exceptional reliability and durability. Its advanced technology enables seamless switching and amplification of electronic signals, ensuring smooth operation and enhanced efficiency in various electronic devices.
This product's TO-247 package provides excellent thermal dissipation, enabling efficient heat management and ensuring prolonged lifespan. Its compact design allows for easy integration into existing electronic systems, making it a versatile choice for professionals in the field.
In summary, the High Voltage Coolmos N-channel 650V, 47A, 0.07Ω Power MOSFET LSB65R070GF TO-247 is the epitome of professionalism and reliability. With its exceptional features and high-performance capabilities, it is the perfect solution for professionals seeking top-notch electronic signal switching and amplification in electronic devices.
