LSD80R980GT
Product Name:

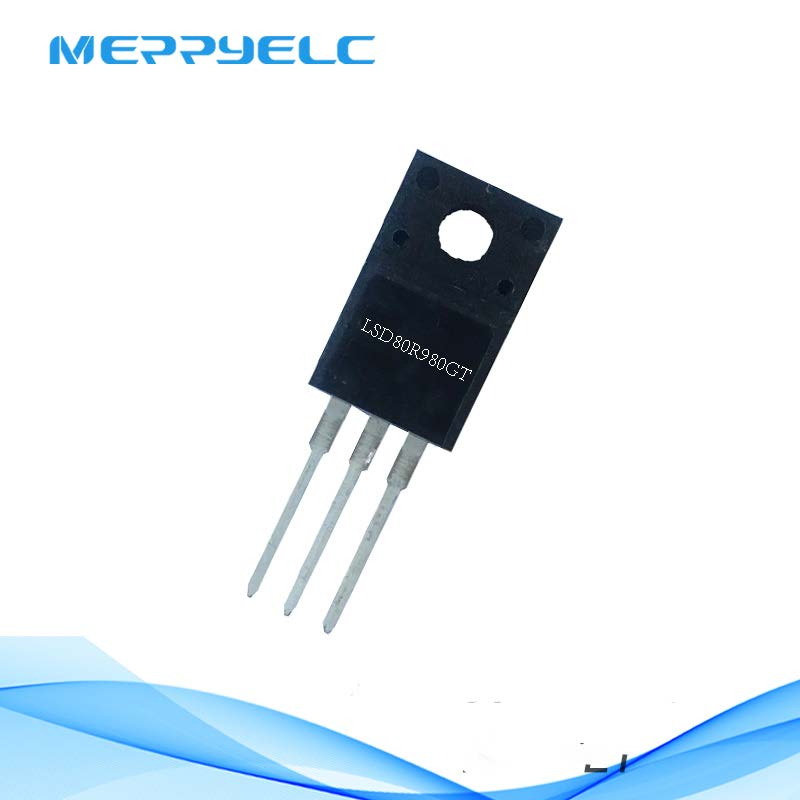

High Voltage Lonten N-channel 800V, 5A, 0.98Ω LonFETTM Power MOSFET LSD80R980GT TO-220F Coolmos Superjunction
Product Description:
Description:
LonFETTM Power MOSFET is fabricated using
advanced super junction technology. The resulting
device has extremely low on resistance, making it
especially suitable for applications which require
superior power density and outstanding efficiency
Features:
Ultra low RDS(on)
Ultra low gate charge (typ. Qg = 14.5nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction (PFC).
Switched mode power supplies (SMPS).
Uninterruptible power supply (UPS).
Product Summary:
VDS Tj,max: 850V
RDS(on),max: 0.98Ω
IDM: 5A
Qg,typ: 14.5nC
Introducing the High Voltage Lonten N-channel 800V, 5A, 0.98Ω Power MOSFET 80R980GT TO-220F Coolmos Superjunction. This cutting-edge power MOSFET is designed to optimize performance and enhance efficiency in various applications.
With a voltage rating of 800V, this N-channel MOSFET ensures reliable operation even in high voltage environments. Its impressive 5A current capability allows for robust power handling, making it suitable for demanding power applications.
One of the key features of this Power MOSFET is its low on-resistance of 0.98Ω. This attribute minimizes power losses, resulting in improved overall system efficiency. By reducing energy wastage, this MOSFET helps to maximize the utilization of electrical power, ultimately leading to cost savings and environmental benefits.
The TO-220F package provides excellent thermal performance, ensuring effective heat dissipation and maintaining stable operation even under heavy loads. This feature contributes to the longevity and reliability of the MOSFET, making it an ideal choice for high-power applications.
The Coolmos Superjunction technology employed in this MOSFET further enhances its performance. This advanced technology enables efficient switching and reduces conduction losses, resulting in higher efficiency and improved system reliability.
In summary, the High Voltage Lonten N-channel 800V, 5A, 0.98Ω Power MOSFET 80R980GT TO-220F Coolmos Superjunction is a professional-grade power component that offers reduced losses and increased efficiency. Its impressive voltage rating, current capability, and low on-resistance make it a reliable choice for various power applications. Upgrade your system's performance and efficiency with this exceptional power MOSFET.
