LND5N65B
Product Name:

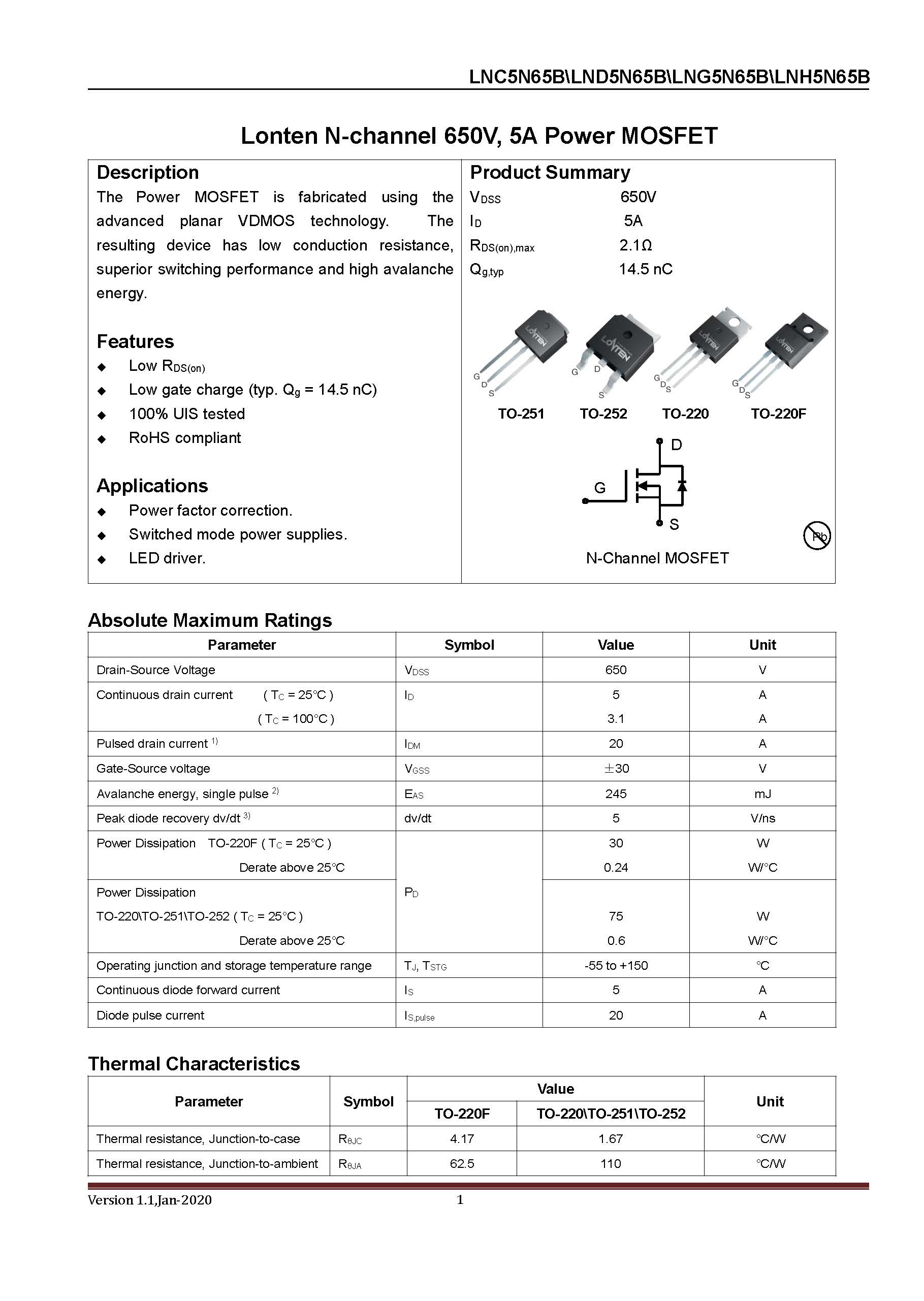

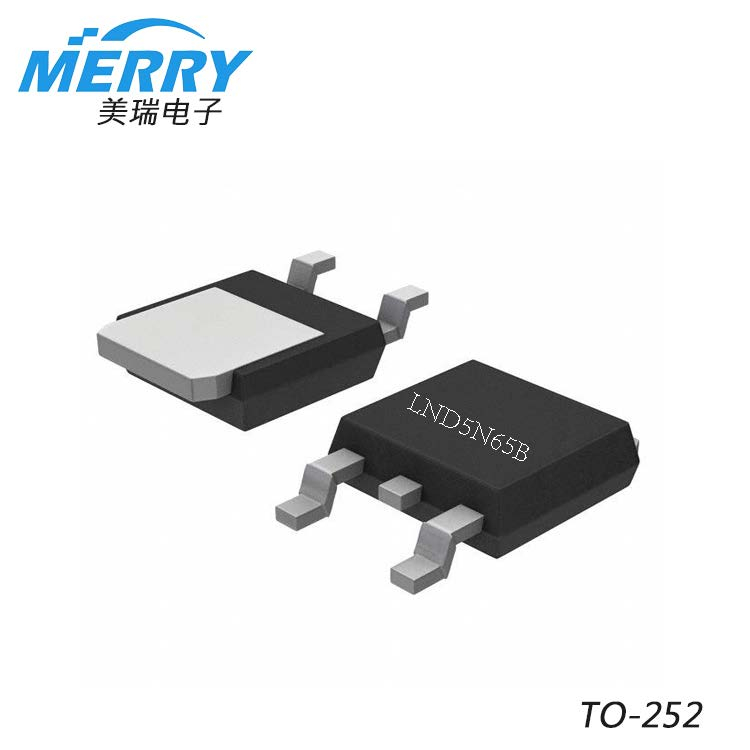

Lonten N-channel 650V, 5A Power MOSFET LND5N65B
Product Description:
Description:
The Power MOSFET is fabricated using the
advanced planar VDMOS technology. The
resulting device has low conduction resistance,
superior switching performance and high avalanche
energy.
Features:
Low RDS(on)
Low gate charge (typ. Qg = 14.5 nC)
100% UIS tested
RoHS compliant
Applications:
Power factor correction.
Switched mode power supplies.
LED driver.
Product Summary:
VDSS: 650V
ID: 5A
RDS(on),max: 2.1Ω
Qg,typ: 14.5 nC
Introducing the Lonten N-channel 650V, 5A Power MOSFET LND5N65B - the ultimate solution for switching and amplifying electronic signals in a wide range of electronic devices.
Designed with utmost precision and cutting-edge technology, this power MOSFET offers exceptional performance and reliability. With a voltage rating of 650V and a current handling capacity of 5A, it effortlessly handles high-power applications with ease.
The Lonten N-channel 650V, 5A Power MOSFET LND5N65B is engineered to deliver optimum efficiency, ensuring minimal power losses and maximum energy savings. Its advanced switching capabilities enable seamless transitions between on and off states, enabling precise control over electronic signals.
Crafted with the highest quality materials and adhering to stringent manufacturing standards, this power MOSFET guarantees long-lasting durability and superior performance. Its compact and space-saving design makes it an ideal choice for various electronic devices, including power supplies, motor drives, and audio amplifiers.
With its professional-grade construction and exceptional functionality, the Lonten N-channel 650V, 5A Power MOSFET LND5N65B is the go-to choice for professionals in the electronics industry. Trust in its ability to deliver outstanding switching and amplifying performance, ensuring optimal functionality and reliability in your electronic devices.
Choose the Lonten N-channel 650V, 5A Power MOSFET LND5N65B and experience the pinnacle of power and efficiency in electronic signal control. Elevate your electronic devices to new heights with this remarkable product.
