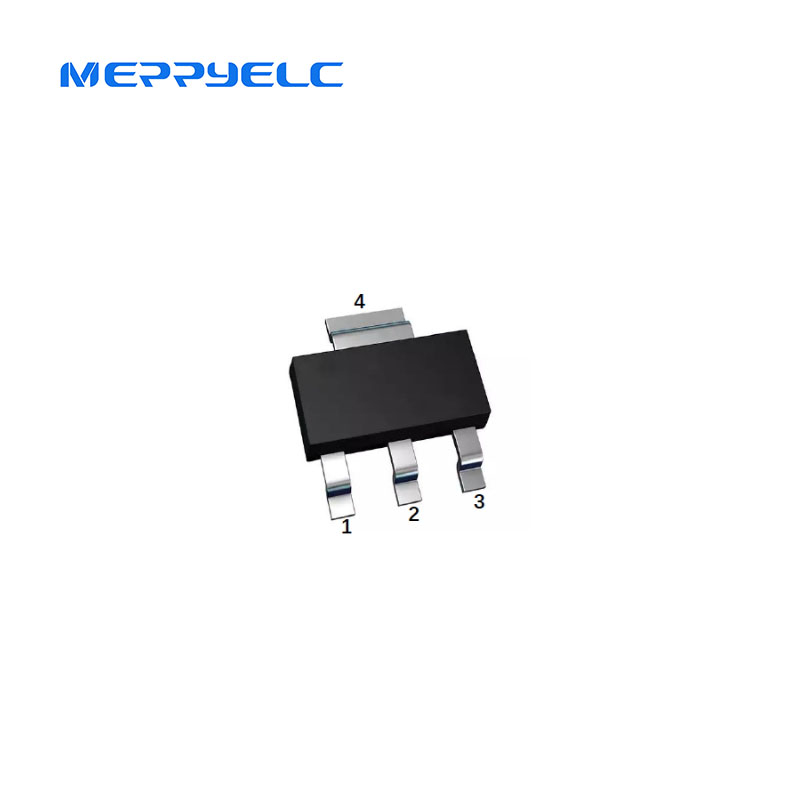

PZT2222A
Packaging Description

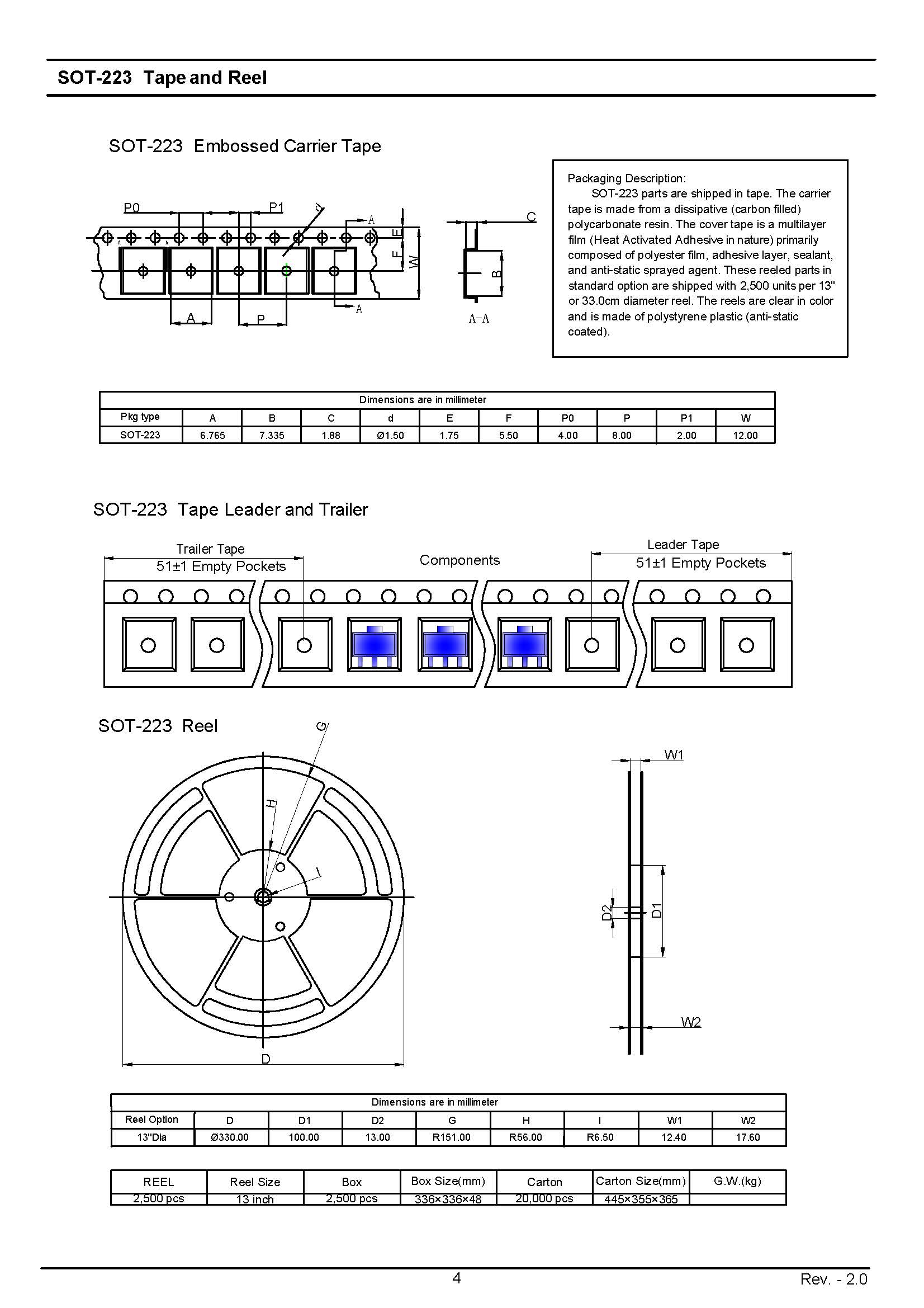

SOT-223 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 2,500 units per 13" or 33.0cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated).

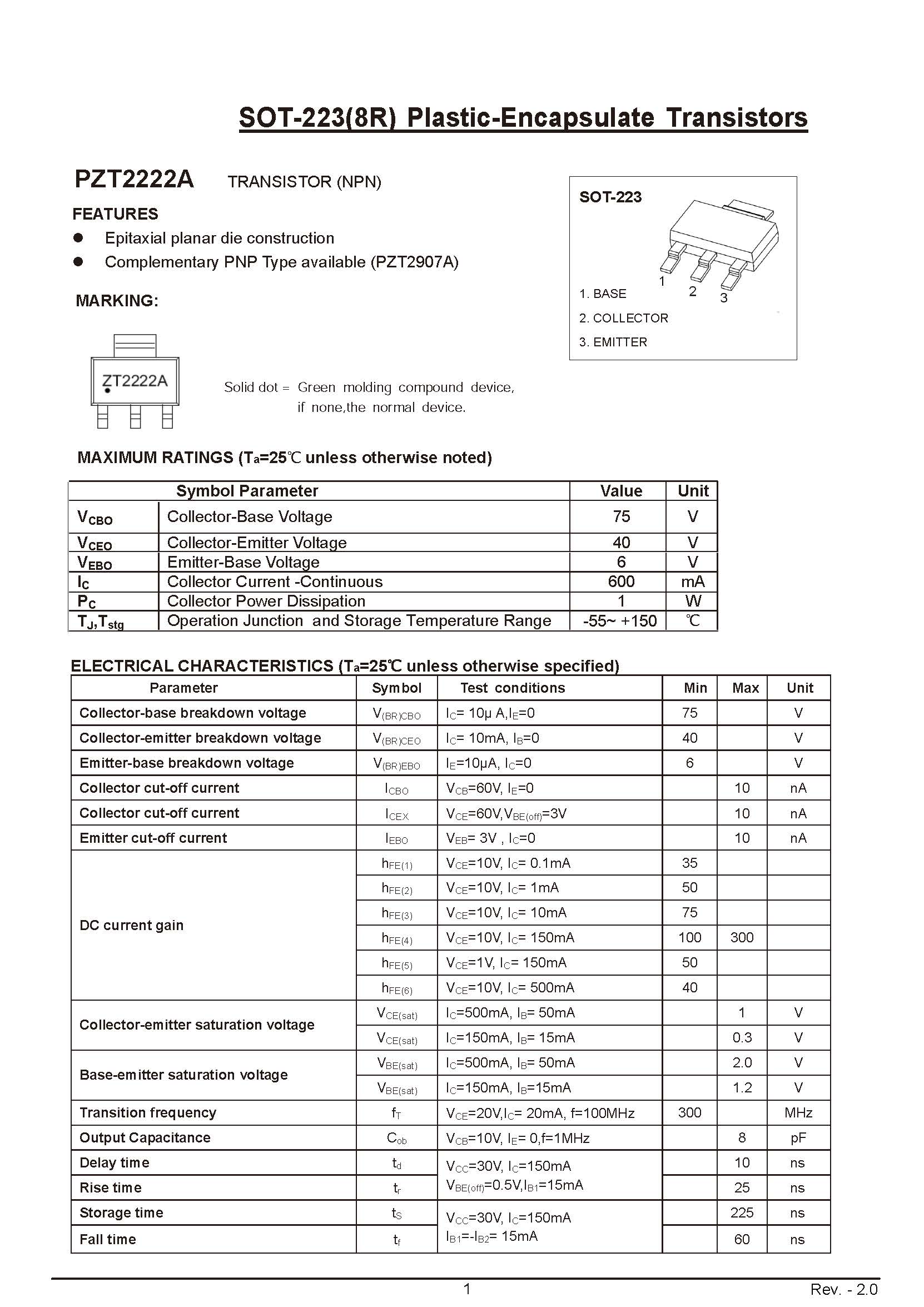

FEATURES
Epitaxial planar die construction
Complementary PNP Type available (PZT2907A)
Epoxy meets UL-94 V-0 flammability rating
Moitsure Sensitivity Level 1
Mechanical Data
Package: SOT-223
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
Marking: ZT2222A
