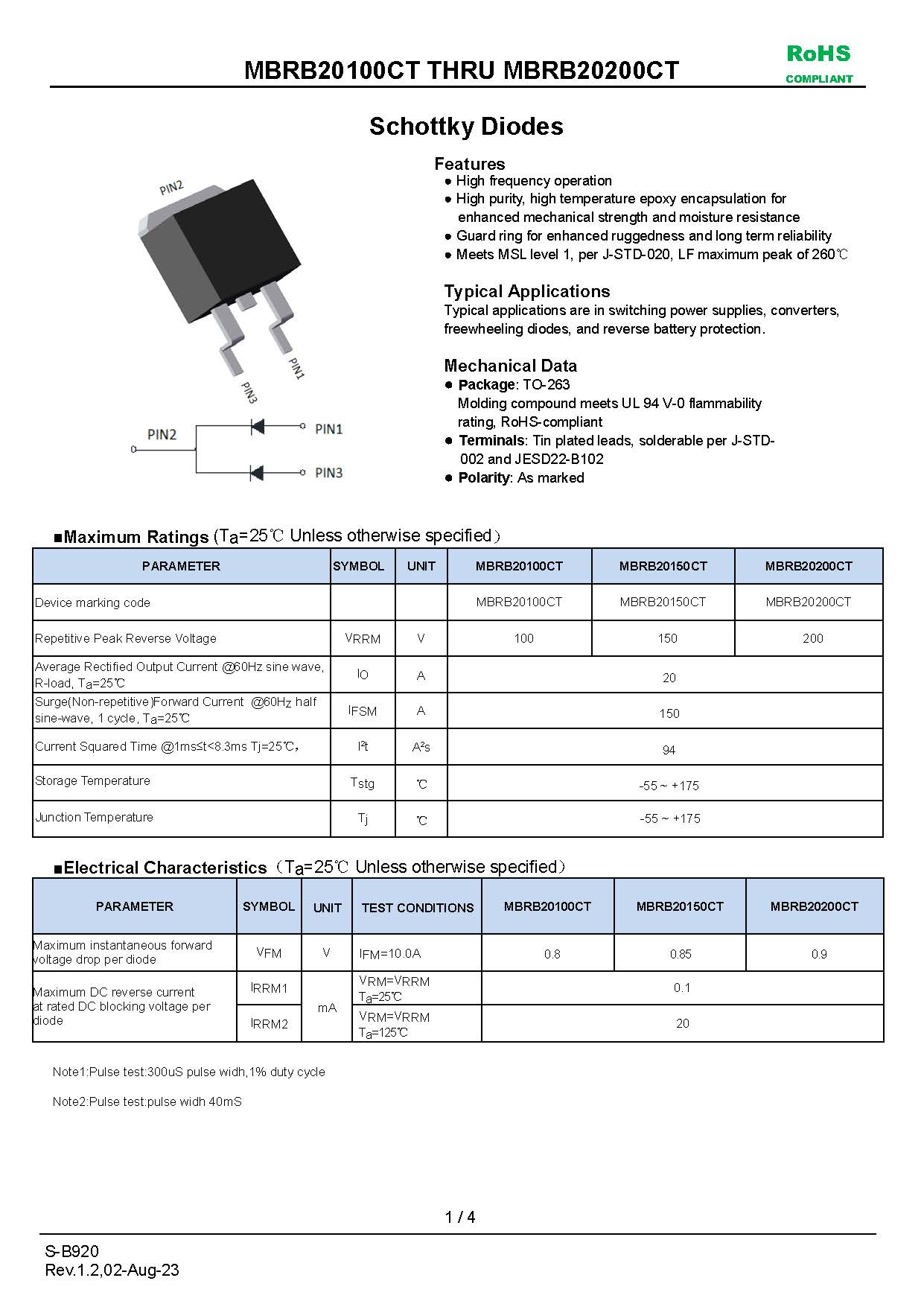

100V 20A TO-263 High frequency operation Schottky diodes MBRB20200CT

Features
High frequency operation
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
Guard ring for enhanced ruggedness and long term reliability
Meets MSL level 1, per J-STD-020, LF maximum peak of 260ºC Typical Applications

Typical applications
switching power supplies
converters
freewheeling diodes
reverse battery protection

Mechanical Data

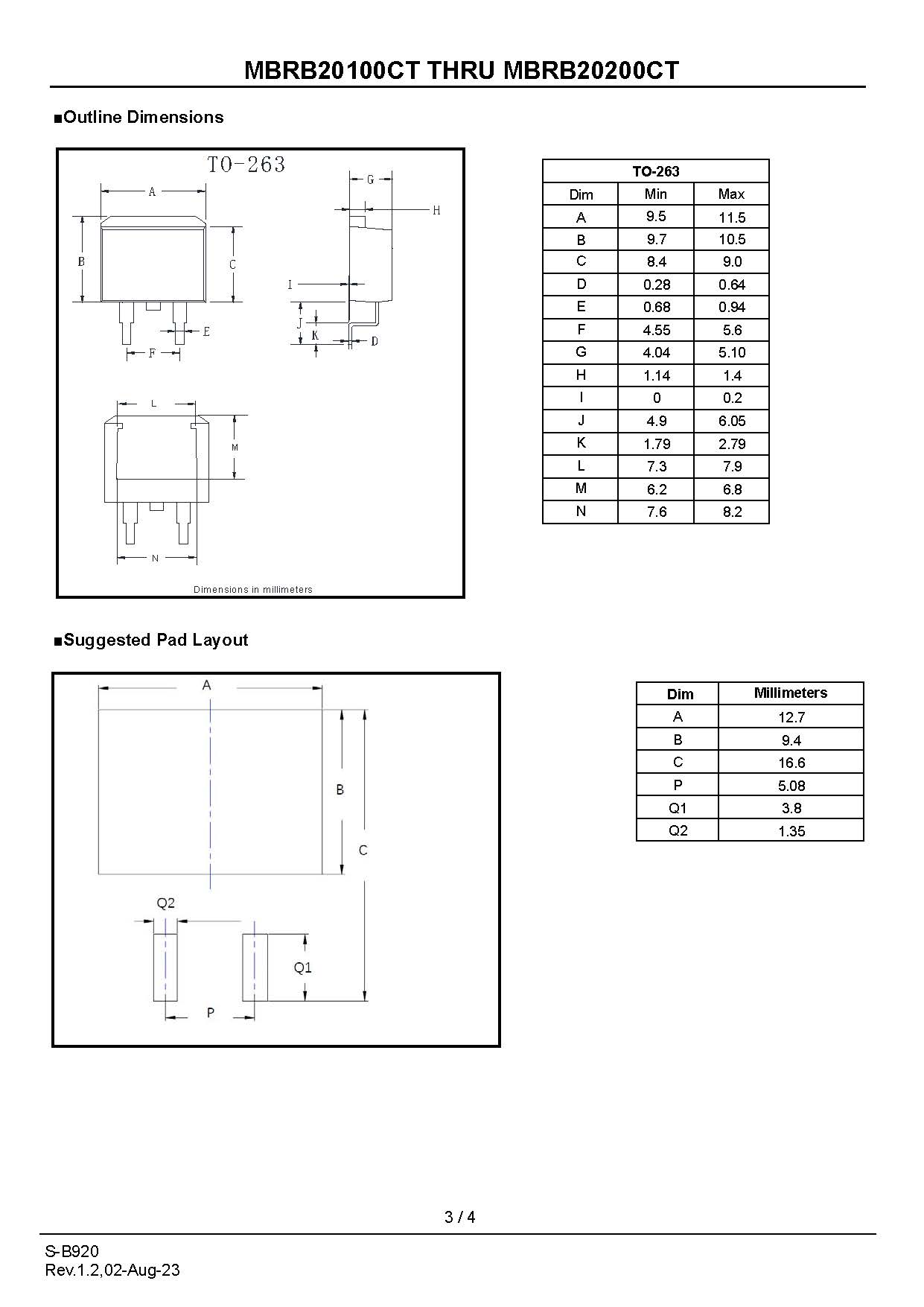

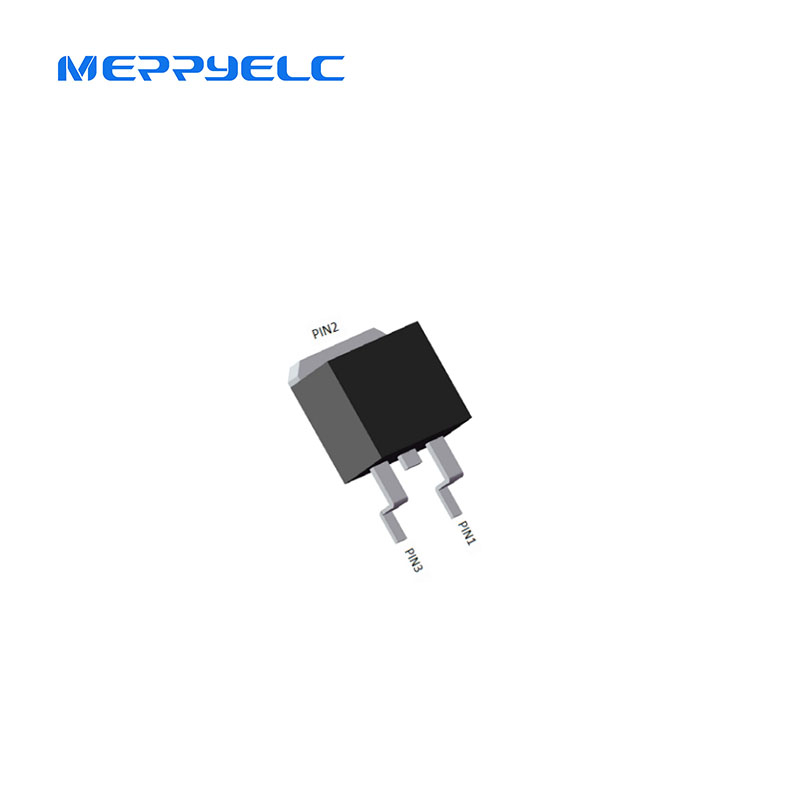

Package: TO-263 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
