Surface Mount Schottky Rectifier, VRRM: 100V, VRMS: 70V, VDC: 100V, If: 1A, IFSM: 30A,SOD-323HE, FM110EQ

100V Schottky Rectifier, VRMS: 70V, VDC: 100V, If: 1A, SOD-323HE, FM110EQ

100V Schottky Rectifier


Availability:



Inquire Add to Basket

Model:

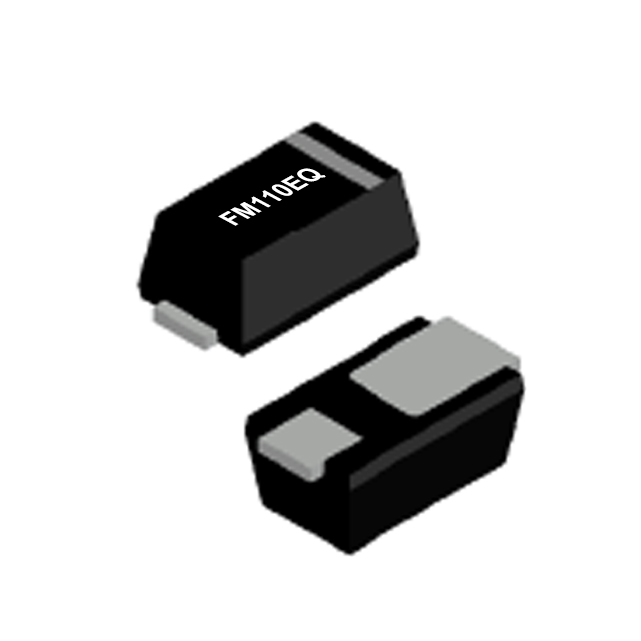

FM110EQ
Brand:
Merry

Product Description

Schottky Rectifier, VRRM: 100V, VRMS: 70V, VDC: 100V, If: 1A, IFSM: 30A,SOD-323HE, FM110EQ

Features :

- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- Part no. with suffix "Q" means AEC-Q101 qualified

Mechanical Date :

- Package: SOD-323HE
- Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end

Typical Application :

- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, automotive and polarity protection applications.

Name1

Name2

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

Name2

Name1

Name2

1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

Name2

FM110EQ-1_页面_1

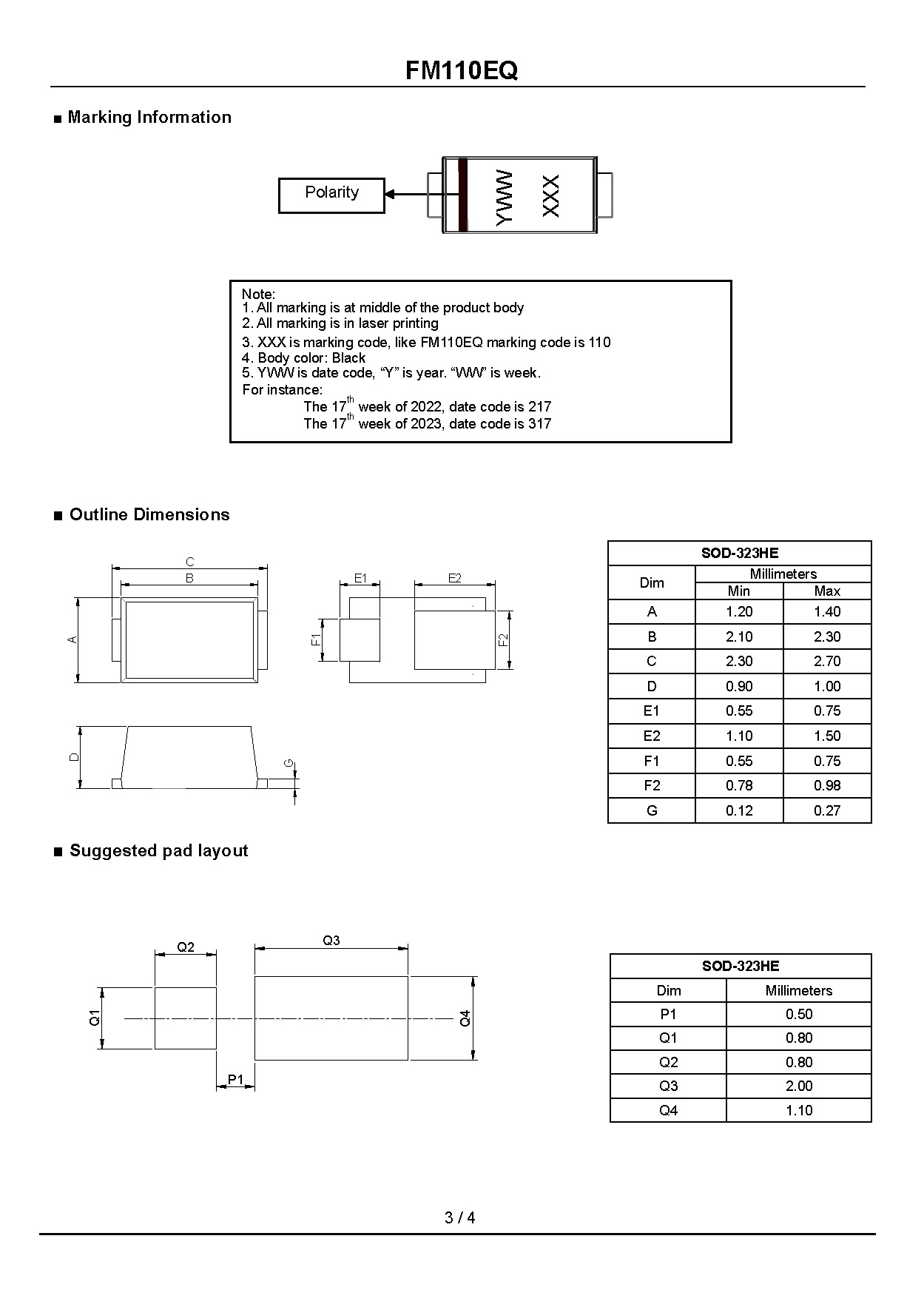

FM110EQ-1_页面_3

Schottky Rectifier FM110EQ 100V Schottky Rectifier silicon Rectifier Diode VDC: 100V High frequency operation diodes SOD-323HE Silicon Carbide MOSFET Rectifier Bridge
