WMLL065N15HG2
Wayon
Product Name:

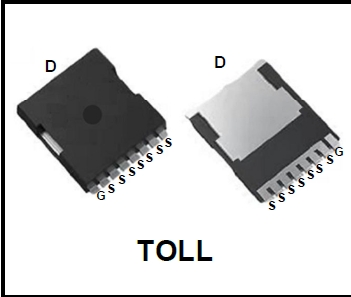

150V N-Channel Enhancement Mode Power MOSFET WMLL065N15HG2 TOLL
Product Description:
Description:
WMLL065N15HG2 uses Wayon's advanced power trench MOSFET
technology that has been especially tailored to minimize the on-state
resistance and yet maintain superior switching performance. This
device is well suited for high efficiency fast switching applications.
Features:
VDS = 150V, ID = 172A
RDS(on) <6mΩ VGS = 10V
Green Device Available
Low Gate Charge
100% EAS Guaranteed
Applications:
Synchronous Rectification
LED Backlighting
Motor Control
Introducing the 150V N-Channel Enhancement Mode Power MOSFET WMLL065N15HG2 TOLL, a highly efficient and reliable solution for all your electronic signal switching and amplification needs.
Designed with utmost precision and advanced technology, this power MOSFET offers exceptional performance and versatility. With a voltage rating of 150V, it ensures optimal power handling capabilities, making it suitable for a wide range of applications.
Whether you need to switch or amplify electronic signals, this MOSFET is your go-to choice. Its enhancement mode operation allows for seamless and efficient signal control, ensuring smooth and accurate performance. This feature ensures that your electronic signals are accurately processed and transmitted without any loss or distortion.
The WMLL065N15HG2 TOLL MOSFET boasts a professional-grade construction, ensuring durability and longevity. Its robust design guarantees reliable operation even in demanding environments. This makes it an ideal choice for various industries such as telecommunications, automotive, consumer electronics, and more.
Additionally, this power MOSFET offers excellent thermal performance, thanks to its advanced packaging technology. It effectively dissipates heat, preventing any thermal issues that may arise during prolonged operation. This ensures the MOSFET's stability and prolongs its lifespan, enhancing overall system reliability.
In conclusion, the 150V N-Channel Enhancement Mode Power MOSFET WMLL065N15HG2 TOLL is a top-of-the-line product that excels in signal switching and amplification. Its professional-grade construction, exceptional performance, and versatile features make it an indispensable component for any electronic system. Trust in its reliability and efficiency to elevate your electronic applications to new heights.
Product Specifications:
