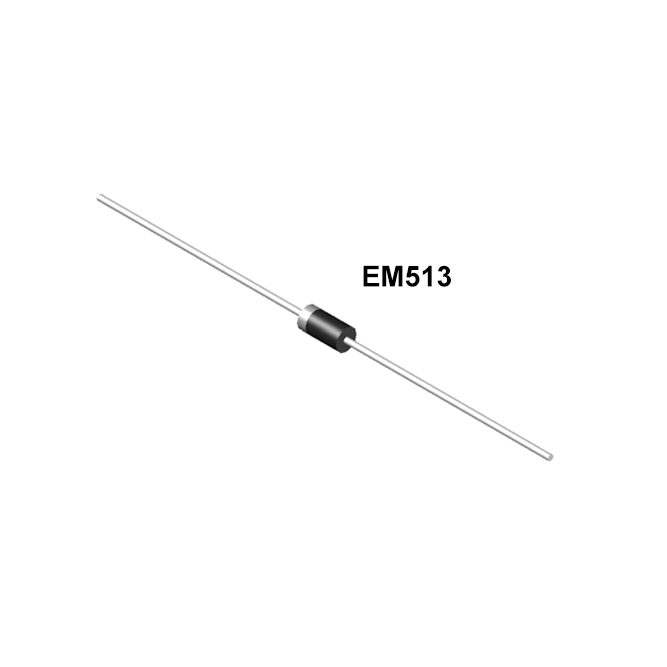

1600V 1A General Purpose Rectifier, DO-41, EM513

1600V 1A General Purpose Rectifier
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • EM513

  • Merry

1600V 1A General Purpose Rectifier, DO-41, EM513

Features :

- High efficiency
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Glass passivated chip junction
- Solder dip 275 °C max. 7 s, per JESD 22-B106

Mechanical Date :

- Package: DO-204AL(DO-41)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity:Color band denotes cathode end

Typical Application :

- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication



EM513Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

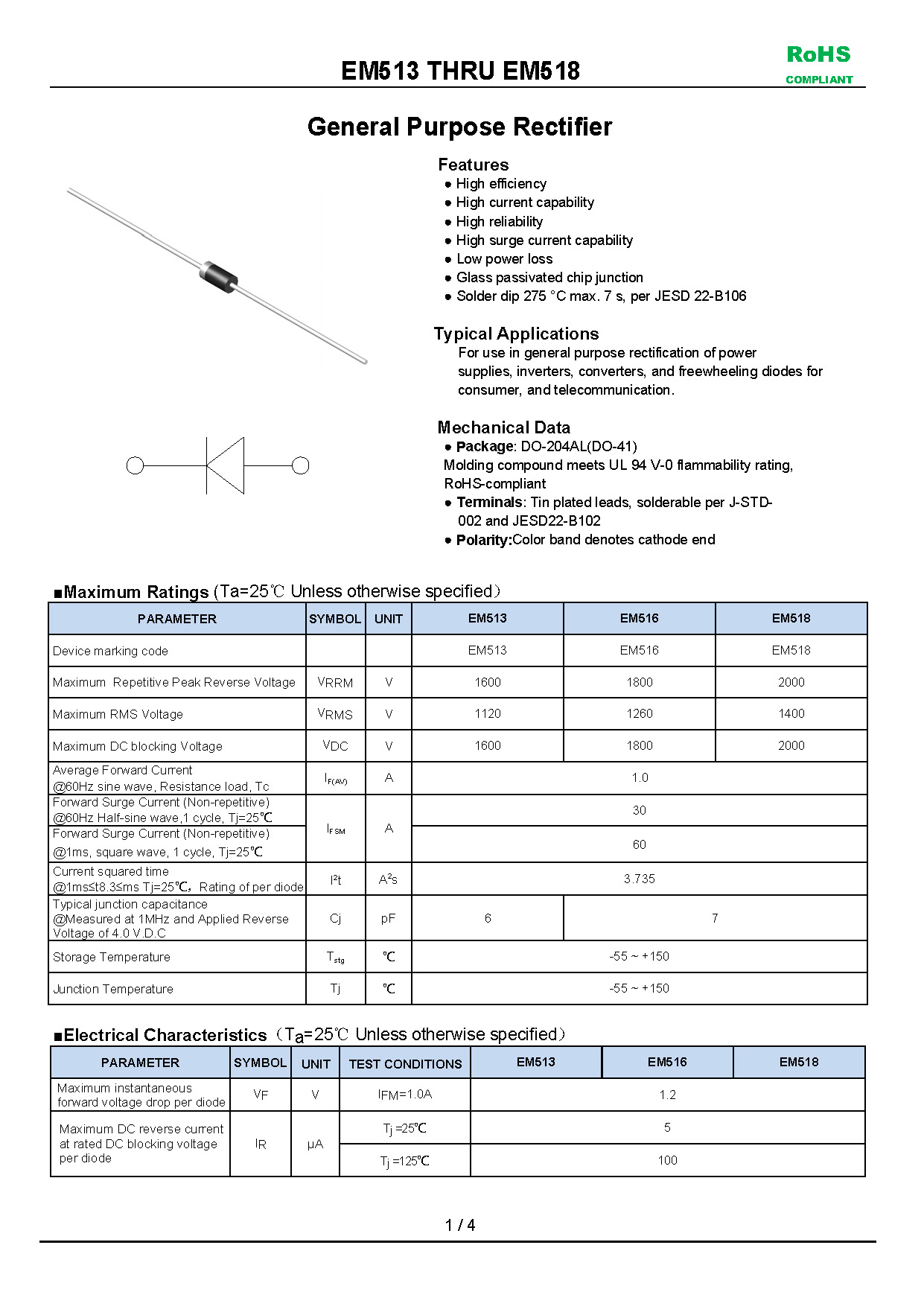

EM513-1_页面_1

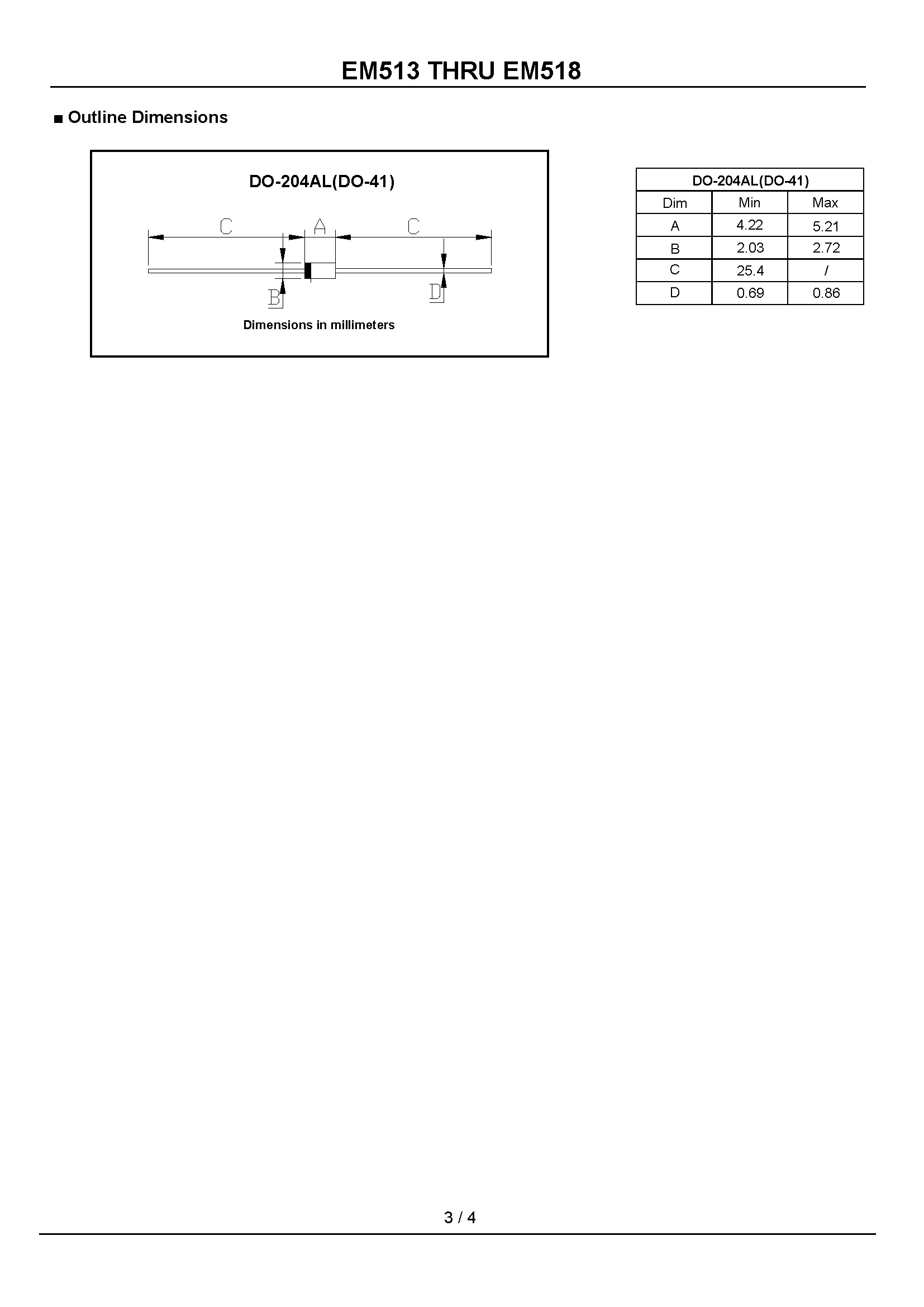

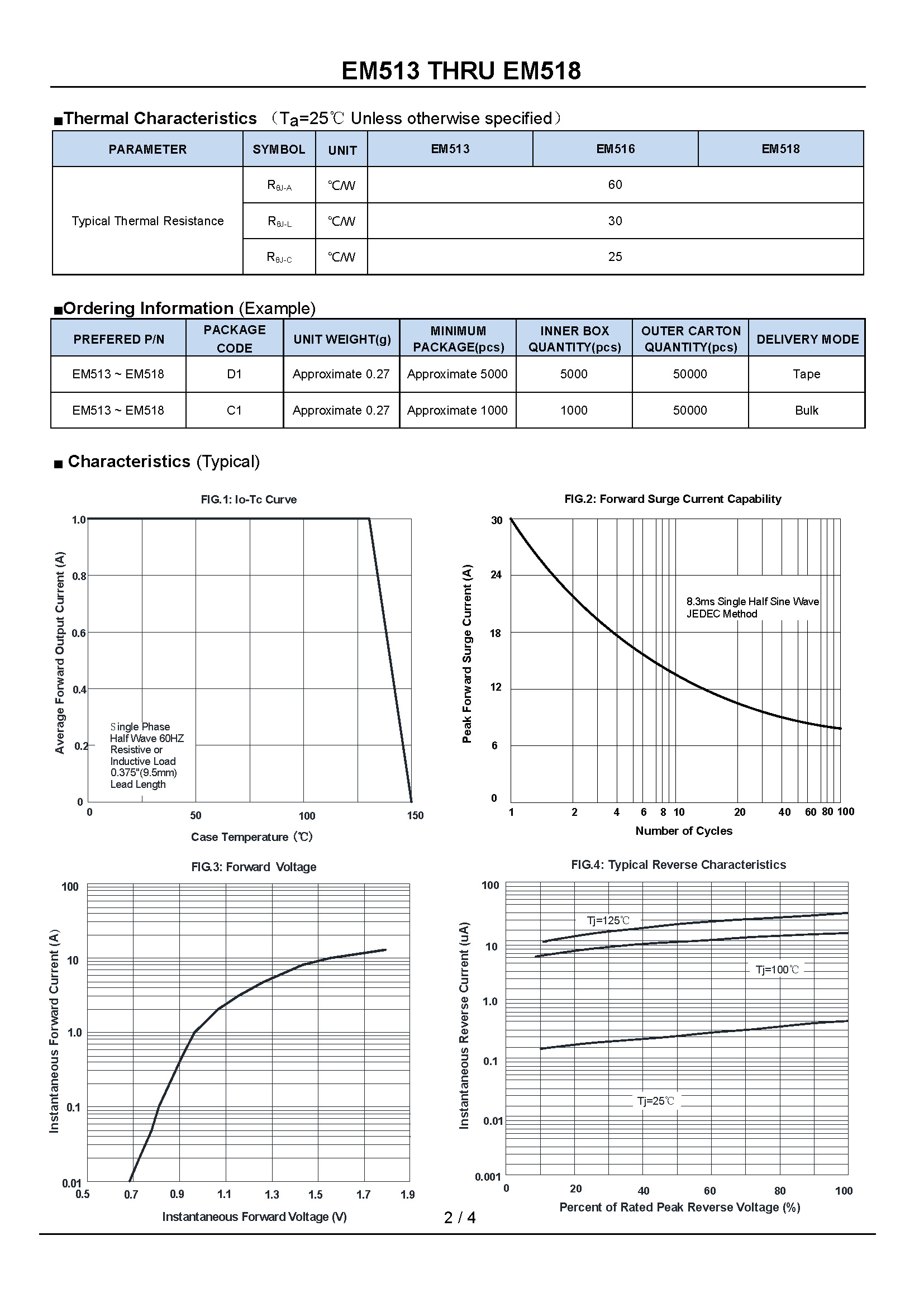

EM513-1_页面_2
