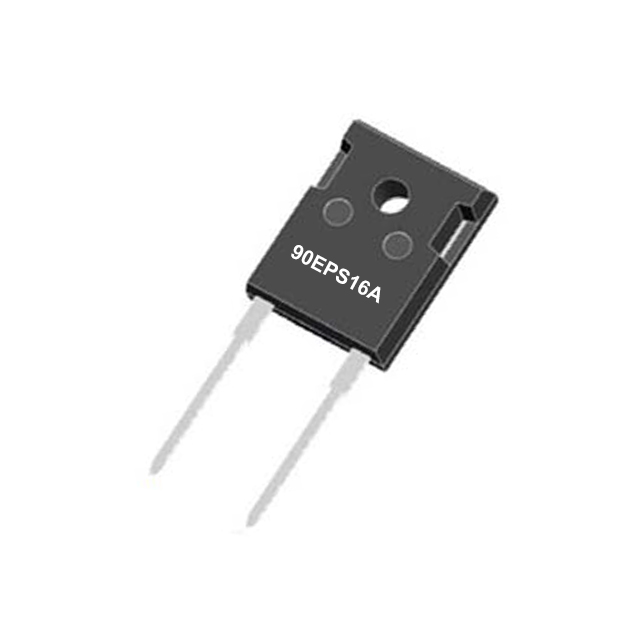

1600V 90A General Purpose Rectifier Diodes, TO-247AC, 90EPS16A

1600V 90A General Purpose Rectifier Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 90EPS16A

  • Merry

1600V 90A General Purpose Rectifier Diodes, TO-247AC, 90EPS16A

Features :

- High surge forward current capability
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Solder dip 275 °C max. 7 s, per JESD 22-B106

Mechanical Date :

- Package: TO-247AC
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity:As marked

Typical Application :

- Input rectification



90EPS16AName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

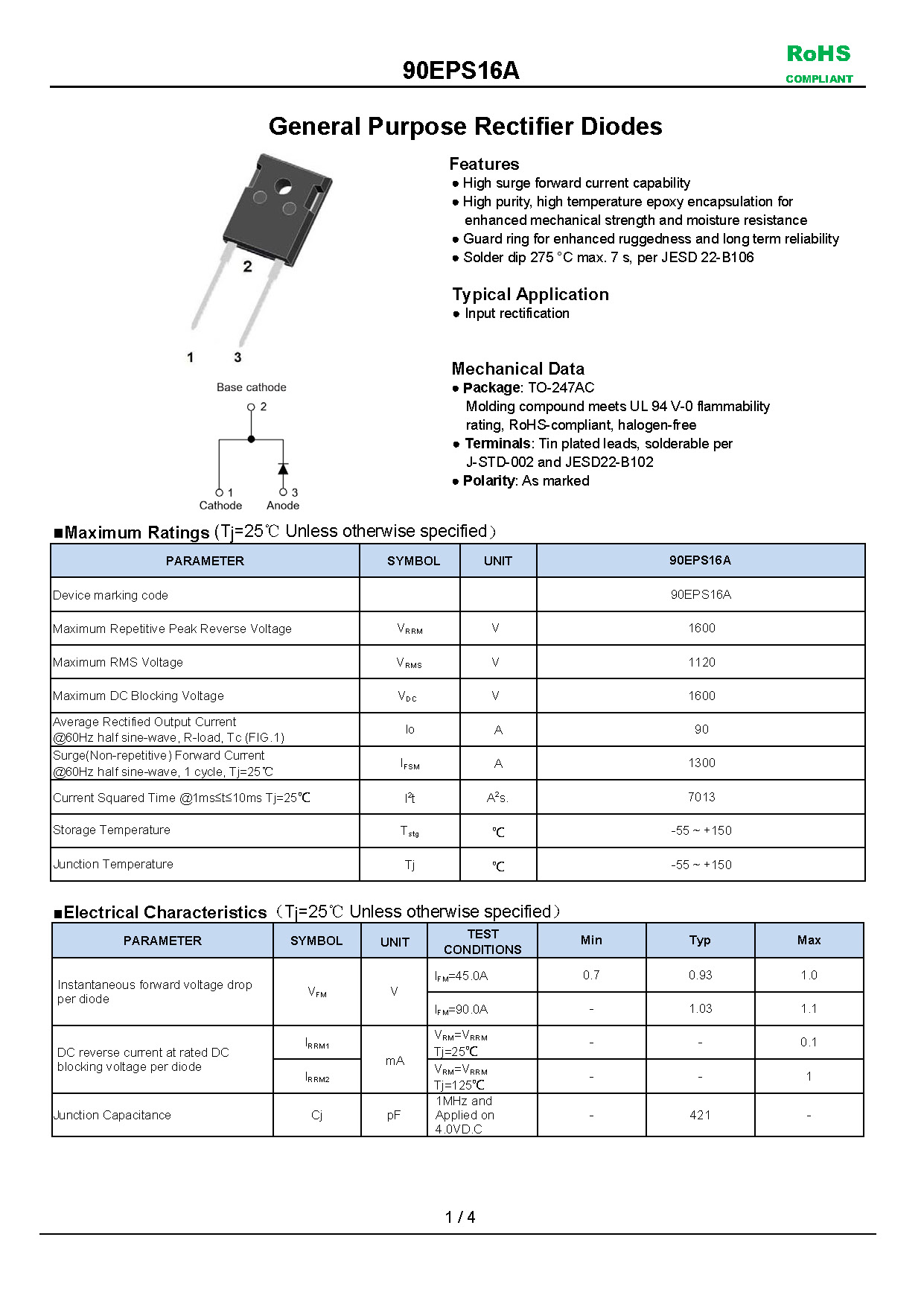

90EPS16A-1_页面_1

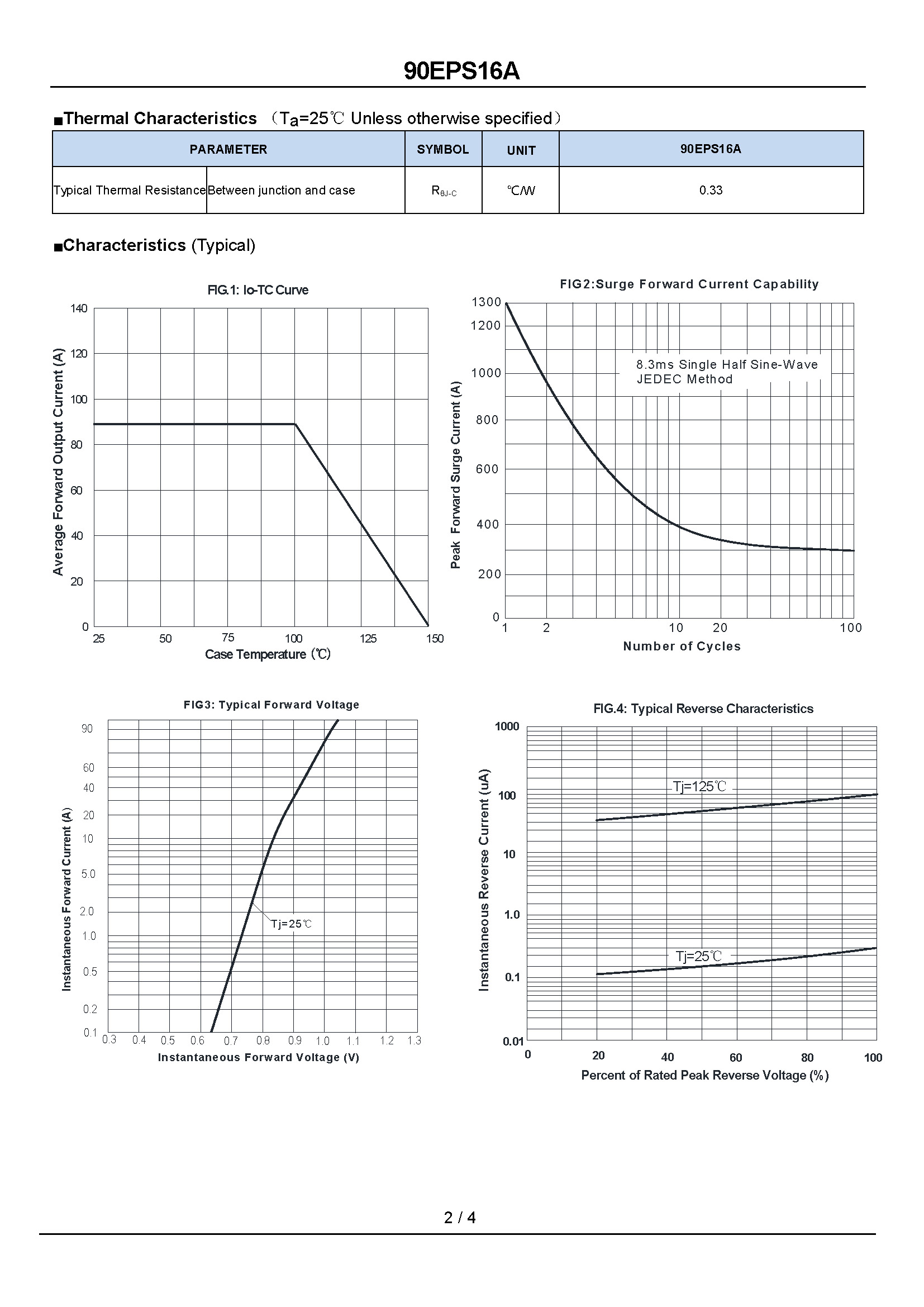

90EPS16A-1_页面_2

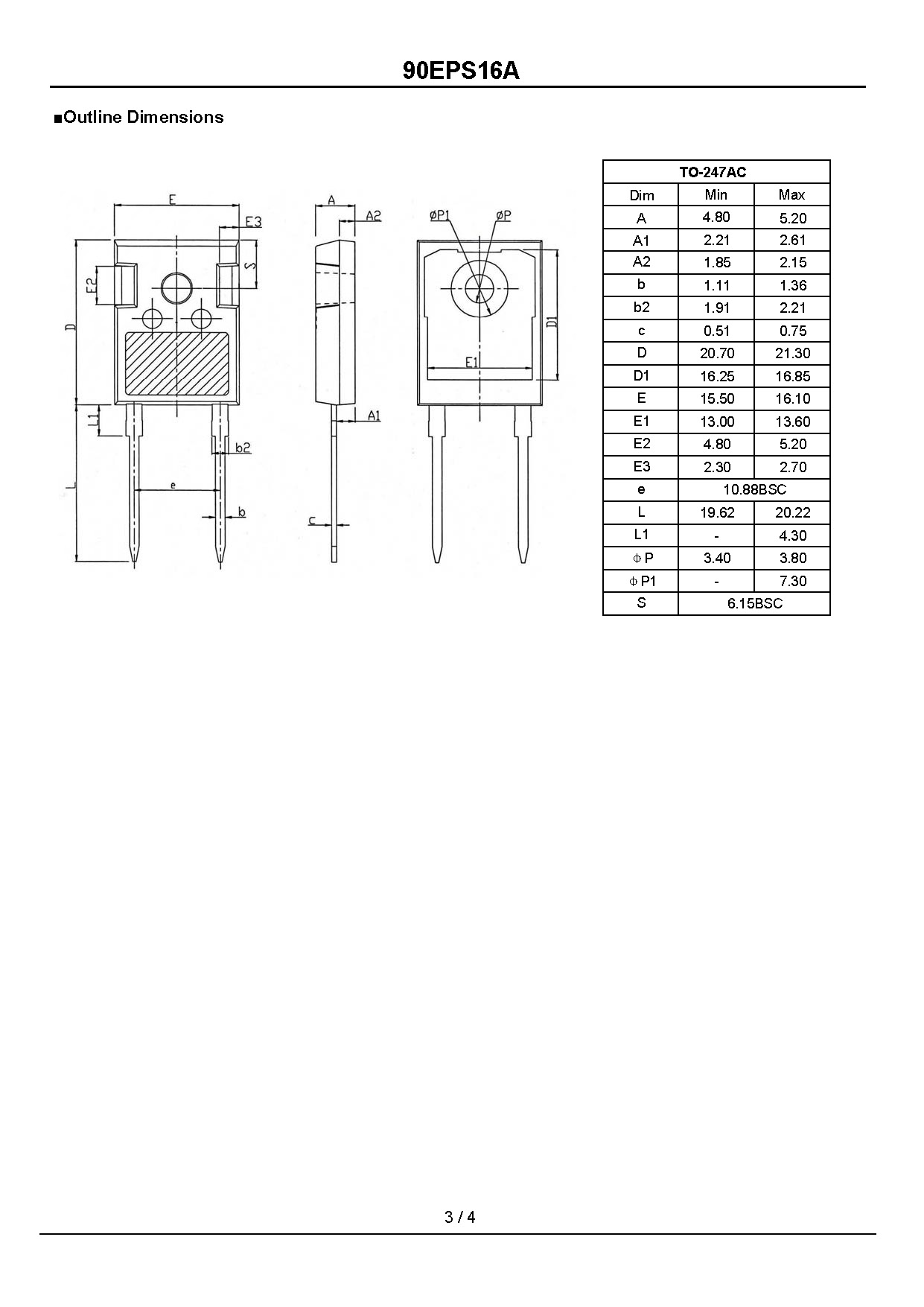

90EPS16A-1_页面_3
