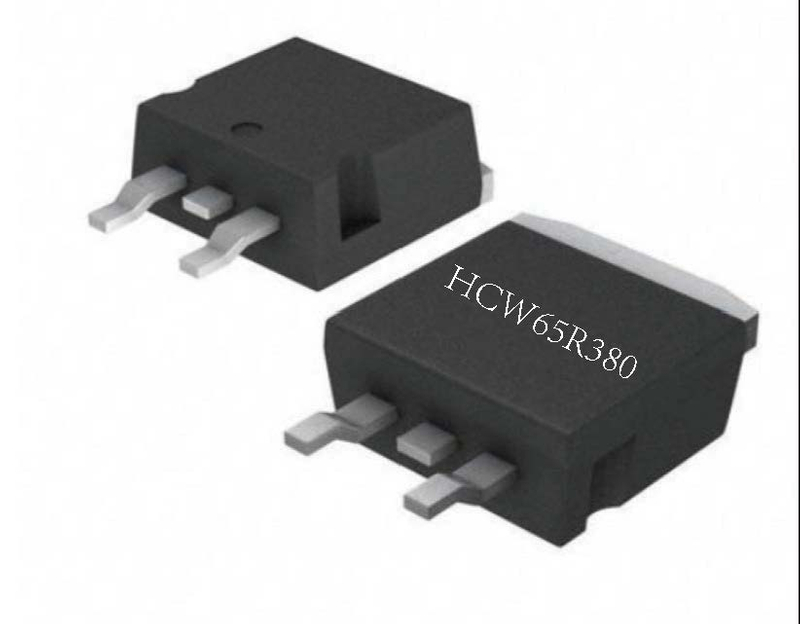

650V N-Channel Super Junction MOSFET HCW65R380 TO-263

650V N-Channel Super Junction MOSFET HCW65R380 TO-263
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HCW65R380

  • Semihow

Product Name:

650V N-Channel Super Junction MOSFET HCW65R380 TO-263


Product Description:

Features:

•   Very Low FOM (RDS(on)  X Qg)

•   Extremely low switching loss

•   Excellent stability and uniformity

•   100% Avalanche Tested

•   Built-in ESD Diode

Applications:

•   Switch Mode Power Supply (SMPS)

•   Uninterruptible Power Supply (UPS)

•   Power Factor Correction (PFC)

•   TV power & LED Lighting Power

•   AC to DC Converters

•   Telecom


Introducing the 650V N-Channel Super Junction MOSFET HCW65R380 TO-263. This high-performance electronic component is designed to meet your switching and amplification needs with utmost precision and reliability.

With a voltage rating of 650V, this N-Channel Super Junction MOSFET is engineered to handle a wide range of electronic signals with exceptional efficiency. Whether you require precise switching capabilities or superior signal amplification, this product is built to deliver optimal performance.

The HCW65R380 TO-263 package ensures easy installation and secure connections, making it suitable for various applications in industries such as telecommunications, power supplies, and industrial automation.

Crafted with meticulous attention to detail, this MOSFET guarantees outstanding signal control and minimal power losses. Its advanced design ensures high-speed switching and low on-resistance, resulting in enhanced system efficiency and reduced heat dissipation.

Trust in the professionalism and reliability of the 650V N-Channel Super Junction MOSFET HCW65R380 TO-263 to meet your electronic signal switching and amplification requirements. Choose this product for superior performance and seamless integration into your electronic systems.


Product Specifications:

SemiHow-HCW65R380 (1).pdf

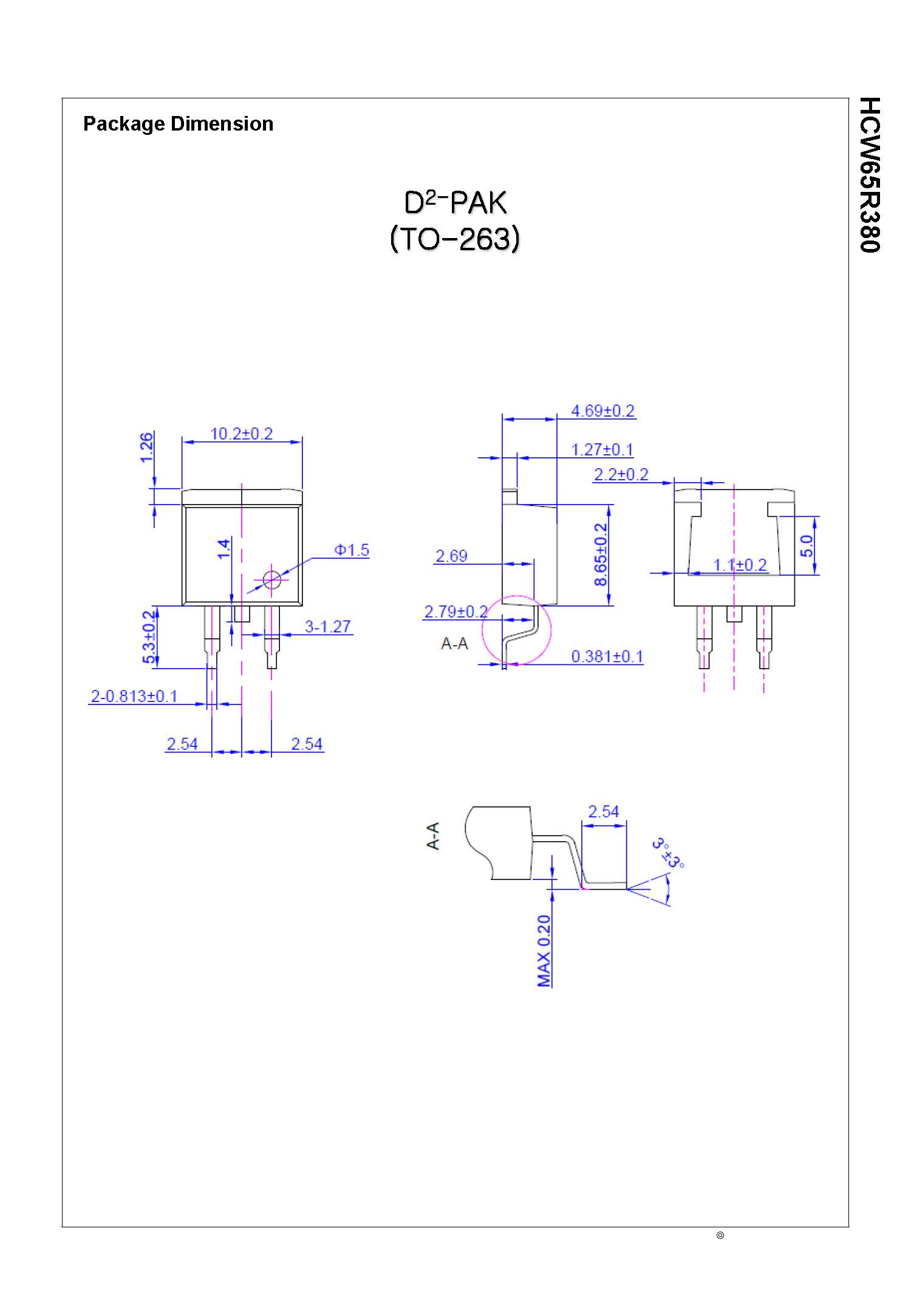

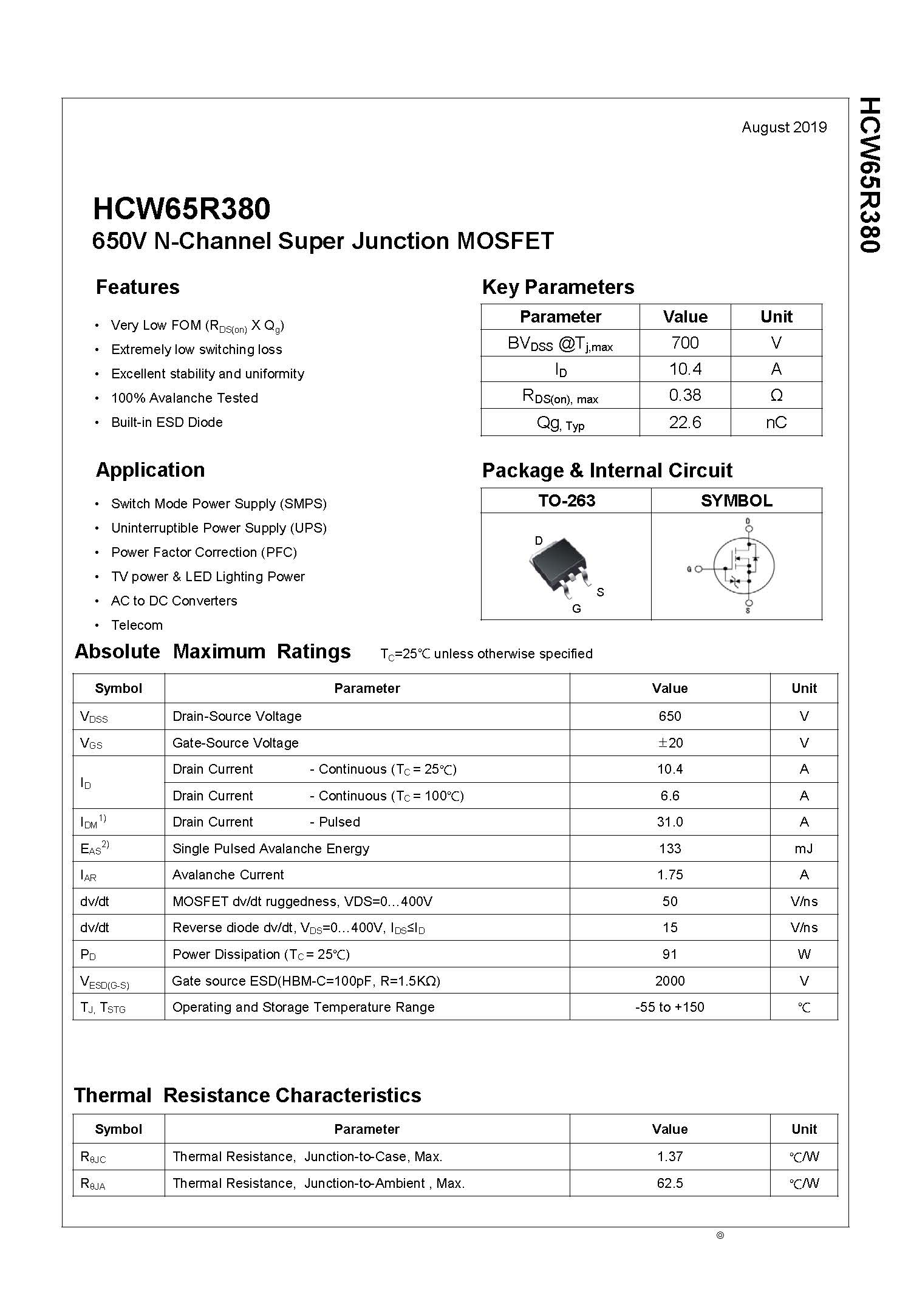

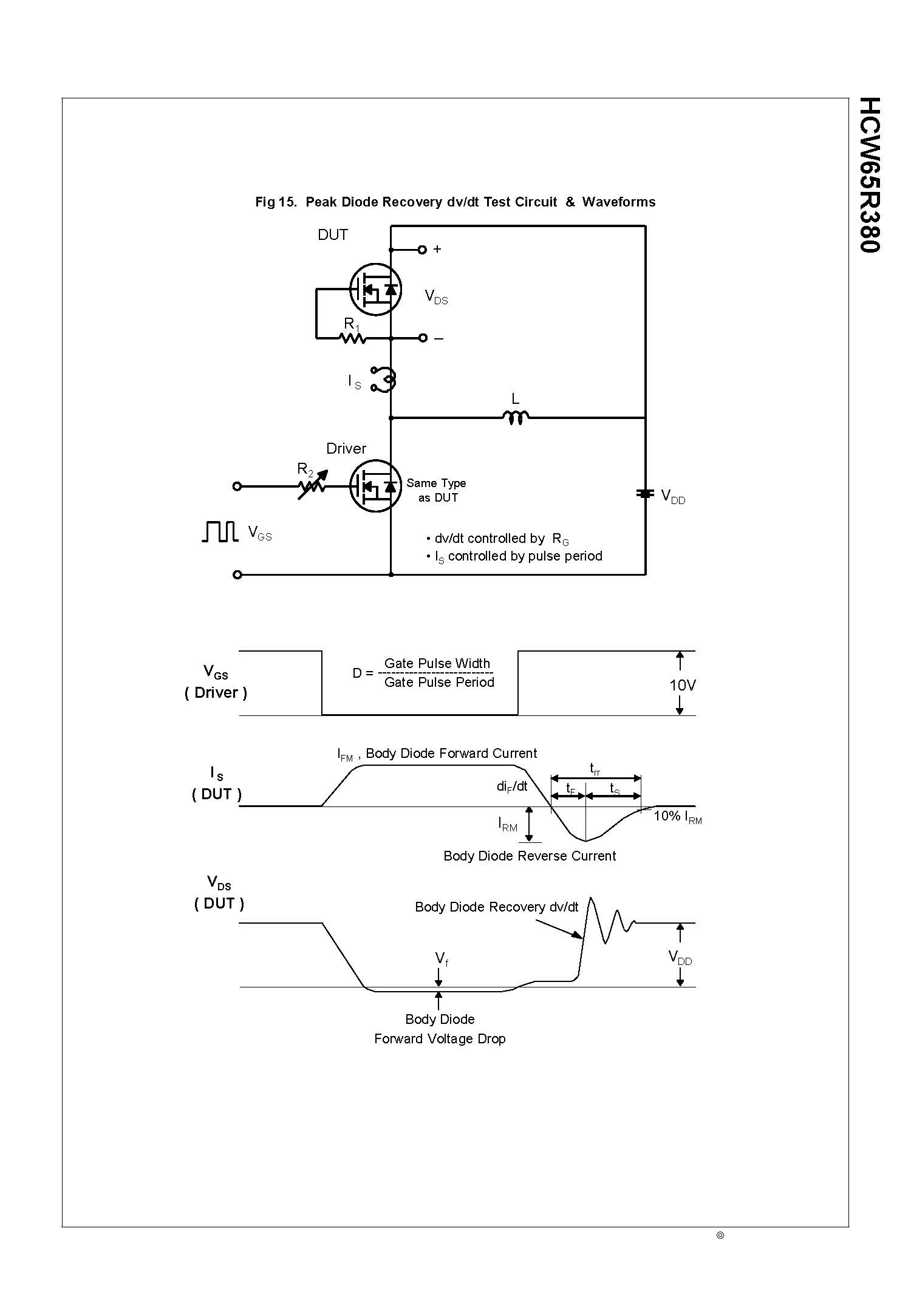

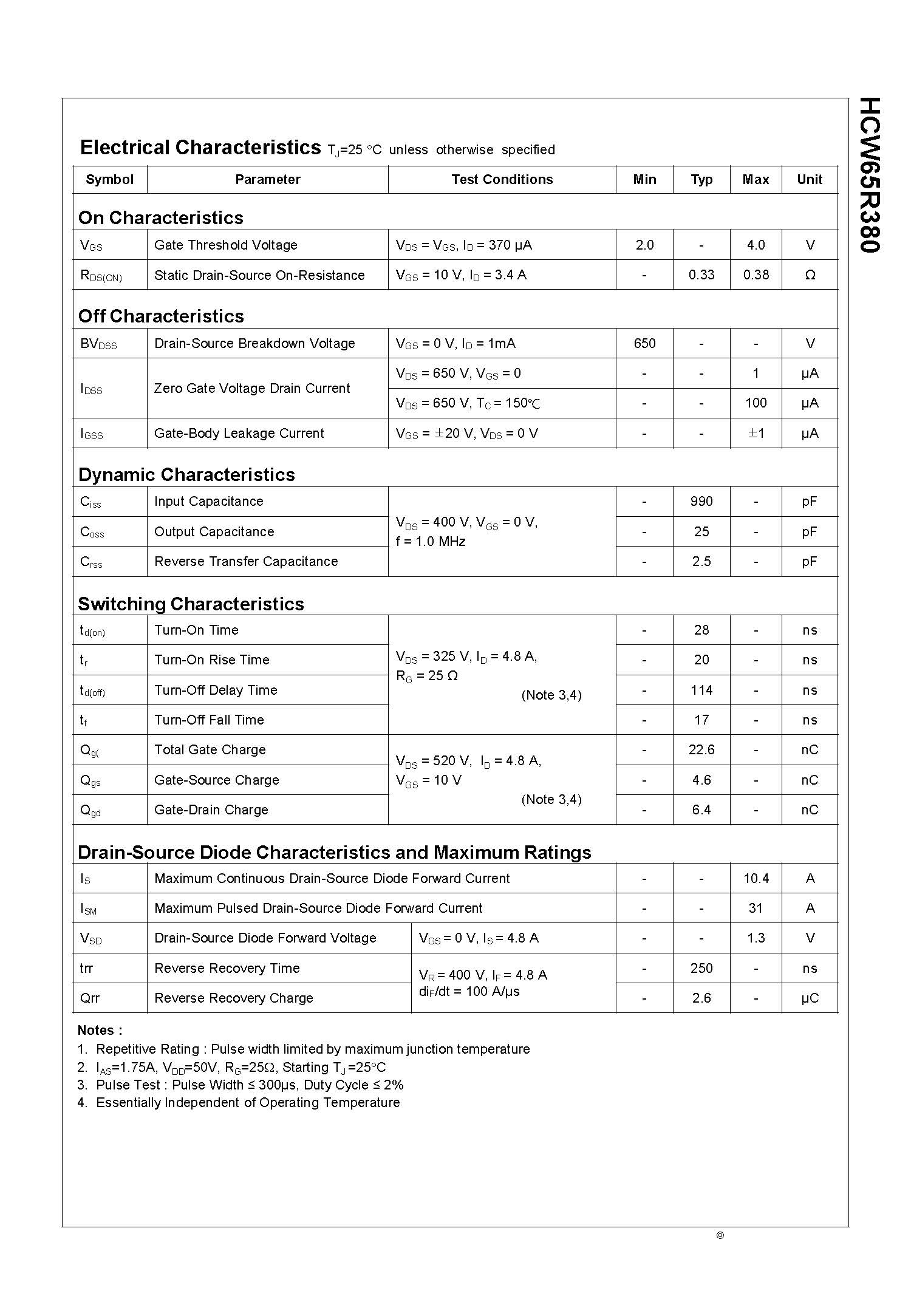

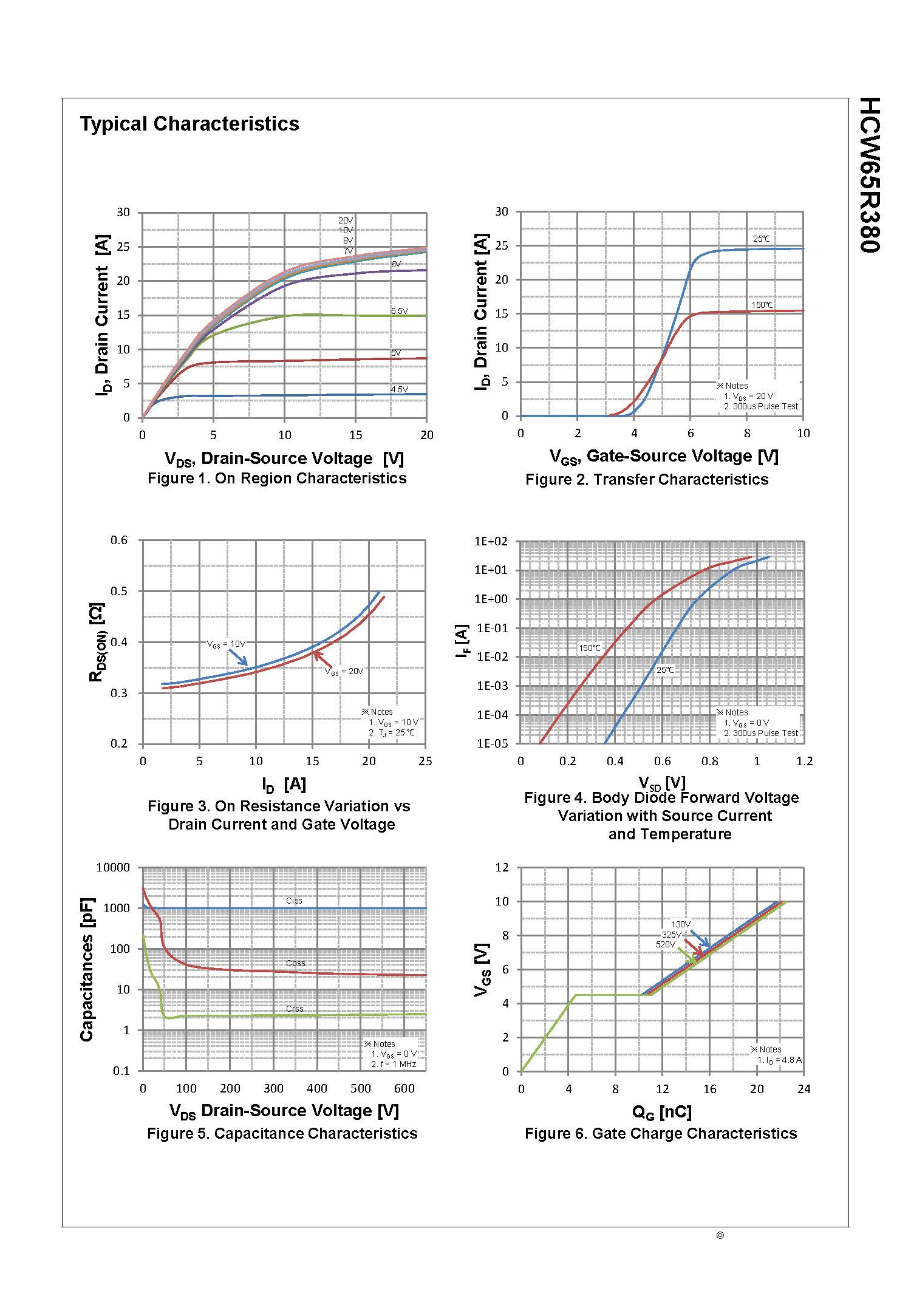

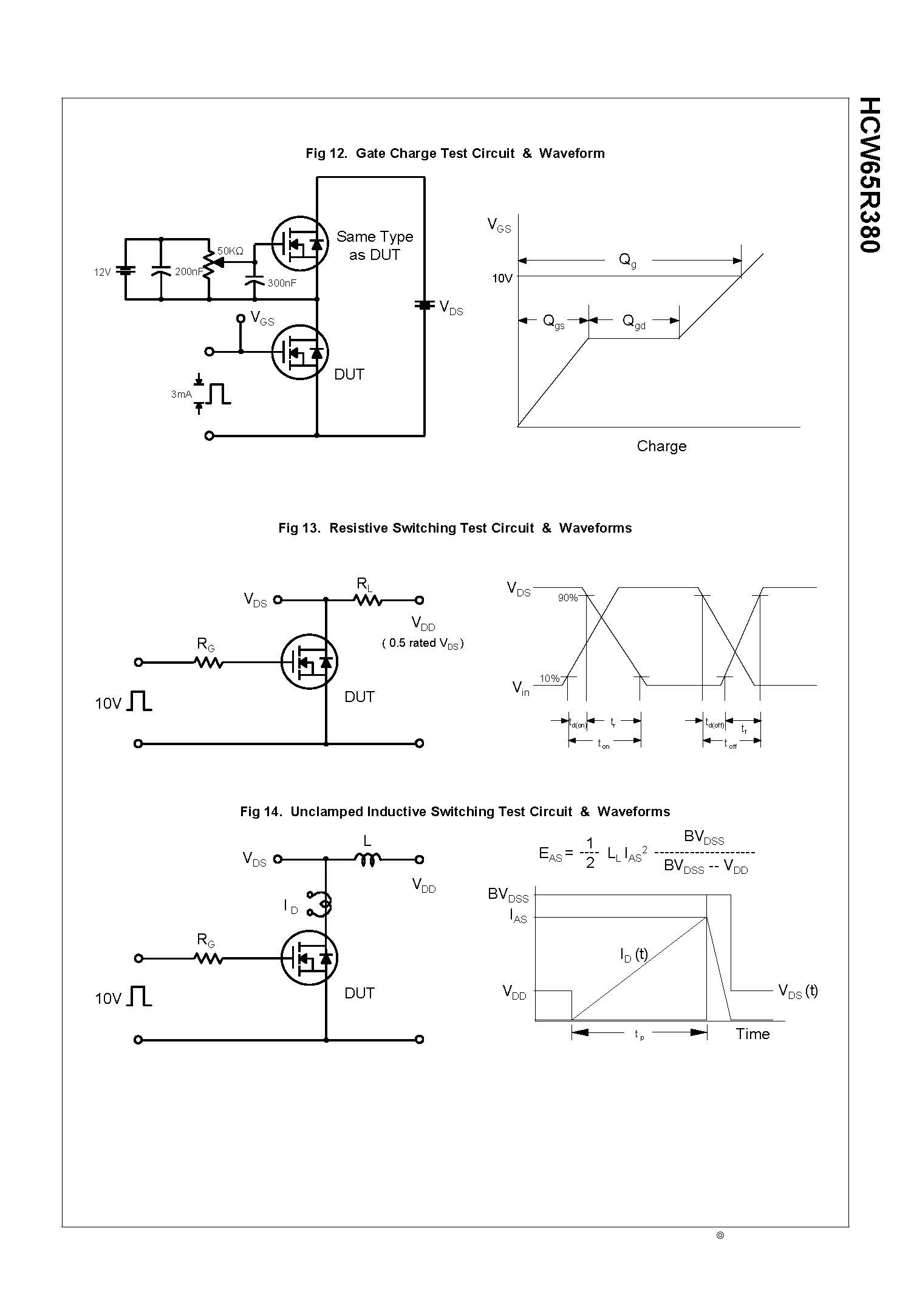

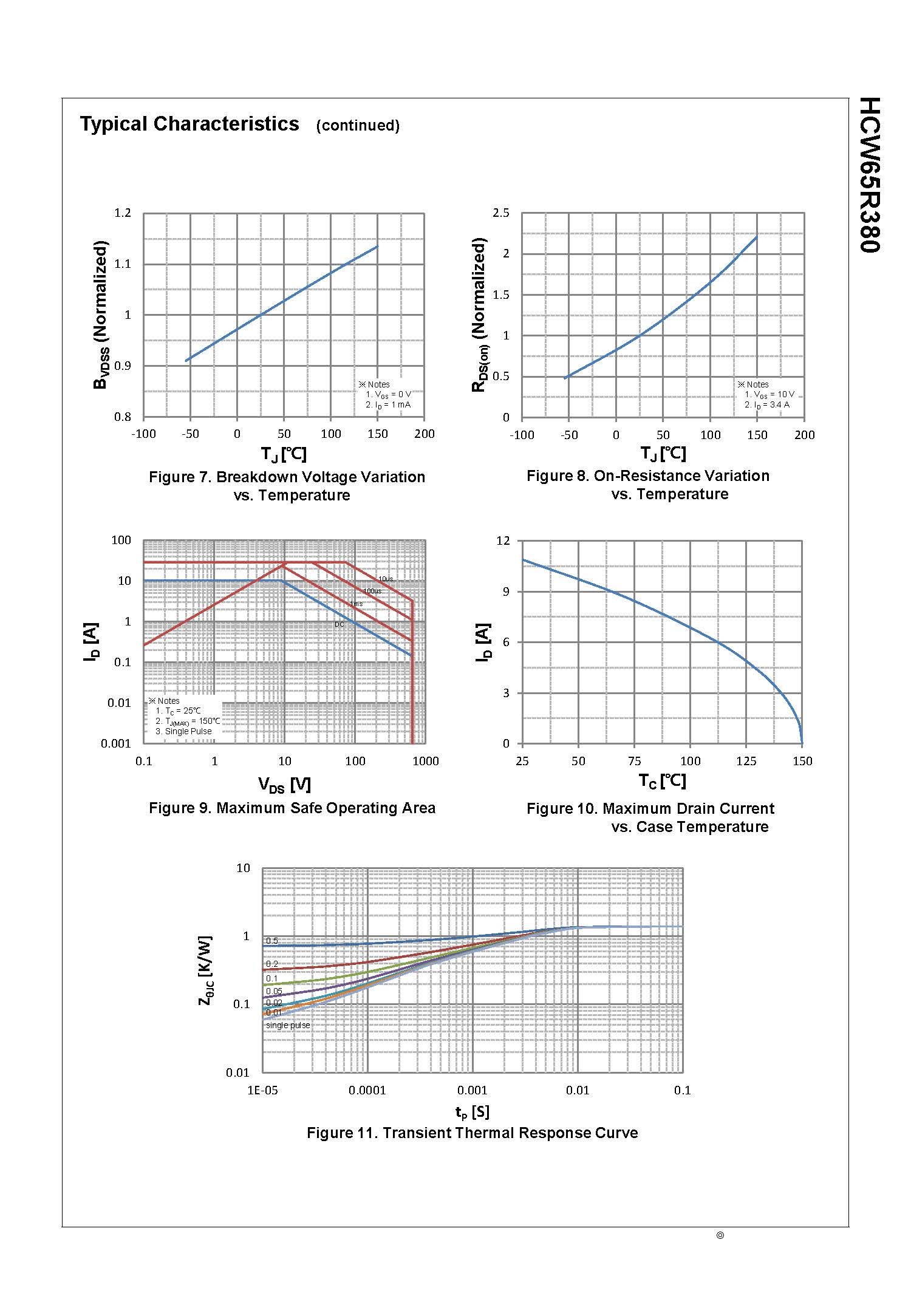

SemiHow-HCW65R380 (1)_页面_1SemiHow-HCW65R380 (1)_页面_2SemiHow-HCW65R380 (1)_页面_3SemiHow-HCW65R380 (1)_页面_4SemiHow-HCW65R380 (1)_页面_5SemiHow-HCW65R380 (1)_页面_6SemiHow-HCW65R380 (1)_页面_7
