LSGE085R052
Product Name:

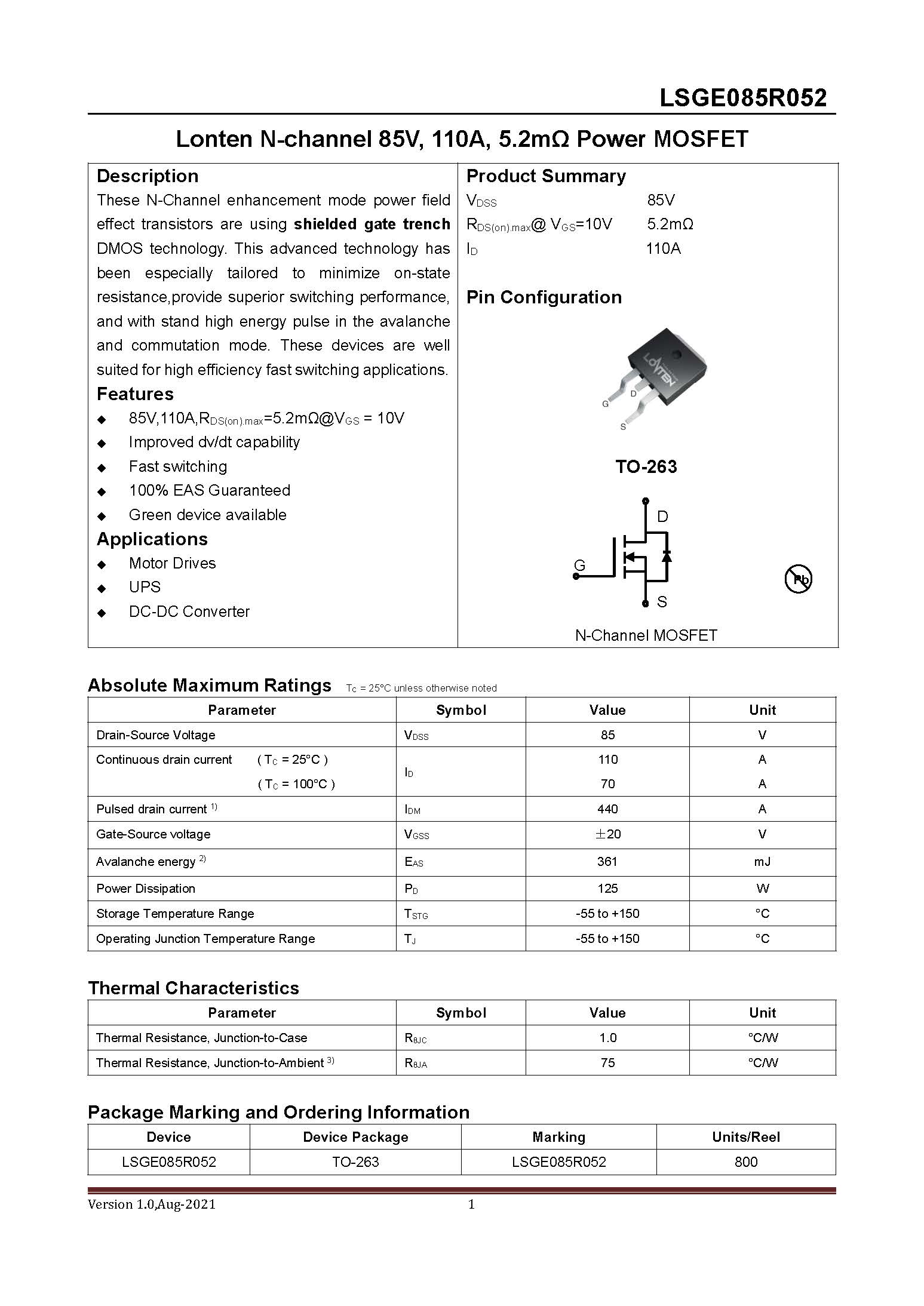

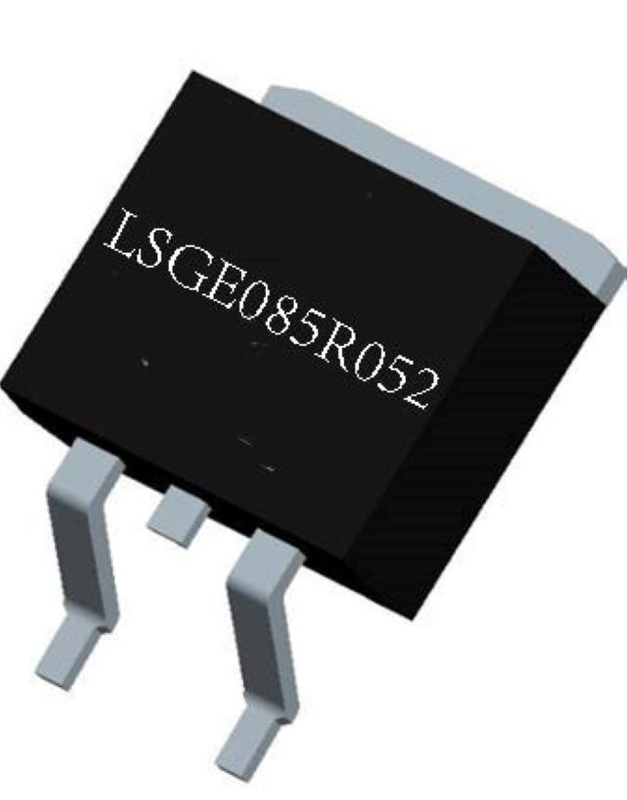

Lonten Low Voltage N-channel 85V, 110A, 5.2mΩ Power MOSFET LSGE085R052 TO-263
Product Description:
Description:
These N-Channel enhancement mode power field
effect transistors are using shielded gate trench
DMOS technology. This advanced technology has
been especially tailored to minimize on-state
resistance,provide superior switching performance,
and with stand high energy pulse in the avalanche
and commutation mode. These devices are well
suited for high efficiency fast switching applications.
Features:
85V,110A,RDS(on).max=5.2mΩ@VGS = 10V
Improved dv/dt capability
Fast switching
100% EAS Guaranteed
Green device available
Applications:
Motor Drives
UPS
DC-DC Converter
Product Summary:
VDSS: 85V
RDS(on).max VGS=10V 5.2mΩ
ID: 110A
Introducing the Lonten Low Voltage N-channel 85V, 110A, 5.2mΩ Power MOSFET LSGE085R052 TO-263. This high-quality MOSFET is designed for efficiently switching and amplifying electronic signals in a wide range of electronic devices. With a voltage rating of 85V and a current rating of 110A, this MOSFET offers reliable performance and precise control. The low on-resistance of 5.2mΩ ensures minimal power loss and maximum efficiency. Trust the Lonten Power MOSFET for your electronic signal processing needs.
Product Specifications:
Product Name:
Lonten Low Voltage N-channel 85V, 110A, 5.2mΩ Power MOSFET LSGE085R052 TO-263
Product Description:
Description:
These N-Channel enhancement mode power field
effect transistors are using shielded gate trench
DMOS technology. This advanced technology has
been especially tailored to minimize on-state
resistance,provide superior switching performance,
and with stand high energy pulse in the avalanche
and commutation mode. These devices are well
suited for high efficiency fast switching applications.
Features:
85V,110A,RDS(on).max=5.2mΩ@VGS = 10V
Improved dv/dt capability
Fast switching
100% EAS Guaranteed
Green device available
Applications:
Motor Drives
UPS
DC-DC Converter
Product Summary:
VDSS: 85V
RDS(on).max VGS=10V 5.2mΩ
ID: 110A
Introducing the Lonten Low Voltage N-channel 85V, 110A, 5.2mΩ Power MOSFET LSGE085R052 TO-263. This high-quality MOSFET is designed for efficiently switching and amplifying electronic signals in a wide range of electronic devices. With a voltage rating of 85V and a current rating of 110A, this MOSFET offers reliable performance and precise control. The low on-resistance of 5.2mΩ ensures minimal power loss and maximum efficiency. Trust the Lonten Power MOSFET for your electronic signal processing needs.
