LSGN10R042
Product Name:

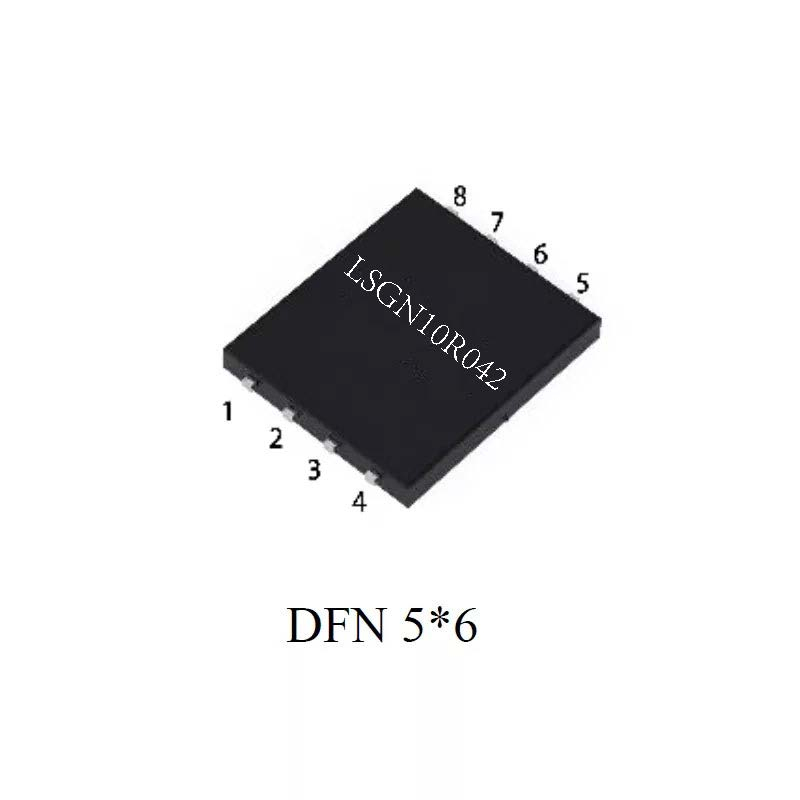

Lonten Low Voltage N-channel 100V, 107A, 4.35mΩ Power MOSFET LSGN10R042 DFN5×6
Product Description:
Description:
These N-Channel enhancement mode power field
effect transistors are using shielded gate trench
DMOS technology. This advanced technology has
been especially tailored to minimize on-state
resistance,provide superior switching performance,
and with stand high energy pulse in the avalanche
and commutation mode. These devices are well
suited for high efficiency fast switching applications.
Features:
100V,107A,RDS(on).max=4.35mΩ@VGS = 10V
Improved dv/dt capability
Fast switching
100% EAS Guaranteed
Green device available
Applications:
Motor Drives
UPS
DC-DC Converter
Product Summary:
VDSS: 100V
RDS(on).max VGS=10V 4.35mΩ
ID: 107A
Introducing the Lonten Low Voltage N-channel Power MOSFET LSGN10R042 DFN5×6. This high-quality component is designed to efficiently switch and amplify electronic signals in a variety of electronic devices. With a voltage rating of 100V and a current rating of 107A, this MOSFET offers reliable performance for your electronic applications. Its low on-resistance of 4.35mΩ ensures minimal power loss and maximum efficiency. Upgrade your electronic designs with the Lonten Power MOSFET for superior performance and reliability.
Product Specifications:
Product Name:
Lonten Low Voltage N-channel 100V, 107A, 4.35mΩ Power MOSFET LSGN10R042 DFN5×6
Product Description:
Description:
These N-Channel enhancement mode power field
effect transistors are using shielded gate trench
DMOS technology. This advanced technology has
been especially tailored to minimize on-state
resistance,provide superior switching performance,
and with stand high energy pulse in the avalanche
and commutation mode. These devices are well
suited for high efficiency fast switching applications.
Features:
100V,107A,RDS(on).max=4.35mΩ@VGS = 10V
Improved dv/dt capability
Fast switching
100% EAS Guaranteed
Green device available
Applications:
Motor Drives
UPS
DC-DC Converter
Product Summary:
VDSS: 100V
RDS(on).max VGS=10V 4.35mΩ
ID: 107A
Introducing the Lonten Low Voltage N-channel Power MOSFET LSGN10R042 DFN5×6. This high-quality component is designed to efficiently switch and amplify electronic signals in a variety of electronic devices. With a voltage rating of 100V and a current rating of 107A, this MOSFET offers reliable performance for your electronic applications. Its low on-resistance of 4.35mΩ ensures minimal power loss and maximum efficiency. Upgrade your electronic designs with the Lonten Power MOSFET for superior performance and reliability.
