YJL140G10ALJ
Merry

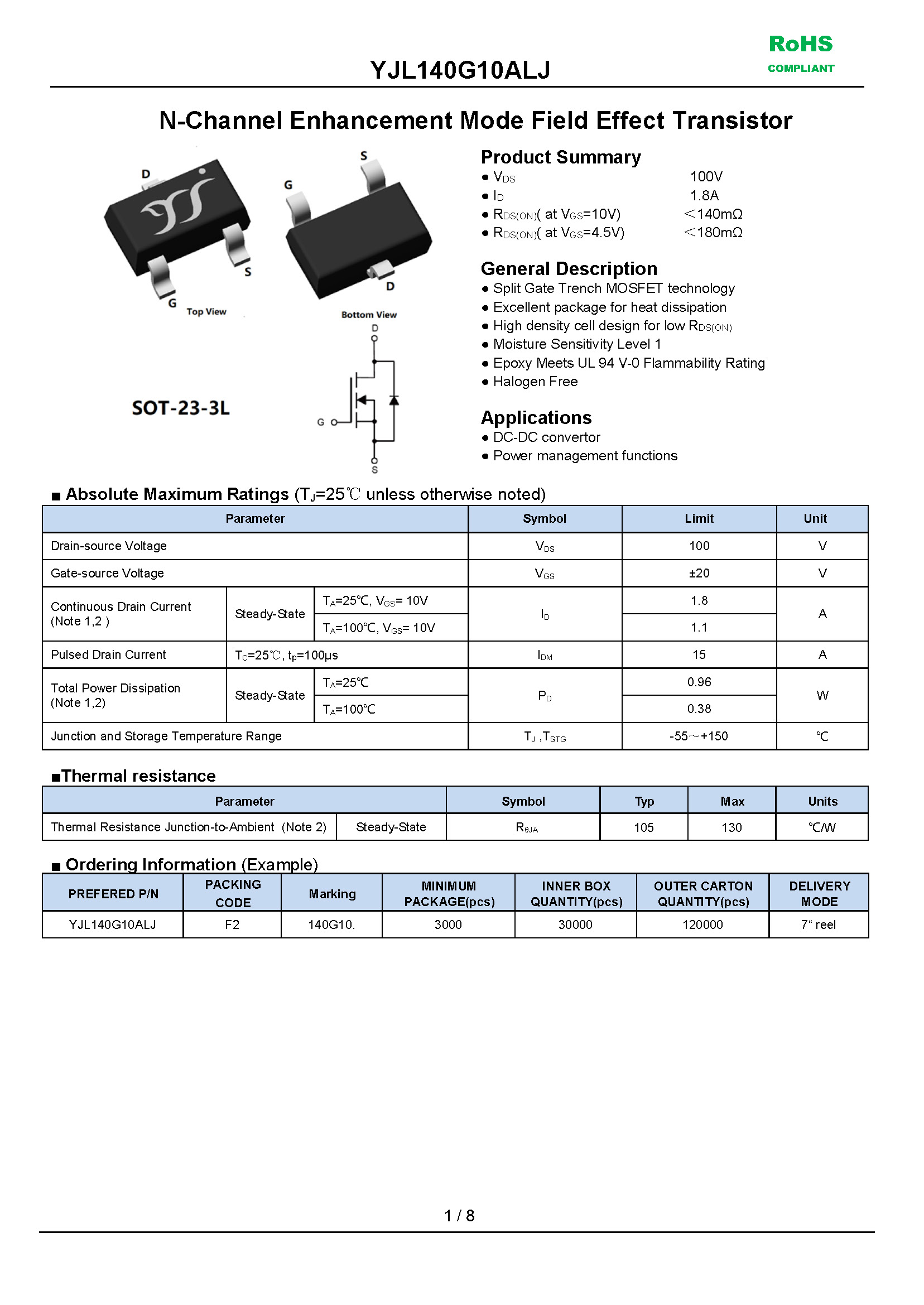

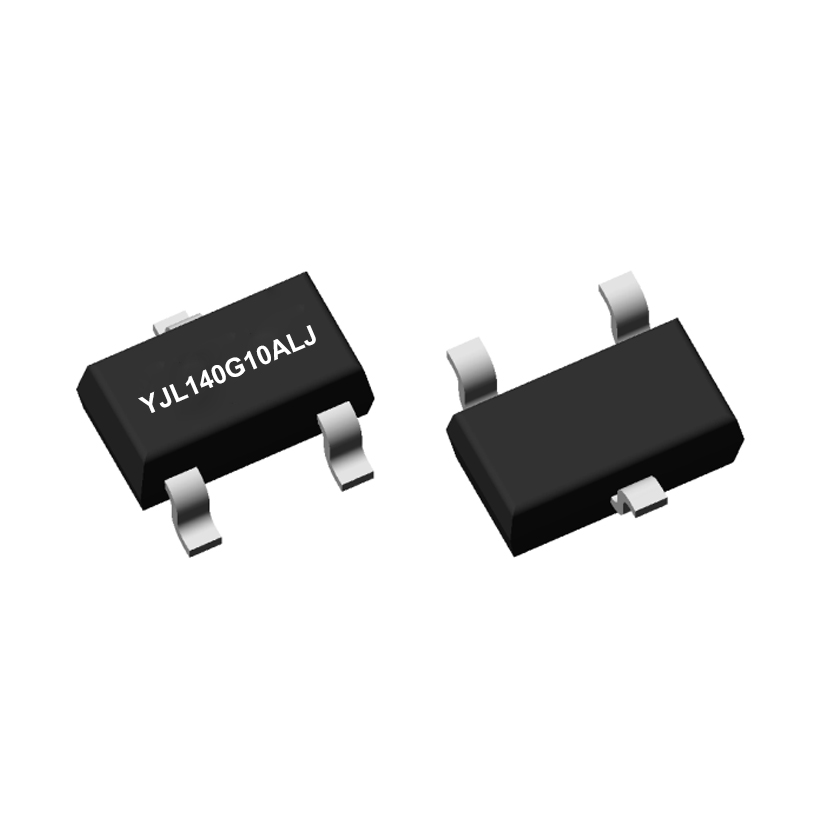

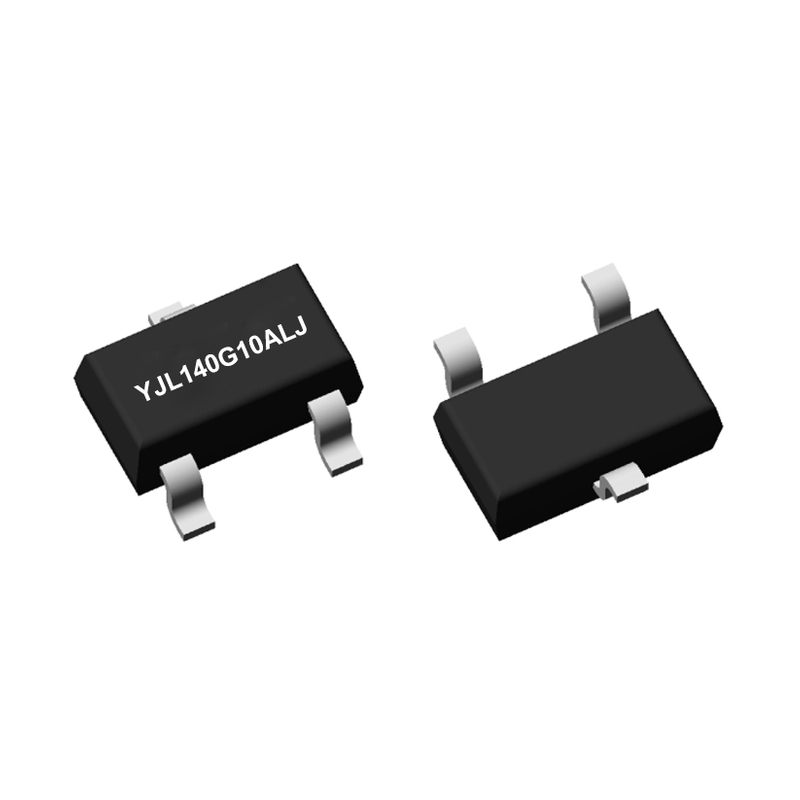

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 100V, ID: 1.85A, PD: 0.96W, fetures, applications, SOT-23-3L, YJL140G10ALJ
Features :
- VDS : 100V
- ID : 1.8A
- RDS(ON)( at VGS=10V) : < 140mΩ
- RDS(ON)( at VGS=4.5V) : < 180mΩ
General Description :
- Split Gate Trench MOSFET technology
- Excellent package for heat dissipation
- High density cell design for low RDS(ON)
- Halogen Free
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
Applications :
- DC-DC convertor
- Power management functions
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
