N-Channel Enhancement Mode Field Effect Transistor, VDSS: 20V, ID: 4.5A, PD: 1W, fetures, applications, SOT-23, YJL2300A

Features :
- VDS : 20V
- ID : 4.5A
- RDS(ON)( at VGS=4.5V) : < 25 mohm
- RDS(ON)( at VGS=2.5V) : < 32 mohm
- RDS(ON)( at VGS=1.8V) : < 46 mohm
- 100% ▽VDS Tested

General Description :
- Trench Power MV MOSFET technology
- High Power and current handing capability

Applications :
- PWM application
- Load switch
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • YJL2300A

  • Merry

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 20V, ID: 4.5A, PD: 1W, fetures, applications, SOT-23, YJL2300A

Features :

- VDS : 20V
- ID : 4.5A
- RDS(ON)( at VGS=4.5V) : < 25 mohm
- RDS(ON)( at VGS=2.5V) : < 32 mohm
- RDS(ON)( at VGS=1.8V) : < 46 mohm
- 100% ▽VDS Tested


General Description
 :
- Trench Power MV MOSFET technology
- High Power and current handing capability


Applications :
- PWM application
- Load switch

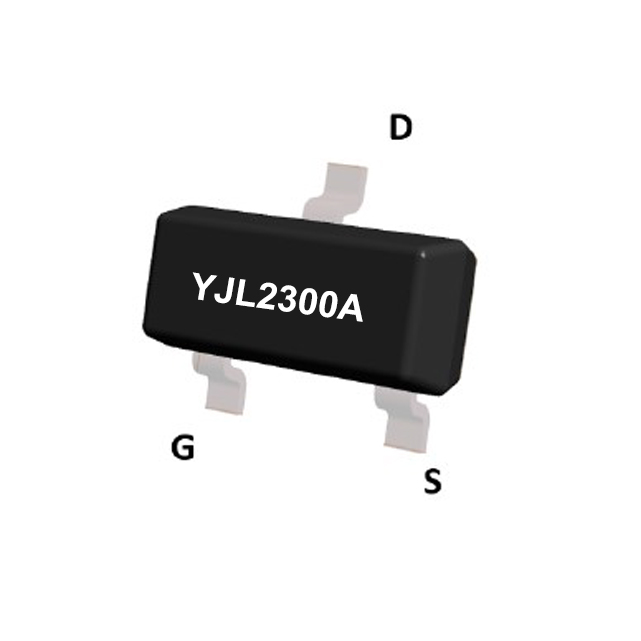

YJL2300A

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2



1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

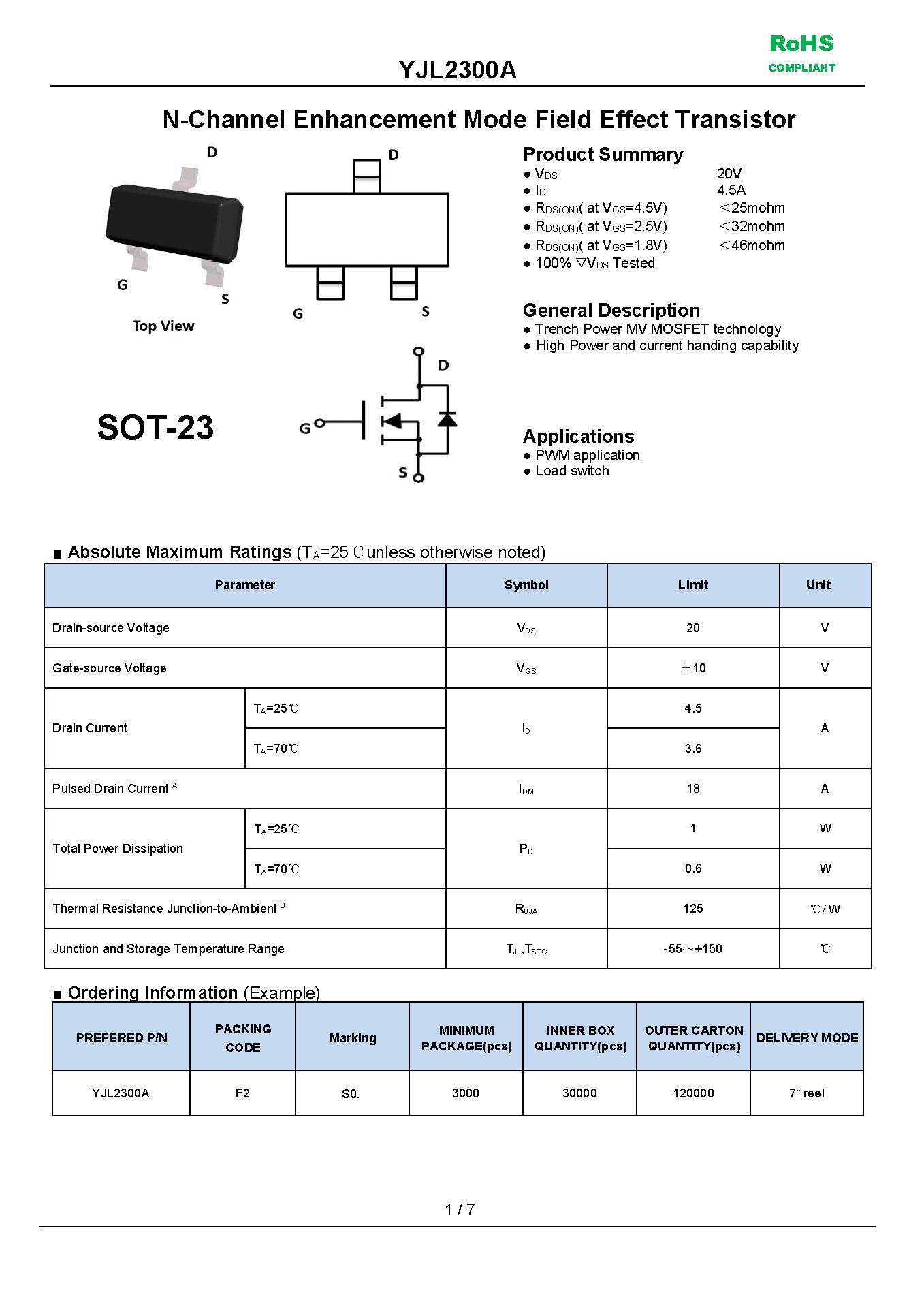

YJL2300A-1_页面_1

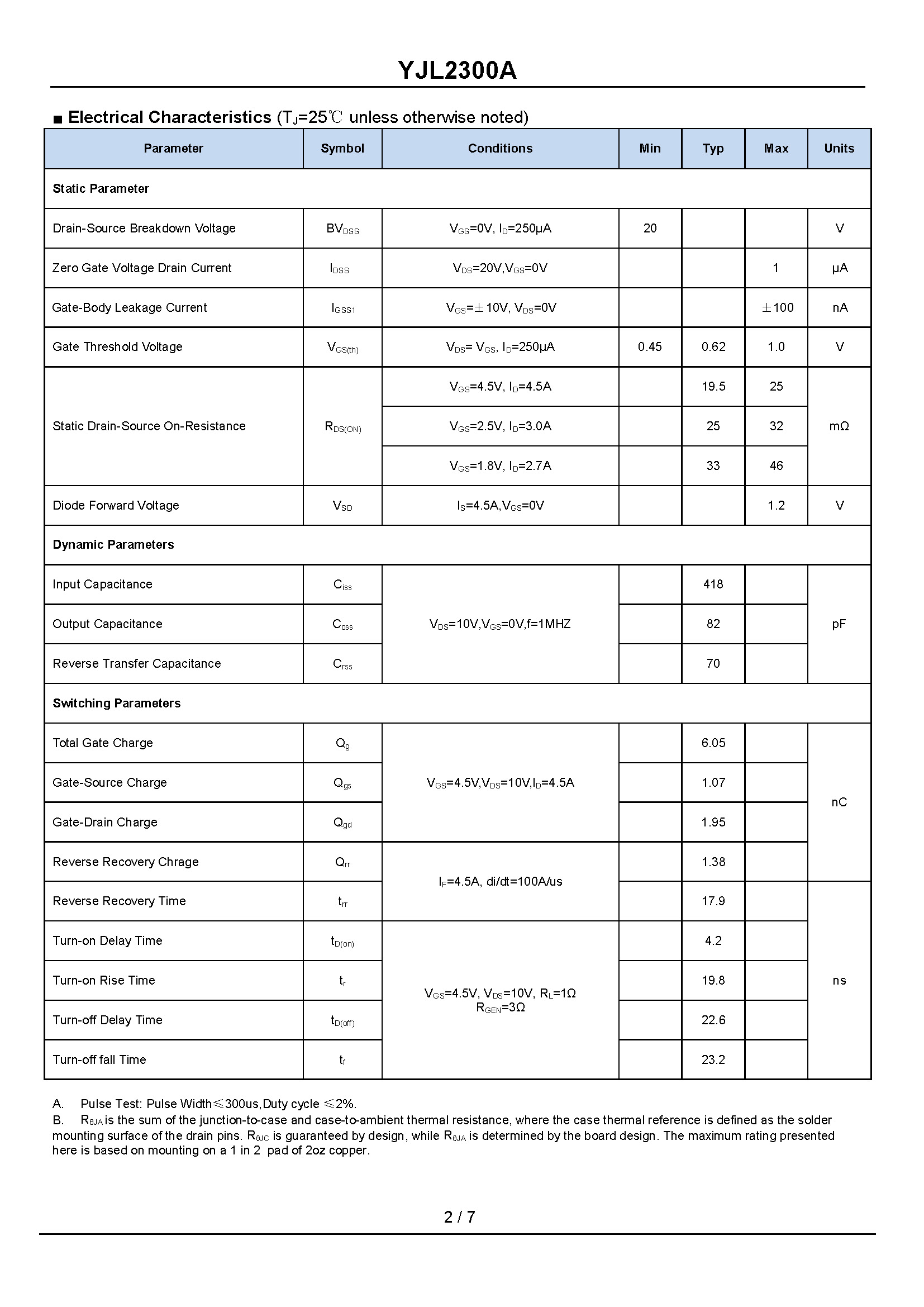

YJL2300A-1_页面_2

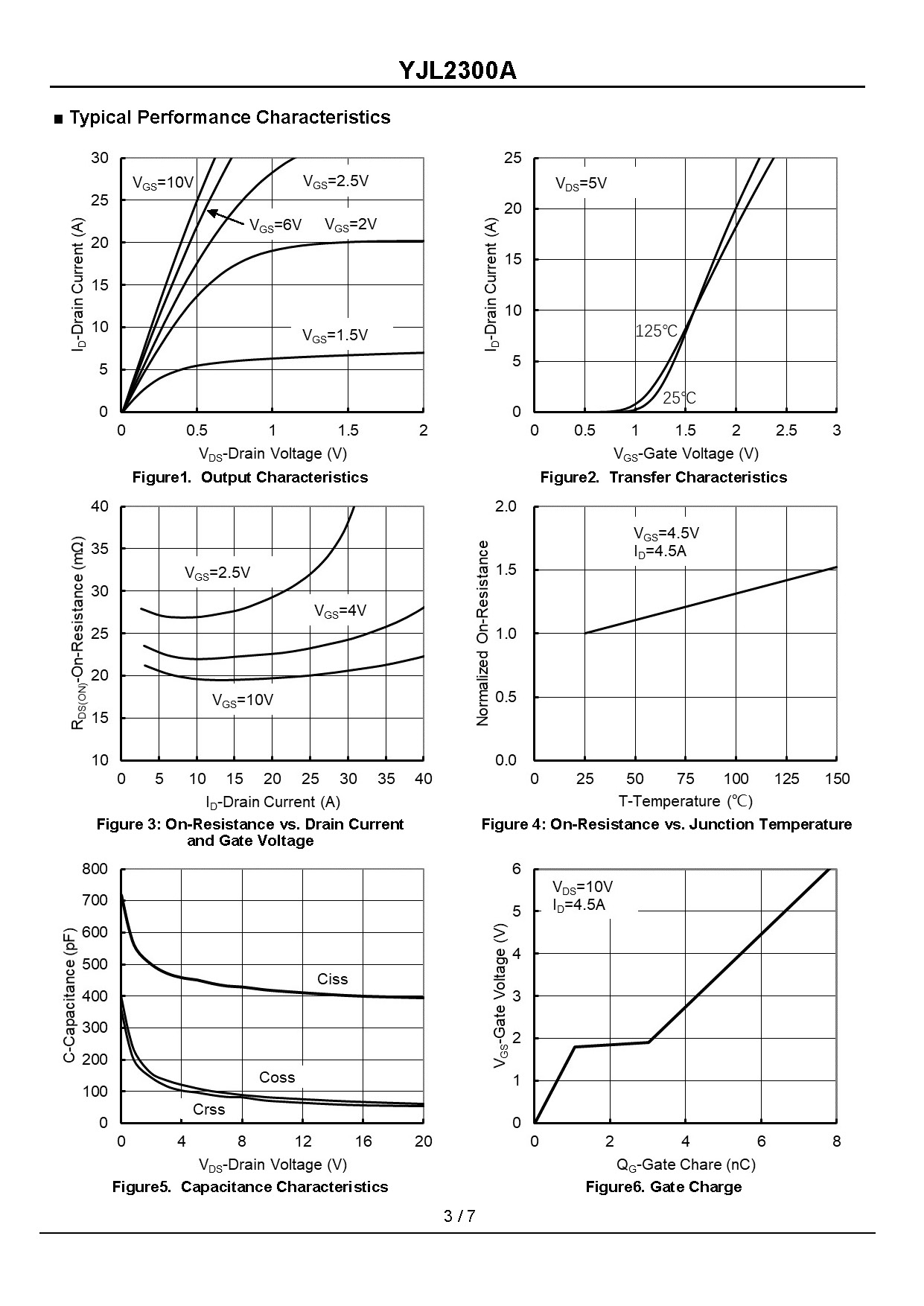

YJL2300A-1_页面_3

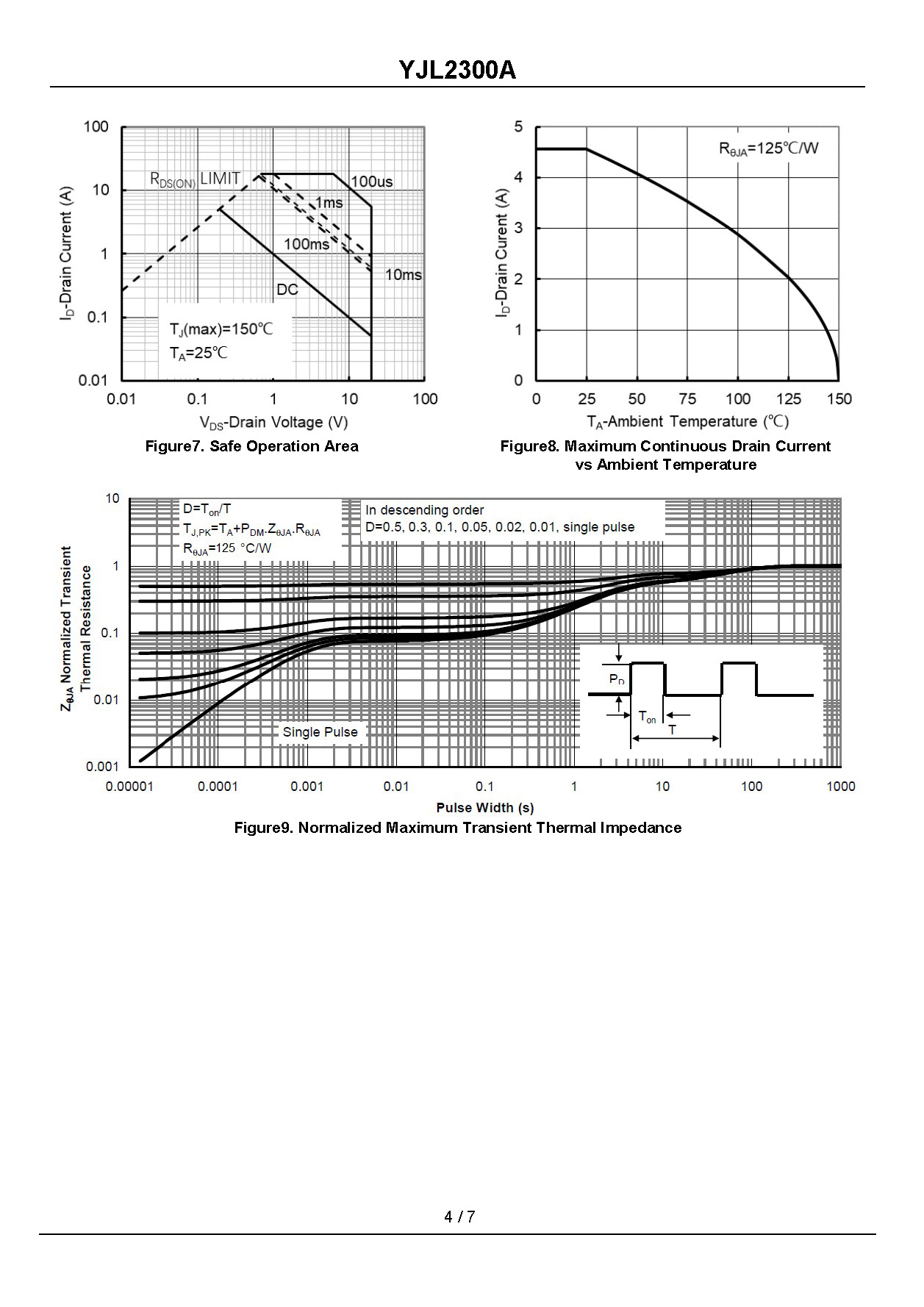

YJL2300A-1_页面_4

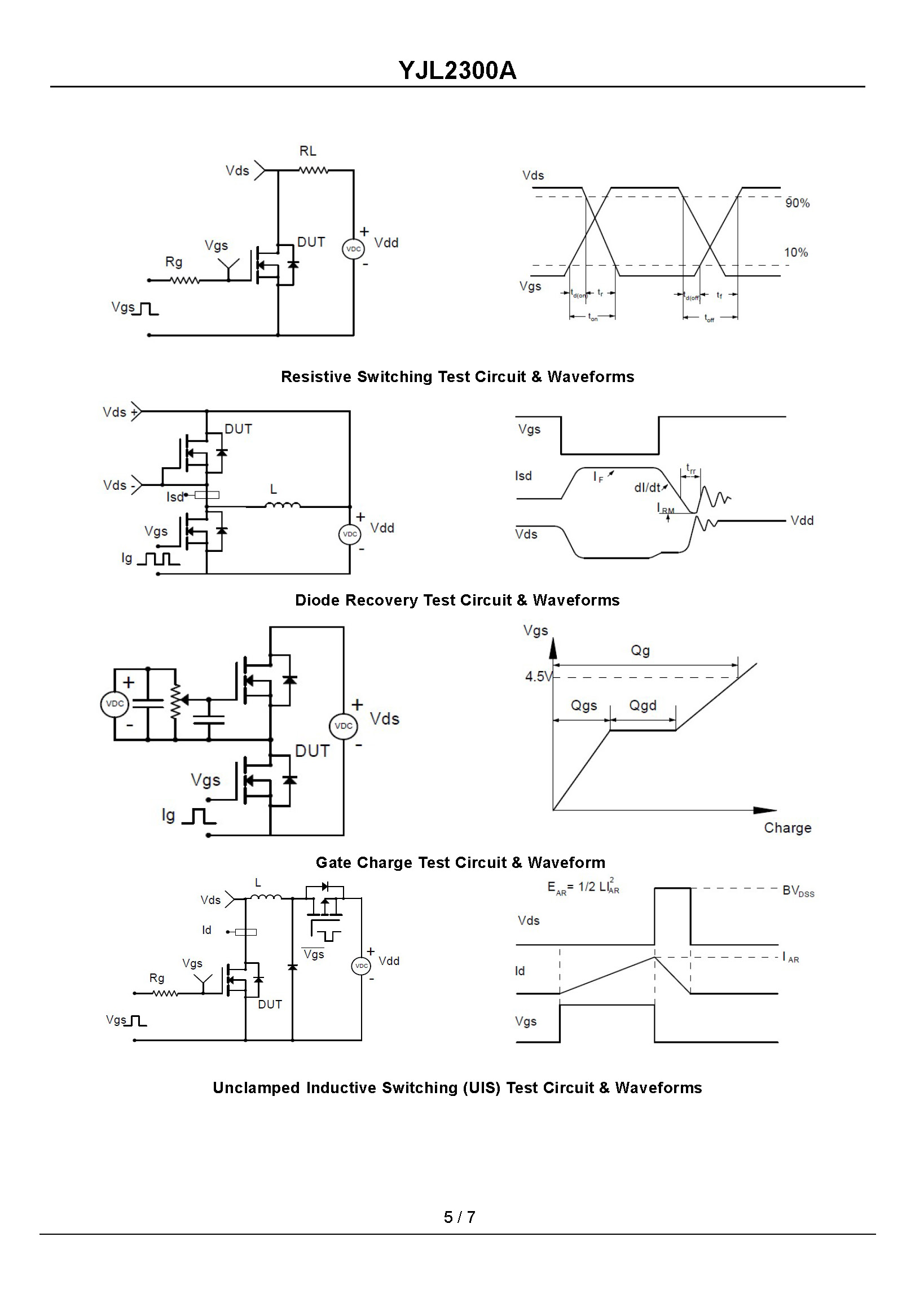

YJL2300A-1_页面_5
