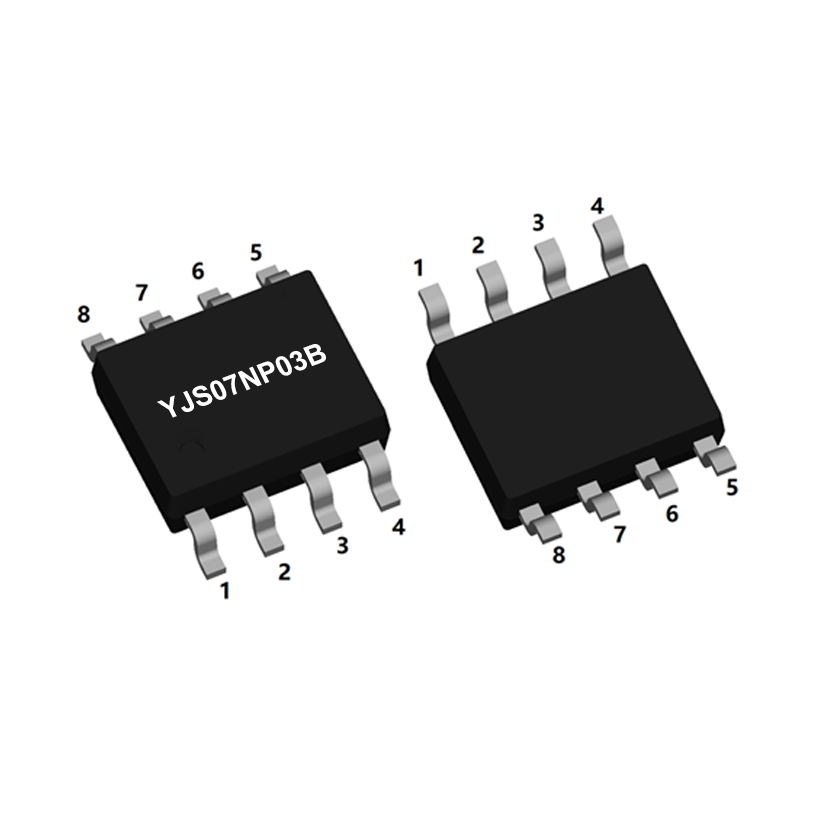

N-Channel and P-Channel Complementary MOSFET, VDSS: 30/-30V, ID: 7/-7A, PD: 1.9/2.2W, fetures, applications, SOP-8, YJS07NP03B

Features :
NMOS :
- VDS :30V
- ID : 7A
- RDS(ON)( at VGS=10V) : < 18 mΩ
- RDS(ON)( at VGS=4.5V) : < 30 mΩ

PMOS :
- VDS : -30V
- ID : -7A
- RDS(ON)( at VGS=-10V) : < 20 mΩ
- RDS(ON)( at VGS=-4.5V) : < 28 mΩ
- 100% EAS Tested

General Description :
- Trench Power LV MOSFET technology
- High density cell design for Low RDS(ON)
- High Speed switching
- Moisture Sensitivity Level 3
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications :
- Wireless charger
- Load switch
- Power management
