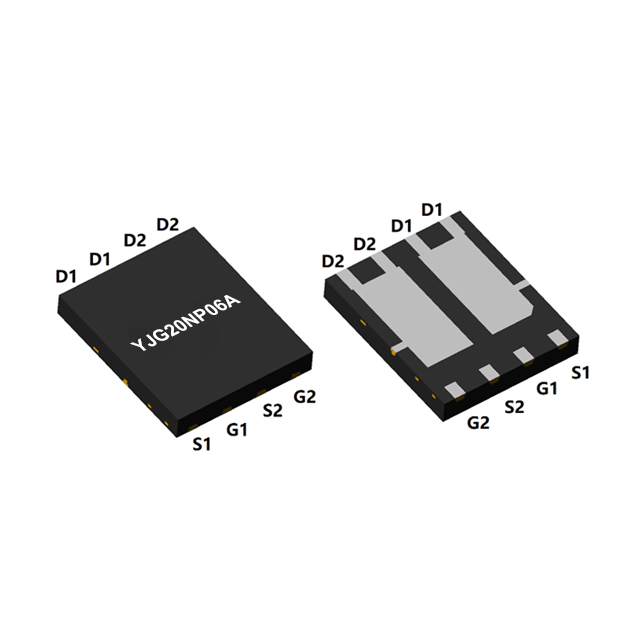

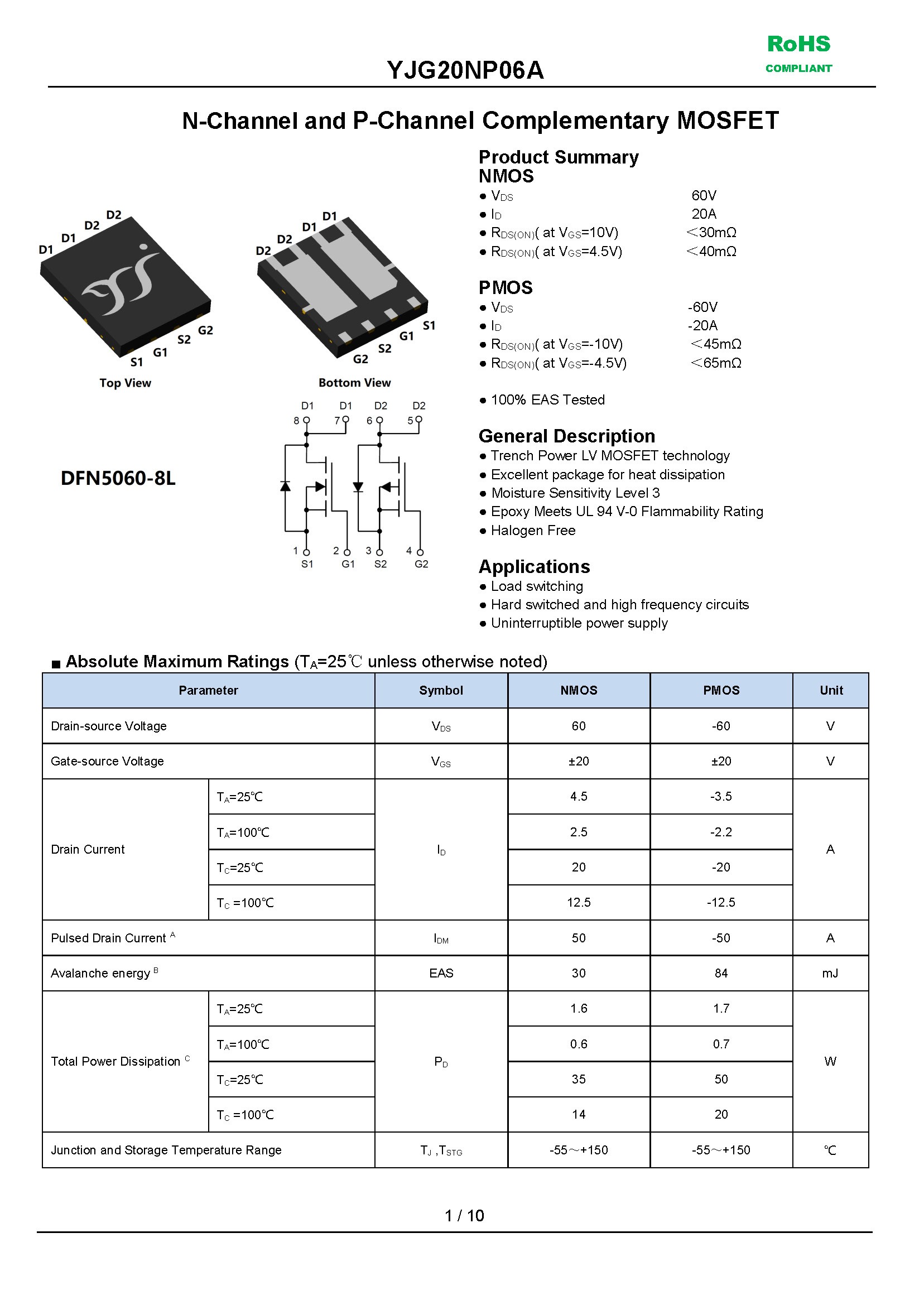

N-Channel and P-Channel Complementary MOSFET, VDSS: 60/-60V, ID: 20/-20A, PD: 35/50W, fetures, applications, DFN5060-8L, YJG20NP06A
Features :

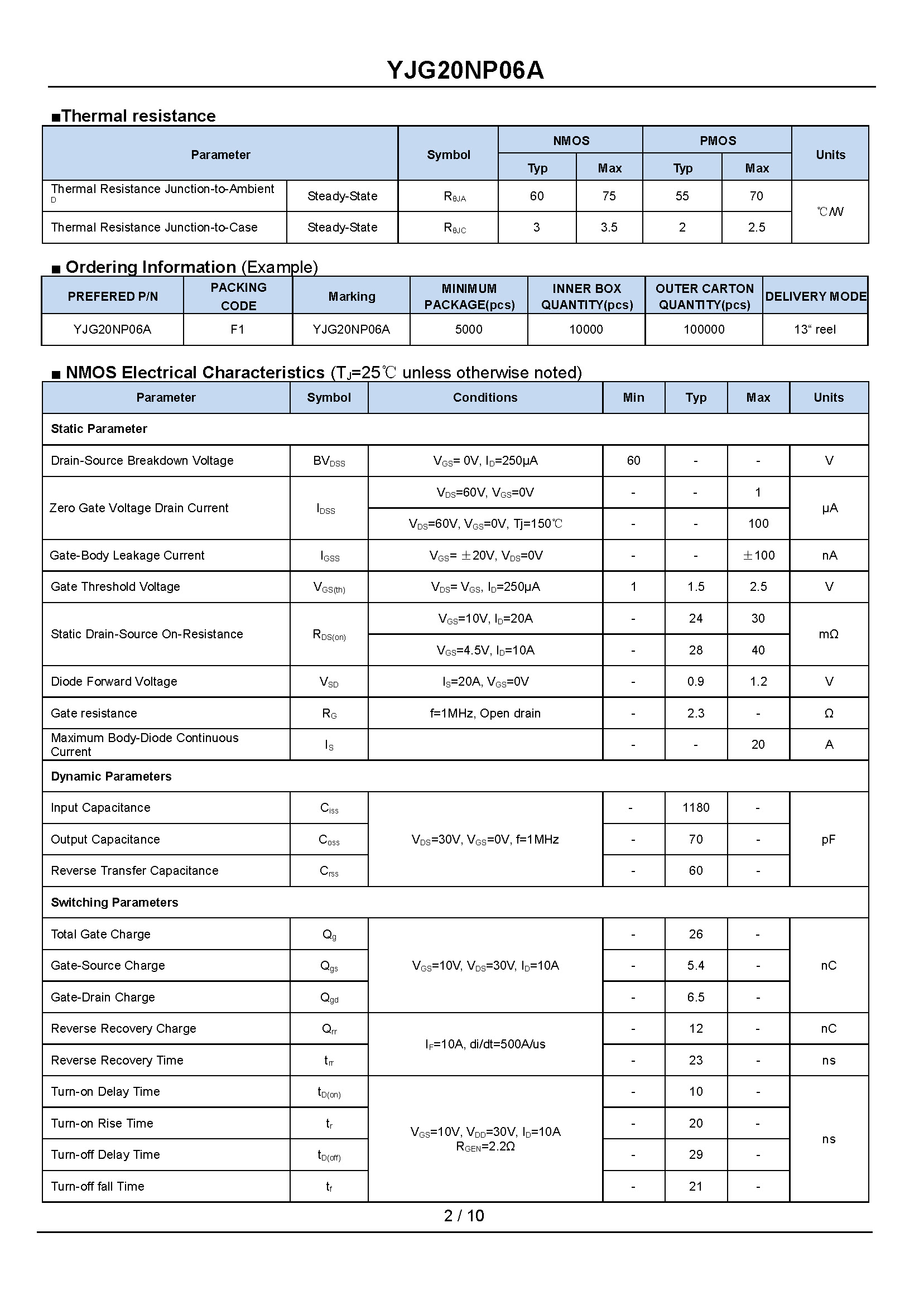

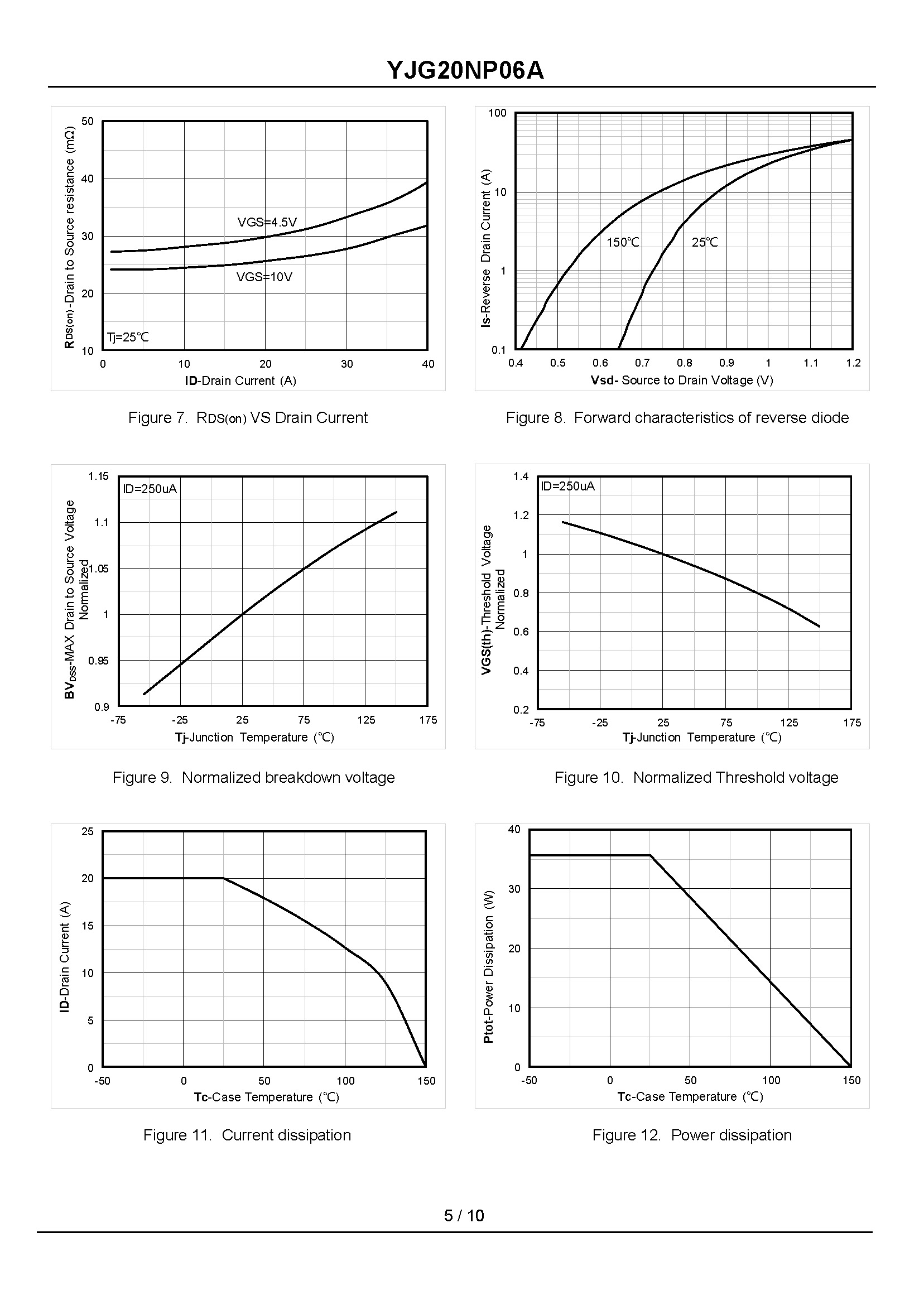

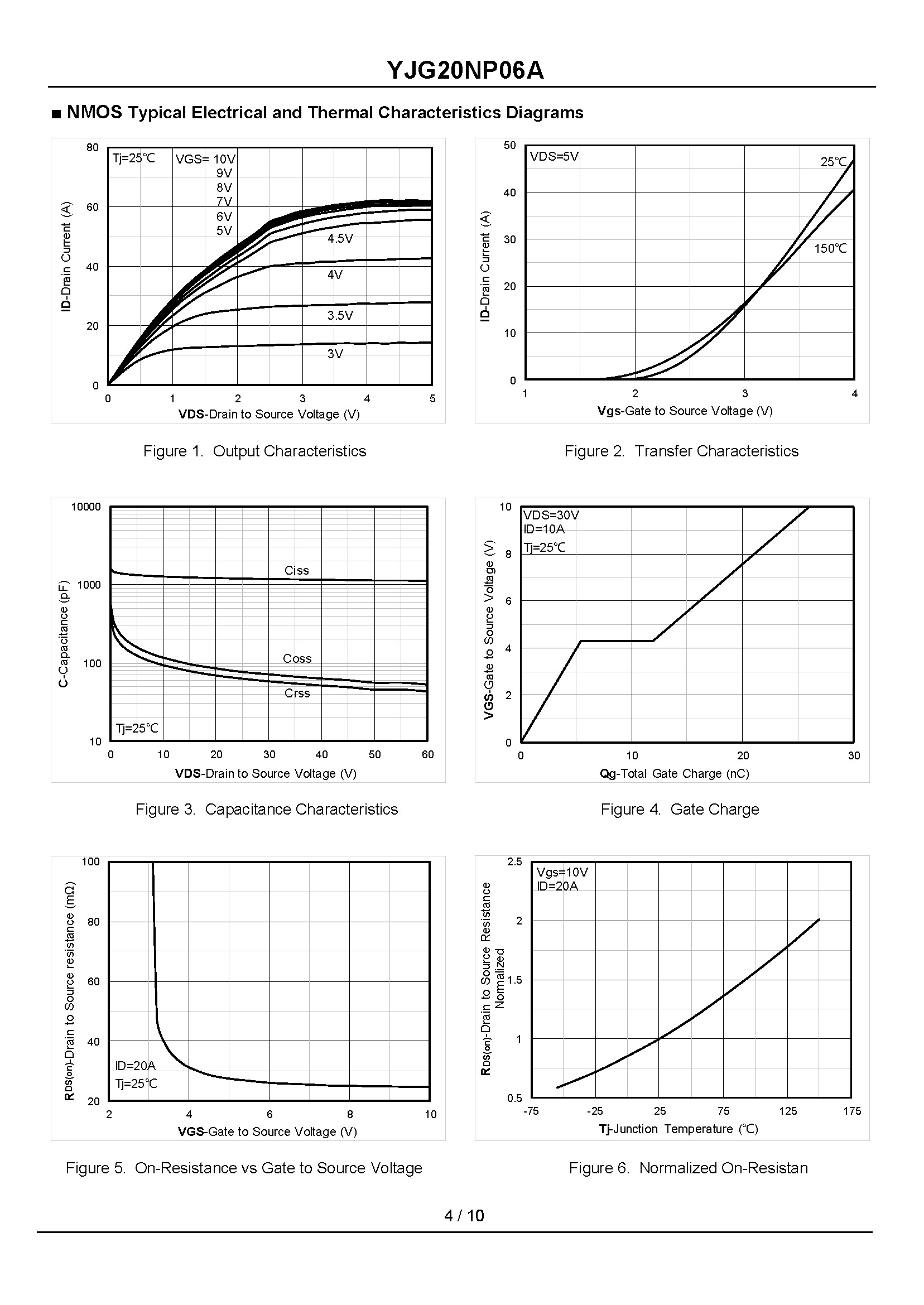

NMOS :
- VDS : 60V
- ID : 20A
- RDS(ON)( at VGS=10V) : < 30mΩ
- RDS(ON)( at VGS=4.5V) : <40mΩ

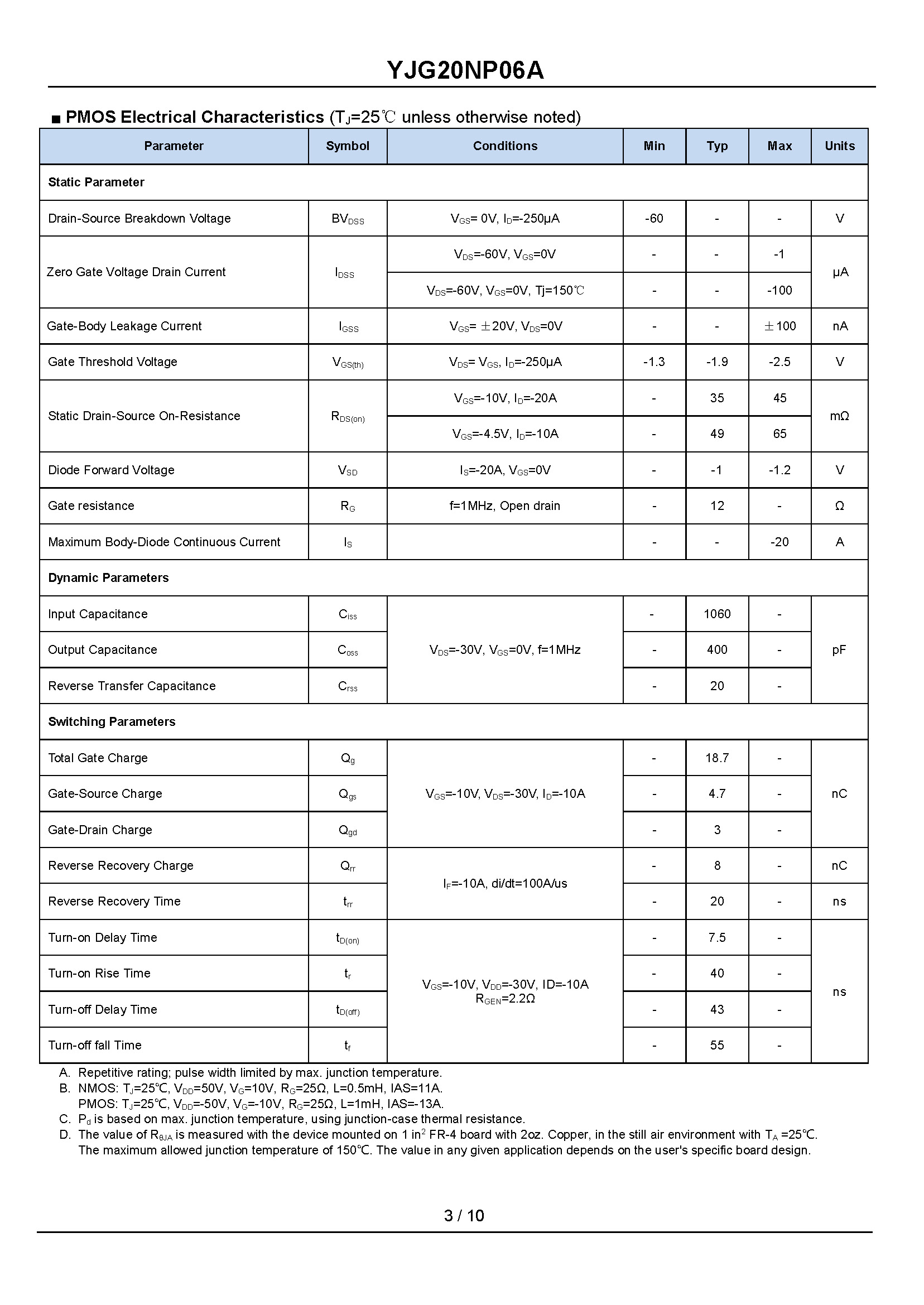

PMOS :
- VDS : -60V
- ID : -20A
- RDS(ON)( at VGS=-10V) : < 45mΩ
- RDS(ON)( at VGS=-4.5V) : < 65mΩ
General Description :
- Trench Power LV MOSFET technology
- Excellent package for heat dissipation
- Halogen Free
- Moisture Sensitivity Level 3
- Epoxy Meets UL 94 V-0 Flammability Rating
Applications :
- Load switching
- Hard switched and high frequency circuits
- Uninterruptible power supply
