Switchmode Dual Schottky Barrier Power Rectifiers S40T100C TO-220AB

Switchmode Dual Schottky Barrier Power Rectifiers S40T100C TO-220AB
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • S40T100C

  • 统茂-Mospec

Product Name:

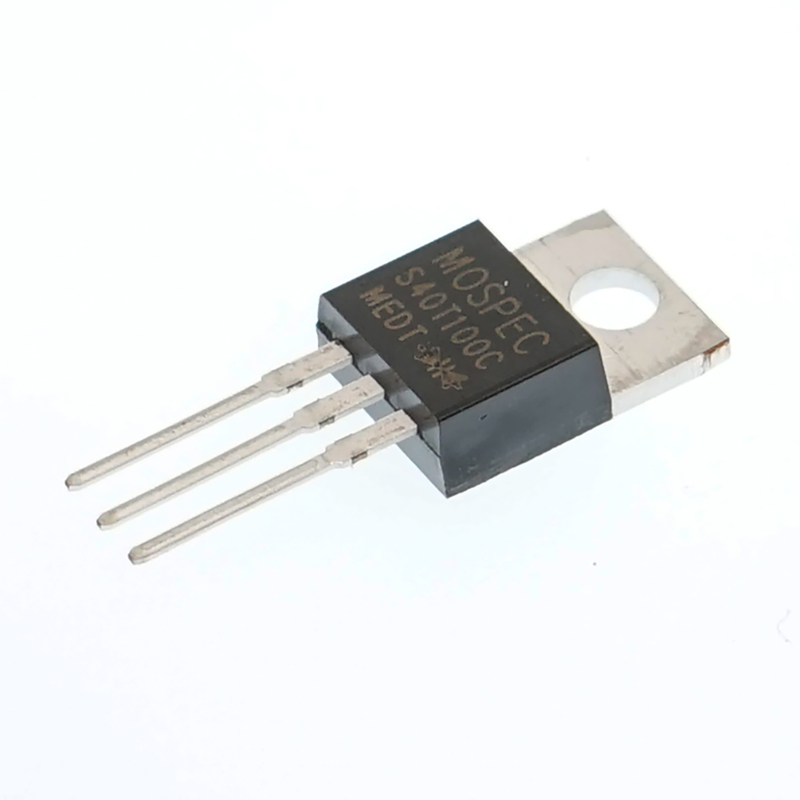

Switchmode Dual Schottky Barrier Power Rectifiers S40T100C TO-220AB


Using the Schottky Barrier principle with a Refractory metal capable of high

temperature operation metal. The proprietary barrier technology allows for

reliable operation up to 150℃ junction temperature. Typical application are in

switching Mode Power Supplies such as adaptors, DC/DC converters, free

wheeling and polarity protection diodes.


Product Description:

Features:

*Low Forward Voltage.

*Low Switching noise.

*High Current Capacity

*Guarantee Reverse Avalanche.

*Guard-Ring for Stress Protection.

*Low Power Loss & High efficiency.

*150℃ Operating Junction Temperature

*Low Stored Charge Majority Carrier Conduction.

*Plastic Material used Carries Underwriters Laboratory

   Flammability Classification 94V-O

*Pb free

*In compliance with EU RoHs directives


Introducing the S40T100C TO-220AB rectify product, designed to meet your professional needs. This high-quality component is ideal for rectification applications, ensuring efficient and reliable performance. With its TO-220AB package, it offers easy installation and compatibility with various systems.

The S40T100C TO-220AB rectify product boasts exceptional functionality and durability, making it a perfect choice for demanding industrial environments. Its professional-grade construction guarantees long-lasting performance and optimal efficiency.

With its rectification capabilities, this product enables the conversion of alternating current (AC) to direct current (DC), ensuring smooth and stable power supply. Whether you are working on power electronics, motor control, or other related applications, the S40T100C TO-220AB rectify product delivers consistent and precise results.

Invest in the S40T100C TO-220AB rectify product and experience the reliability and efficiency it brings to your projects. With its professional tone and superior features, this product is the perfect solution for your rectification needs.


Product Specification:

S40T100C.pdf

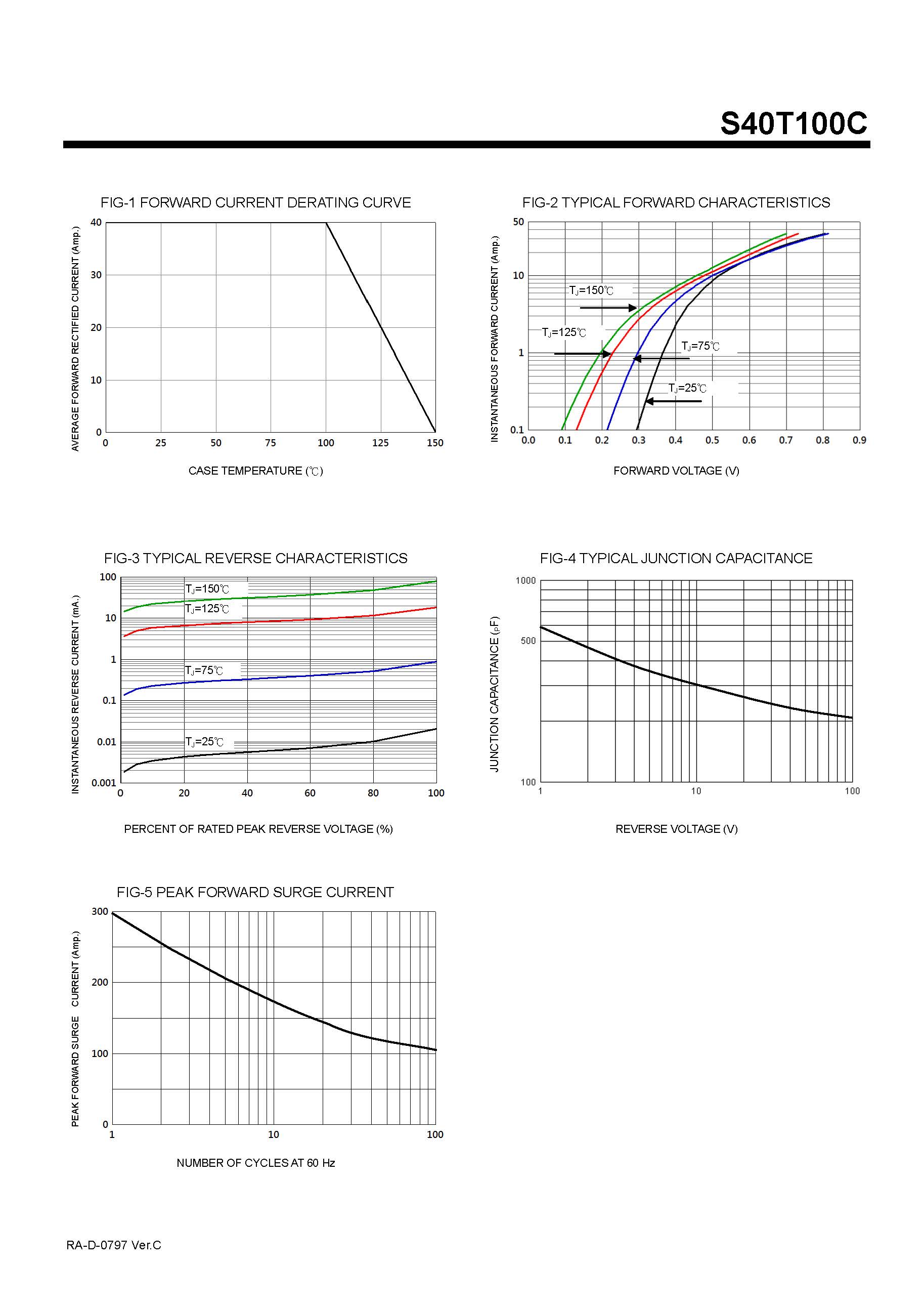

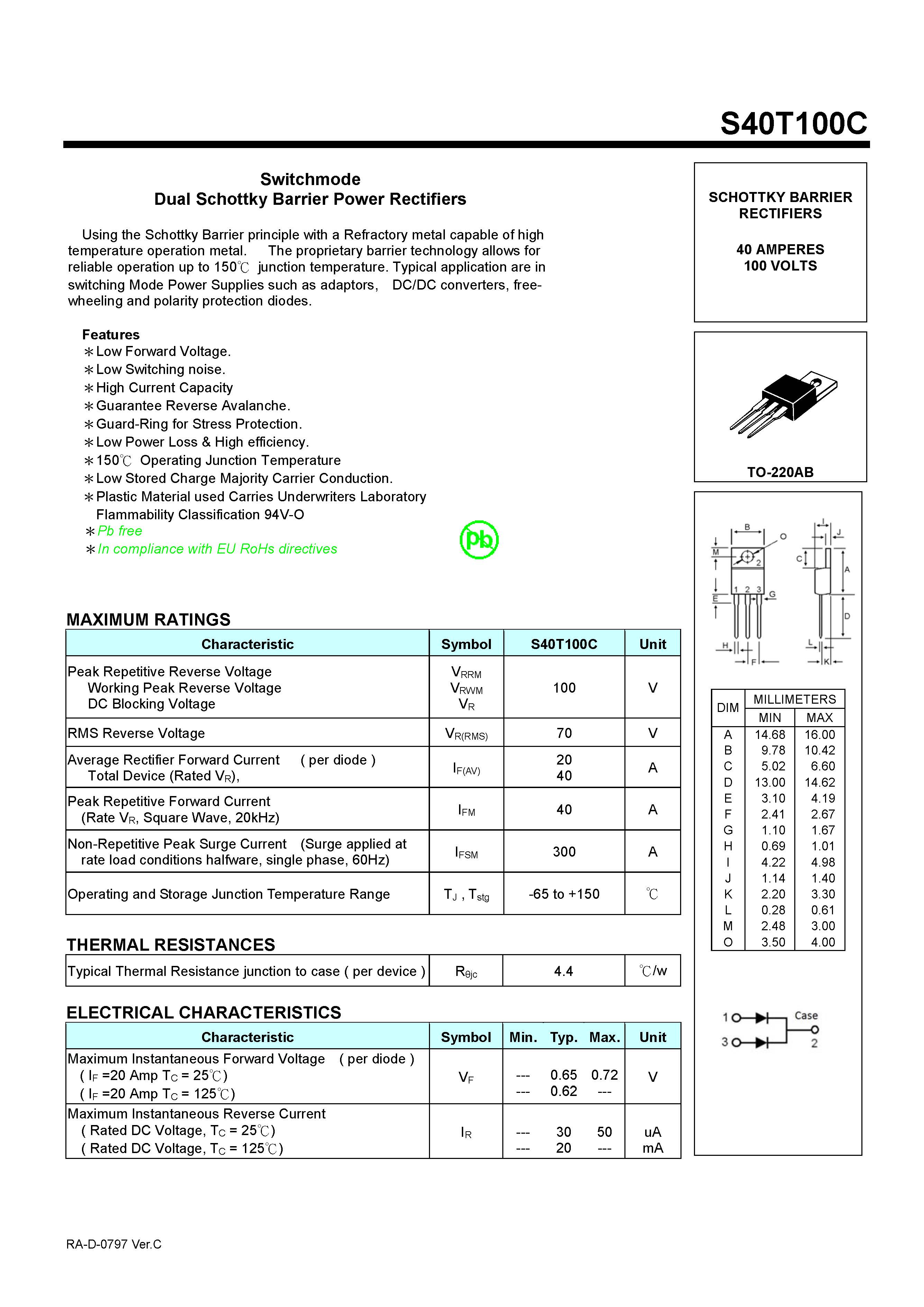

S40T100C_页面_1S40T100C_页面_2
