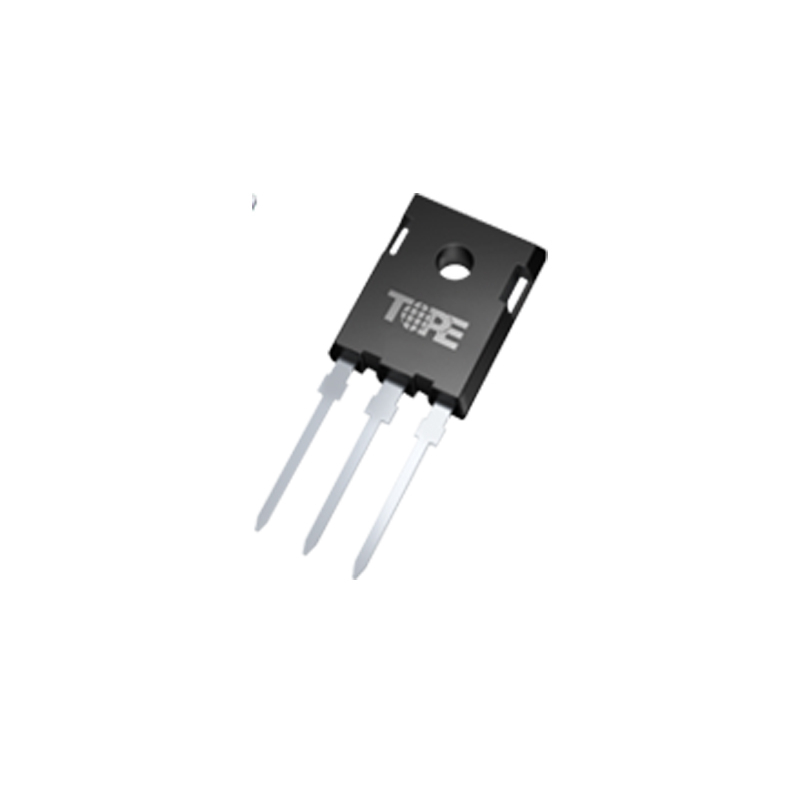

TD5G20120D
TOPE
Silicon Carbide (SiC) Schottky diodes have gained significant attention in recent years due to their superior characteristics compared to traditional silicon diodes. These diodes offer high switching speeds, low forward voltage drop, and excellent thermal conductivity. As a result, they have found extensive applications in various power electronics systems, including power factor correction (PFC) circuits. This article explores the utilization of SiC Schottky diodes in PFC applications and highlights the benefits they bring to this critical aspect of power supply design.
Power factor correction is a technique used in electrical systems to improve the efficiency of power transfer from the source to the load. In AC circuits, the power factor is the ratio of real power (measured in watts) to apparent power (measured in volt-amperes). A low power factor indicates inefficient power usage, leading to increased energy consumption and higher utility costs. PFC circuits aim to correct this power factor by minimizing reactive power and maximizing the utilization of real power.
SiC Schottky diodes play a crucial role in PFC circuits by enabling efficient power conversion and reducing losses. These diodes exhibit several key advantages over their silicon counterparts, making them an ideal choice for PFC applications:
1. Low Forward Voltage Drop: SiC Schottky diodes have a significantly lower forward voltage drop compared to silicon diodes. This characteristic results in reduced conduction losses, enabling higher power conversion efficiency and lower heat dissipation.
2. High Switching Speeds: SiC diodes offer fast switching speeds, allowing for rapid turn-on and turn-off times. This capability enhances the overall performance of PFC circuits by minimizing switching losses and improving system response time.
3. Improved Thermal Conductivity: Silicon Carbide has excellent thermal conductivity properties, allowing for efficient heat dissipation. This feature is particularly beneficial in high-power applications, as it helps to maintain lower operating temperatures and ensures the reliability and longevity of the PFC circuit.
4. Wide Temperature Range: SiC Schottky diodes can operate at higher temperatures compared to silicon diodes. This characteristic makes them suitable for demanding environments, such as industrial or automotive applications, where temperature fluctuations are common.
Silicon Carbide Schottky diodes have emerged as a game-changer in power electronics, offering numerous advantages over traditional silicon diodes. In the realm of power factor correction, these diodes enable efficient power conversion, lower losses, and improved system performance. Their low forward voltage drop, high switching speeds, excellent thermal conductivity, and wide temperature range make them an ideal choice for PFC applications. As technology continues to advance, the utilization of SiC Schottky diodes in power supply design is expected to increase, further enhancing energy efficiency and reducing environmental impact.
