Zener Diodes, PD: 2W, VF: 1.5V, VZ: 100V, DO-214AC (SMA), SMA2ZXXA SERIES

PD: 2W, VF: 1.5V, VZ: 100V Zener Diodes

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

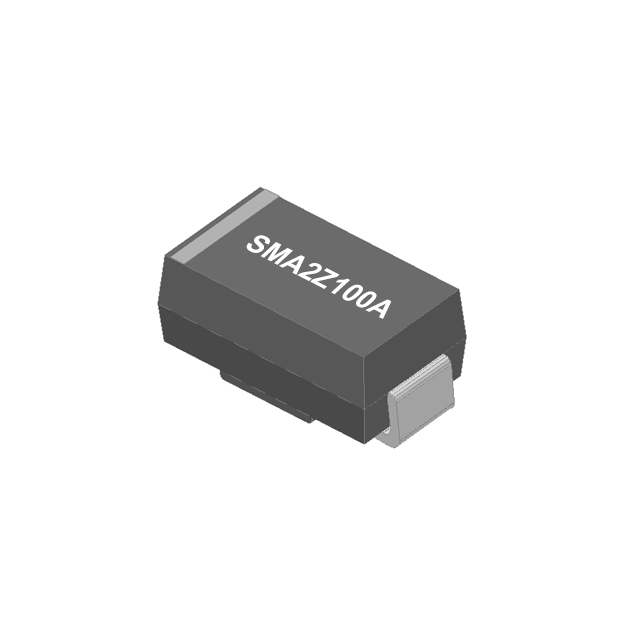

  • SMA2Z100A

  • Merry

Surface Mount Zener Diodes, PD: 2W, VF: 1.5V, VZ: 100V,DO-214AC (SMA), SMA2ZXXA SERIES

Features :

- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Mechanical Date :

- Package: DO-214AC(SMA)
 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end


SMA2Z100A

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

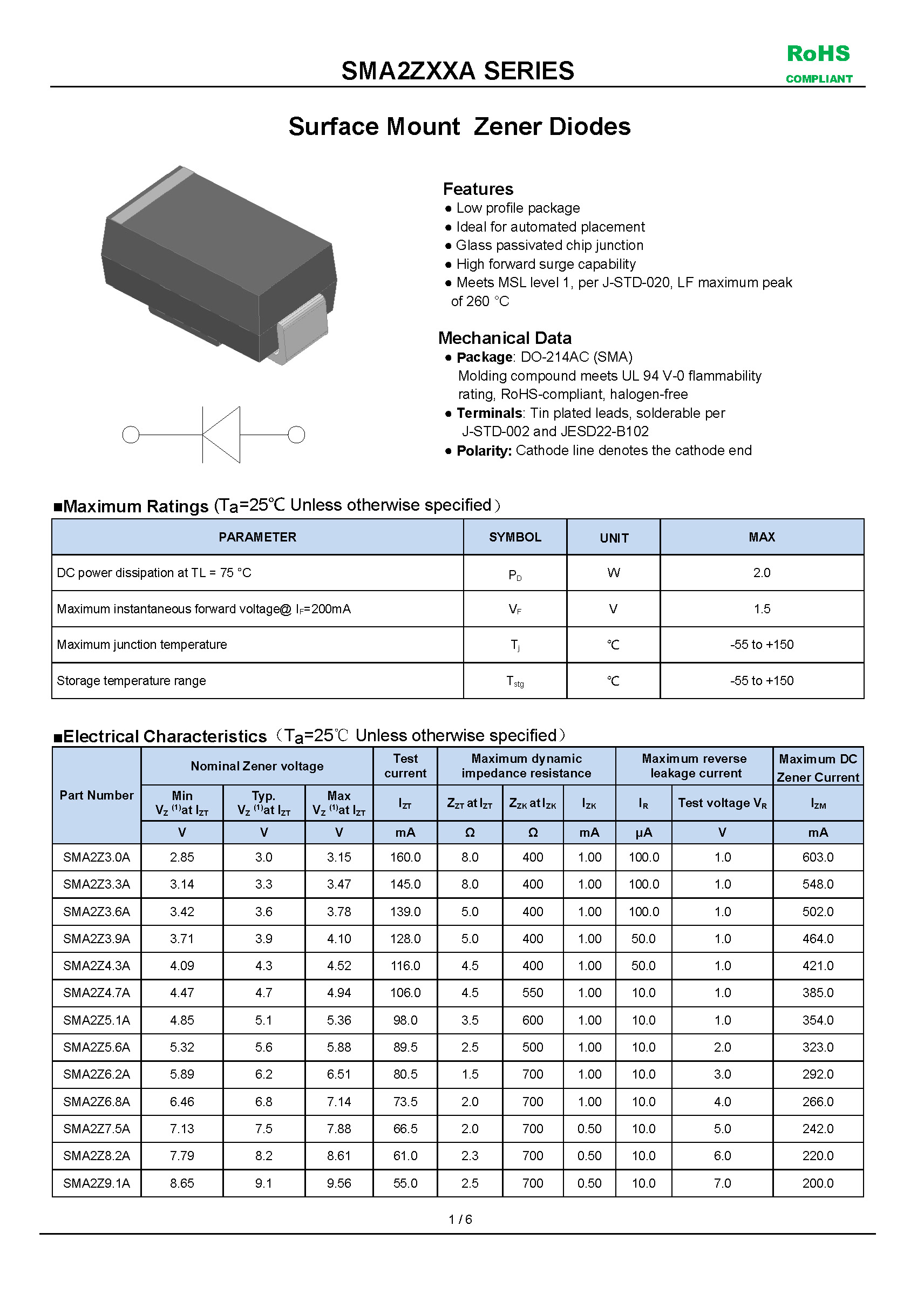

SMA2ZXXA SERIES_页面_1

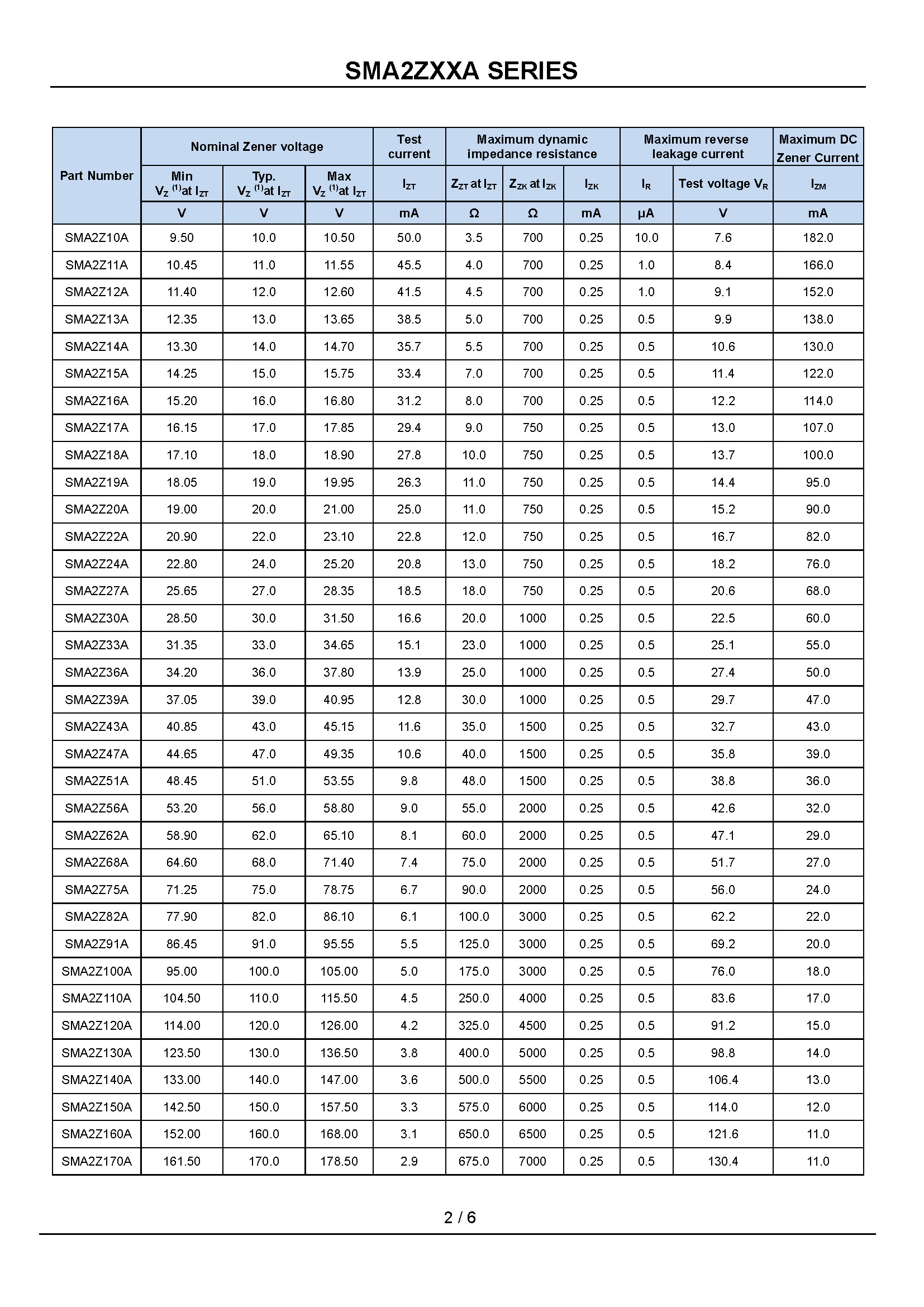

SMA2ZXXA SERIES_页面_2

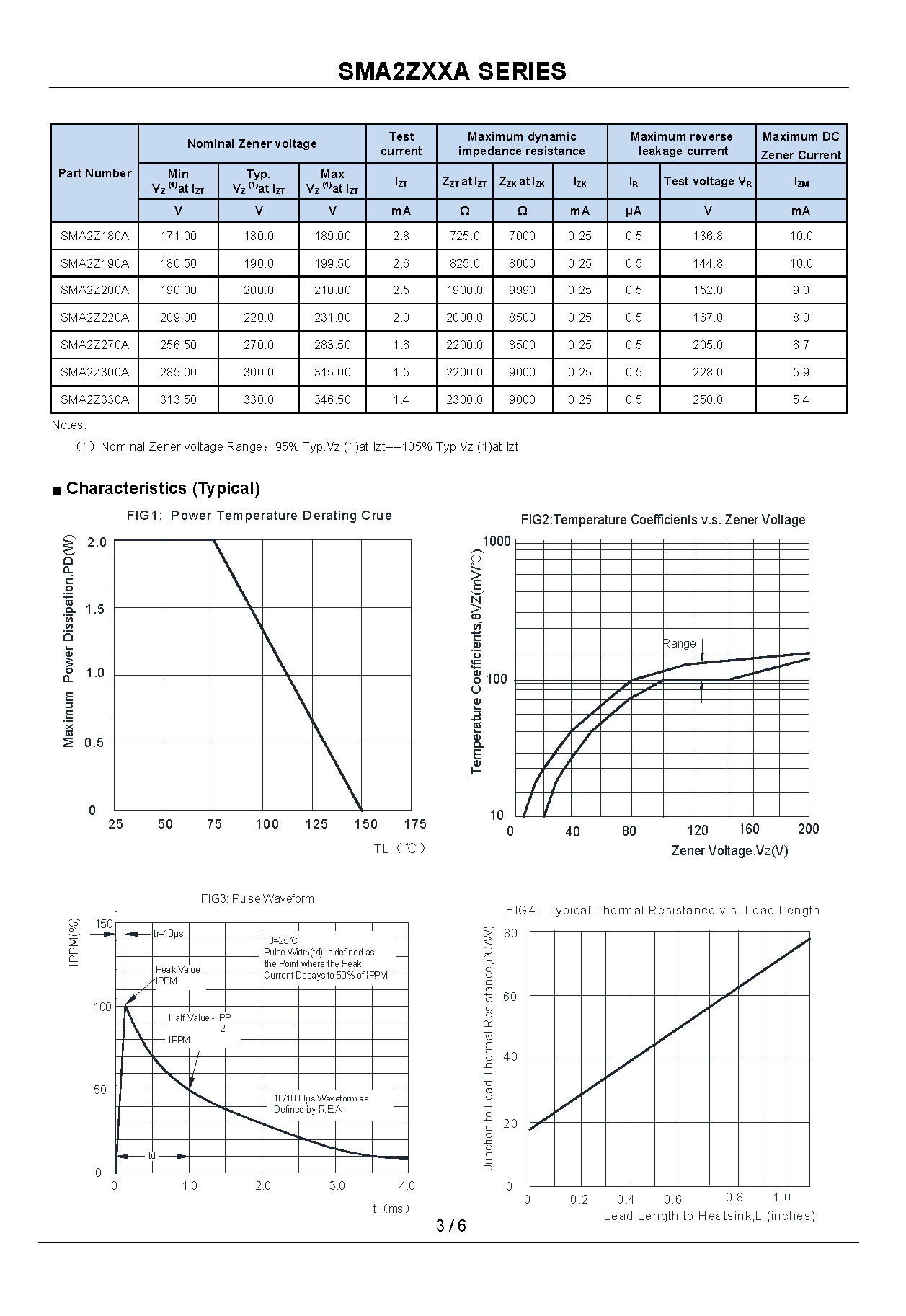

SMA2ZXXA SERIES_页面_3
