0504N
Merry

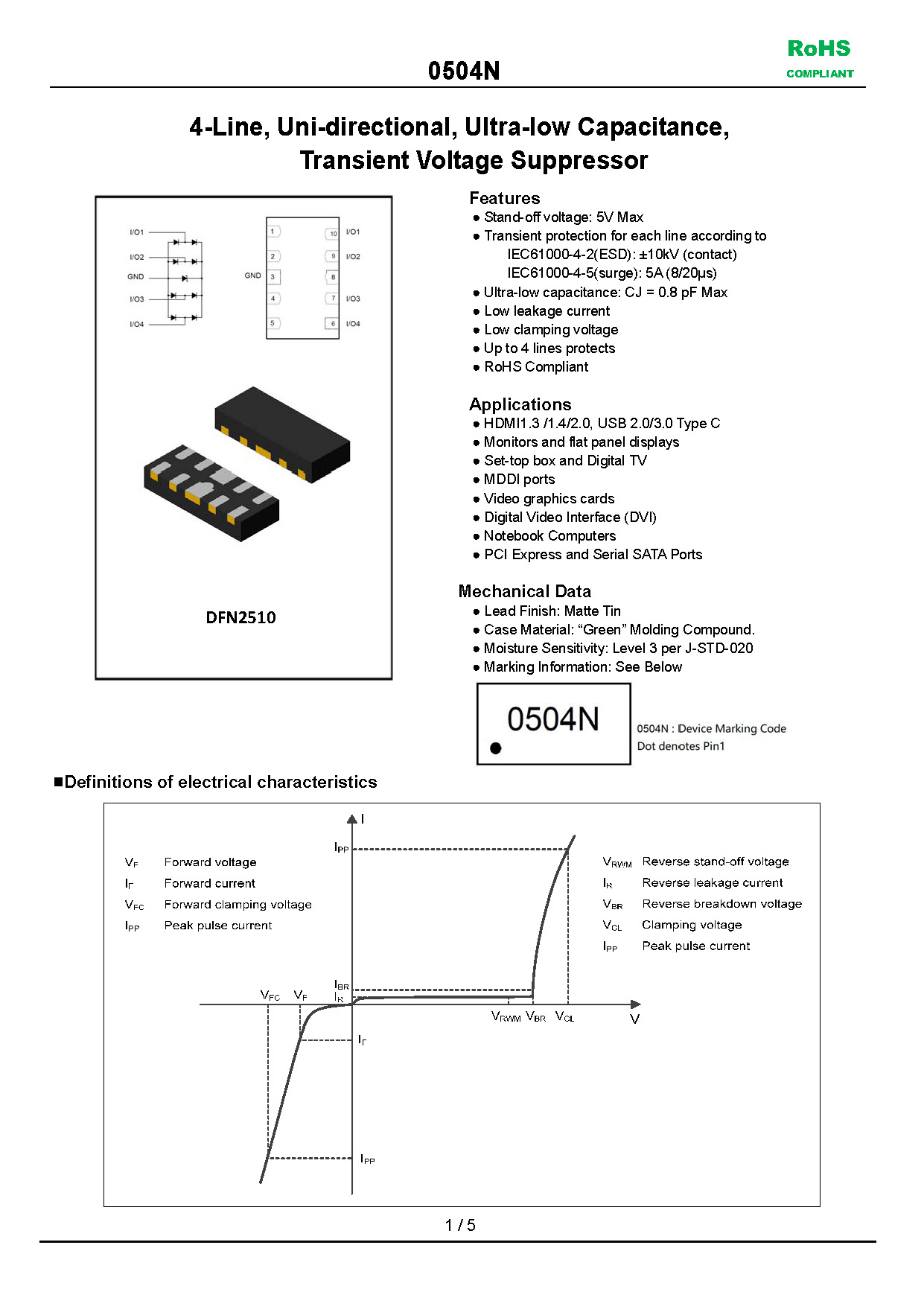

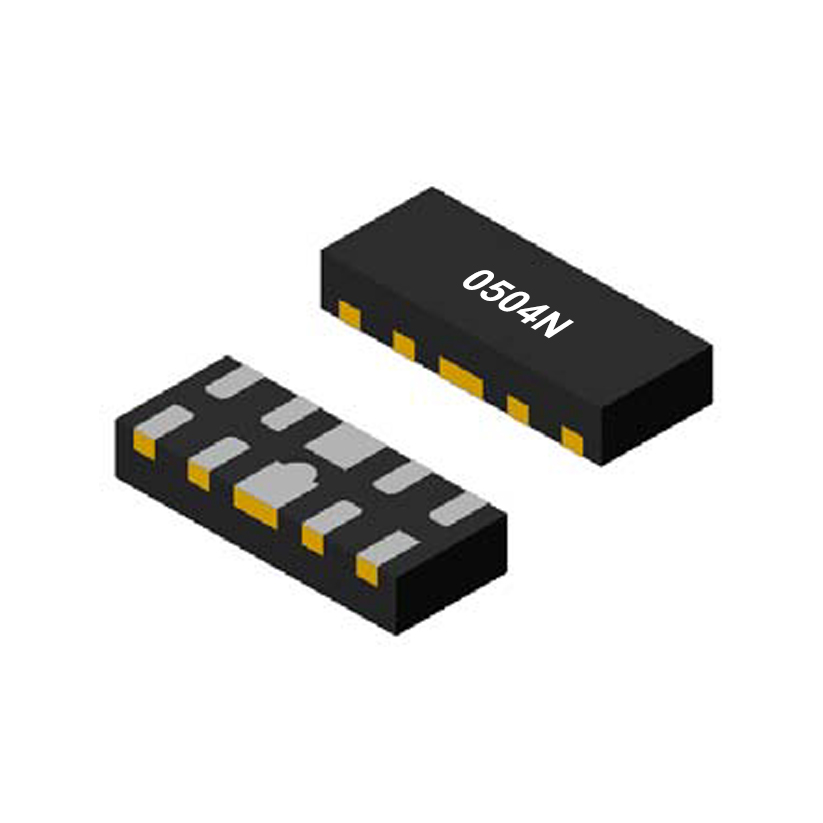

4-Line, Uni-directional, Ultra-low Capacitance,Transient Voltage Suppressor, VBR(min): 6.1V, IT: 1mA, VRWM: 5V, IPP: 5A, fetures, applications, Uni, 0504N
Features :
- Stand-off voltage: 5V Max
- Transient protection for each line according to
IEC61000-4-2(ESD): ±10kV (contact)
IEC61000-4-5(surge): 5A (8/20μs)
- Ultra-low capacitance: CJ = 0.8 pF Max
- Low leakage current
- Low clamping voltage
- Up to 4 lines protects
- RoHS Compliant

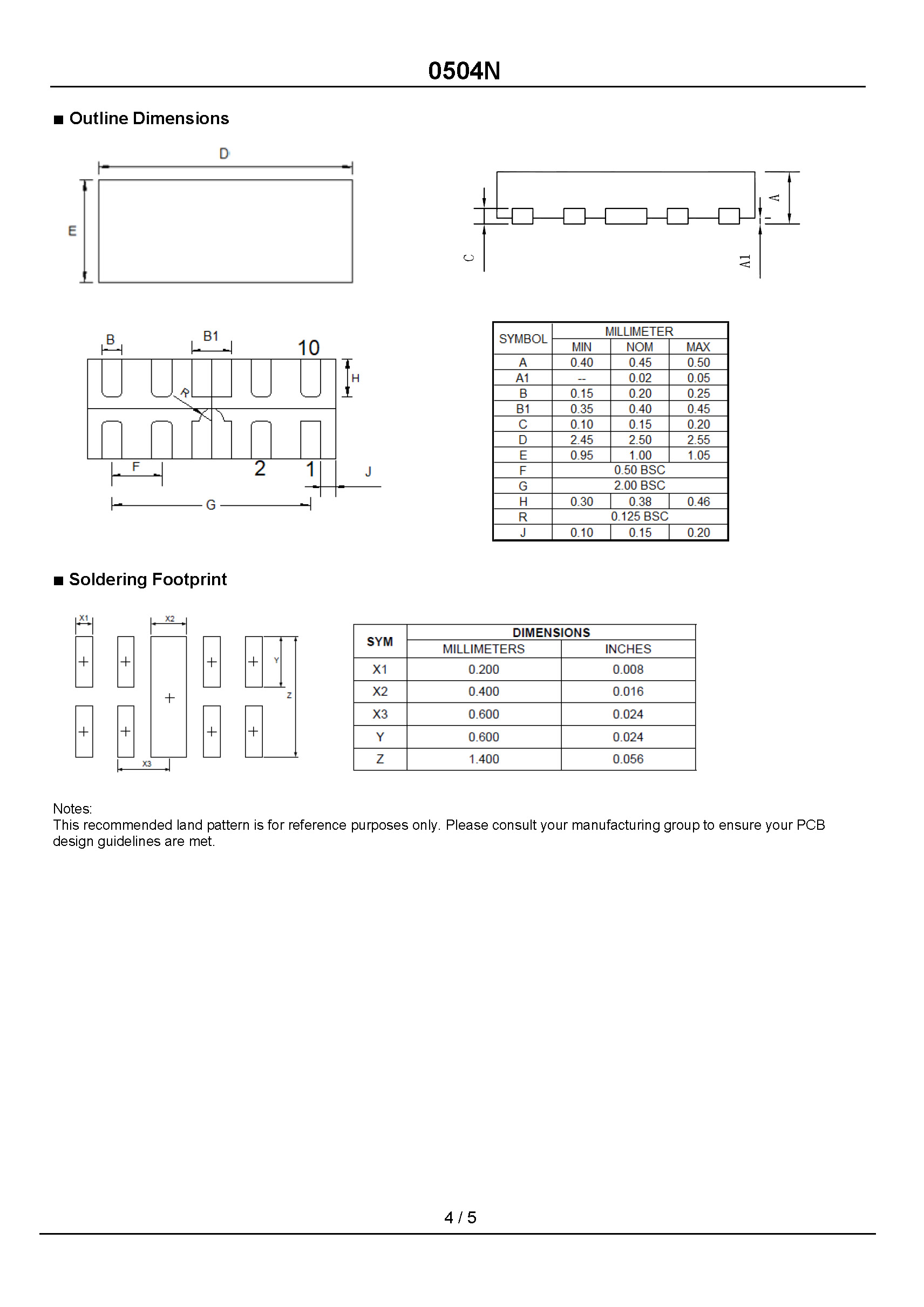

Mechanical Date :
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
