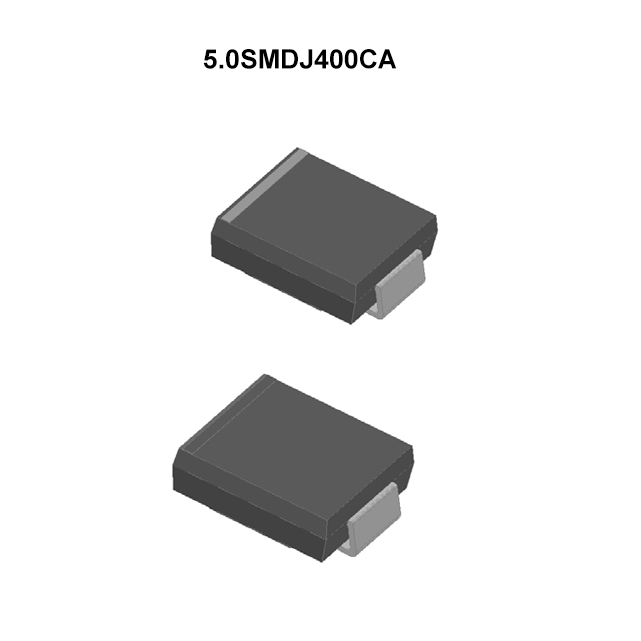

5000W Surface Mount Transient Voltage Suppressor Diodes, SMC, 5.0SMDJ400CA

5000W Surface Mount Transient Voltage Suppressor Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 5.0SMDJ400CA

  • Merry

5000W Surface Mount Transient Voltage Suppressor Diodes, SMC, 5.0SMDJ400CA

Features :
- UL recognition, file # E517074
- 5000 W peak pulse power capability with a 10/1000 μs waveform
- Low leakage
- Uni and Bidirectional unit
- Excellent clamping capability
- Very fast response time
- Meets MSL level 1

Mechanical Date :
- Package: DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types

Typical Applications :
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication.

5.0SMDJ400CAName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

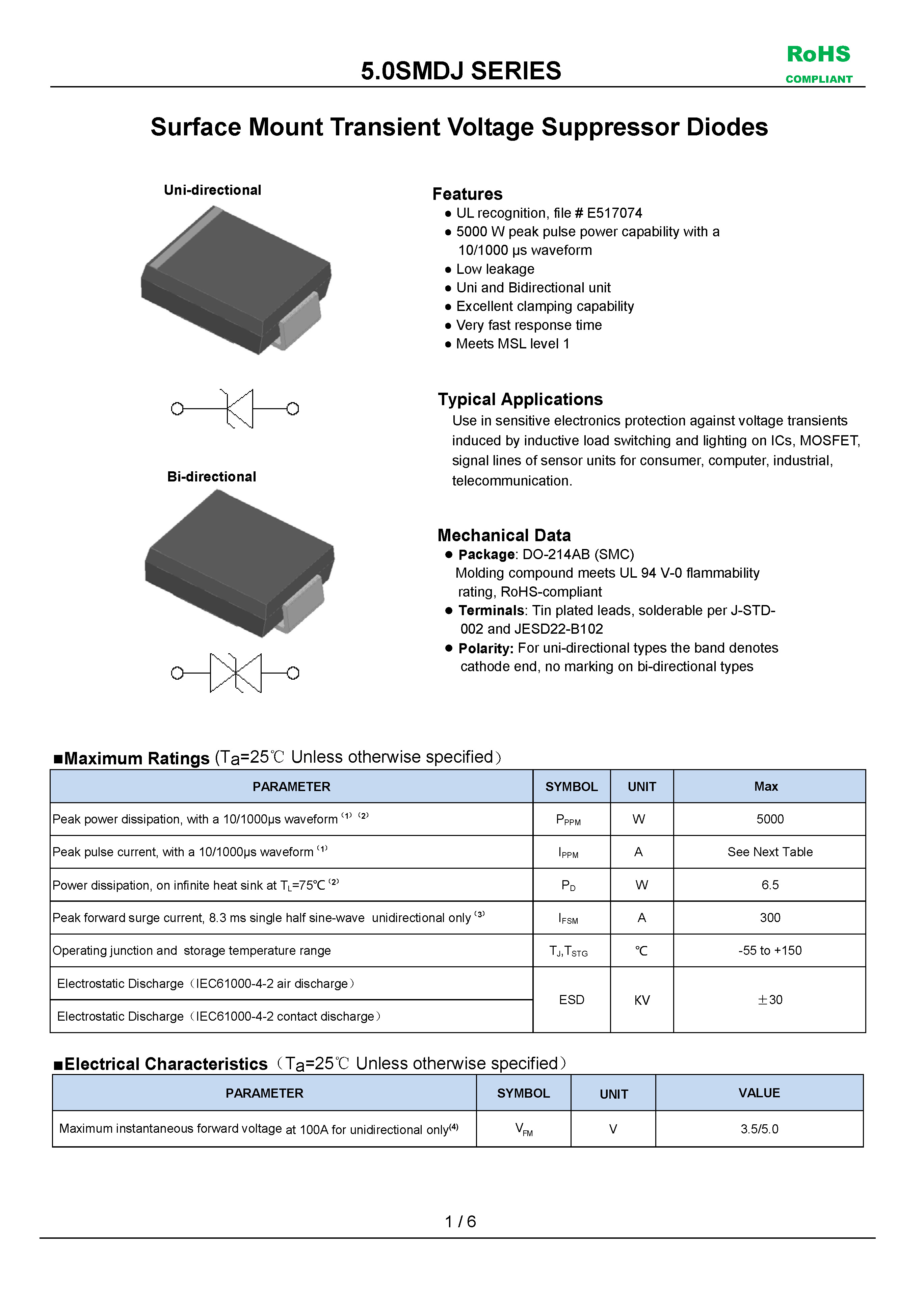

5.0SMDJ400CA-1_页面_1

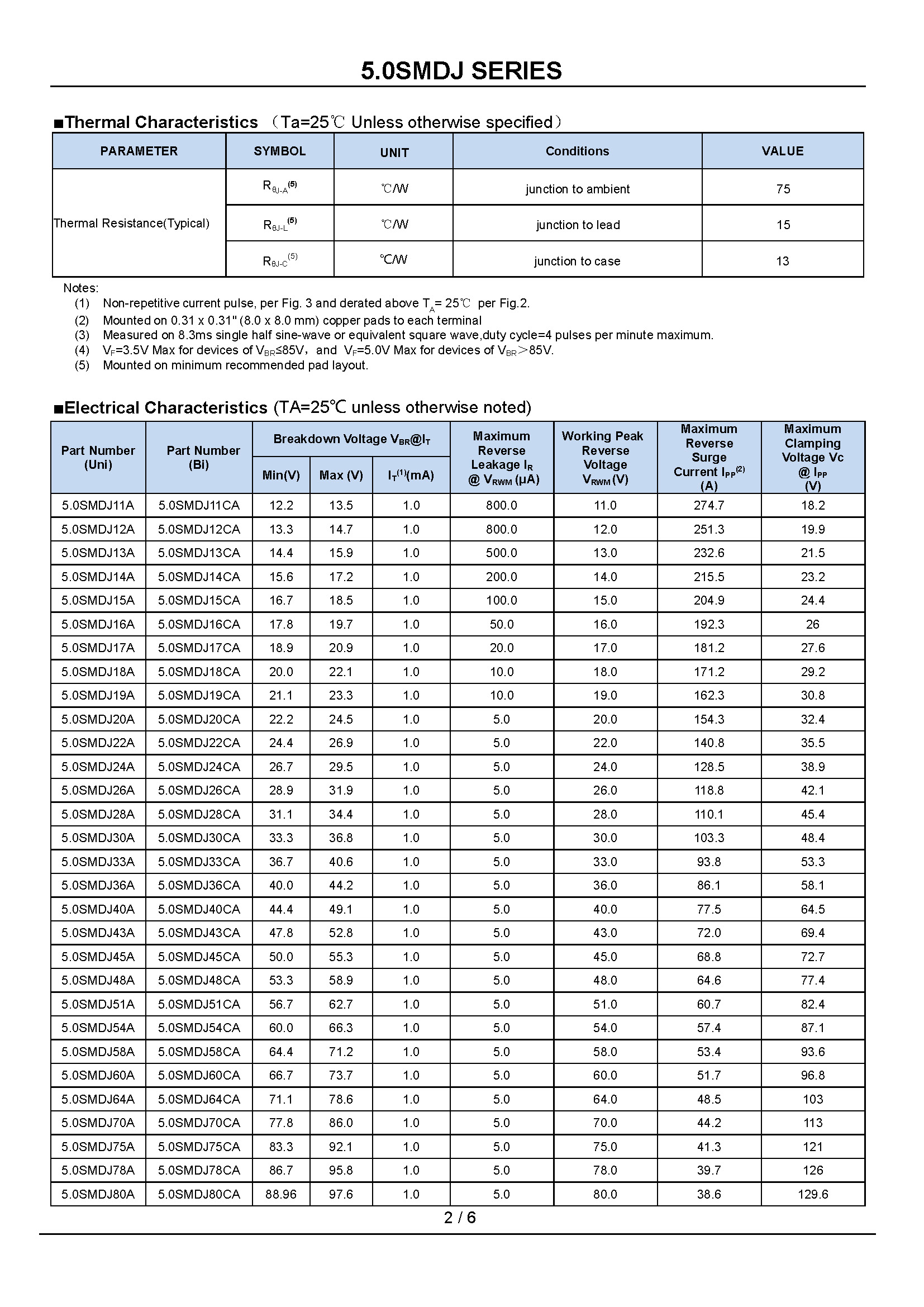

5.0SMDJ400CA-1_页面_2

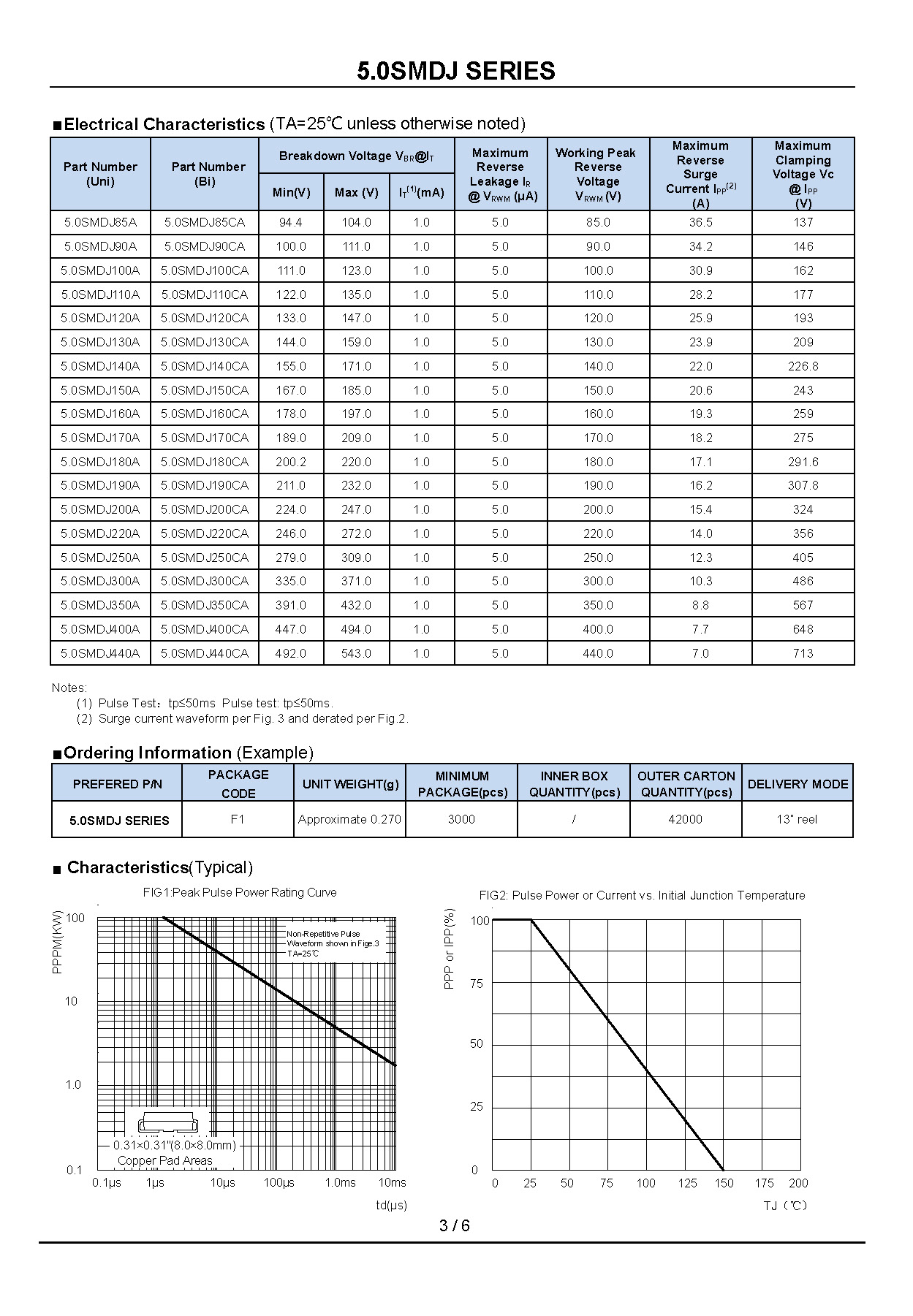

5.0SMDJ400CA-1_页面_3
