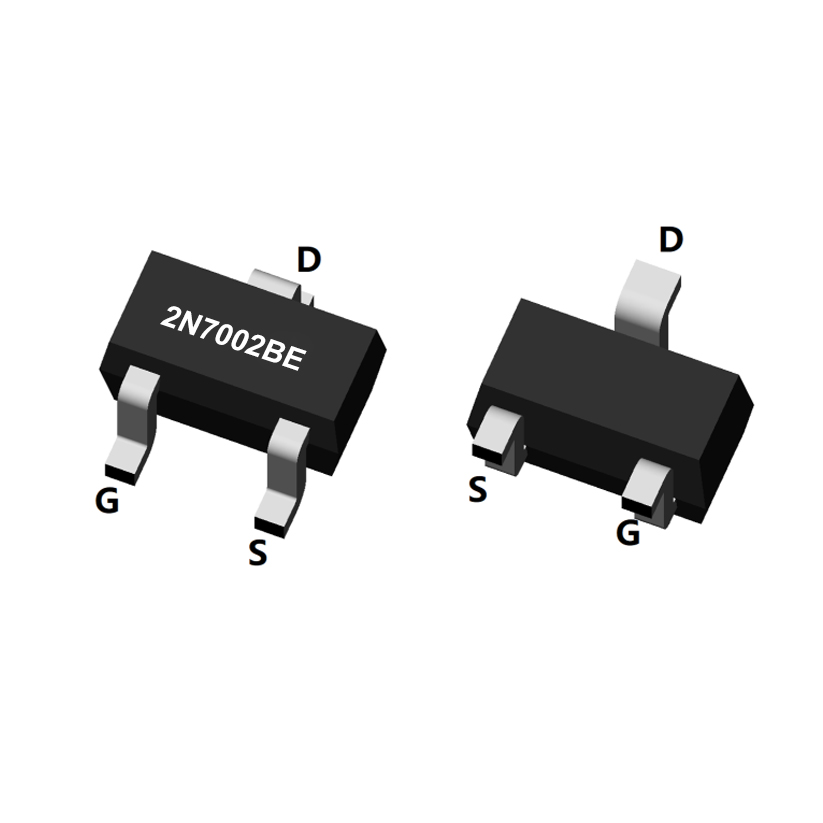

60V 0.35A N-Channel Enhancement Mode Field Effect Transistor, SOT-523, 2N7002BE

60V 0.35A N-Channel Enhancement Mode Field Effect Transistor
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 2N7002BDW

  • Merry

60V 0.35A N-Channel Enhancement Mode Field Effect Transistor, SOT-523, 2N7002BE

Product Summary :
- VDS 60V
- ID 350mA
- RDS(ON)( at VGS=10V) <1000mΩ
- RDS(ON)( at VGS=4.5V) <1400mΩ

General Description :
- Trench Power MV MOSFET technology
- Voltage controlled small signal switch
- Low input Capacitance
- Fast Switching Speed
- Low Input / Output Leakage
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications :
- Battery operated systems
- Solid-state relays
- Direct logic-level interface:TTL/CMOS


2N7002BEName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

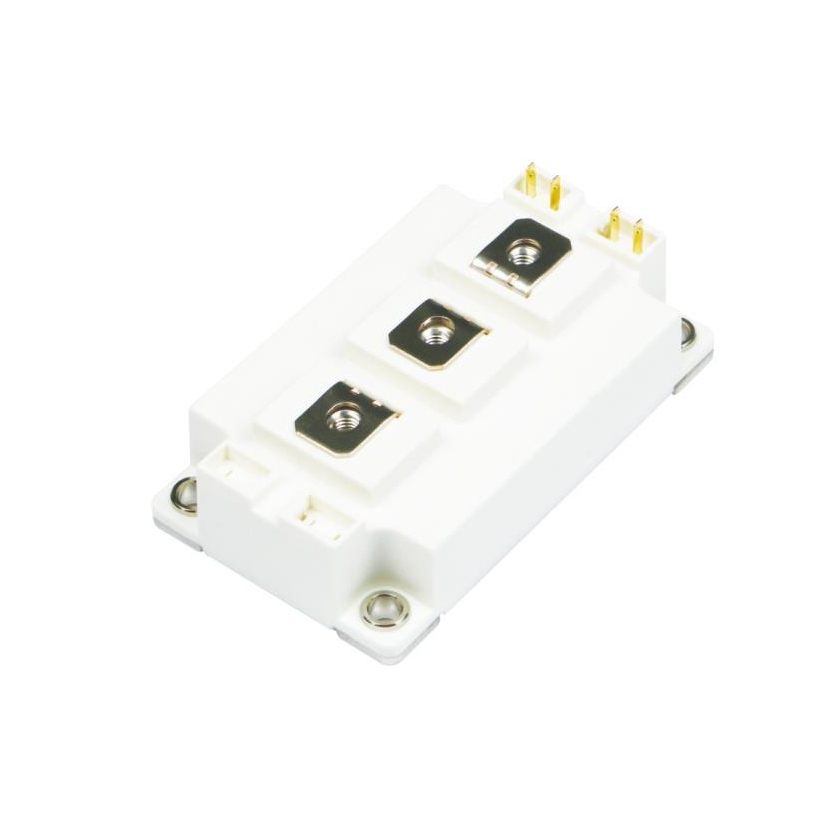

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

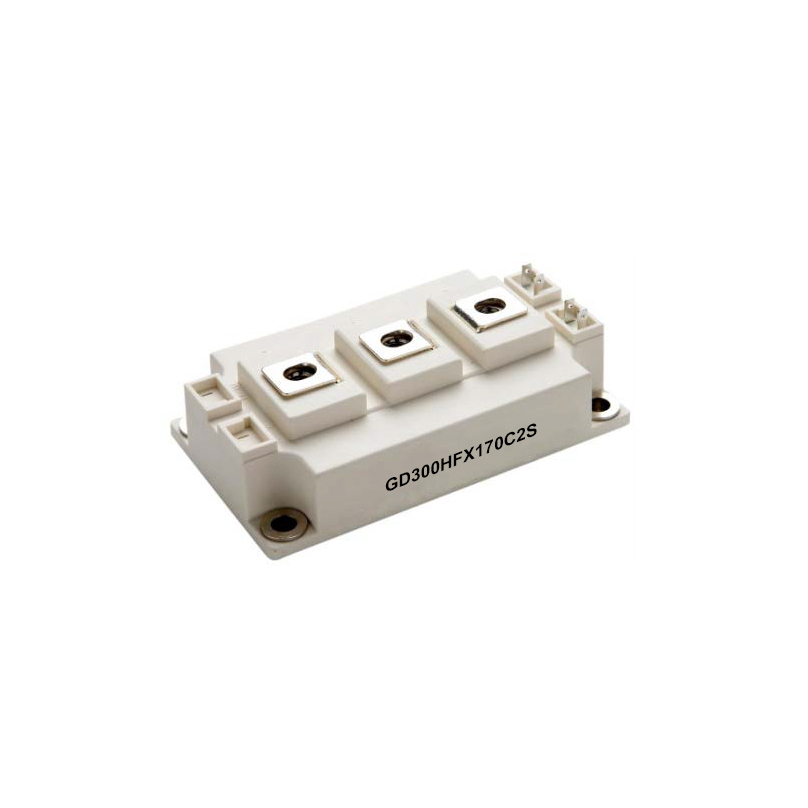

GD300HFX170C2S

Name2

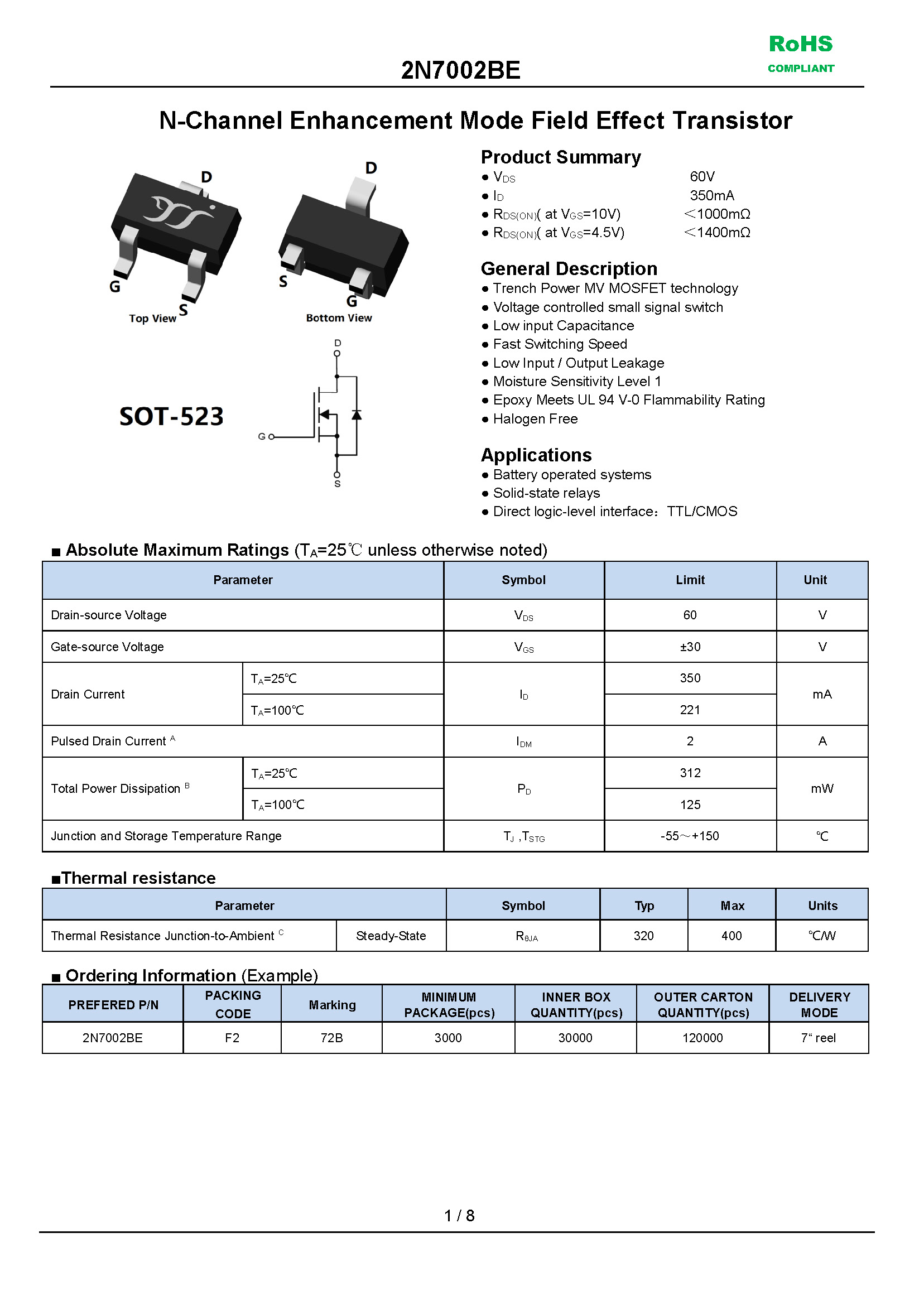

2N7002BE-1_页面_1

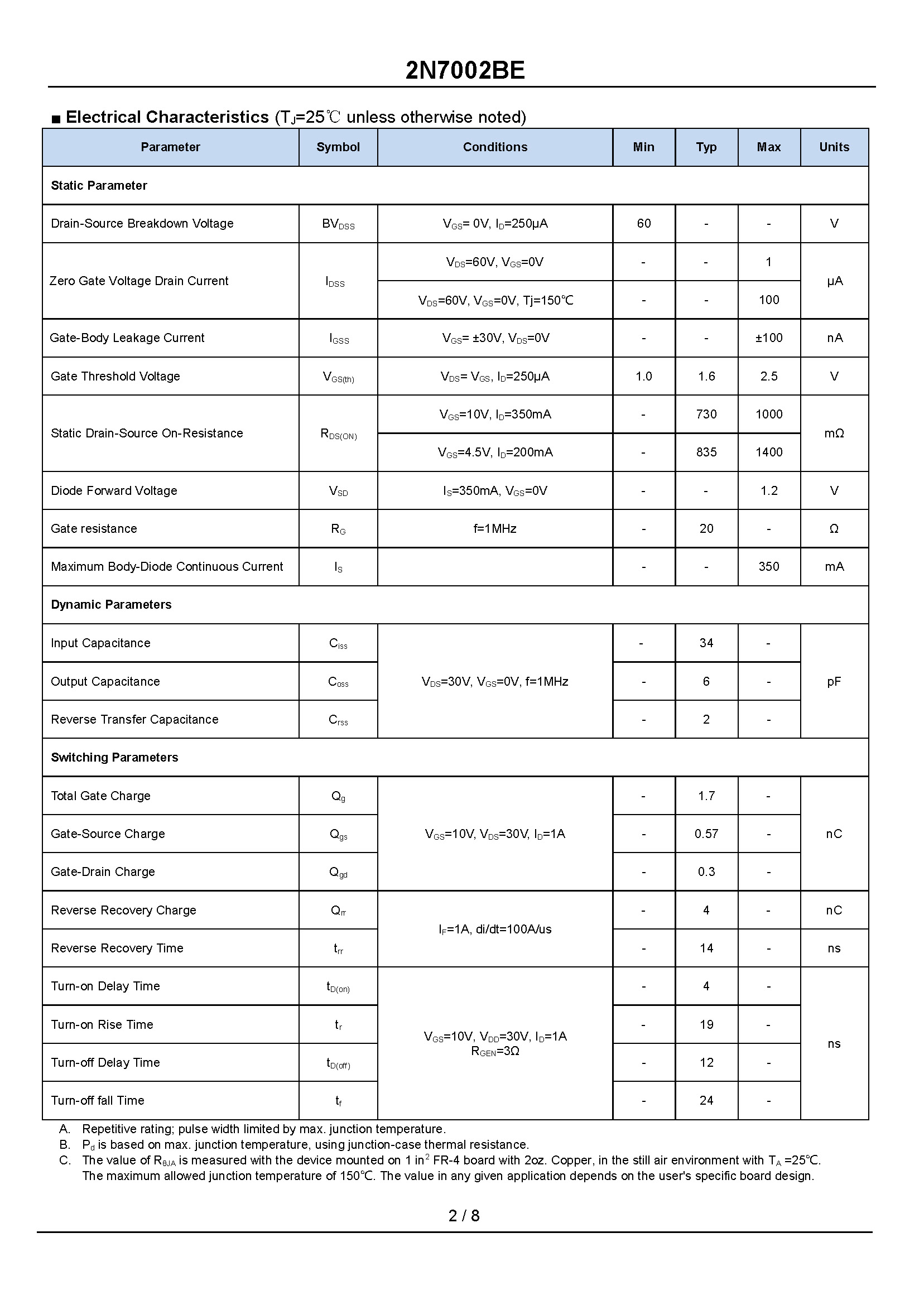

2N7002BE-1_页面_2

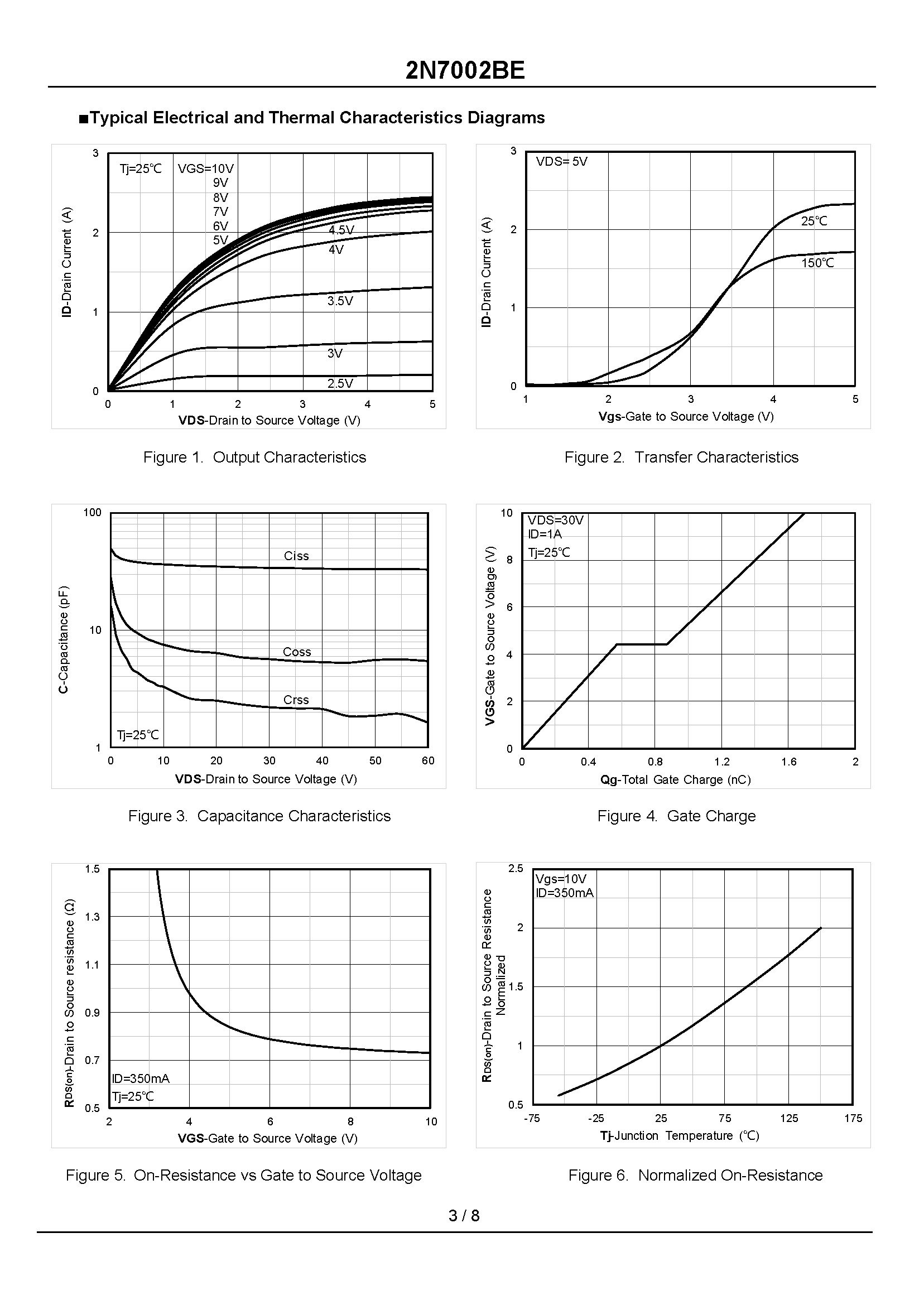

2N7002BE-1_页面_3
