INA219AIDCNR
Merry

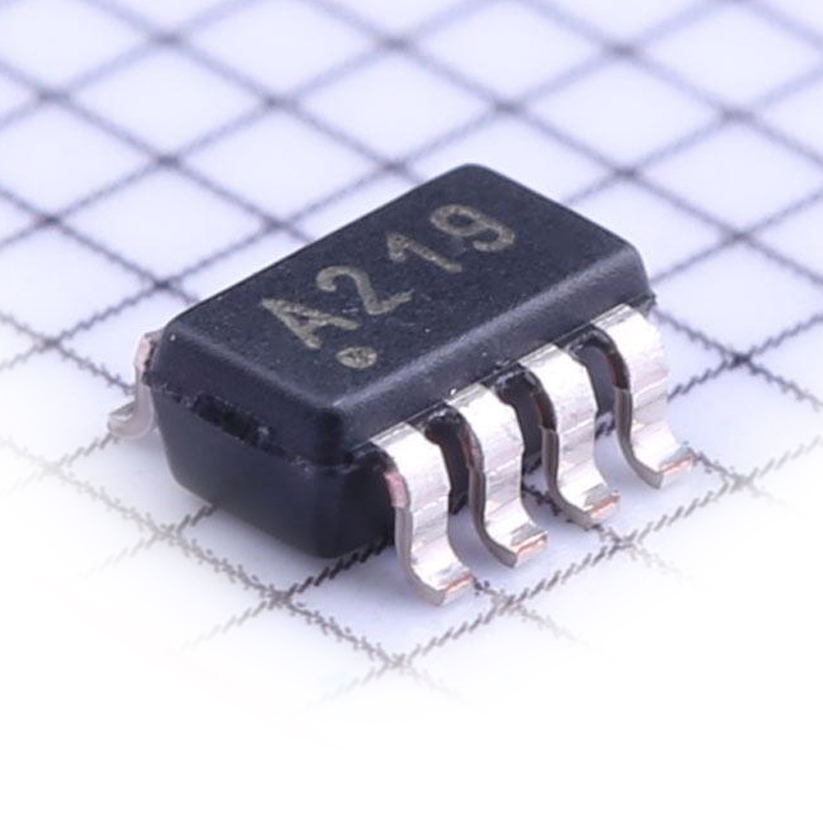

26V, 12 bit, I2C output current/voltage/power monitor, SOT-23-8, INA219AIDCNR
Common mode voltage (Max) (V) | 26 |
Common mode voltage (Min) (V) | 0 |
Input offset (+/-) (Max) (uV) | 50, 100 |
Input offset drift (+/-) (Typ) (uV/C) | 0.1 |
Gain (V/V) | 1, 0.5, 0.25, 0.125 |
Gain error (%) | 0.5, 0.3 |
Gain error drift (+/-) (Max) (ppm/°C) | 83 |
CMRR (Min) (dB) | 120 |
Bandwidth (kHz) | 5.5 |
Supply voltage (Max) (V) | 5.5 |
Supply voltage (Min) (V) | 3 |
Iq (Max) (mA) | 1 |
Digital interface | I2C, SMBus |
Features | Bi-directional, Programmable Gain |
Resolution (Bits) | 12 |
Rating | Catalog |
Operating temperature range (C) | -40 to 125 |
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
26V, 12 bit, I2C output current/voltage/power monitor, SOT-23-8, INA219AIDCNR
Common mode voltage (Max) (V) | 26 |
Common mode voltage (Min) (V) | 0 |
Input offset (+/-) (Max) (uV) | 50, 100 |
Input offset drift (+/-) (Typ) (uV/C) | 0.1 |
Gain (V/V) | 1, 0.5, 0.25, 0.125 |
Gain error (%) | 0.5, 0.3 |
Gain error drift (+/-) (Max) (ppm/°C) | 83 |
CMRR (Min) (dB) | 120 |
Bandwidth (kHz) | 5.5 |
Supply voltage (Max) (V) | 5.5 |
Supply voltage (Min) (V) | 3 |
Iq (Max) (mA) | 1 |
Digital interface | I2C, SMBus |
Features | Bi-directional, Programmable Gain |
Resolution (Bits) | 12 |
Rating | Catalog |
Operating temperature range (C) | -40 to 125 |
