60V 5mA, Brushless DC BLDC motor driver chip, BQ24086DRCR

60V 5mA, Brushless DC BLDC motor driver chip
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • BQ24086DRCR

  • Merry

60V 5mA, Brushless DC BLDC motor driver chip, BQ24086DRCR

Number of series cells

1
Charge current (Max) (A)

0.75
Operating Vin (Max) (V)

6.5
Cell chemistry

Li-Ion/Li-Polymer
Battery charge voltage (Min) (V)

4.2
Battery charge voltage (Max) (V)

4.2
Absolute Vin (safety rating) (Max) ((V))

20
Control interface

Standalone (RC-Settable)
Features

BAT temp thermistor monitoring (hot/cold profile), IC thermal regulation, Input OVP
Operating Vin (Min) (V)

4.35
Rating

Catalog

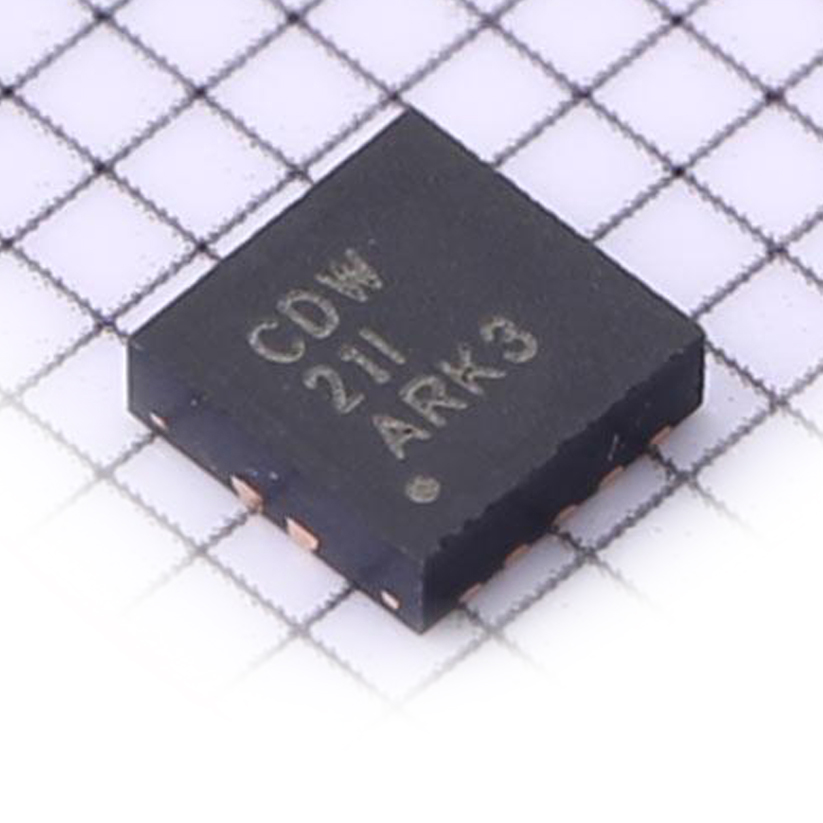

BQ24086DRCR-2

Name1

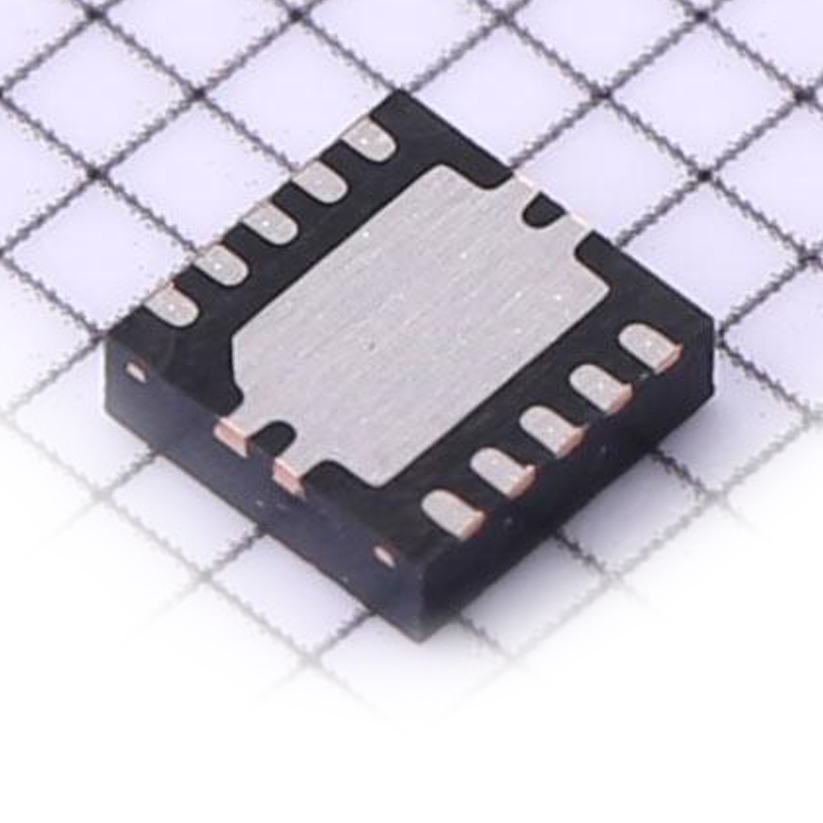

BQ24086DRCR-3
