2.4GHz SoC, VQFN-36-EP(6x6), CC2510F32RHHR

2.4GHz SoC, VQFN-36-EP(6x6), CC2510F32RHHR
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • CC2510F32RHHR

  • Merry

2.4GHz SoC, VQFN-36-EP(6x6), CC2510F32RHHR

Features :
- High-performance RF transceiver based on the market-leading CC2500
• Excellent receiver selectivity and blocking performance
• High sensitivity (−103 dBm at 2.4 kBaud)
• Programmable data rate up to 500 kBaud
• Programmable output power up to 1 dBm for all supported frequencies
• Frequency range: 2400 - 2483.5 MHz
• Digital RSSI / LQI support
• Current Consumption
- Low current consumption (RX: 17.1 mA @ 2.4 kBaud, TX: 16 mA @ −6 dBm output power)
• 0.3 µA in PM3 (the operating mode with the lowest power consumption)
• MCU, Memory, and Peripherals
- High performance and low power 8051 microcontroller core.
• 8/16/32 kB in-system programmable flash, and 1/2/4 kB RAM
• Full-Speed USB Controller with 1 kB USB FIFO (CC2511Fx)
• I2S interface
• 7 - 12 bit ADC with up to eight inputs
• 128-bit AES security coprocessor
• Powerful DMA functionality
• Two USARTs
• 16-bit timer with DSM mode
• Three 8-bit timers
• Hardware debug support
• 21 (CC2510Fx ) or 19 (CC2511Fx ) GPIO pins
• General
- Wide supply voltage range (2.0V - 3.6V)

• Green package: RoHS compliant and no antimony or bromine, 6×6mm QFN 36

Device type

Wireless MCU
Operating temperature range(C)

-40 to 85
Approx. price(US$)

2.34|1ku
Rating

Catalog

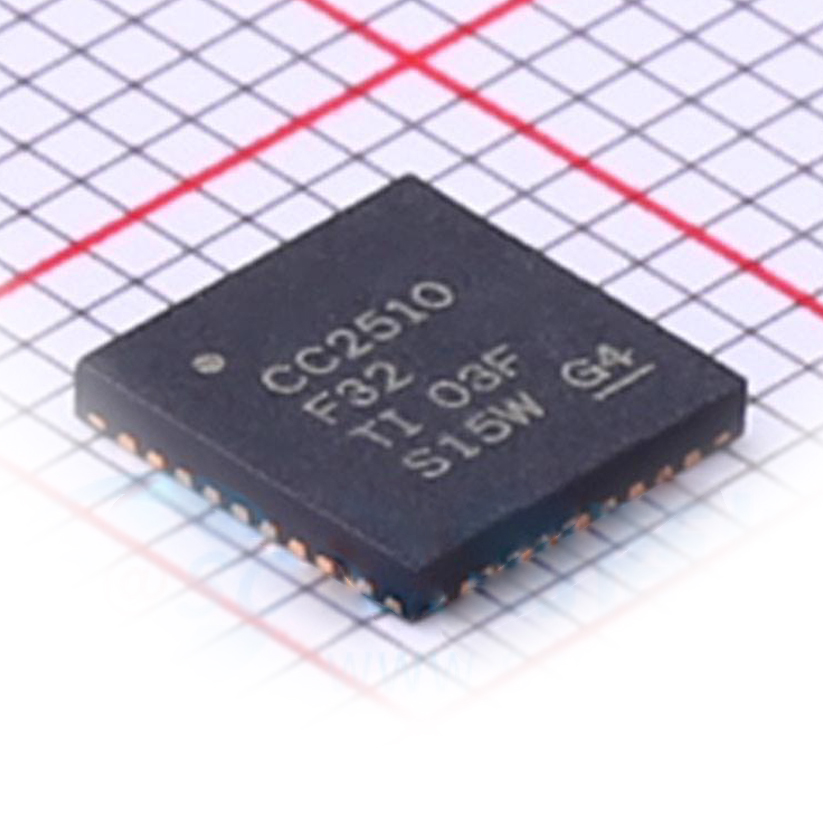

CC2510F32RHHR-2
