1.65V to 5.5V VCC dual Schmitt-Trigger buffer, SC-70-6, SN74LVC2G17DCKR

1.65V to 5.5V VCC dual Schmitt-Trigger buffer
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • SN74LVC2G17DCKR

  • Merry

1.65V to 5.5V VCC dual Schmitt-Trigger buffer, SC-70-6, SN74LVC2G17DCKR

Technology Family

LVC
Supply voltage (Min) (V)

1.65
Supply voltage (Max) (V)

5.5
Number of channels (#)

2
IOL (Max) (mA)

32
ICC (Max) (uA)

10
IOH (Max) (mA)

-32
Input type

Schmitt-Trigger
Output type

Push-Pull
Features

Balanced outputs, Very high speed (tpd 5-10ns), Partial power down (Ioff), Over-voltage tolerant inputs
Rating

Catalog

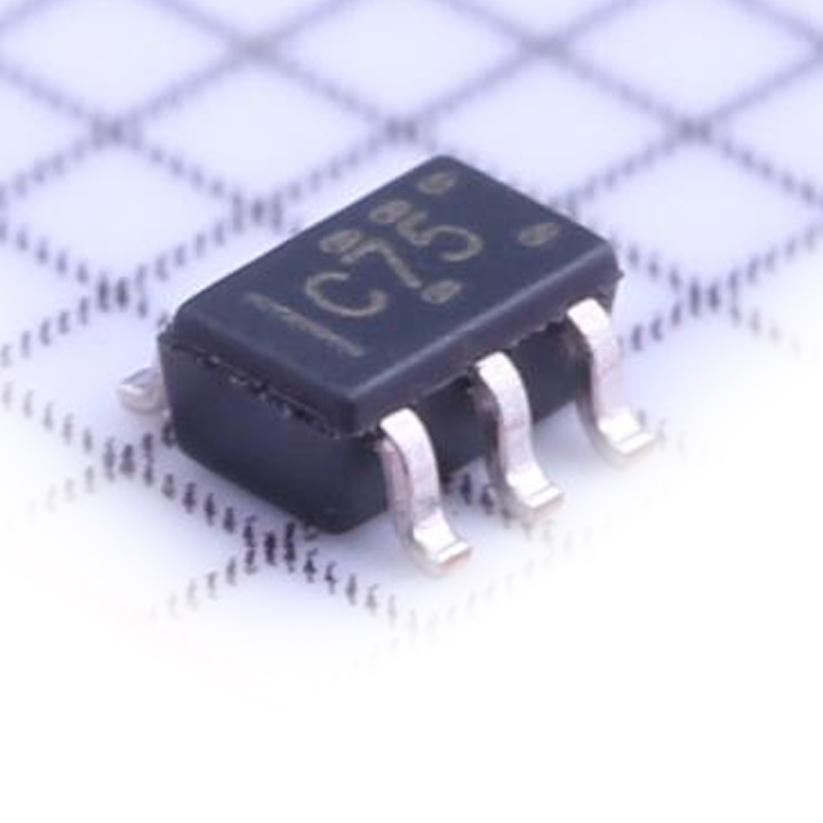

SN74LVC2G17DCKR-2

Name1

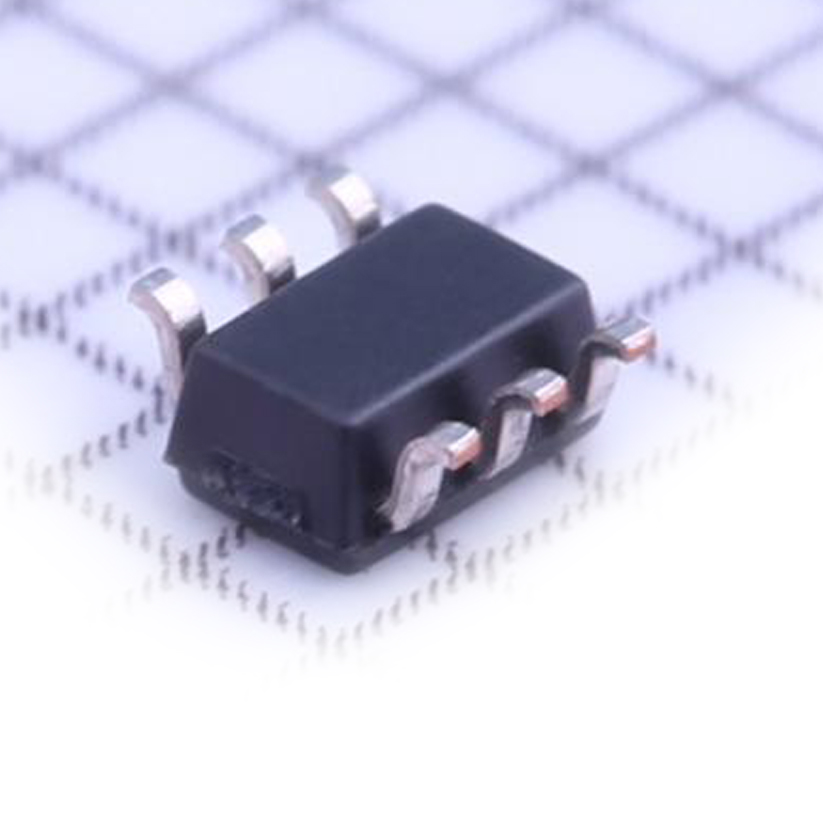

SN74LVC2G17DCKR-3

Name2
