BQ24086DRCR
Merry

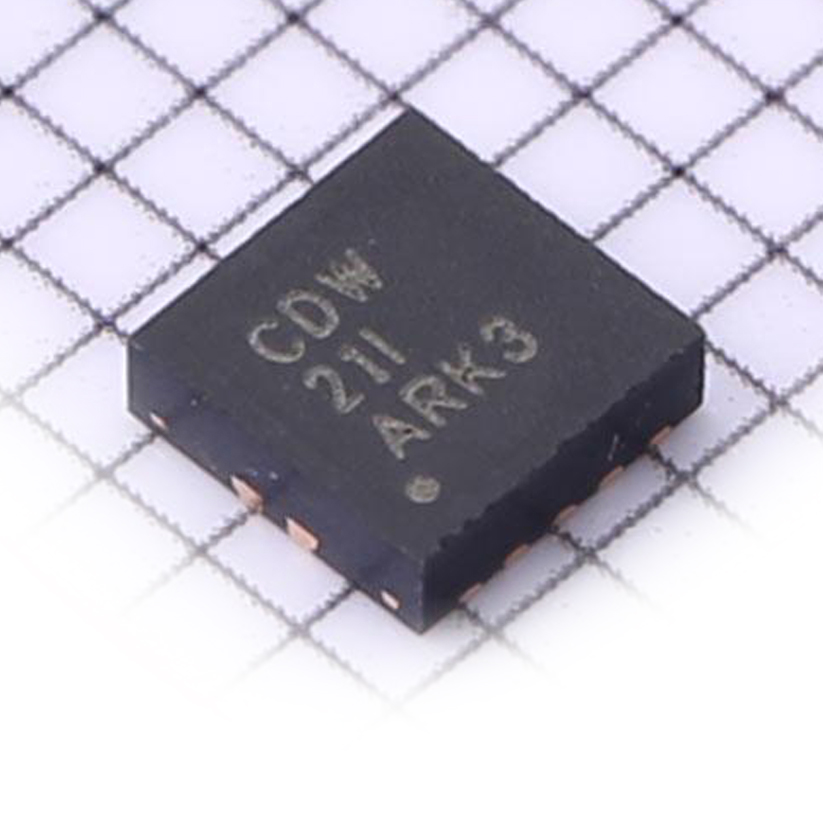

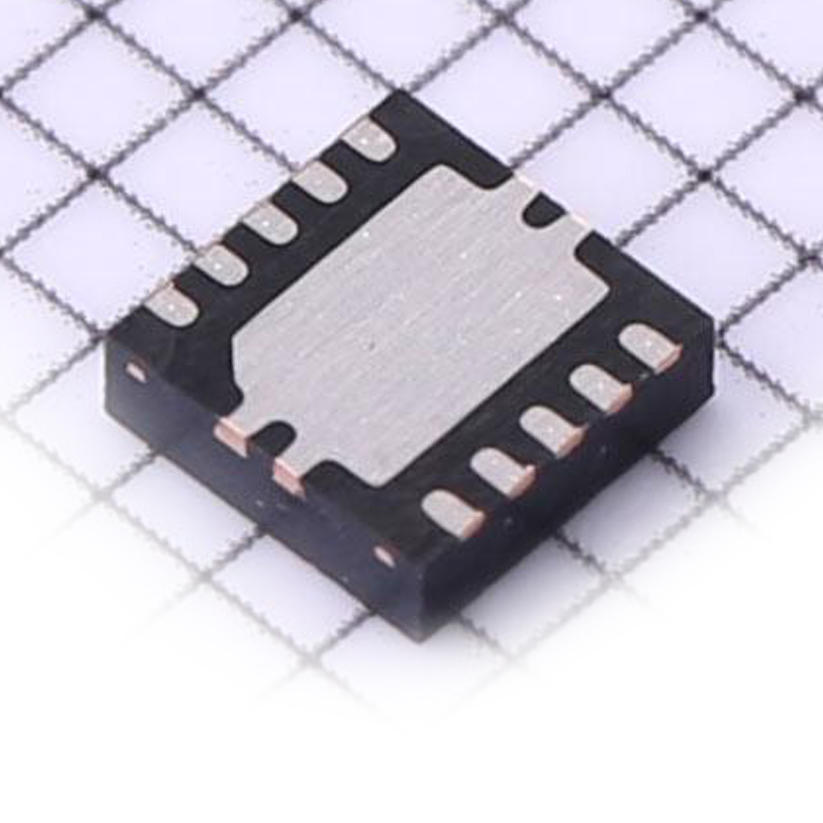

6.5V 750mA, linear chargers, VSON-10(3x3), BQ24086DRCR
Features :
- Ideal for Low-Dropout Designs for Single-Cell Li- Ion or Li-Pol Packs in Space Limited Applications
• Integrated Power FET and Current Sensor for up to 750-mA Charge Applications
• Reverse Leakage Protection Prevents Battery Drainage
• ±0.5% Voltage Regulation Accuracy
• Thermal Regulation Maximizes Charge Rate
• Charge Termination by Minimum Current and Time
• Precharge Conditioning With Safety Timer
• Status Outputs for LED or System Interface Indicate Charge, Fault, and Power Good Outputs
• Short-Circuit and Thermal Protection
• Automatic Sleep Mode for Low Power Consumption
• Small 3×3 mm MLP Package
• Selectable Battery Insertion and Battery Absent Detection
• Input Overvoltage Protection
• 6.5 V and 10.5 V Options
| Number of series cells | 1 |
| Charge current (Max) (A) | 0.75 |
| Operating Vin (Max) (V) | 6.5 |
| Cell chemistry | Li-Ion/Li-Polymer |
| Battery charge voltage (Min) (V) | 4.2 |
| Battery charge voltage (Max) (V) | 4.2 |
| Absolute Vin (safety rating) (Max) ((V)) | 20 |
| Control interface | Standalone (RC-Settable) |
| Features | BAT temp thermistor monitoring (hot/cold profile), IC thermal regulation, Input OVP |
| Operating Vin (Min) (V) | 4.35 |
| Rating | Catalog |
