High performance bipolar input audio operational amplifier, SOIC-8, OPA1602AIDR

High performance bipolar input audio operational amplifier
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • OPA1602AIDR

  • Merry

High performance bipolar input audio operational amplifier, SOIC-8, OPA1602AIDR

Number of channels (#)

2
Total supply voltage (Min) (+5V=5, +/-5V=10)

5
Total supply voltage (Max) (+5V=5, +/-5V=10)

36
GBW (Typ) (MHz)

35
Slew rate (Typ) (V/us)

20
Rail-to-rail

Out
Vos (offset voltage @ 25 C) (Max) (mV)

1
Iq per channel (Typ) (mA)

2.6
Vn at 1 kHz (Typ) (nV/rtHz)

2.5
Features

Burr-Brown™ Audio, Premium Sound
THD + N @ 1 kHz (Typ) (%)

0.00003
Rating

Catalog
Operating temperature range (C)

-40 to 85
Output current (Typ) (mA)

60
Product type

Premier
Architecture

Bipolar
CMRR (Typ) (dB)

120
Input bias current (Max) (pA)

200000

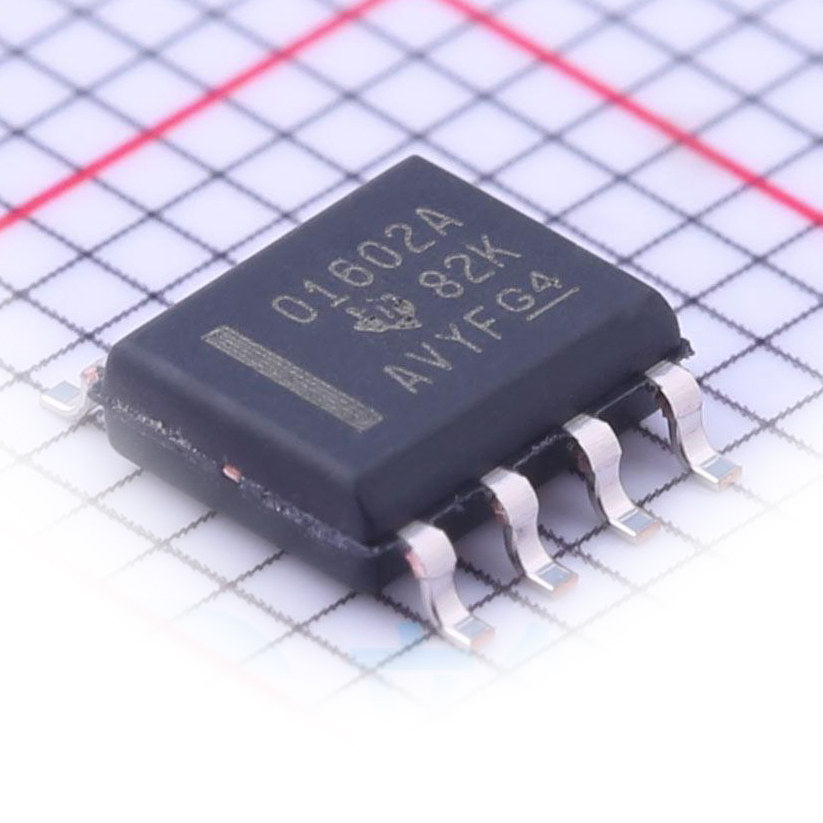

OPA1602AIDR-2

Name1

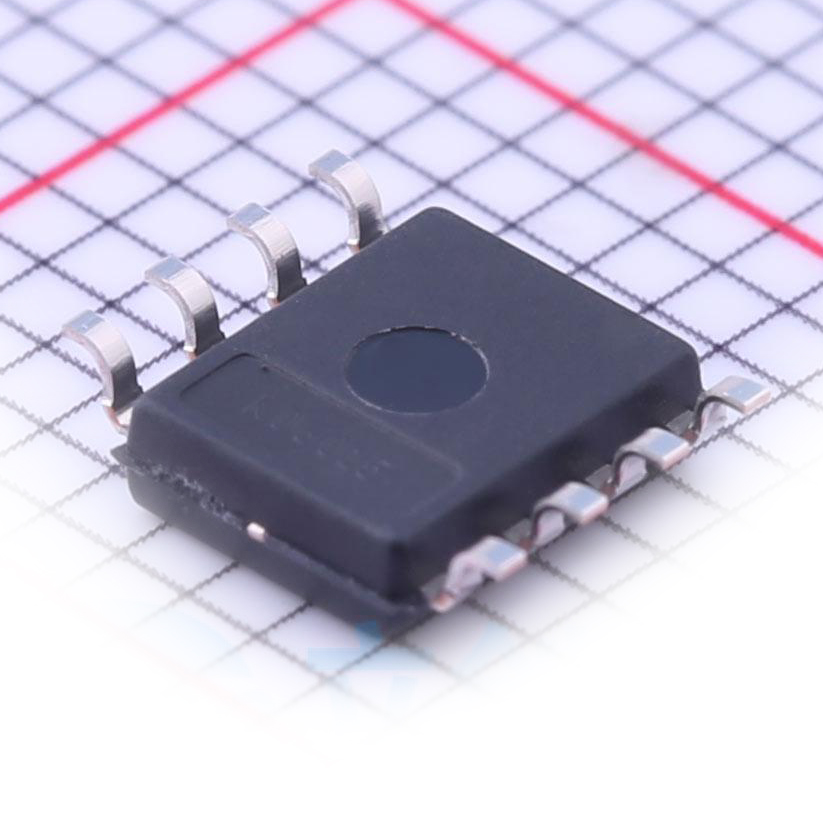

OPA1602AIDR-3
