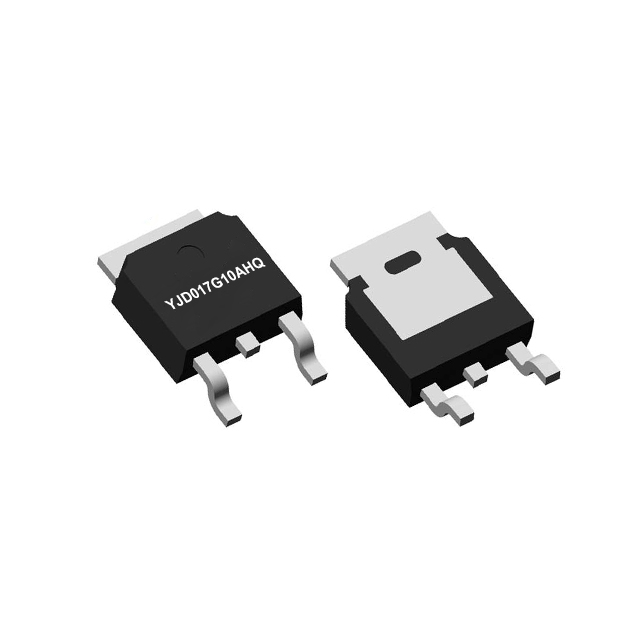

100V 42A N-Channel Enhancement Mode Field Effect Transistor, TO-252, YJD017G10AHQ

100V 42A N-Channel Enhancement Mode Field Effect Transistor
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • YJD017G10AHQ

  • Merry

100V 42A N-Channel Enhancement Mode Field Effect Transistor, TO-252, YJD017G10AHQ

Product Summary :
- VDS 100V
- ID 42A
- RDS(ON)( at VGS=10V) <17mΩ
- RDS(ON)( at VGS=4.5V) <22mΩ
- 100% EAS Tested
- 100% ▽VDS Tested

General Description :
- Excellent package for heat dissipation
- High density cell design for low RDS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating Halogen Free
- Part no. with suffix "Q" means AEC-Q101 qualified

Applications :
- Power switching application
- Uninterruptible power supply
- DC-DC convertor
- 12V,24V and 48V Automotive systems

YJD017G10AHQName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

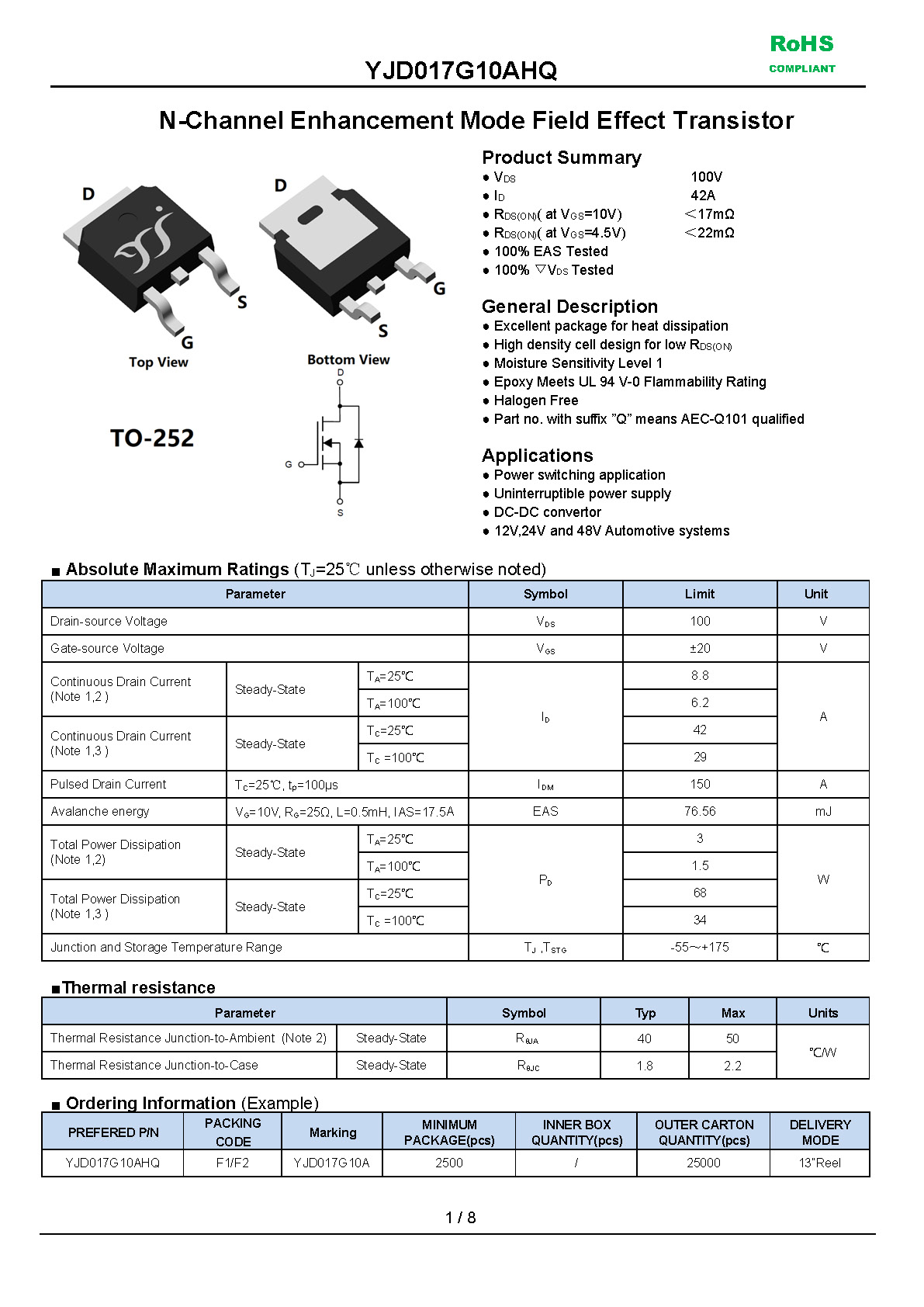

YJD017G10AHQ-1_页面_1

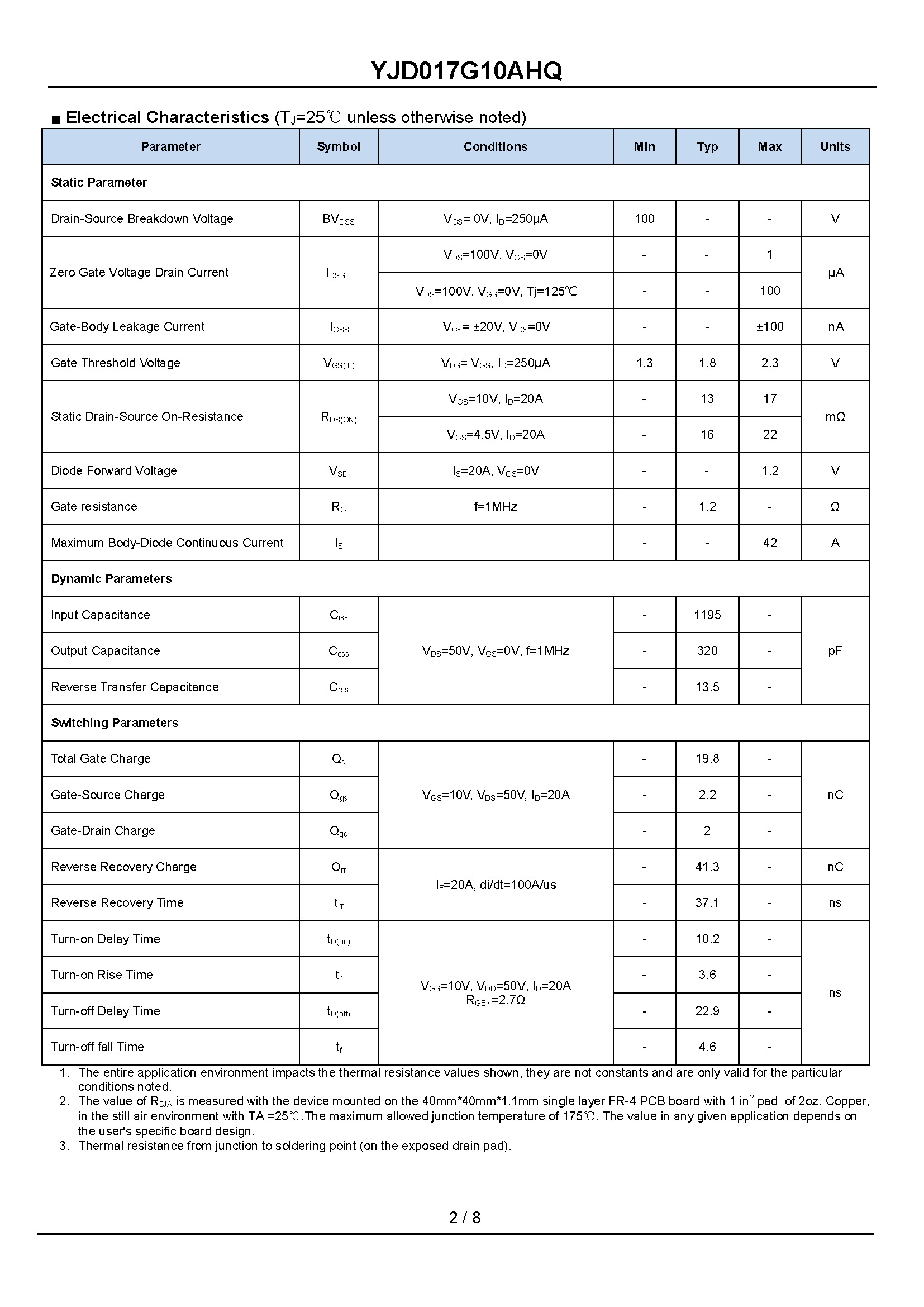

YJD017G10AHQ-1_页面_2

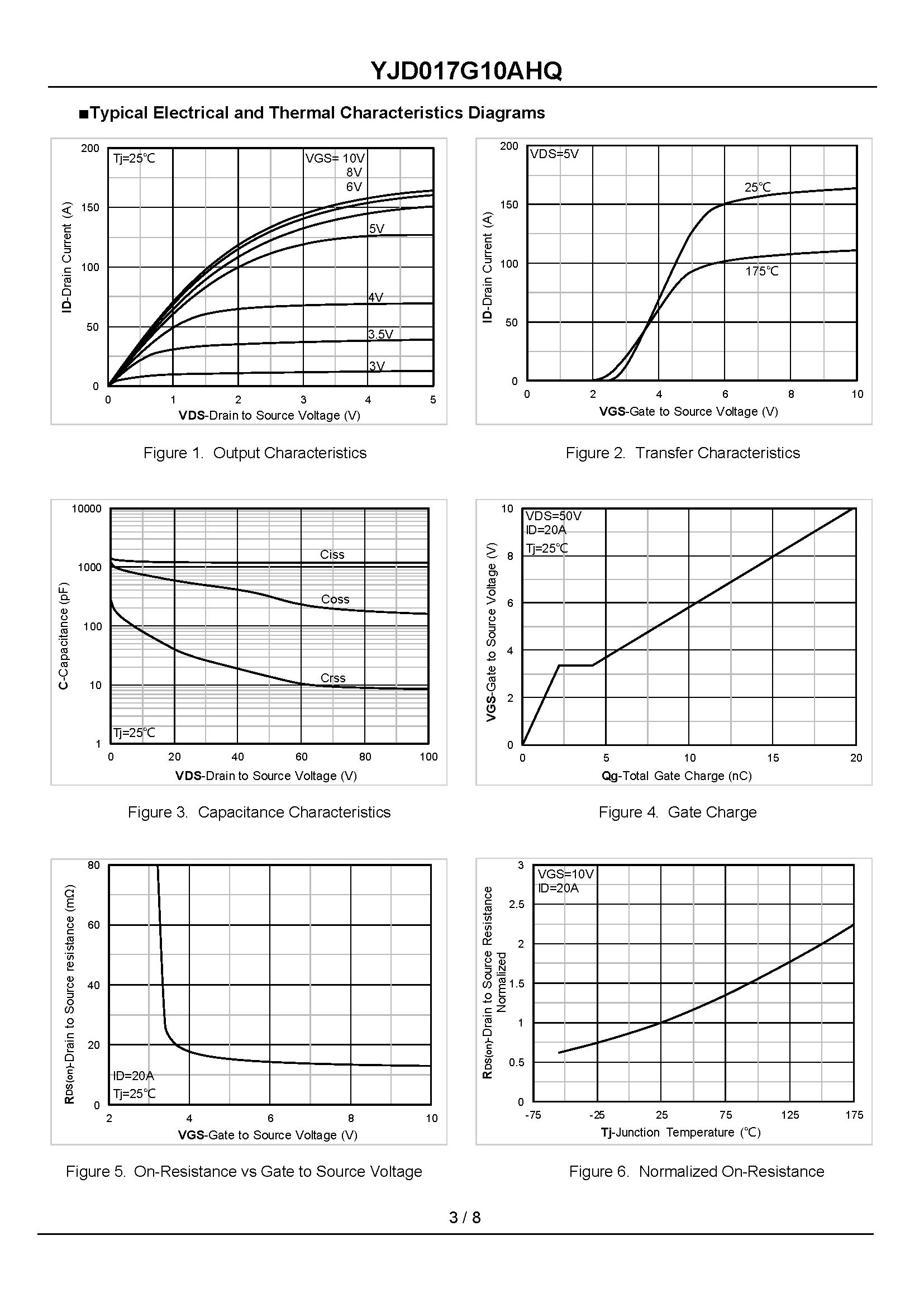

YJD017G10AHQ-1_页面_3
