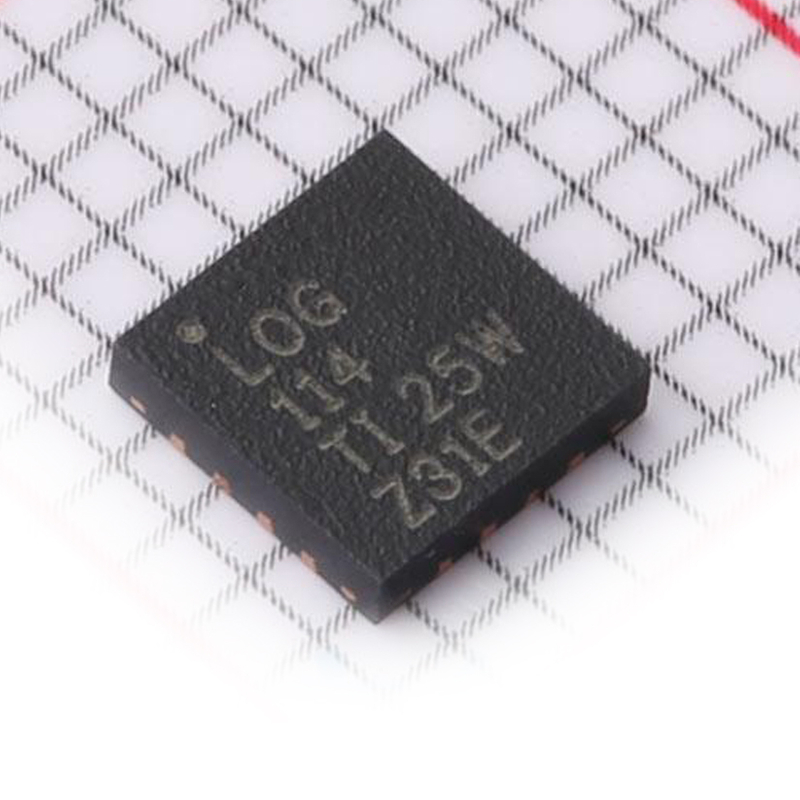

2.5V logarithmic transimpedance amplifier, VQFN-16-EP(4x4), LOG114AIRGVR

2.5V logarithmic transimpedance amplifier
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • LOG114AIRGVR

  • Merry

2.5V logarithmic transimpedance amplifier, VQFN-16-EP(4x4), LOG114AIRGVR

Scale factor (V/decade)

0.375
Input current range (Min) (nA)

0.1
Input current range (Max) (mA)

10
Conformity error (initial 5 decades) (Max) (%)

0.2
Conformity error (initial 5 decades) (typ. over temp) (%/degree C)

0.1
Offset voltage (input amplifiers) (Max) (mV)

4
Vs (+/-) (Min) (V)

4.8
Vs (+/-) (Max) (V)

11
Iq (Max) (mA)

15
Dynamic range (Typ) (dB)

160
Reference type

Internal
Auxiliary op amps

2
Full-scale output voltage (Min) (+/- V)

-4.4
Full-scale output voltage (Max) (+/- V)

4.4
Operating temperature range (C)

0 to 70
Specified voltage (+/- V)

5

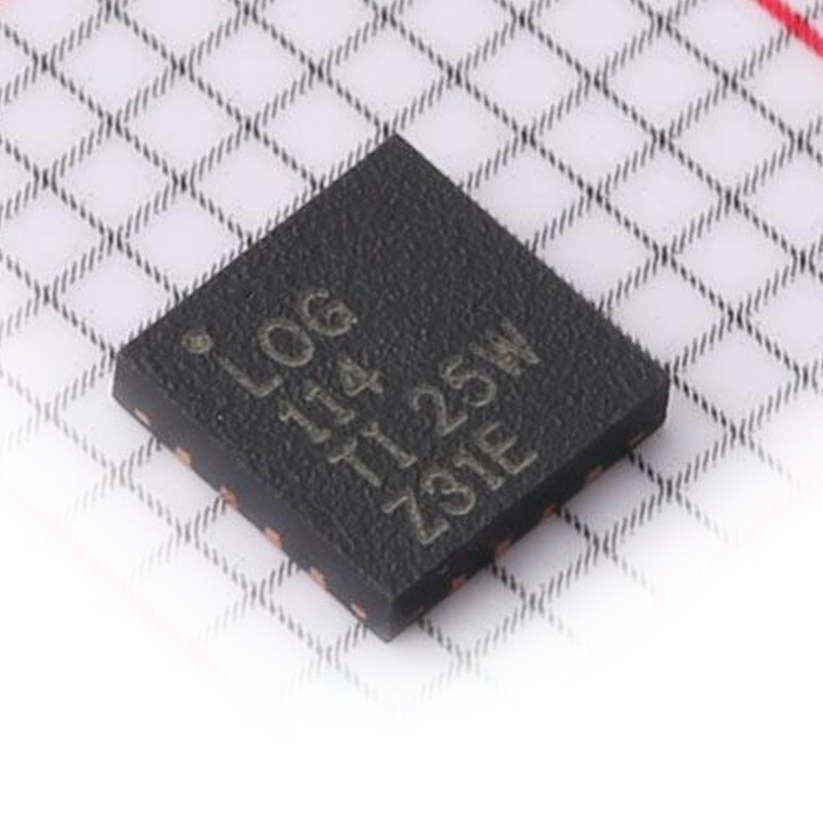

LOG114AIRGVR-2

Name1

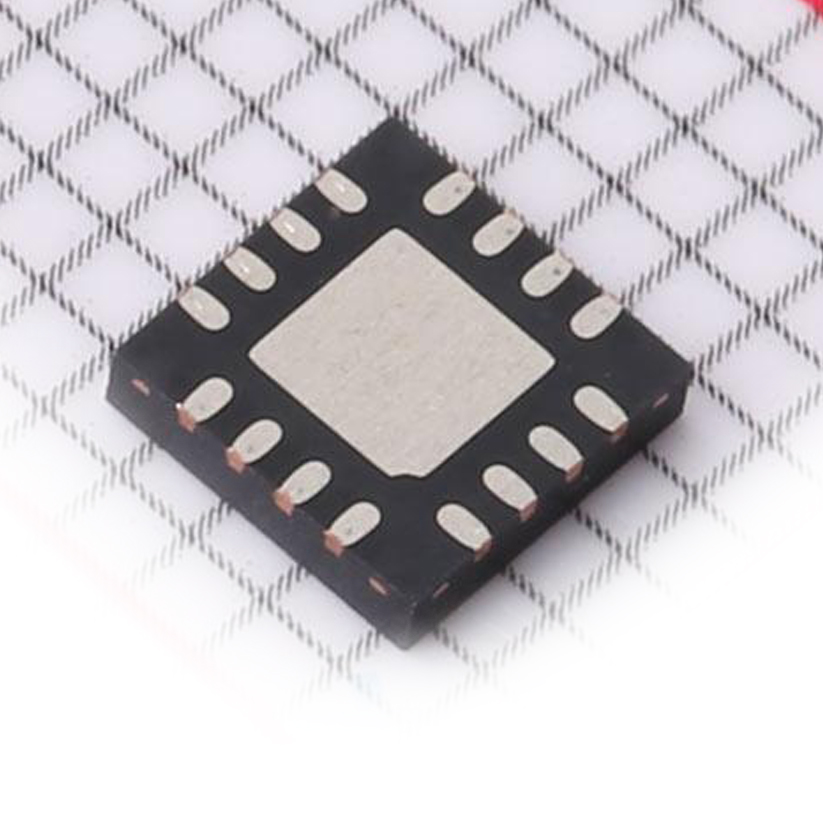

LOG114AIRGVR-3
