26V, 350kHz current sensing amplifier, SOT-23-5, INA180A3IDBVR

26V, 350kHz current sensing amplifier
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • INA180A3IDBVR

  • Merry

26V, 350kHz current sensing amplifier, SOT-23-5, INA180A3IDBVR

Common mode voltage (Max) (V)

26
Common mode voltage (Min) (V)

-0.2
Input offset (+/-) (Max) (uV)

150
Input offset drift (+/-) (Typ) (uV/C)

0.2
Gain (V/V)

100, 20, 200, 50
Gain error (%)

1
Gain error drift (+/-) (Max) (ppm/°C)

20
CMRR (Min) (dB)

84
Bandwidth (kHz)

350, 210, 150, 105
Supply voltage (Max) (V)

5.5
Supply voltage (Min) (V)

2.7
Iq (Max) (mA)

0.3
Number of channels (#)

1
Comparators (#)

0
Features

Low-side Capable
Rating

Catalog
Operating temperature range (C)

-40 to 125

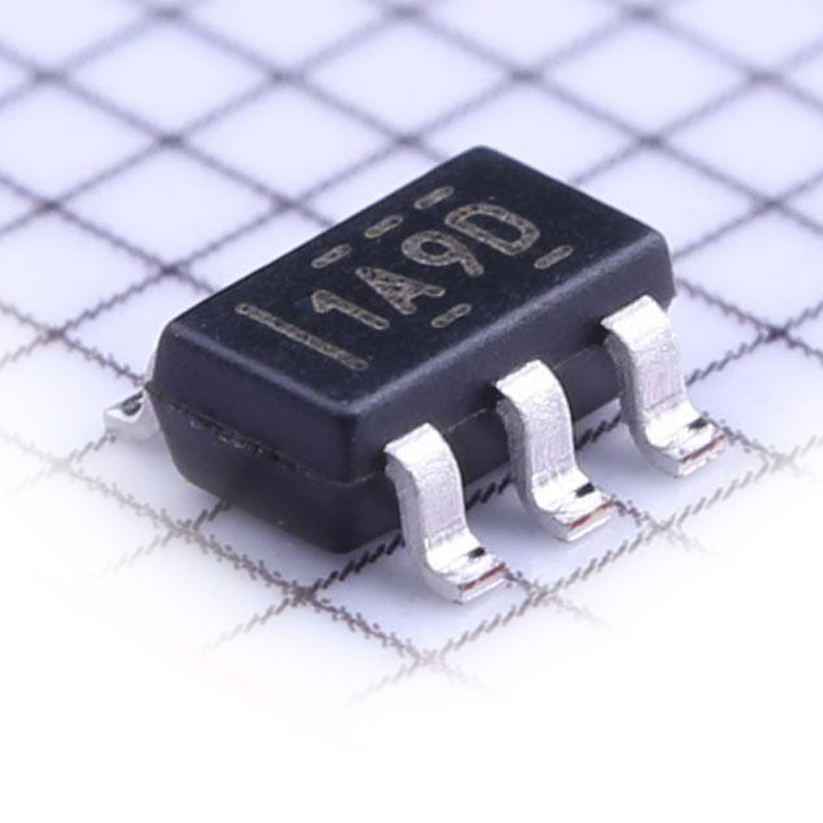

INA180A3IDBVR-2

Name1

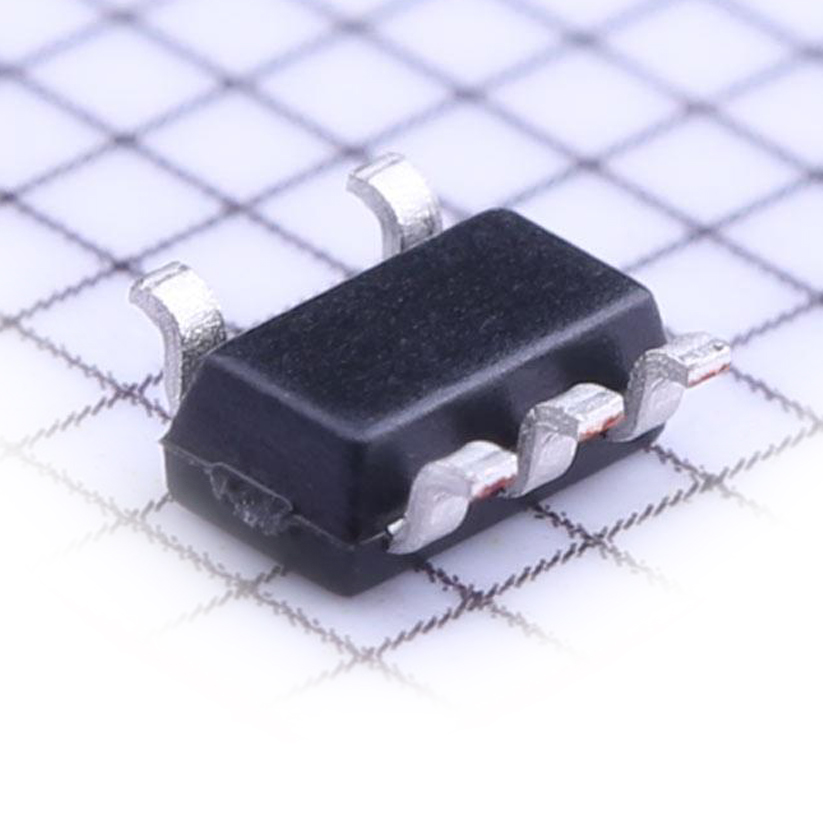

INA180A3IDBVR-3
