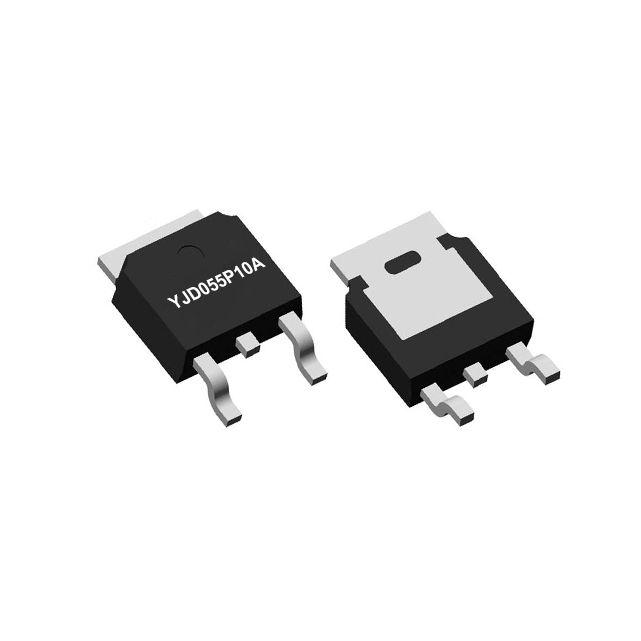

-100V -28A P-Channel Enhancement Mode Field Effect Transistor, TO-252, YJD055P10A

-100V -28A P-Channel Enhancement Mode Field Effect Transistor
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • YJD055P10A

  • Merry

-100V -28A P-Channel Enhancement Mode Field Effect Transistor, TO-252, YJD055P10A

Product Summary :
- VDS -100V
- ID -28A
- RDS(ON)( at VGS=-10V) <55mΩ
- RDS(ON)( at VGS=-4.5V) <64mΩ
- 100% EAS Tested
- 100% ▽VDS Tested

General Description :
- Trench Power MOSFET technology
- Low RDS(on) & FOM
- Extremely low switching loss
- Excellent stability and uniformity
- High density cell design for low RDS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating Halogen Free
- Halogen Free

Applications :
- Power management
- Portable equipment


YJD055P10AName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

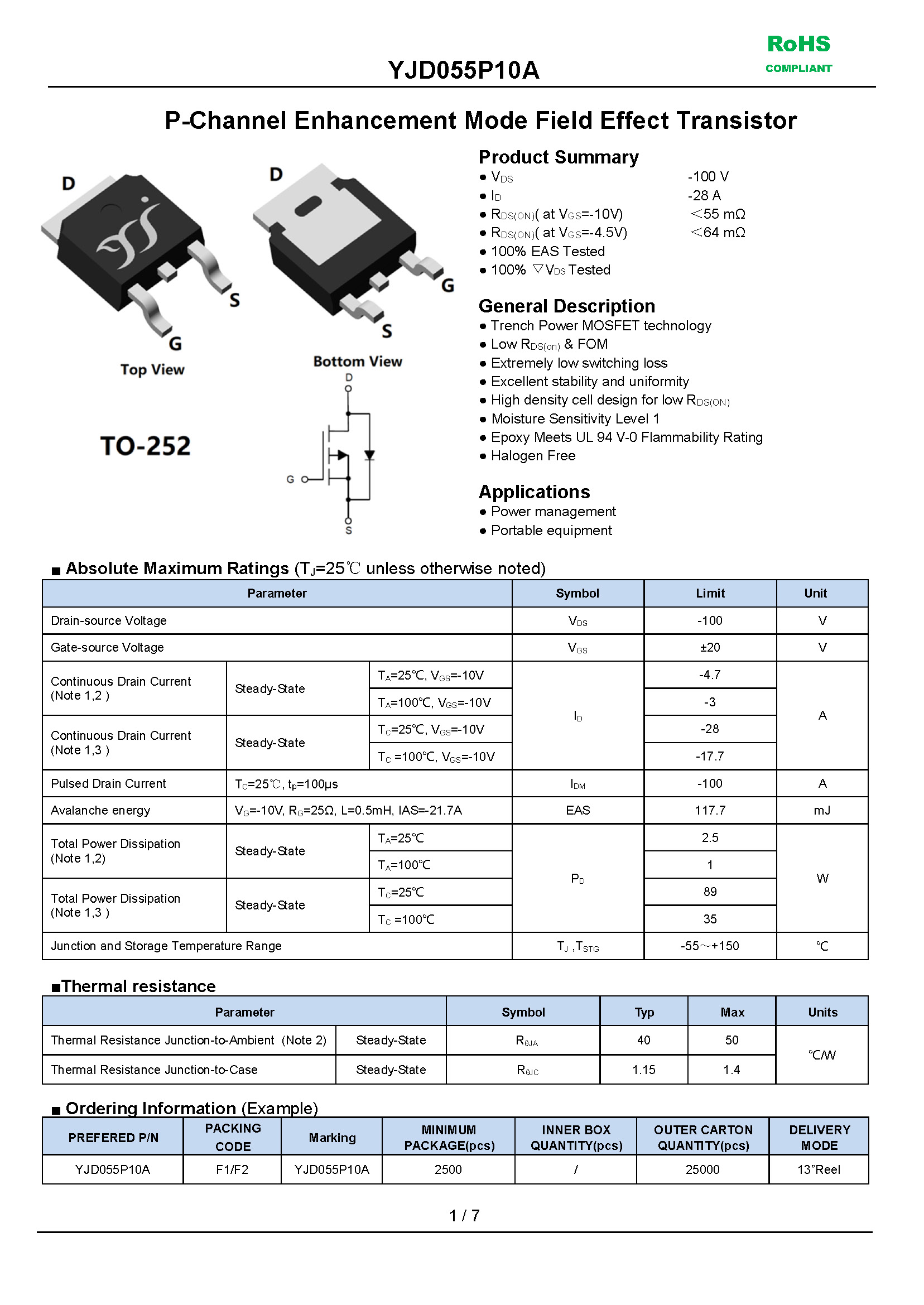

YJD055P10A-1_页面_1

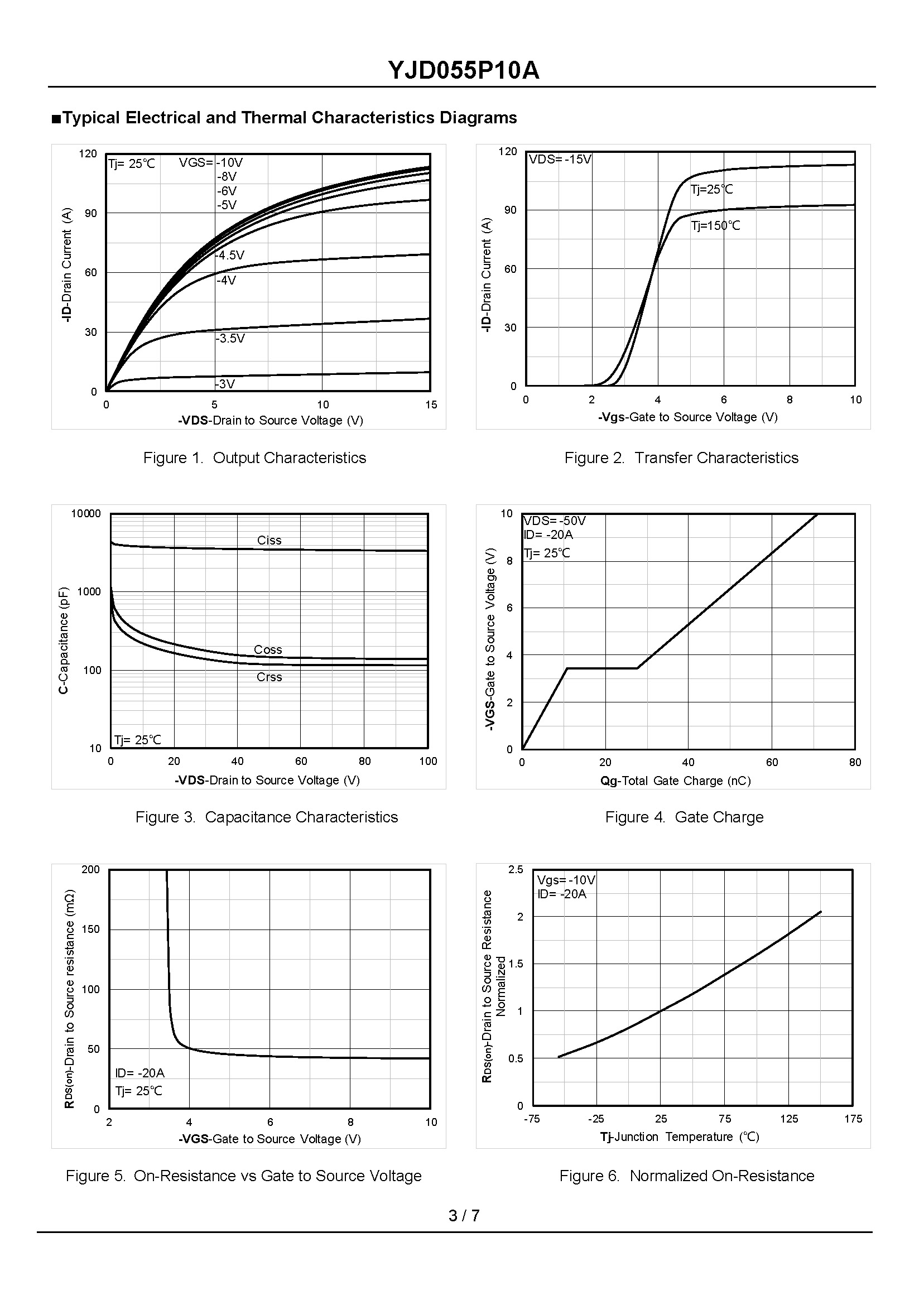

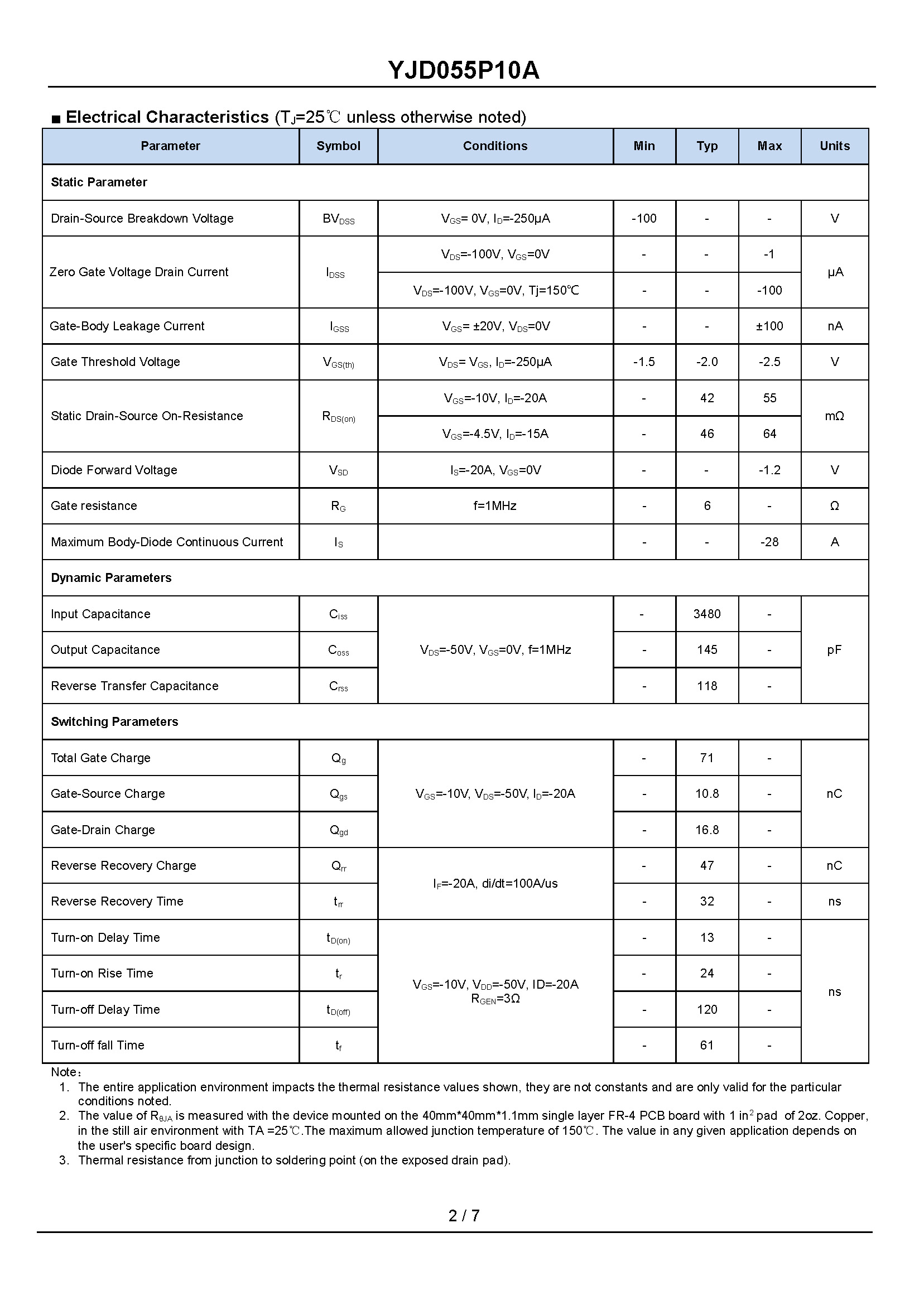

YJD055P10A-1_页面_2

YJD055P10A-1_页面_3
