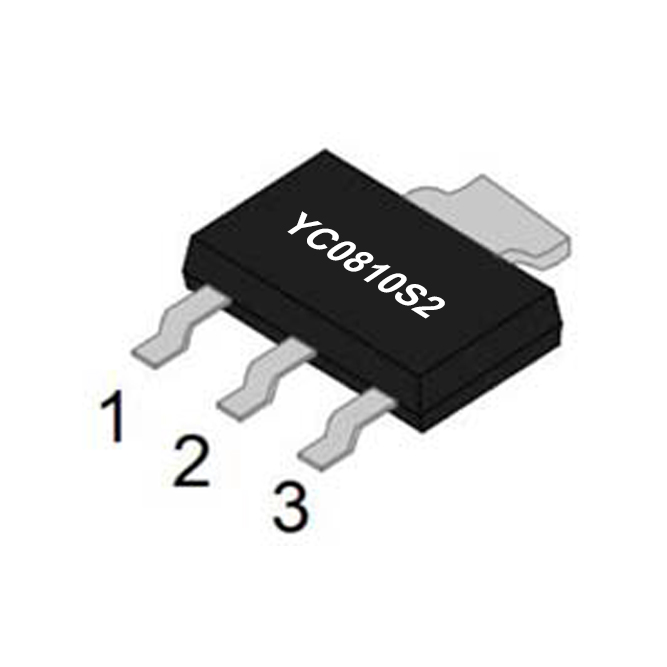

1A 800V Sensitive SCRs, TO-223, YC0810S2

1A 800V Sensitive SCRs
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • YC0810S2

  • Merry

1A 800V Sensitive SCRs, TO-223, YC0810S2

Features :
- On-state rms current, IT(RMS) 1 A
- Repetitive peak off-state voltage, VDRM/VRRM 800 V
- Triggering gate current, IGT  200μA

Mechanical Date :
- Case Material: "Green" Molding Compound

Applications :
- Ground Fault Circuit Interrupters (GFCI)
- General purpose switching and phase control
- Ignition circuits, CDI
- Motor control - e.g. small kitchen appliances

YC0810S2Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

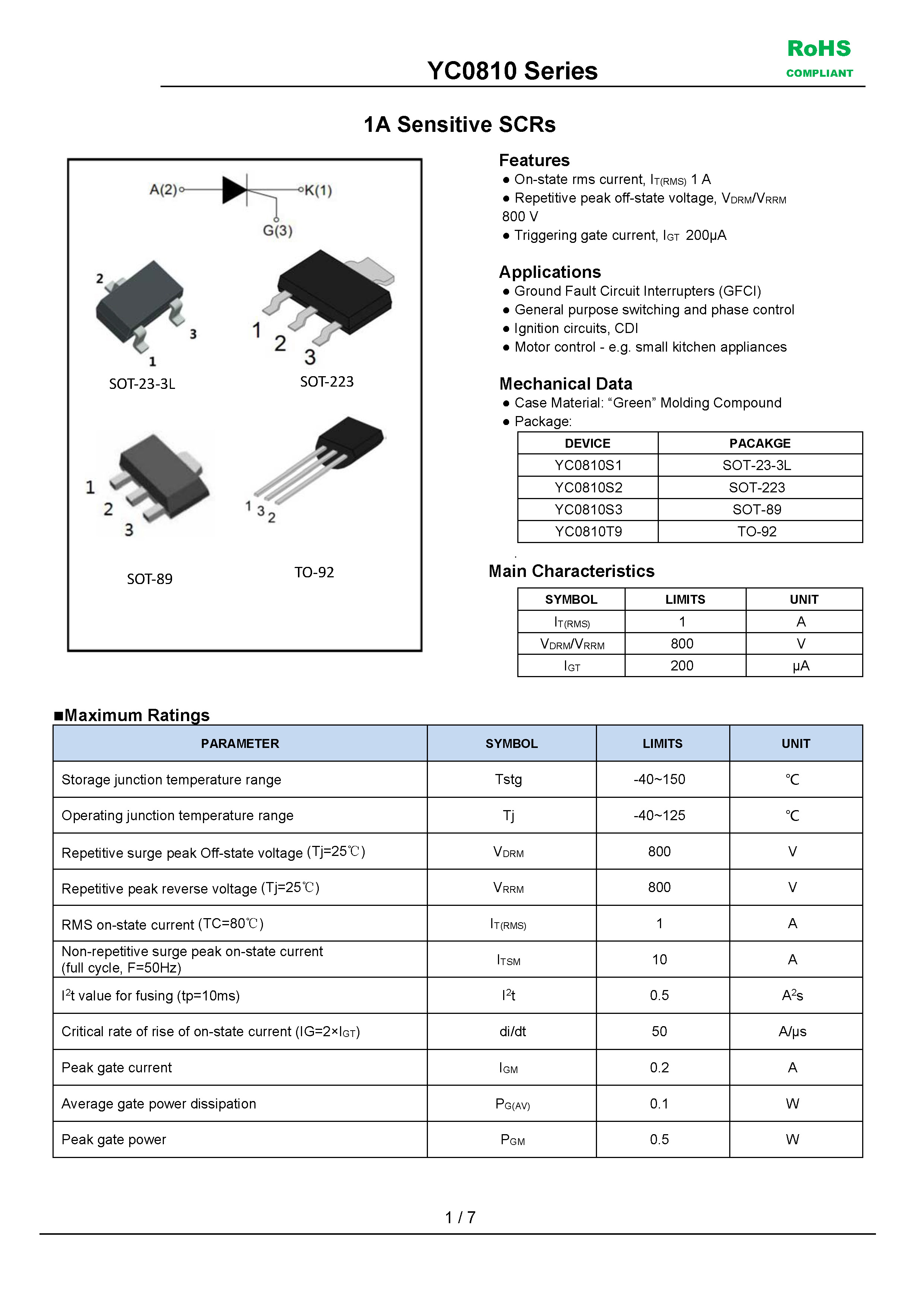

YC0810-1_页面_1

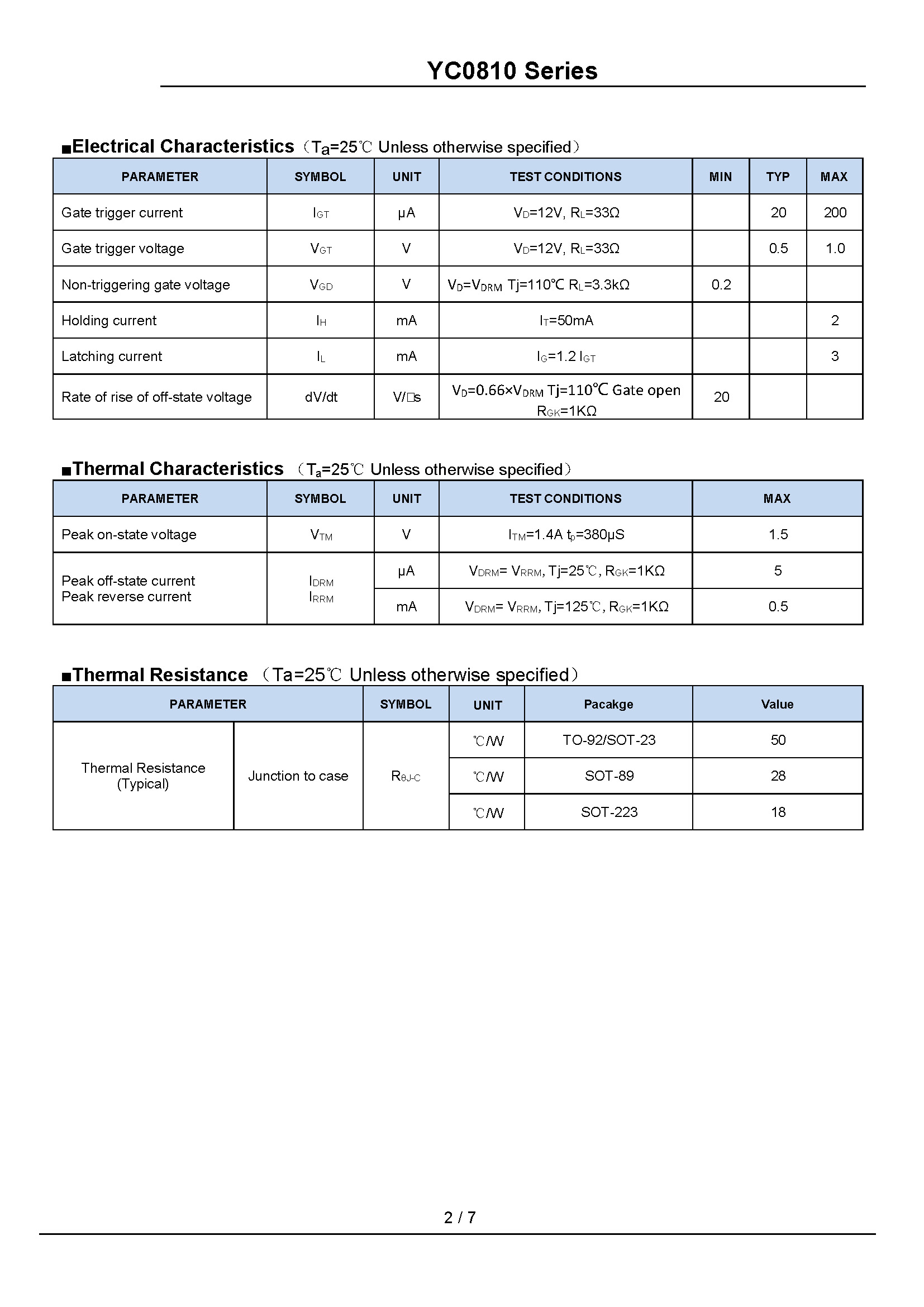

YC0810-1_页面_2

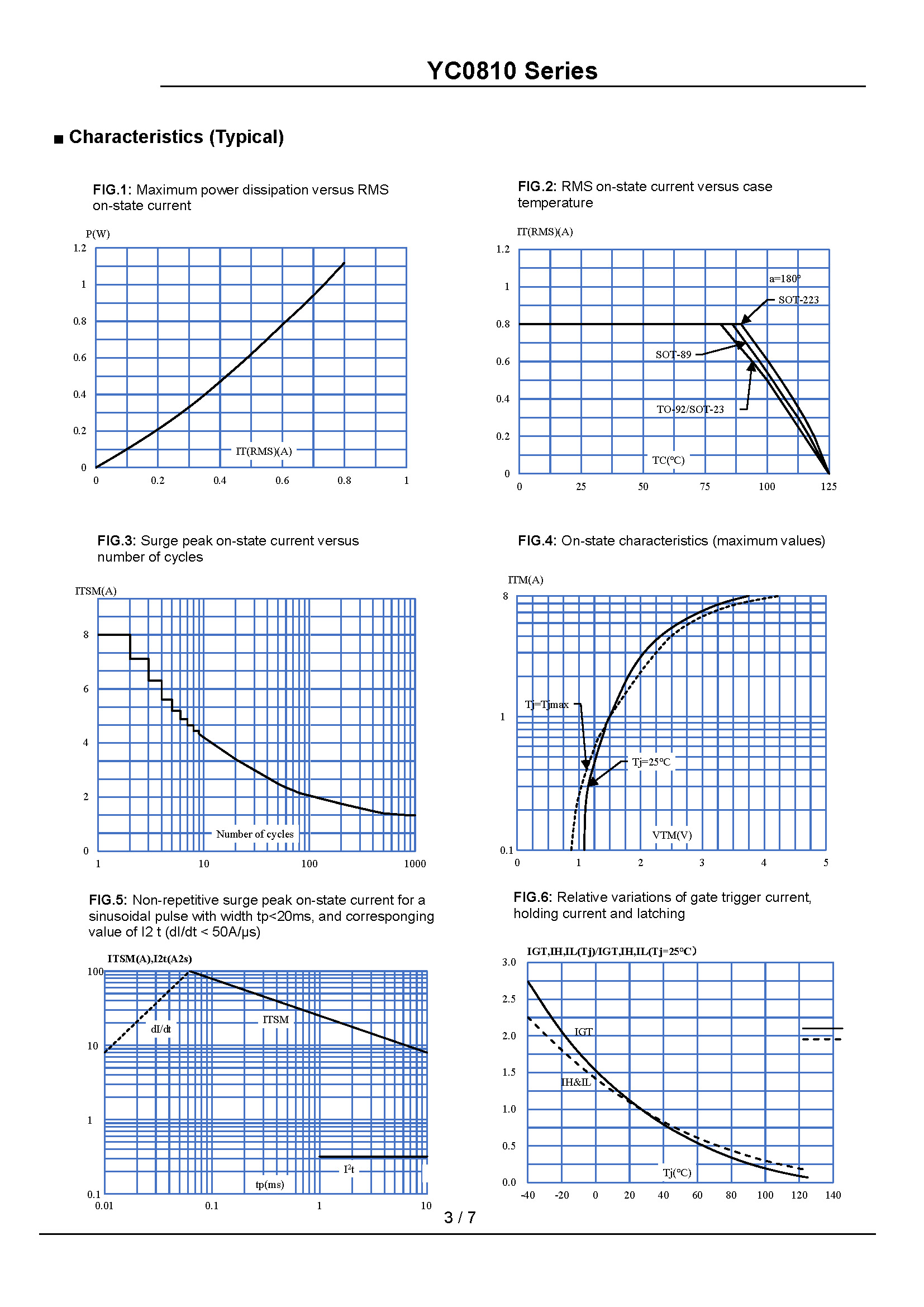

YC0810-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1A 800V Sensitive SCRs TO-223 Sensitive SCRs YC0810S2 Sensitive SCRs High Voltage Diode 500kv Fast Recovery Diode MT200DT-L2
