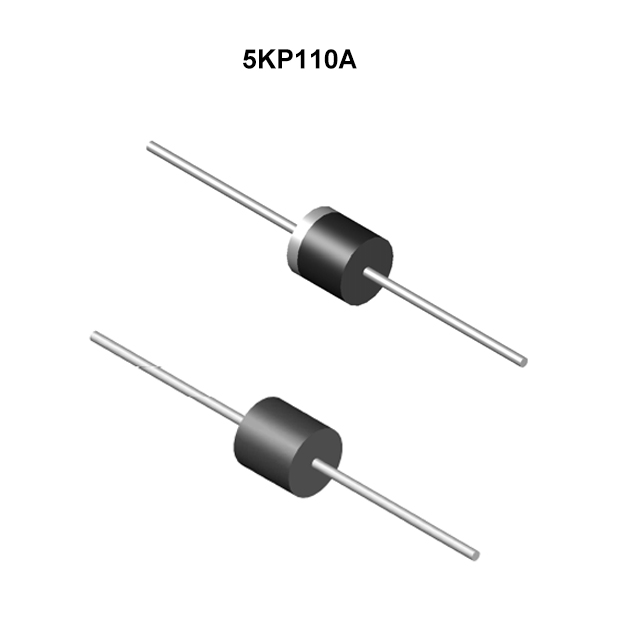

5000W Transient Voltage Suppressor Diodes, R-6, 5KP110A

5000W Transient Voltage Suppressor Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 5KP110A

  • Merry

5000W Transient Voltage Suppressor Diodes, R-6, 5KP110A

Features :
- Excellent clamping capability
- Low dynamic impedance
- Solder dip 275 °C max. 7 s, per JESD 22-B106

Mechanical Date :
- Package: R-6
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Color band denotes cathode end

5KP110AName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

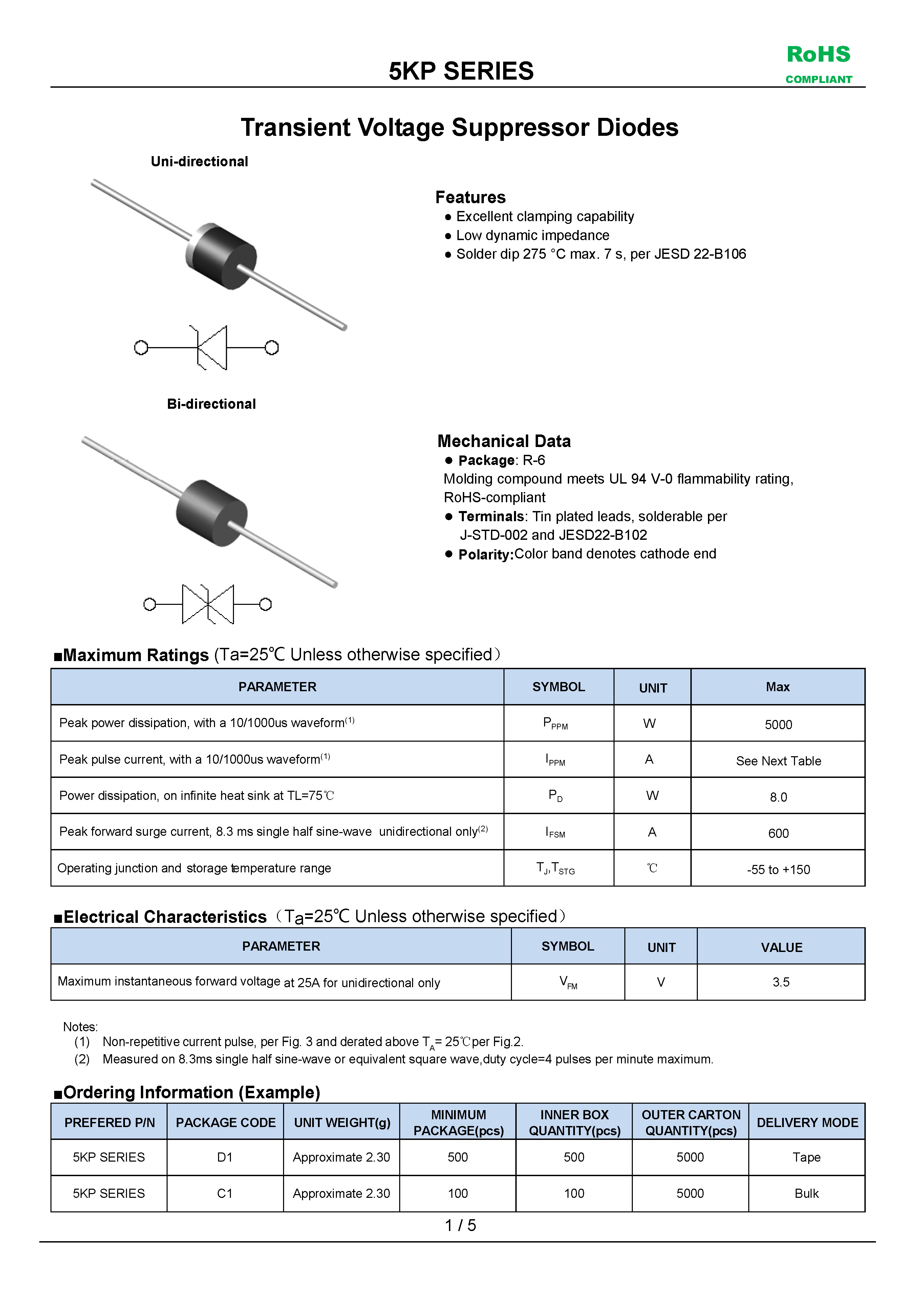

5KP110A-1_页面_1

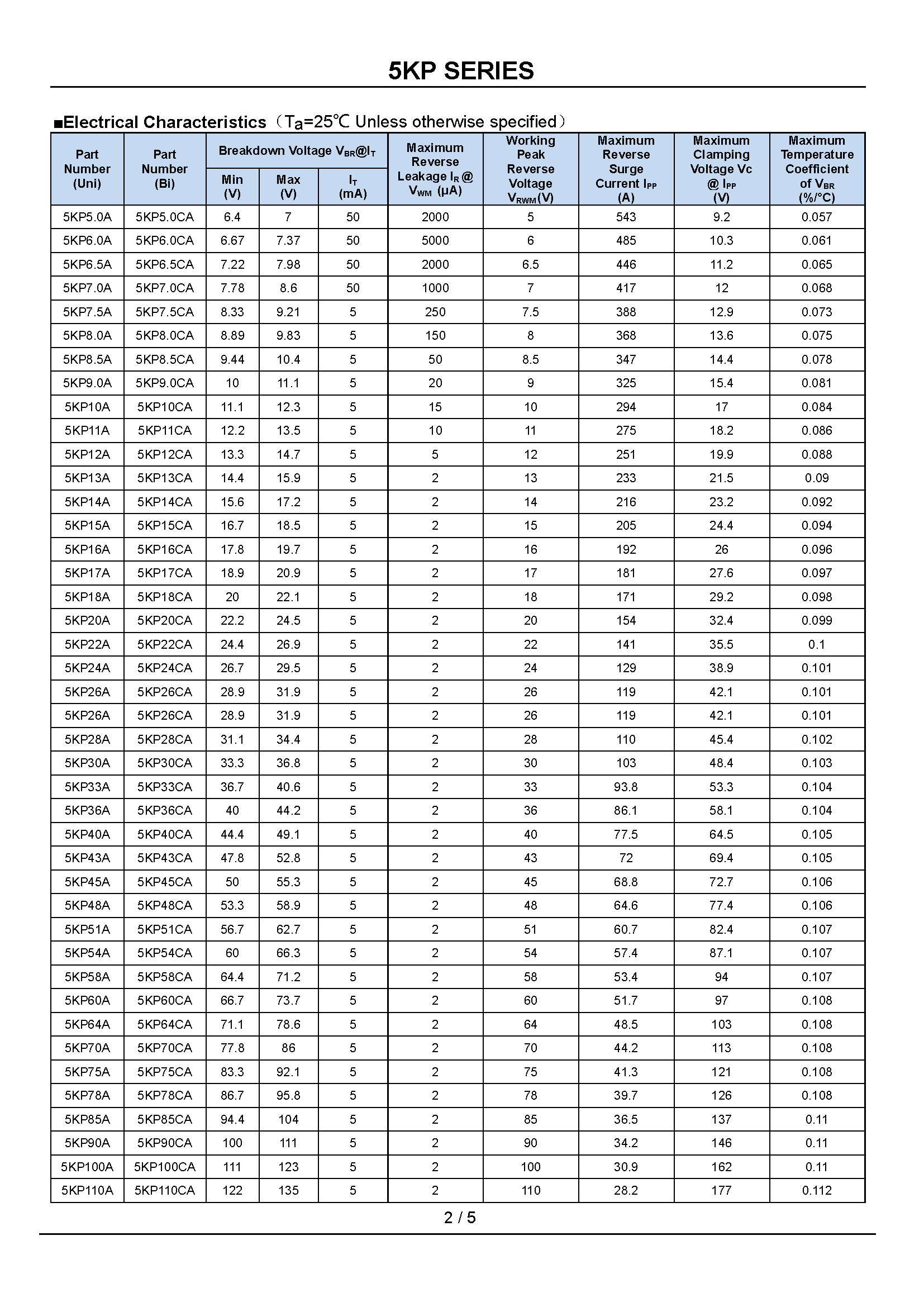

5KP110A-1_页面_2

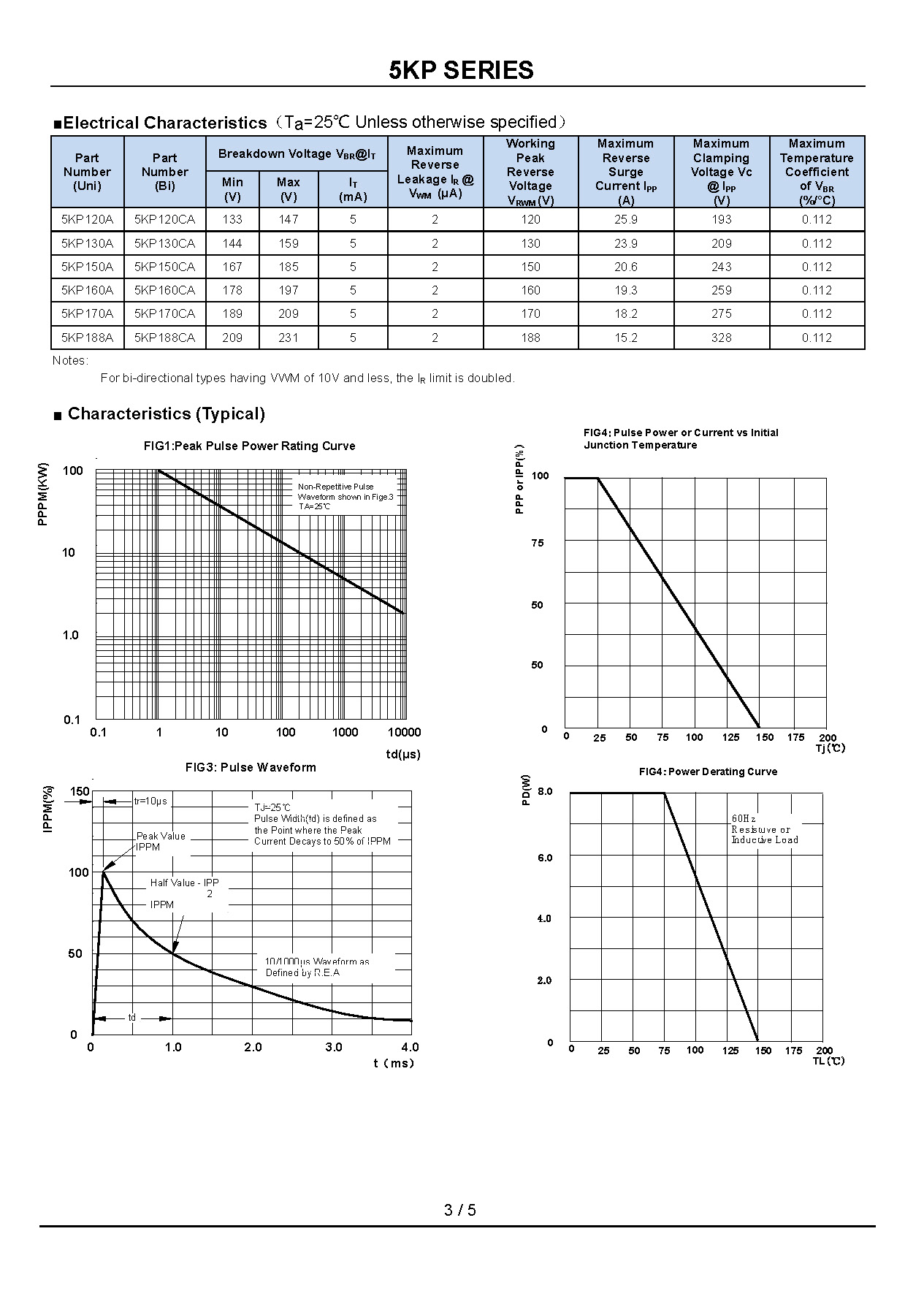

5KP110A-1_页面_3
