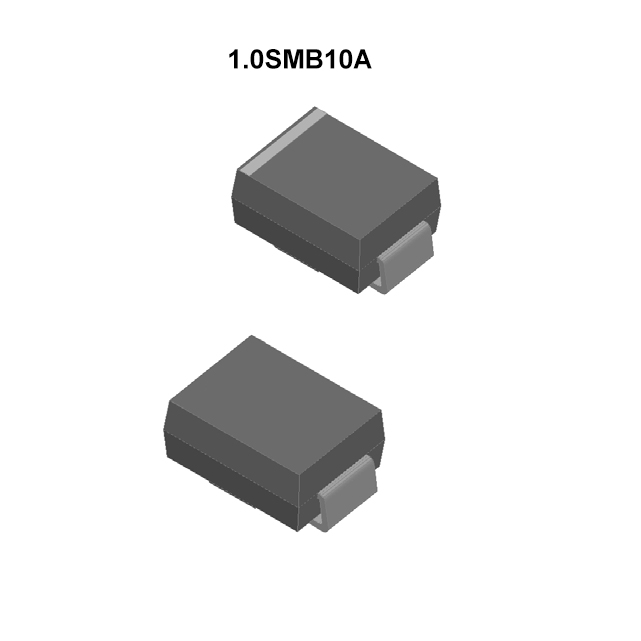

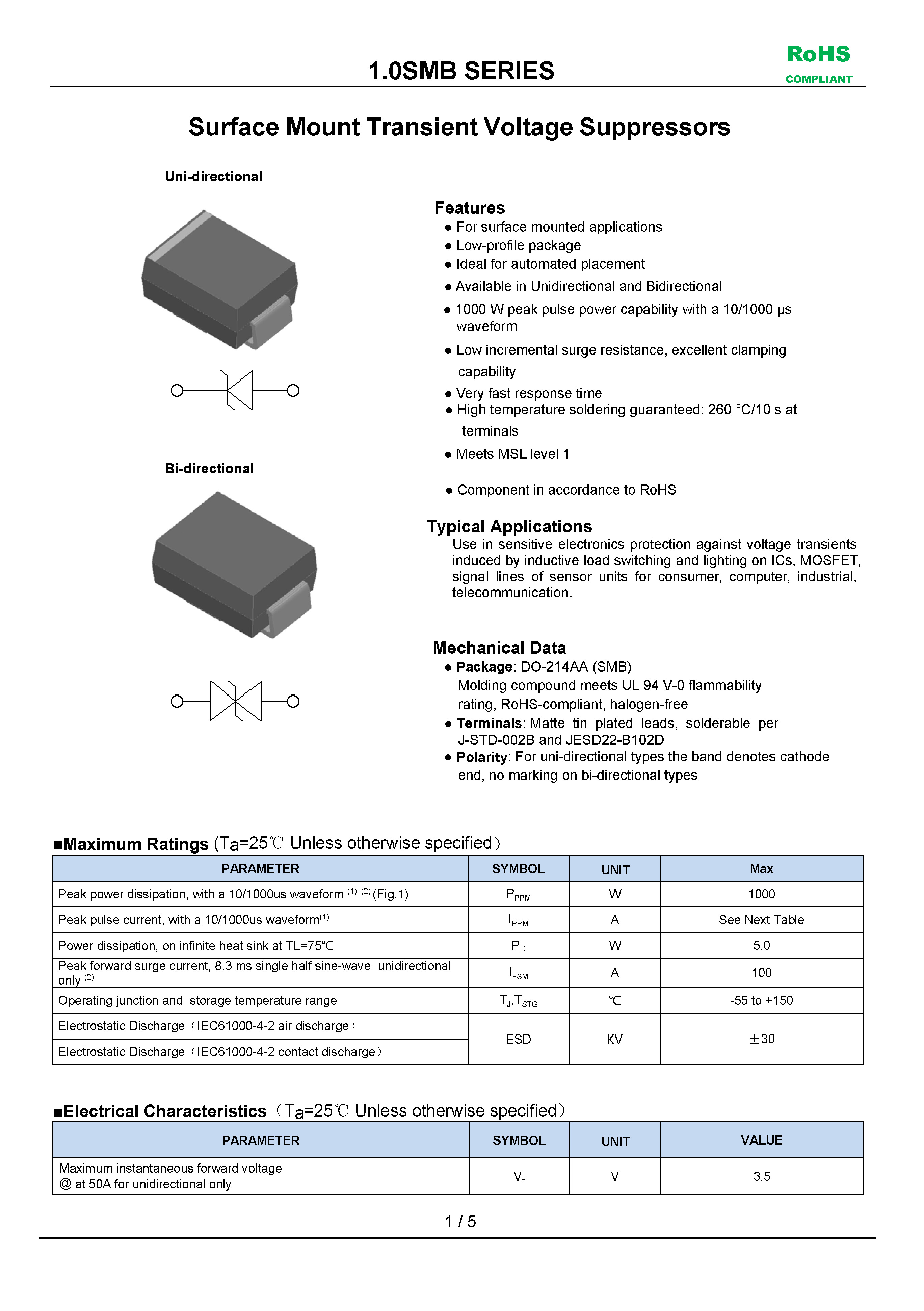

1000W Surface Mount Transient Voltage Suppressors, SMB, 1.0SMB10A
Features :
- For surface mounted applications
- Low-profile package
- Ideal for automated placement
- Available in Unidirectional and Bidirectional
- 1000 W peak pulse power capability with a 10/1000 μs waveform
- Low incremental surge resistance, excellent clamping capability
- Very fast response time
- High temperature soldering guaranteed: 260 °C/10 s at terminals
- Meets MSL level 1 Bi-directional
- Component in accordance to RoHS

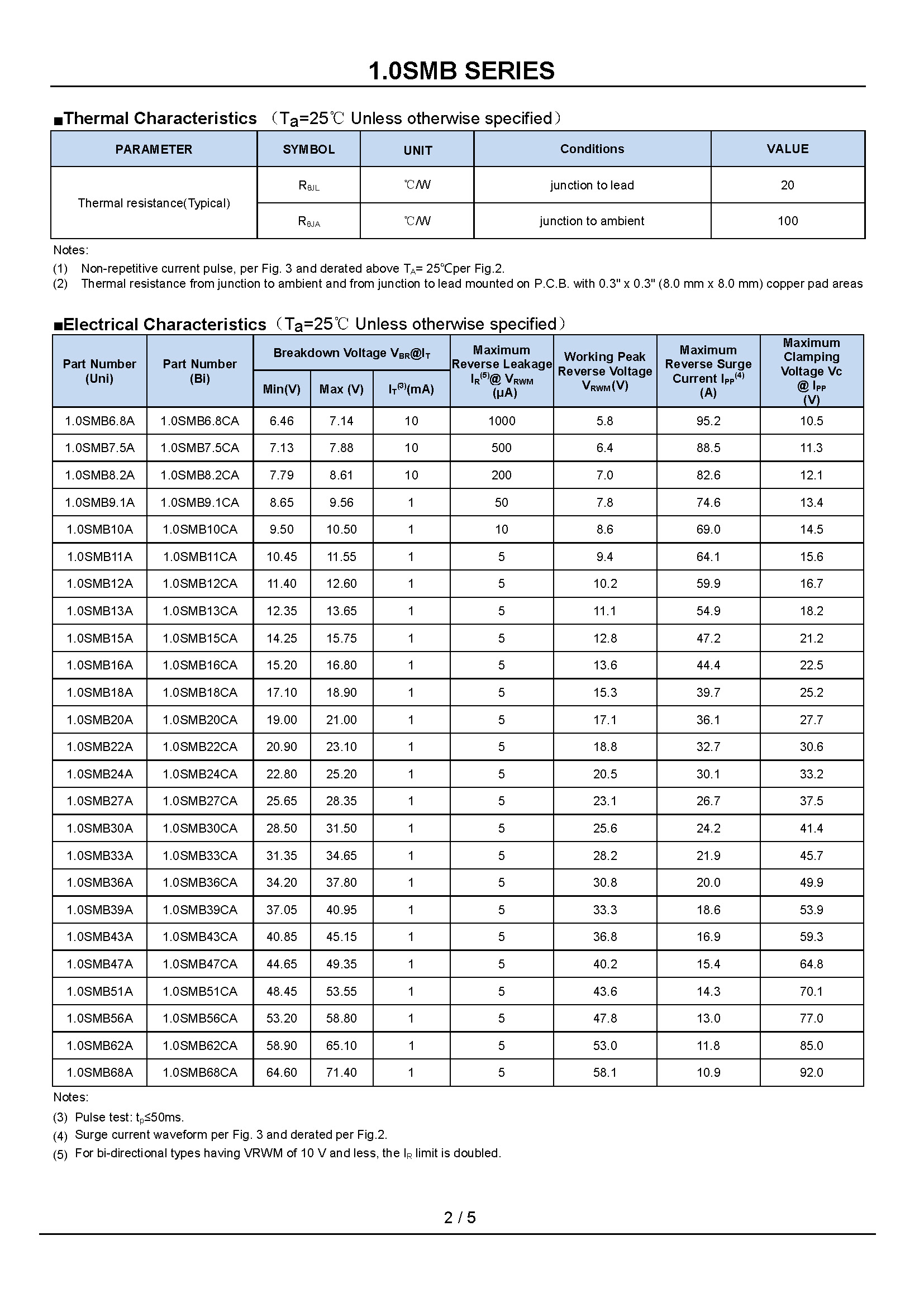

Mechanical Date :
- Package: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Matte tin plated leads, solderable per J-STD-002B and JESD22-B102D
- Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types

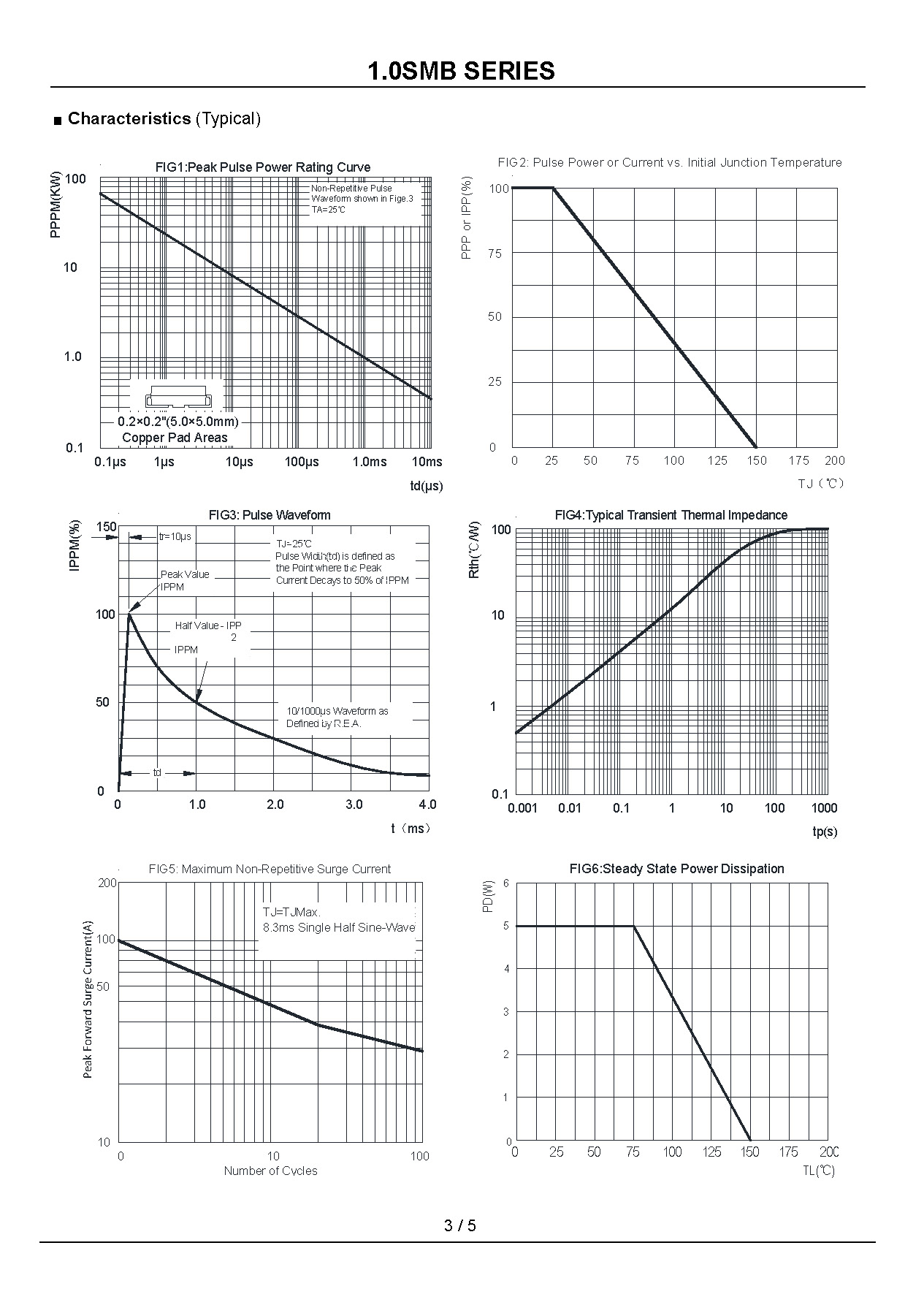

Typical Applications :
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication.
