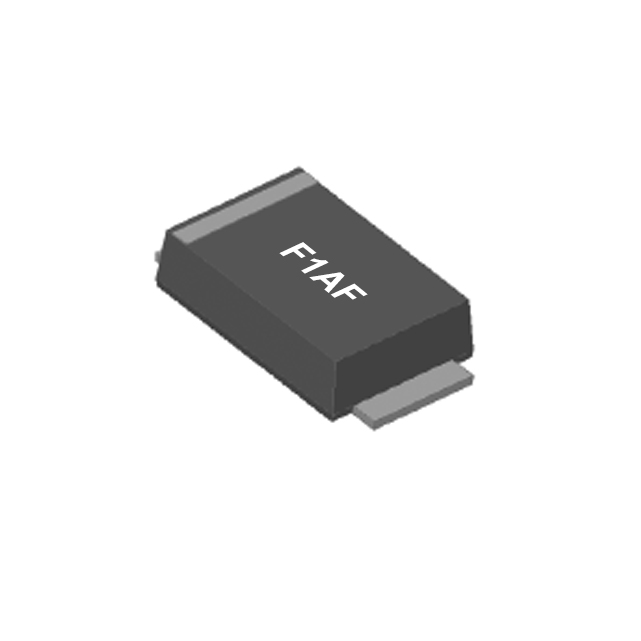

50V 1A Surface Mount Fast Recovery Rectifier, SMAF, F1AF
Features :
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- High forward surge capability
- Fast reverse recovery time
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
Mechanical Date :
- Package: SMAF
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
Typical Applications :
- For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication.
