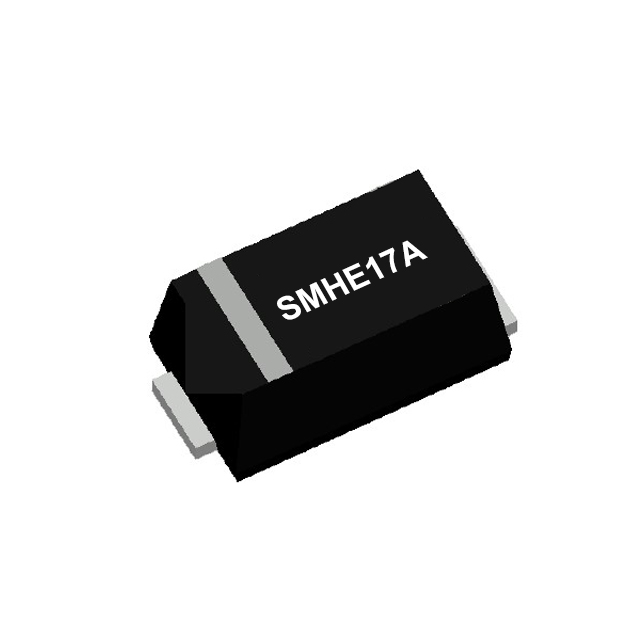

150W Uni Surface Mount Transient Voltage Suppressor, SOD-323HE, SMHE17A

150W Uni Surface Mount Transient Voltage Suppressor
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • SMHE17A

  • Merry

150W Uni Surface Mount Transient Voltage Suppressor, SOD-323HE, SMHE17A

Features :
- For surface mounted applications
- Low-profile package
- Ideal for automated placement
- Available in Unidirectional
- 150 W peak pulse power capability with a 10/1000 μs waveform
- Low incremental surge resistance, excellent clamping capability
- Very fast response time
- High temperature soldering guaranteed: 260 °C/10 s at terminals
- Meets MSL level 1
- Component in accordance to RoHS

Mechanical Date :
- Package: SOD-323HE
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: For uni-directional types the band denotes cathode end

Typical Applications :
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication

SMHE17AName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

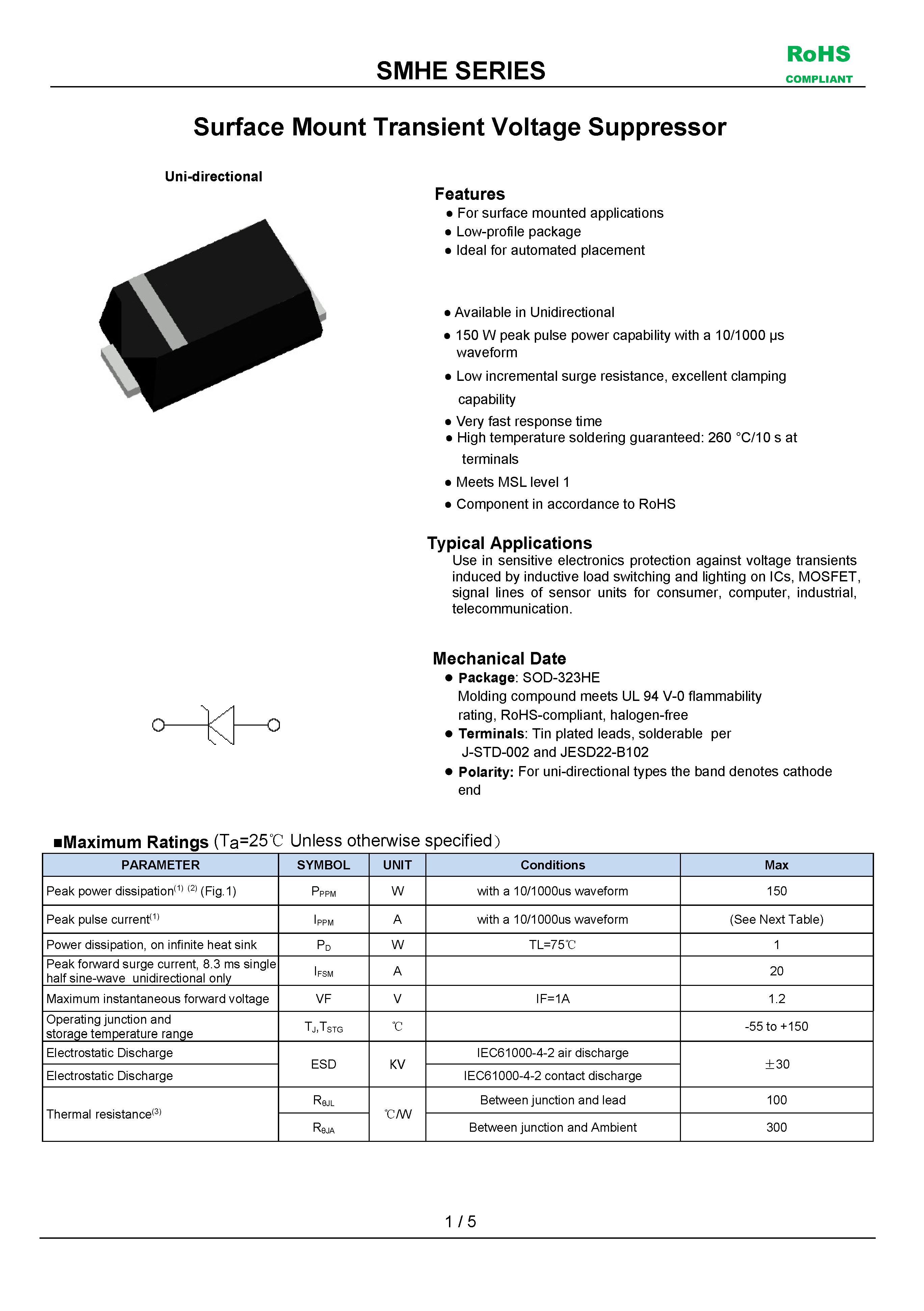

SMHE17A-1_页面_1

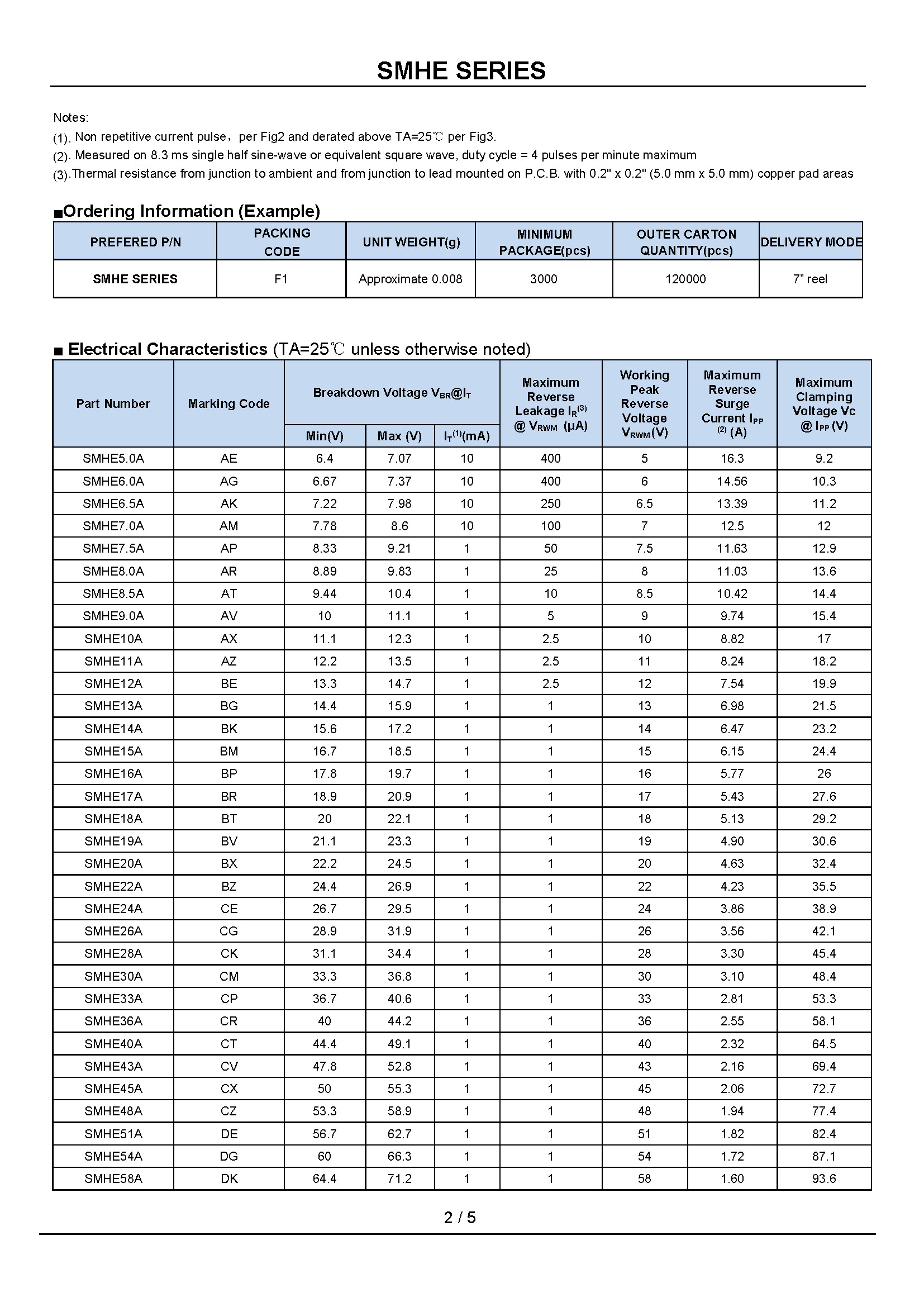

SMHE17A-1_页面_2

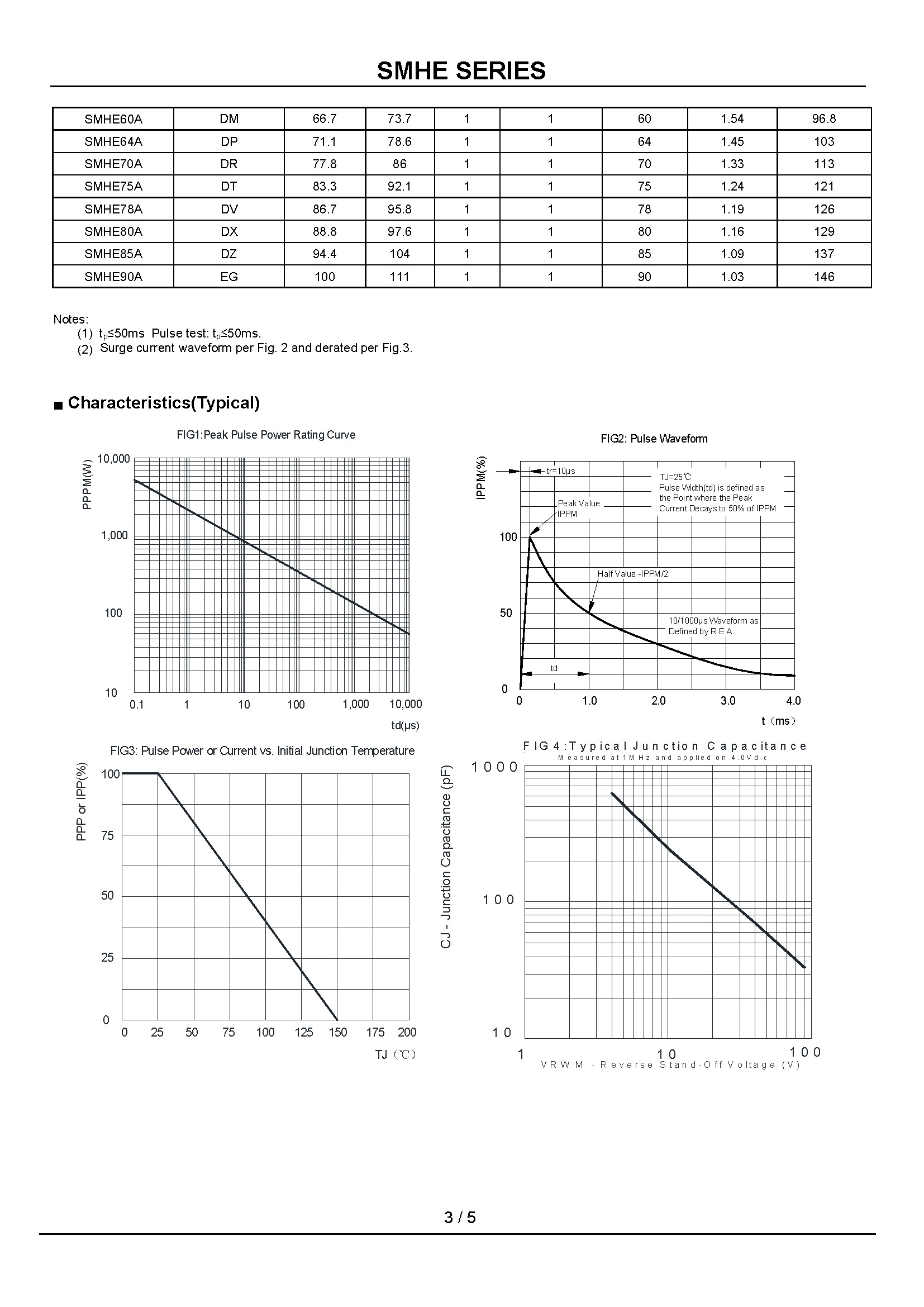

SMHE17A-1_页面_3
