100V 500mA SOT-23 Plastic-Encapsulate Surface Mount Switching Diode MMBD7000

Features
Fast Switching Device Signal(TRR<4 nS)
Power Dissipation of 225mW
High Stability and High Reliability
Low Reverse Leakage

Mechanical Data

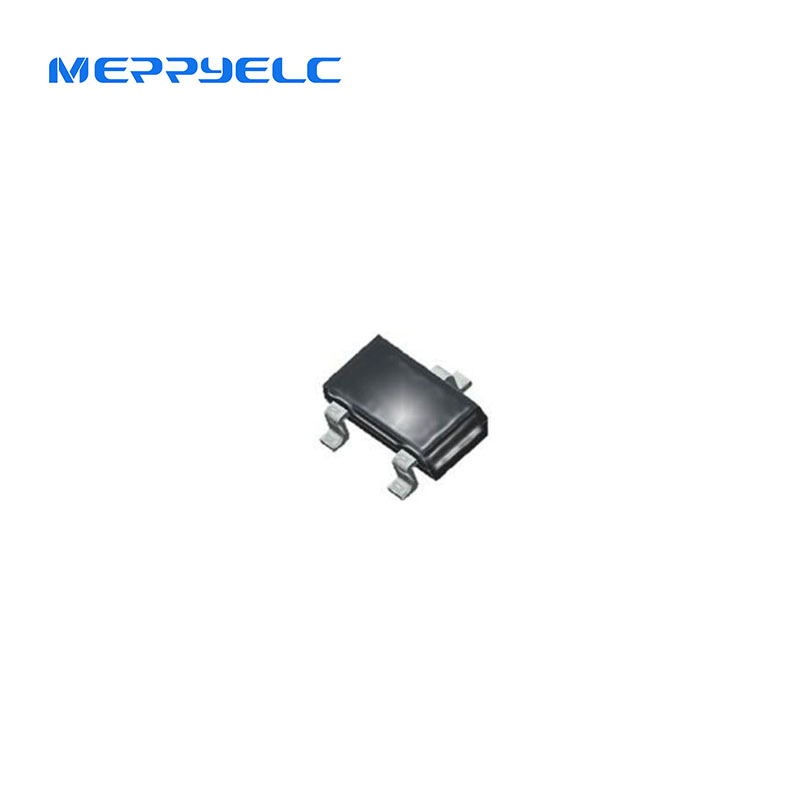

Case: SOT23 Package
Case Material: "Green" Molding Compound UL Flammability Classification Rating 94V-0

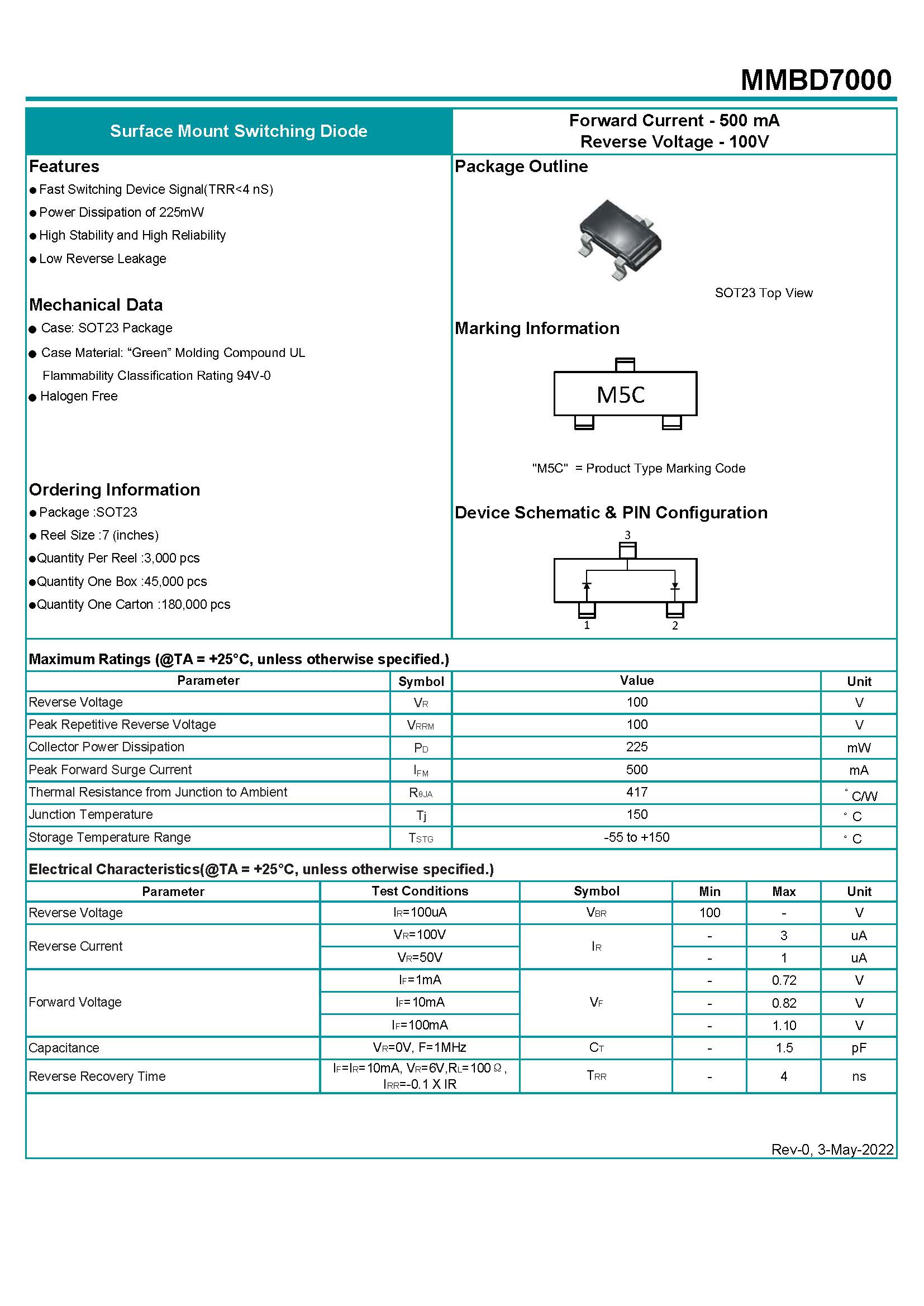

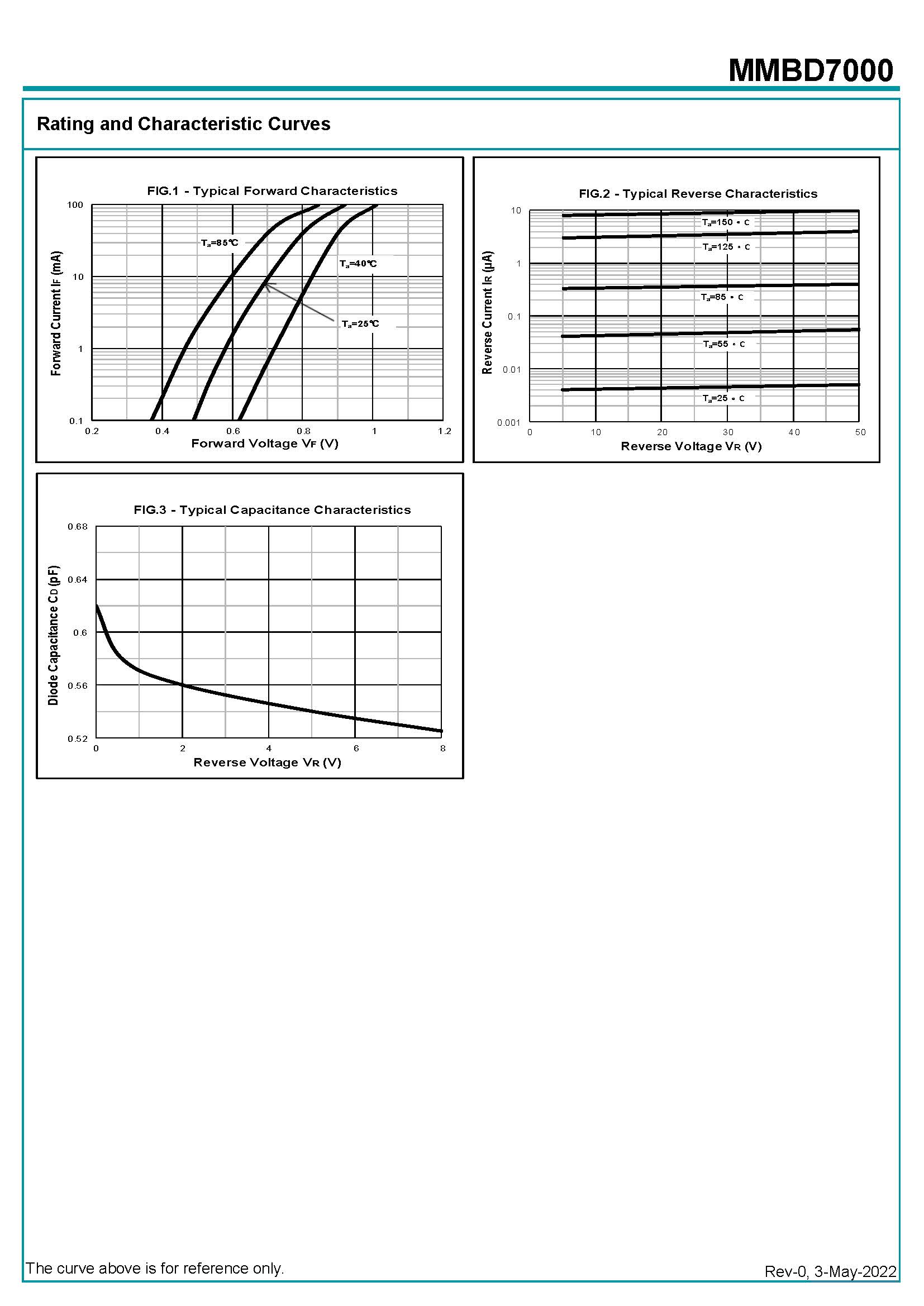

MMBD7000.pdf
