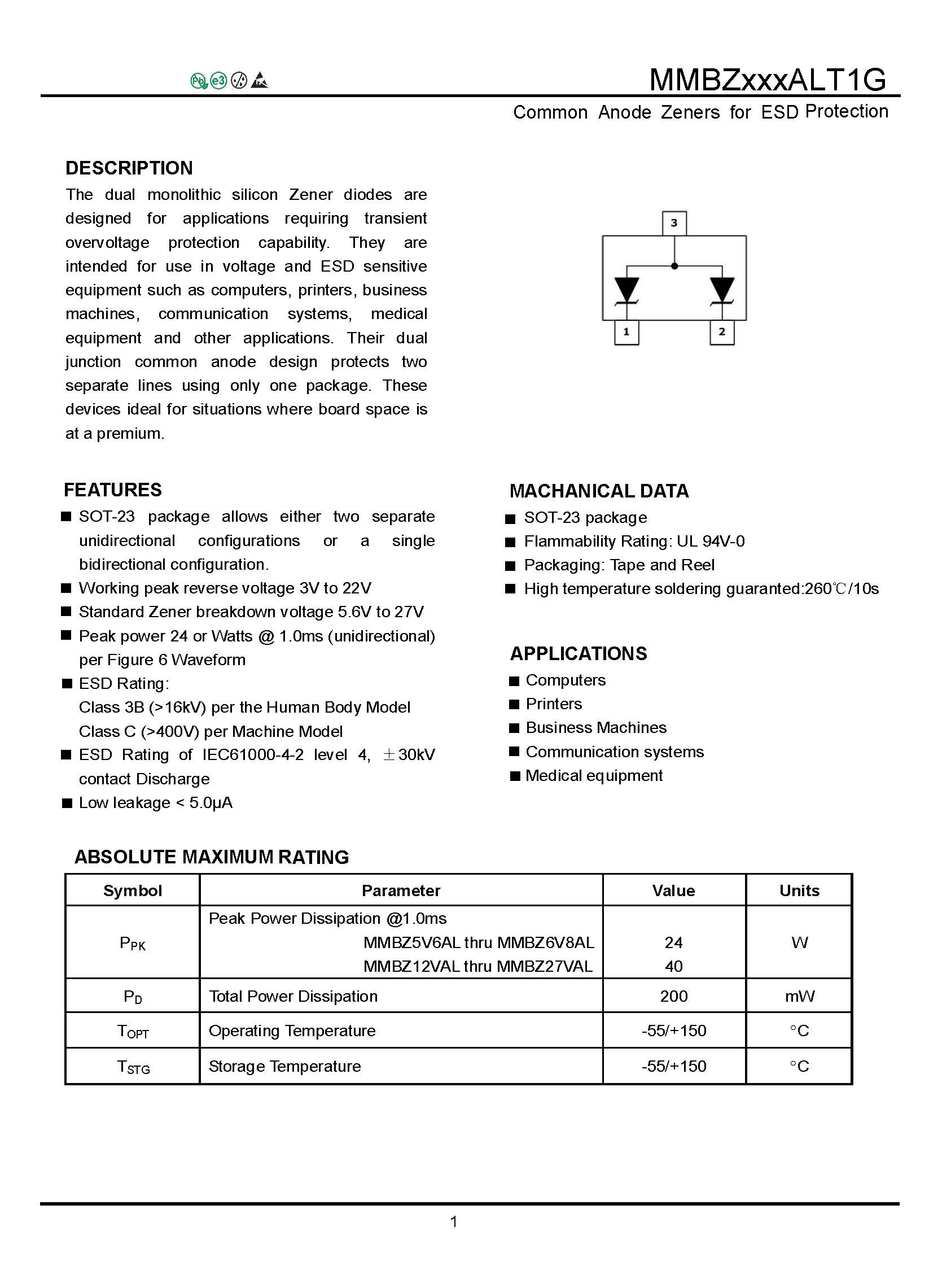

Common Anode Zeners for ESD Protection silicon zener diodes SOT-23 package MMBZ5V6AL

DESCRIPTION
The dual monolithic silicon Zener diodes aredesigned for applications requiring transientovervoltage protection capability. They areintended for use in voltage and ESD sensitiveequipment such as computers, printers, businesscommunication systems, medicalmachines,equipment and other applications. Their dualjunction common anode design protects twoseparate lines using only one package. Thesedevices ideal for situations where board space isat a premium.

Features
SOT-23 package allows either two separateunidirectional configurationssingleorbidirectional configuration.
Working peak reverse voltage 3V to 22V
Standard Zener breakdown voltage 5.6V to 27V

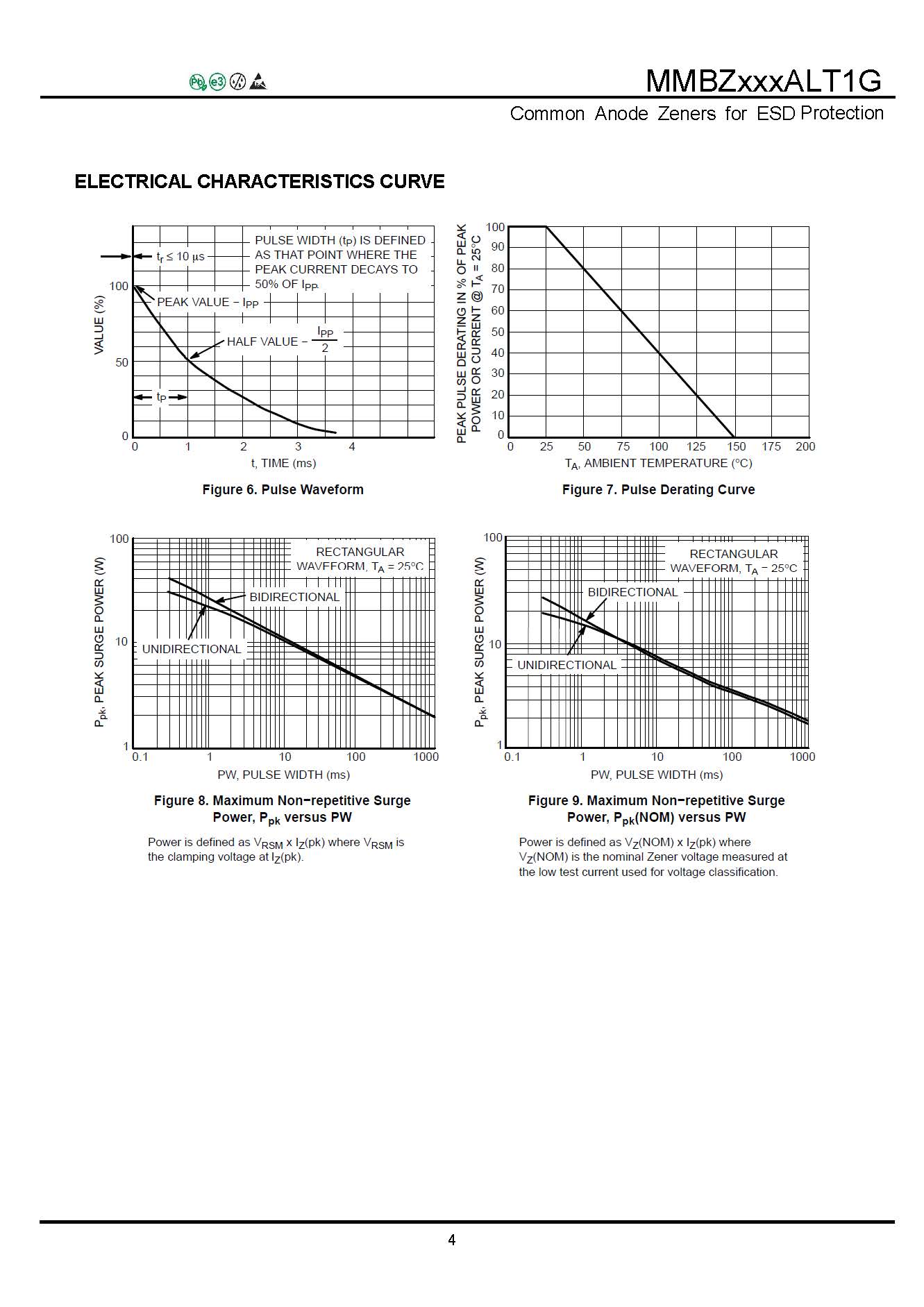

Peak power 24 or Watts @ 1.0ms (unidirectional)per Figure 6 Waveform
ESD Rating:
Class 3B (>16kV) per the Human Body Model
Class C (>400V) per Machine Model
ESD Rating of lEC61000-4-2 level 4,+/-30kVcontact Discharge
Low leakage < 5.0μA

MACHANICAL DATA

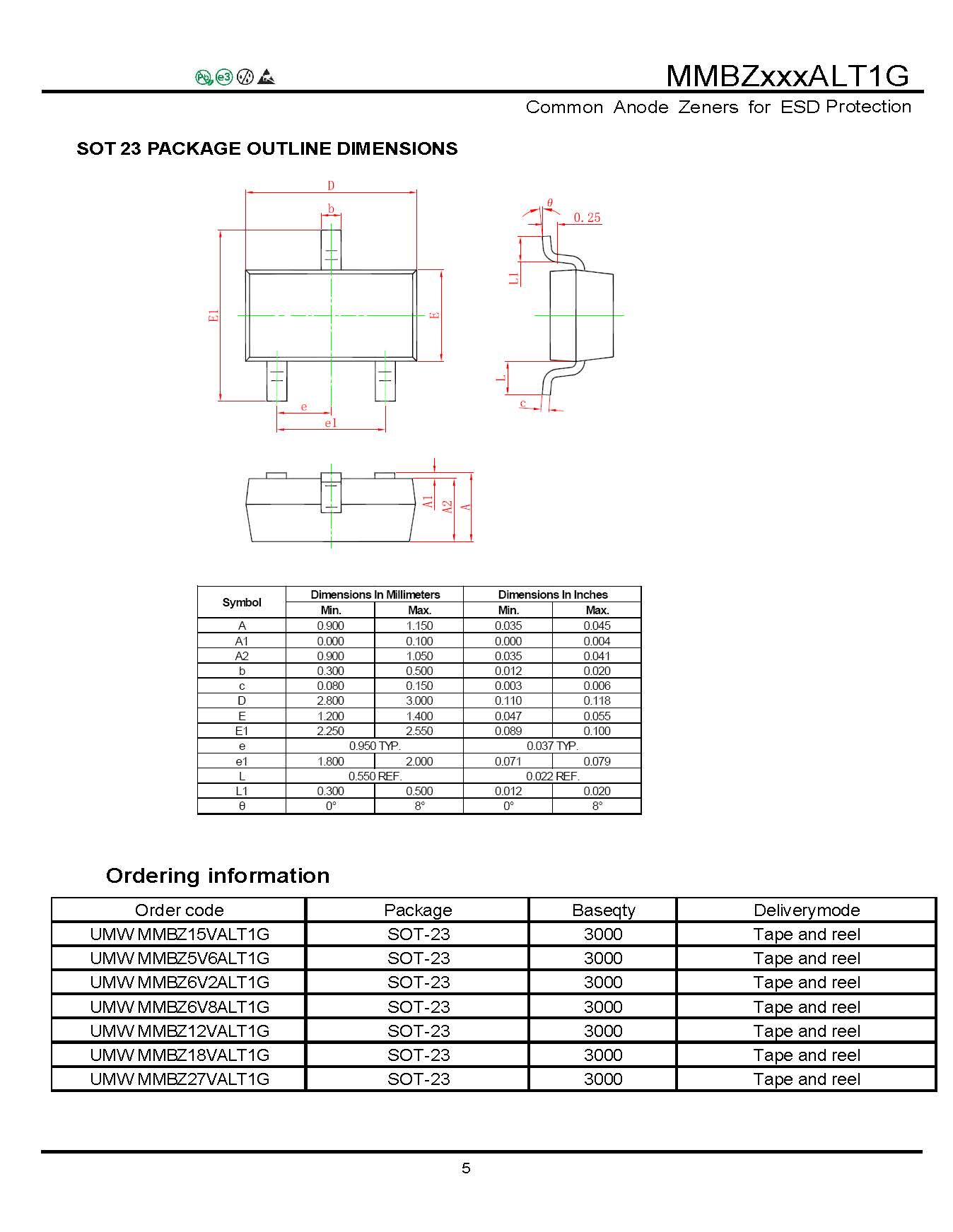

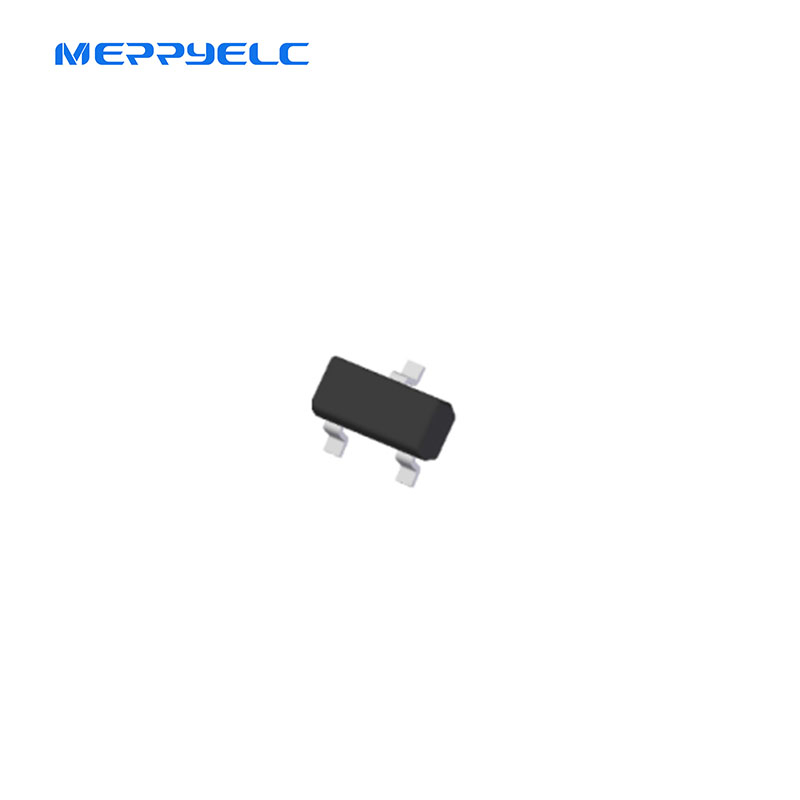

SOT-23 package
Flammability Rating: UL 94V-0
Packaging: Tape and Reel
High temperature soldering guaranted:260ºC/10s

APPLICATIONS
Computers
Printers
Business Machines
Communication systems
Medical equipment

MMBZ5V6AL.pdf
