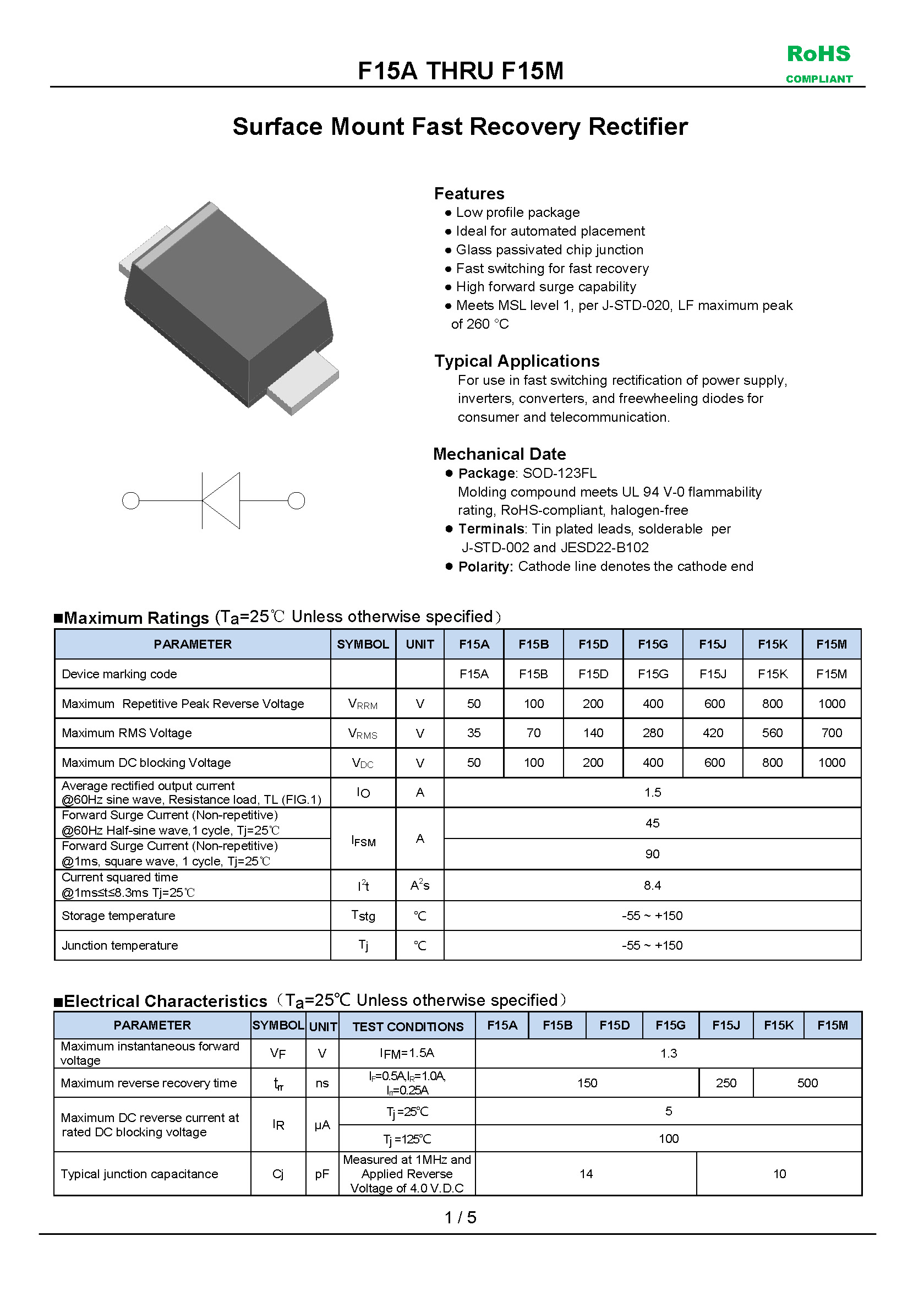

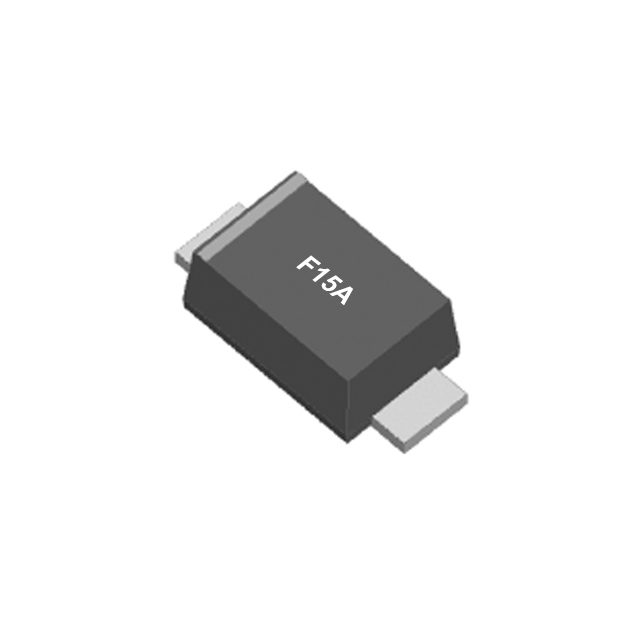

50V 1.5A Surface Mount Fast Recovery Rectifier, SOD-123FL, F15A
Features :
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Fast switching for fast recovery
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
Mechanical Date :
- Package: SOD-123FL
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
Typical Applications :
- For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication.
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
50V 1.5A Surface Mount Fast Recovery Rectifier, SOD-123FL, F15A
Features :
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Fast switching for fast recovery
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
Mechanical Date :
- Package: SOD-123FL
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
Typical Applications :
- For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication.
