G3S06516B
Product Name:

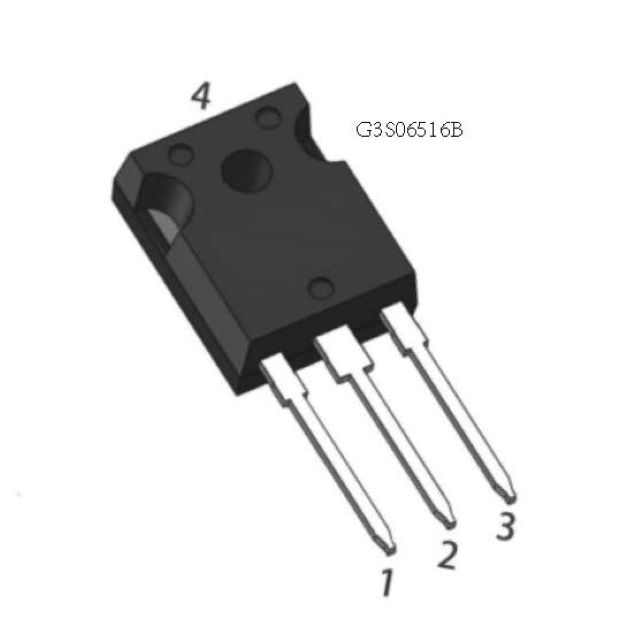

650V/16A Silicon Carbide Power Schottky Barrier Diode G3S06516B TO-247AB
Product Description:
Features:
• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
Benefits:
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
Applications:
• SMPS, e.g., CCM PFC;
• Motor drives, Solar application, UPS, Wind turbine, Rail traction, EV/HEV
Introducing the 650V/16A Silicon Carbide Power Schottky Barrier Diode G3S06516B TO-247AB, a cutting-edge solution for controlling circuit switching states. This professional-grade diode offers exceptional performance and reliability, making it an ideal choice for various applications.
With a voltage rating of 650V and a current handling capacity of 16A, this diode ensures efficient power management and enables smooth operation even under high load conditions. Its Silicon Carbide technology provides superior electrical characteristics, including low forward voltage drop and fast switching speed, resulting in reduced power losses and enhanced system efficiency.
The G3S06516B TO-247AB package offers excellent thermal conductivity, ensuring effective heat dissipation and maintaining optimal diode performance. This package type is widely recognized for its robustness and ease of installation, making it suitable for demanding industrial environments.
Designed with precision and built to last, this Schottky Barrier Diode guarantees reliable and stable operation over an extended lifespan. Its professional-grade construction ensures consistent performance, making it an ideal choice for critical control circuit applications.
In summary, the 650V/16A Silicon Carbide Power Schottky Barrier Diode G3S06516B TO-247AB is a top-of-the-line product that combines advanced technology, exceptional performance, and reliability. With its ability to control circuit switching states, this diode is a valuable asset for professionals seeking optimum power management solutions.
Product Specifications:
