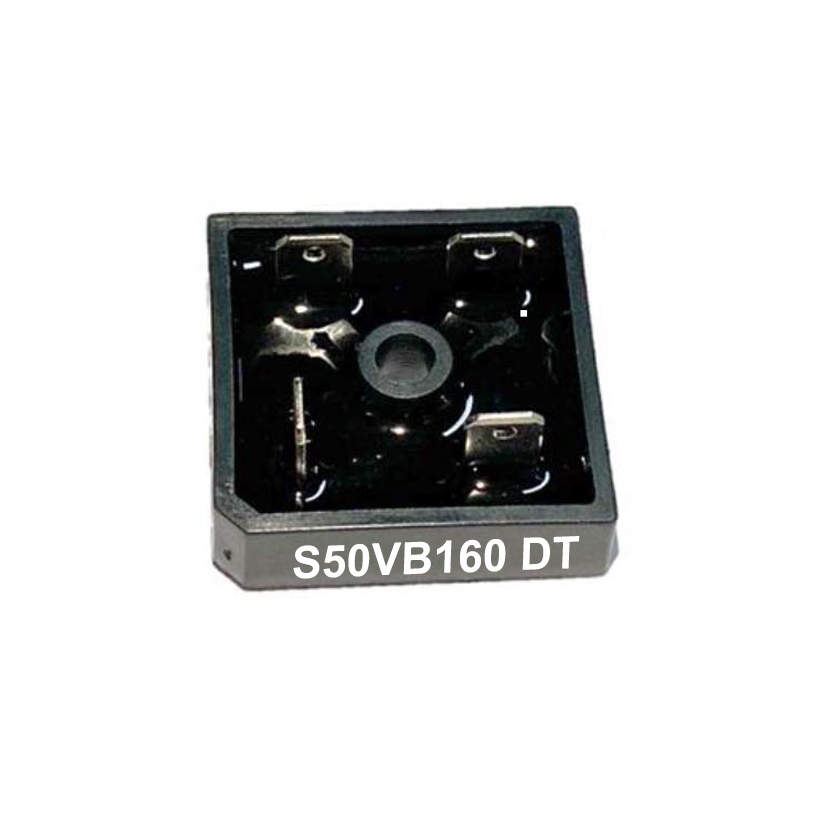

S50VB160 DT
Merry
Bridge Rectifiers, VRM: 1600V, Io: 50A, IFSM: 500A, fetures, applications, S50VB DT, S50VB80 DT THRU S50VB160 DT
Features :
- Universal 3-way terminals: wire wrap-around,or PCB mounting
- Low thermal resistance
- Glass passivated chip junction
- High surge current capability
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications :
- General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications.
Mechanical Data :
- Package: S50VB DT
Molding compound meets UL 94 V-0 flammability rating
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
