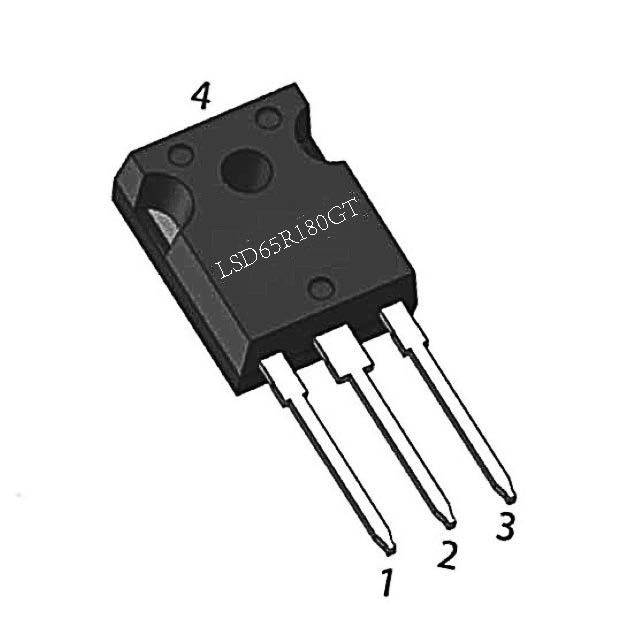

LSD65R180GT
Product Name:

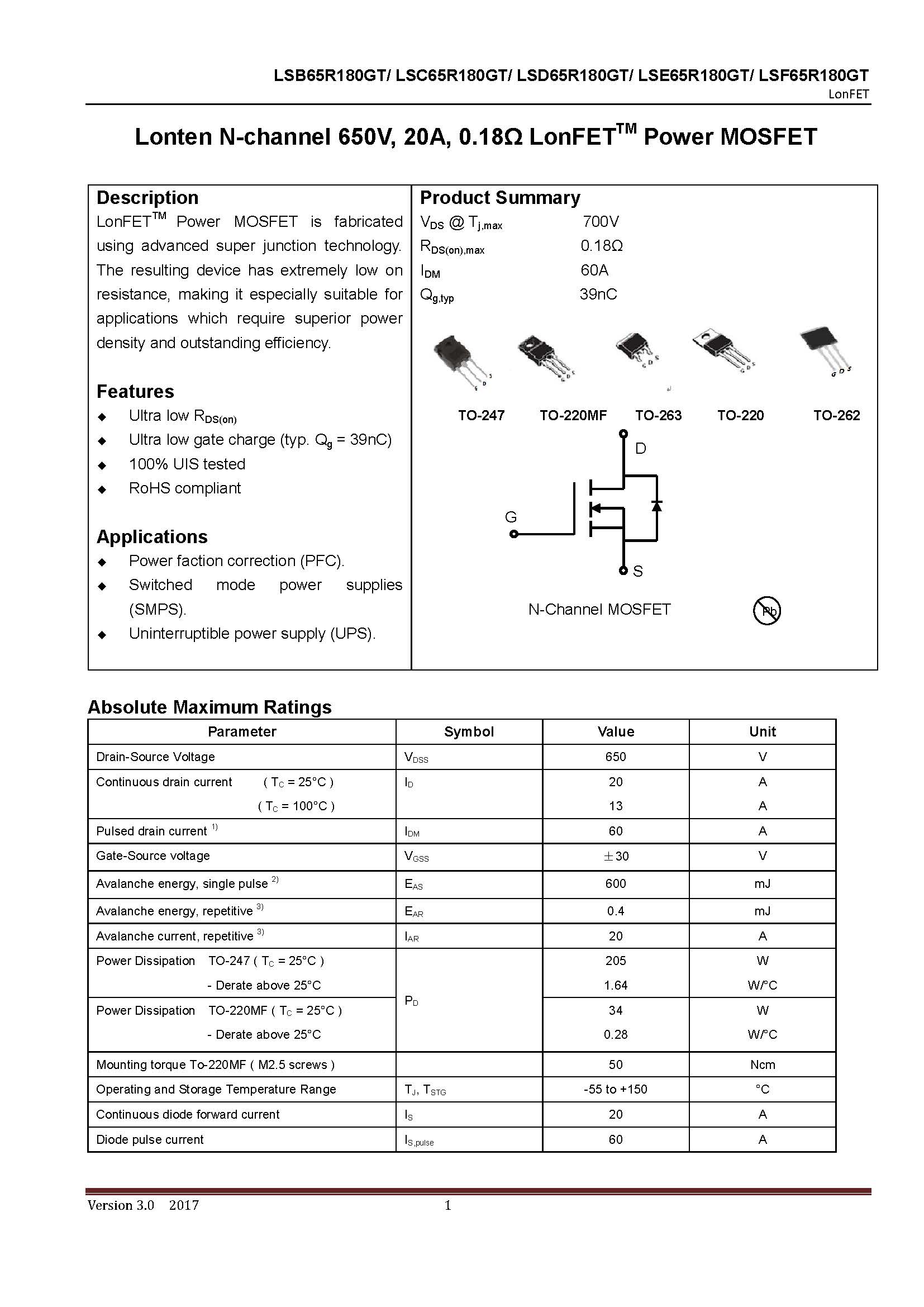

High Voltage Lonten N-channel 650V, 20A, 0.18Ω LonFETTM Power MOSFET LSD65R180GT
Product Description:
Description:
LonFETTM Power MOSFET is fabricated
using advanced super junction technology.
The resulting device has extremely low on
resistance, making it especially suitable for
applications which require superior power
density and outstanding efficiency
Features:
Ultra low RDS(on)
Ultra low gate charge (typ. Qg = 39nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction (PFC).
Switched mode power supplies
(SMPS).
Uninterruptible power supply (UPS).
Product Summary:
VDS Tj,max: 700V
RDS(on),max: 0.18Ω
IDM: 60A
Qg,typ: 39nC
Introducing the High Voltage Lonten N-channel 650V, 20A, 0.18Ω LonFETTM Power MOSFET LSD65R180GT. This cutting-edge power MOSFET is designed to optimize performance and enhance efficiency in various applications.
With a voltage rating of 650V, this N-channel MOSFET ensures reliable operation even in high voltage environments. Its impressive 20A current capability allows for robust power handling, making it suitable for demanding power applications.
One of the key features of this Power MOSFET is its low on-resistance of 0.18Ω. This attribute minimizes power losses, resulting in improved overall system efficiency. By reducing energy wastage, this MOSFET helps to maximize the utilization of electrical power, ultimately leading to cost savings and environmental benefits.
LonFETTM Power MOSFET is fabricated using advanced super junction technology.
The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.
The Coolmos Superjunction technology employed in this MOSFET further enhances its performance. This advanced technology enables efficient switching and reduces conduction losses, resulting in higher efficiency and improved system reliability.
In summary, the High Voltage Lonten N-channel 650V, 20A, 0.18Ω LonFETTM Power MOSFET LSD65R180GT is a professional-grade power component that offers reduced losses and increased efficiency. Its impressive voltage rating, current capability, and low on-resistance make it a reliable choice for various power applications.
